Description

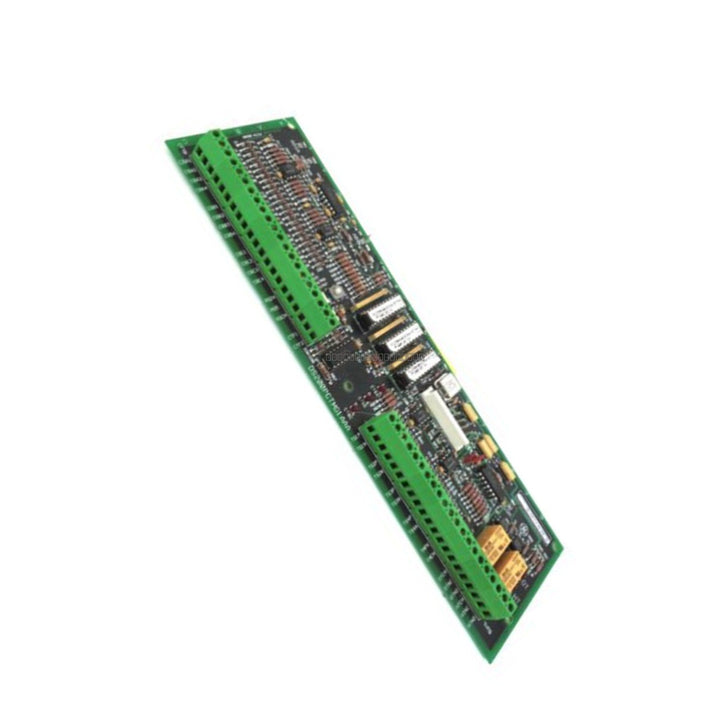

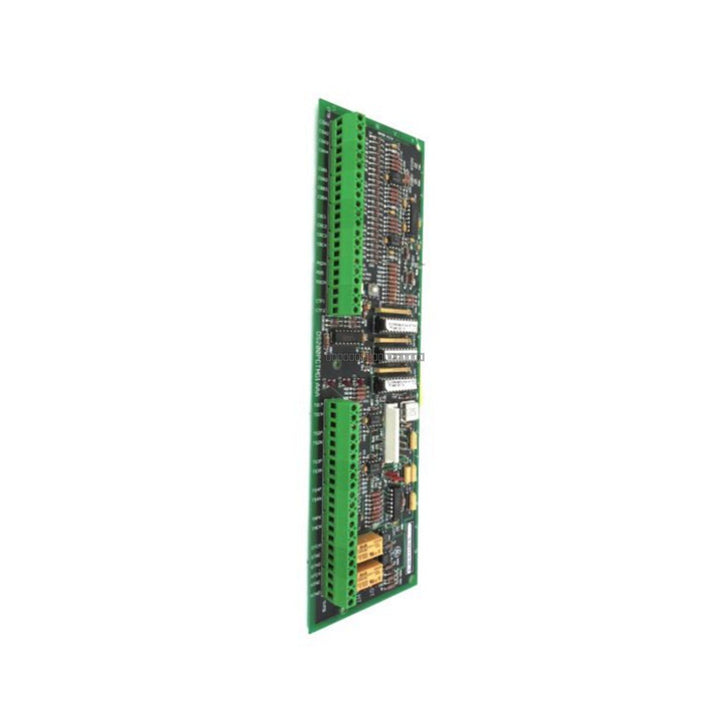

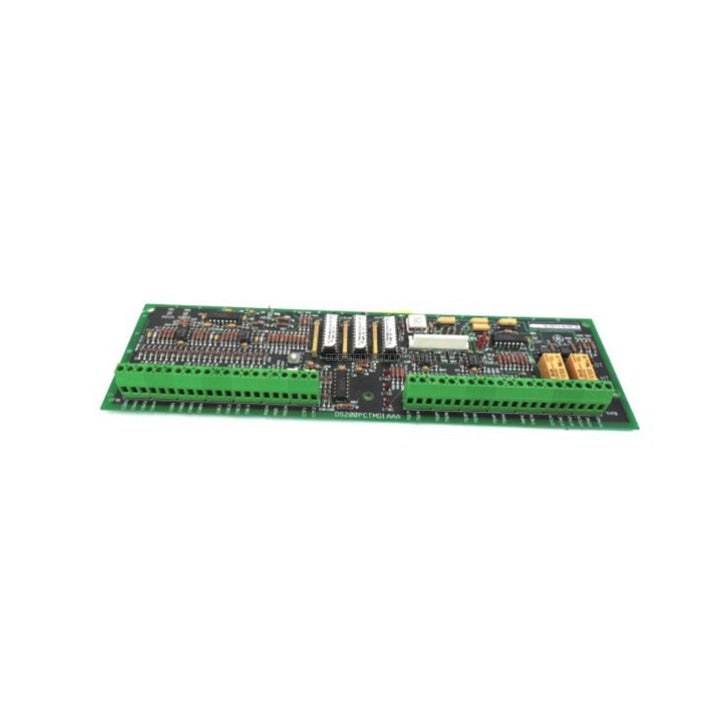

The DS200PCTMG1A is a dedicated Power CT Monitor Board designed for the GE Fanuc Mark V turbine control system. This module provides direct physical monitoring of current transformer (CT) feedback signals, enabling precise tracking of generator and motor line currents. It is engineered for high-velocity signal processing, allowing for the detection of overcurrent, phase shifts, and phase imbalances in demanding industrial environments such as thermal power plants, petrochemical refineries, and large-scale mining operations. By providing rapid fault isolation telemetry to the core control processors, this board helps maintain system integrity and minimize unscheduled downtime.

Features

• Integrated current transformer interfacing circuits for stepping down high-amperage field signals.
• Passive analog conditioning circuitry to mitigate high-frequency line noise and cross-talk.
• Dual-channel isolation topologies to protect logic-level processing zones from high-voltage field transients.
• Hardware-configured jumper settings and front-panel test points for real-time calibration and diagnostic validation.
• Designed for compatibility with the Mark V Speedtronic control architecture.

Applications

This module is primarily used in heavy industrial applications requiring continuous monitoring of electrical current parameters, including power generation, turbine control systems, and large-scale motor drive management.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the board from the rack.
• Handle the module using proper ESD (electrostatic discharge) precautions to prevent damage to sensitive electronic components.
• Verify that all field wiring is properly terminated and shielded to minimize EMI interference.
• Ensure the module is fully seated in the designated Mark V slot and secured using the provided locking mechanisms.
• Use the front-panel test points to verify signal integrity and calibration after installation.

FAQ

What is the primary function of the DS200PCTMG1A?

The DS200PCTMG1A acts as a Power CT Monitor Board, converting high-amperage current transformer signals into low-voltage analog inputs suitable for the Mark V control backplane.

Is this board compatible with other GE series?

This module is specifically engineered for the GE Fanuc Mark V Speedtronic control system. It is not intended for use in other control series.

What should I do if the module reports a fault?

Use the front-panel test points to check the CT loop health and verify that jumper settings are correctly configured for your specific application requirements.
