Description

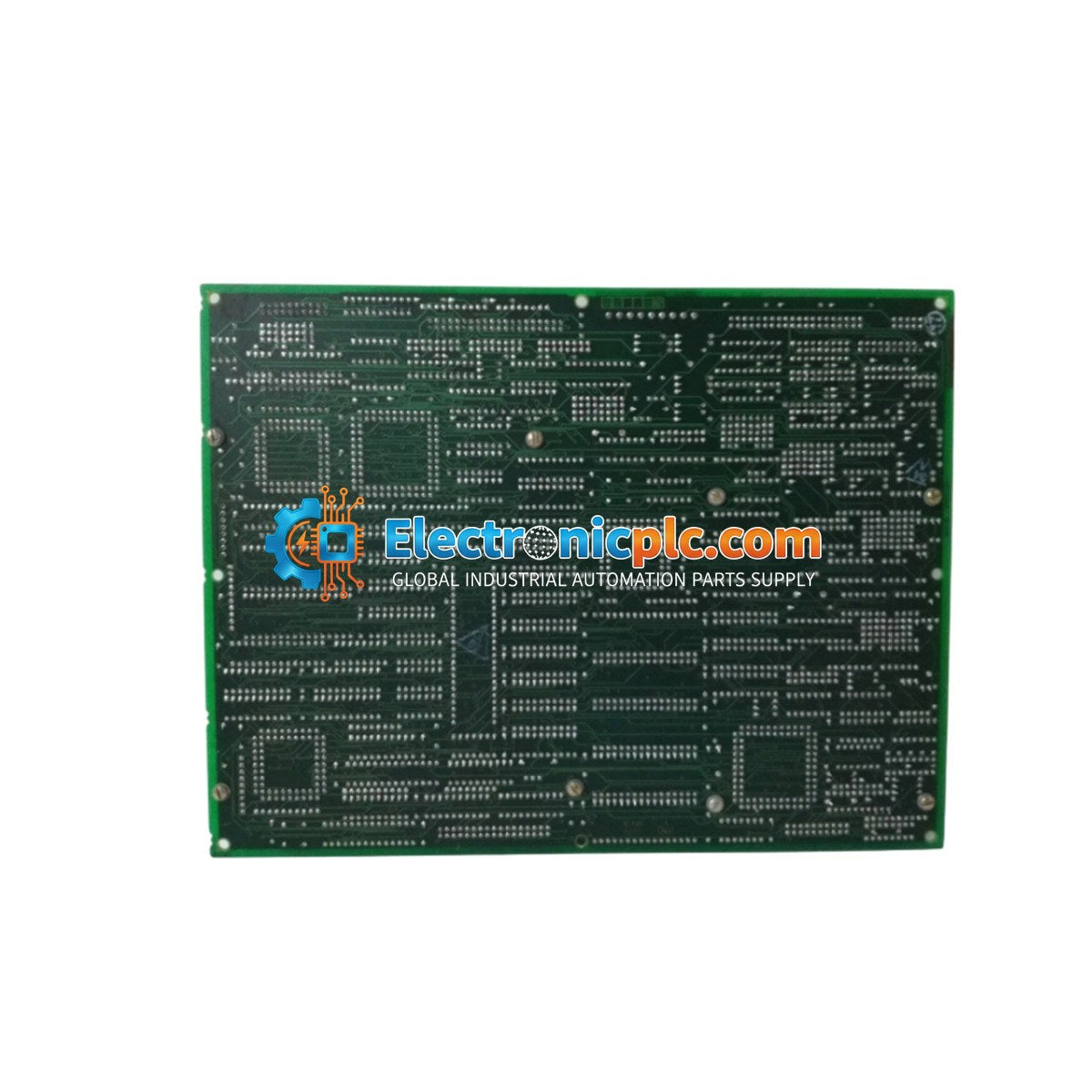

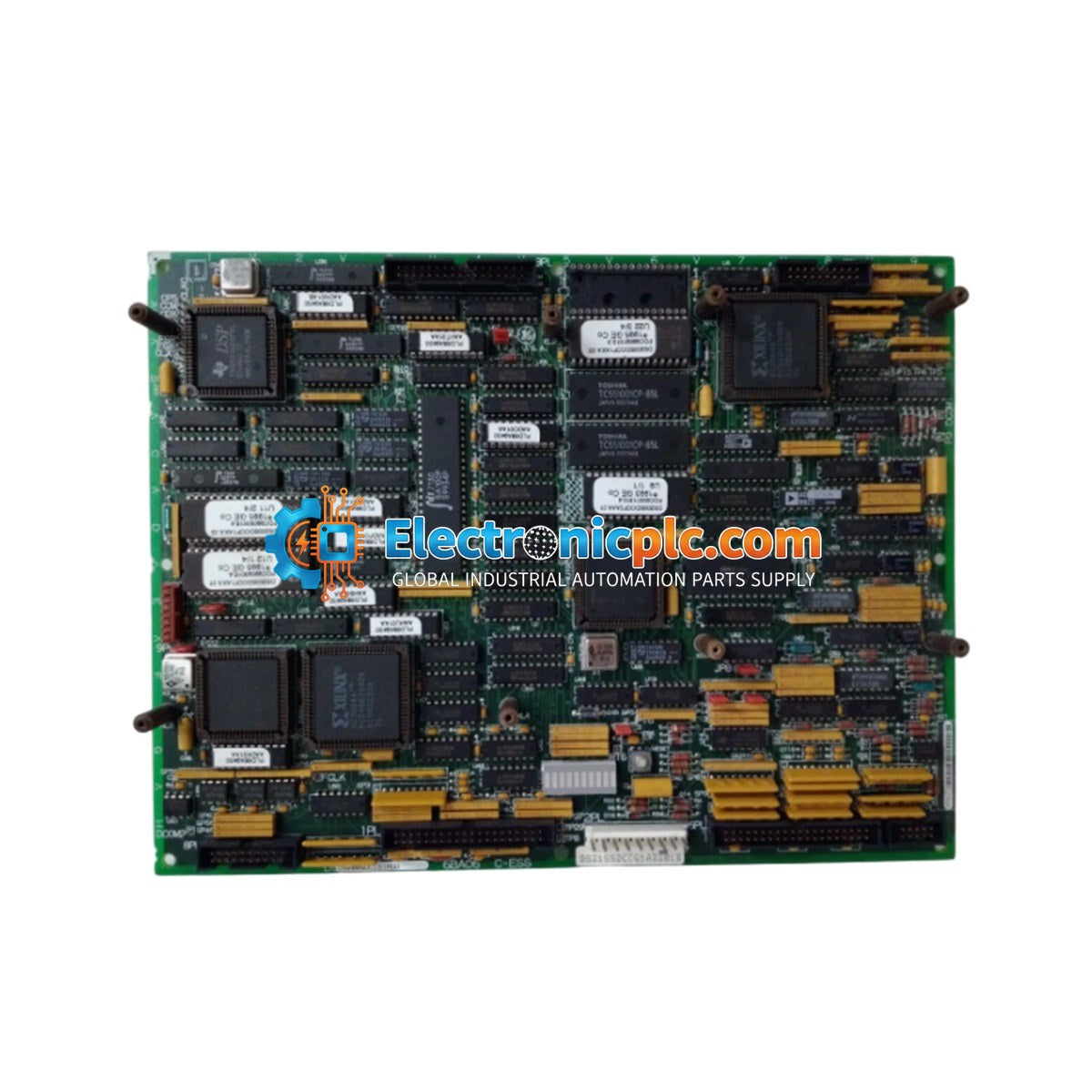

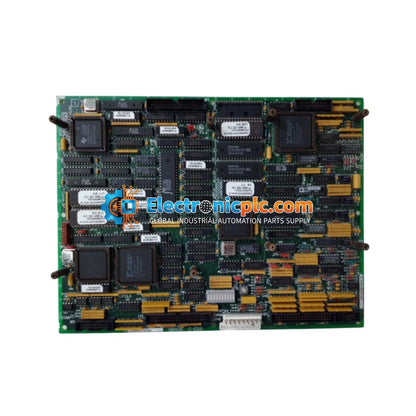

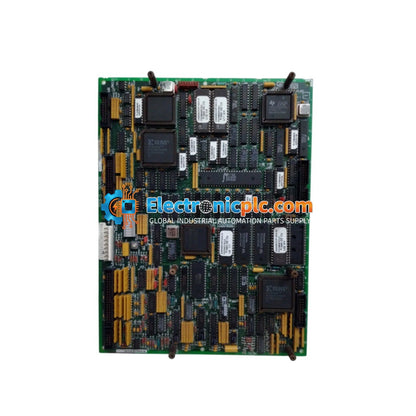

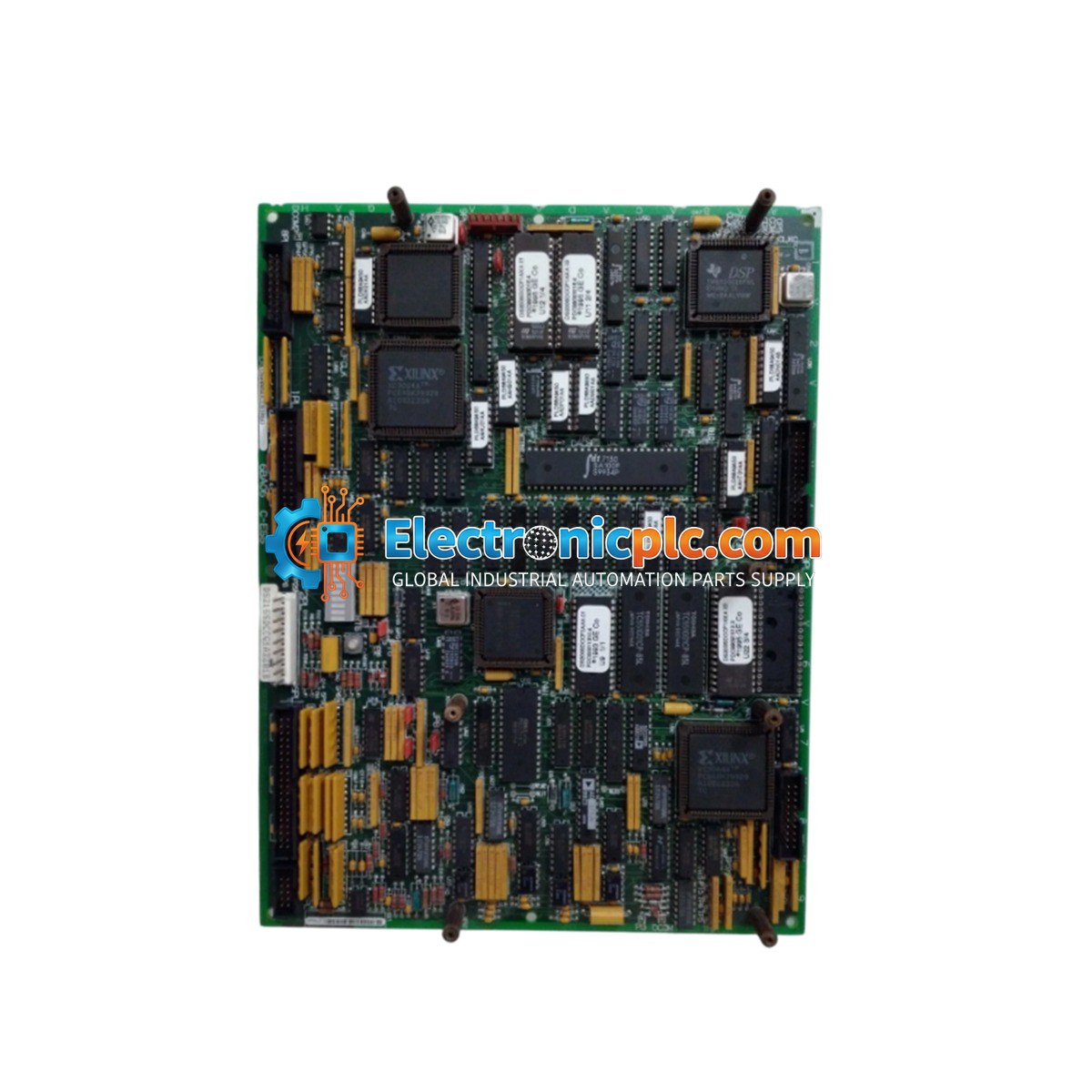

The General Electric DS200SDCCG1AGD is a high-performance Drive Control Board designed for the Mark V turbine and drive control system series. Serving as a primary controller, this CPU board manages real-time regulation for industrial drive applications, including AC2000, DC2000, and EX2000 systems. This specific revision (G1AGD) features significant functional enhancements over earlier iterations, providing improved processing capabilities for gas, steam, and wind turbine management.

Features

• Equipped with three 16-bit microprocessors with shared RAM access for high-speed, real-time drive regulation.
• Integrated diagnostic support featuring a ten-LED fault code display for rapid troubleshooting.
• Supports direct mounting of auxiliary daughterboards to expand processing and communication functions.
• Designed with environmental protective coating to shield sensitive components from dust, humidity, and chemical exposure.
• Supports configuration via external software tools, allowing parameter sets to be downloaded across multiple boards.

Applications

• Wind Energy Systems: Manages nacelle and hub signal processing for ground controllers.
• Power Generation: Oversees electrical load management and protection loops in steam and gas turbines.
• Industrial Automation: Interfaces with GE Mark VIe DCS environments for process control.
• Marine & Offshore: Provides robust control for heavy-duty maritime power and energy systems.

Technical Specifications

Interfaces

The board features multiple connection points for system integration, including the 3PL connector, which serves as a primary communication bridge for routing signals between the control card and associated power or signal distribution boards. It also supports the integration of auxiliary cards such as the DS215SLCC, 531X306LCC LAN Communications Card, 531X309SPC Signal Processor Card, and the DS200SPCB Multibridge Signal Processor Card.

Installation Guidelines

• ESD Protection: Always handle the board using an anti-static wrist strap and keep it in its protective bag until ready for installation.
• Power Safety: Verify that all power sources are completely disconnected before performing any wiring or installation tasks.
• Cabinet Handling: Ensure the cabinet door is closed during operation. Avoid dropping screws, tools, or debris into the cabinet during maintenance.
• Configuration: Post-installation, the board requires specific configuration parameters to be downloaded via a laptop-based software tool to define drive control behavior.

FAQ

What is the primary function of the DS200SDCCG1AGD?

It acts as the central processing unit for GE Mark V drive systems, regulating complex control loops and managing communication between the drive and the turbine control system.

Can this board replace earlier versions?

Yes, the G1AGD revision is designed to be a versatile, multi-application board that aggregates functions for AC, DC, and exciter frameworks, making it a suitable replacement for earlier SDCC iterations.

What should I do if the board displays a fault code?

The ten-LED array on the board provides visual fault indicators. Consult the specific Mark V maintenance manual for the fault code mapping to identify the exact error state.
