Description

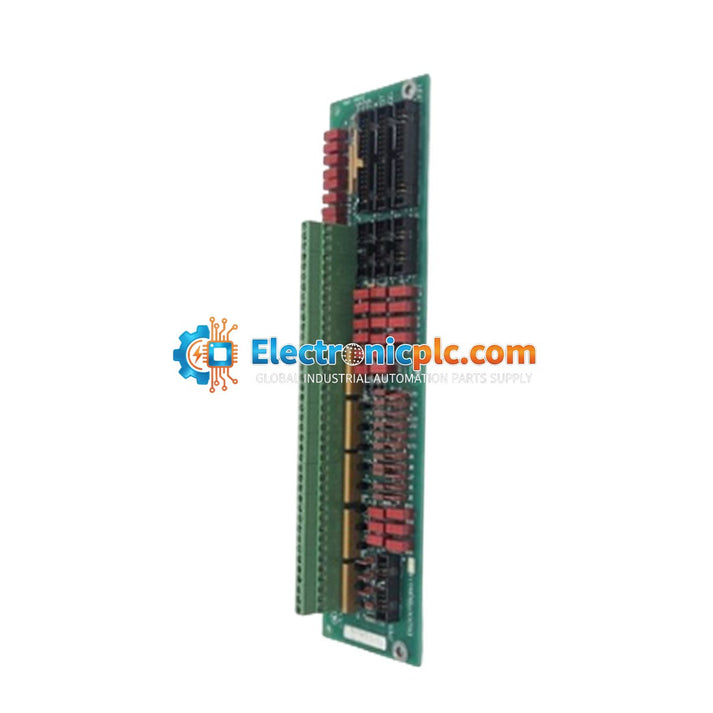

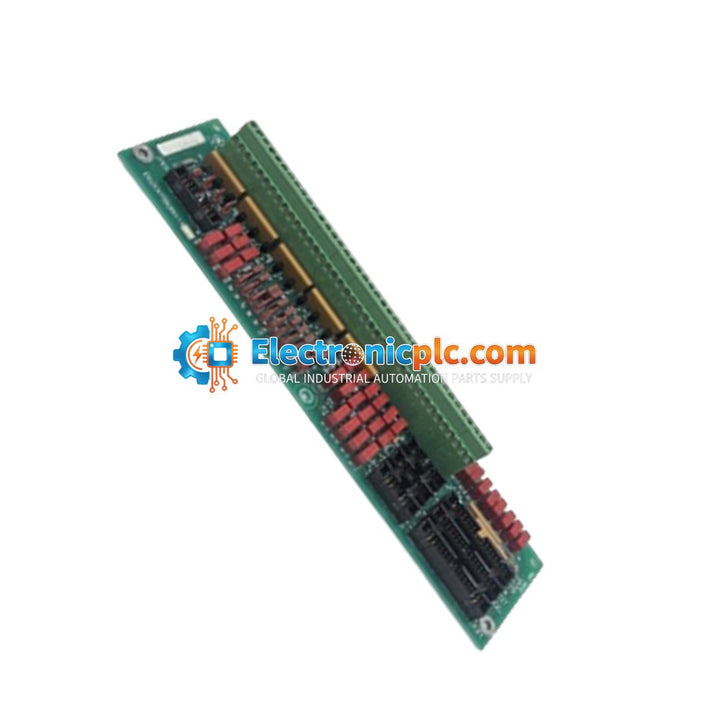

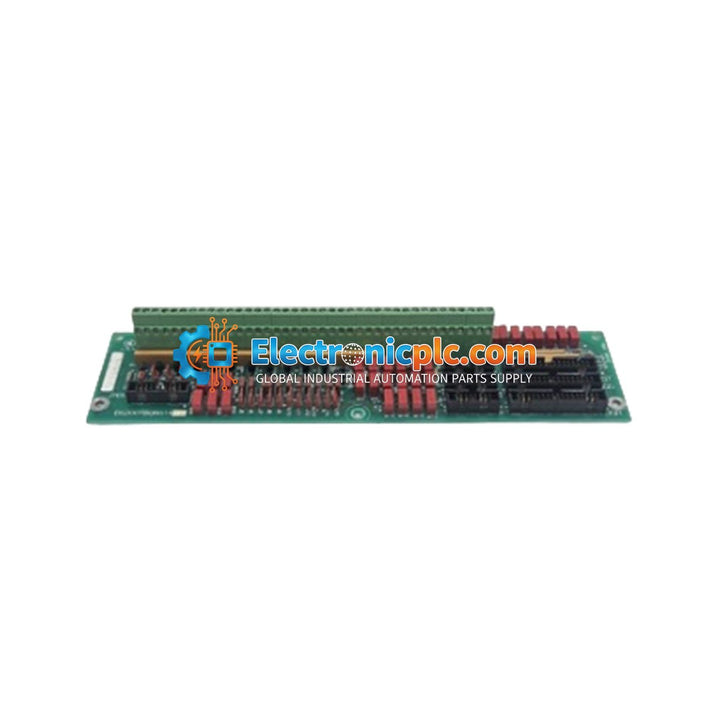

The DS200TBQBG1A is a high-density Input Termination Module designed for the General Electric Mark V Speedtronic turbine control system. This terminal board serves as a critical interface for signal acquisition, specifically handling analog current, voltage, vibration, and pulse rate inputs. It is typically installed in the seventh position of the R2 and R3 cores, acting as the primary bridge between field instrumentation and the TCQA/TCQC processing boards within the control rack. The module is essential for maintaining signal integrity in power generation and heavy industrial drive applications, including compressor stall detection and shaft monitoring.

Features

• Designed for integration with GE Mark V Speedtronic control systems.
• Supports diverse signal types including voltage, current, vibration, and pulse rate.
• Features JGR and JHR connectors for direct communication with TCQA and TCQC processing boards.
• On-board jumper configuration (BJ1-BJ15) for signal fanning, burden resistor installation, and voltage/current mode selection.
• Engineered for high-reliability signal conditioning in turbine control environments.

Applications

• Power generation turbine control systems.
• Compressor stall detection monitoring.
• Shaft vibration and speed monitoring.
• Heavy industrial drive control and instrumentation.

Technical Specifications

Installation Guidelines

• Ensure the control rack is powered down before inserting or removing the module to prevent electrical damage.
• Verify correct jumper settings (BJ1-BJ15) based on your specific field instrumentation requirements prior to installation.
• Handle the board using ESD-safe practices to prevent damage to sensitive electronic components.
• Ensure secure seating in the R2/R3 core position 7.
• Route signal cables away from high-EMI sources to maintain signal integrity for vibration and pulse rate inputs.

FAQ

What is the primary function of the DS200TBQBG1A?

The DS200TBQBG1A acts as an input termination board for the Mark V system, conditioning and routing field signals like vibration and analog current to the TCQA and TCQC processing boards.

Can this module be configured for different signal types?

Yes, the board features configurable jumpers (BJ8-BJ15) that allow the user to select between voltage and current modes, as well as jumpers for burden resistor installation.

Where is this module installed in the Mark V rack?

It is specifically designed for placement in the seventh position of the R2 and R3 cores.
