Description

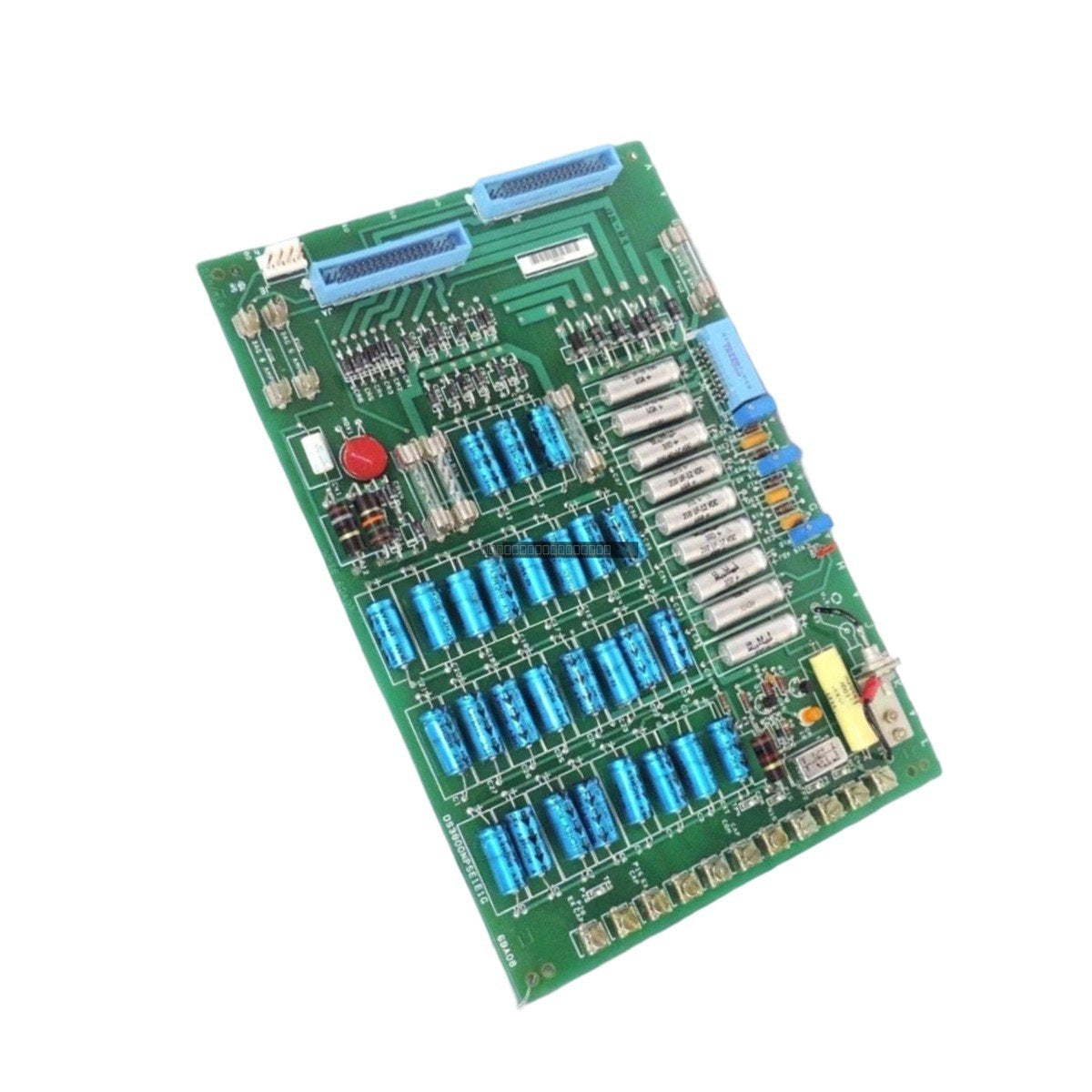

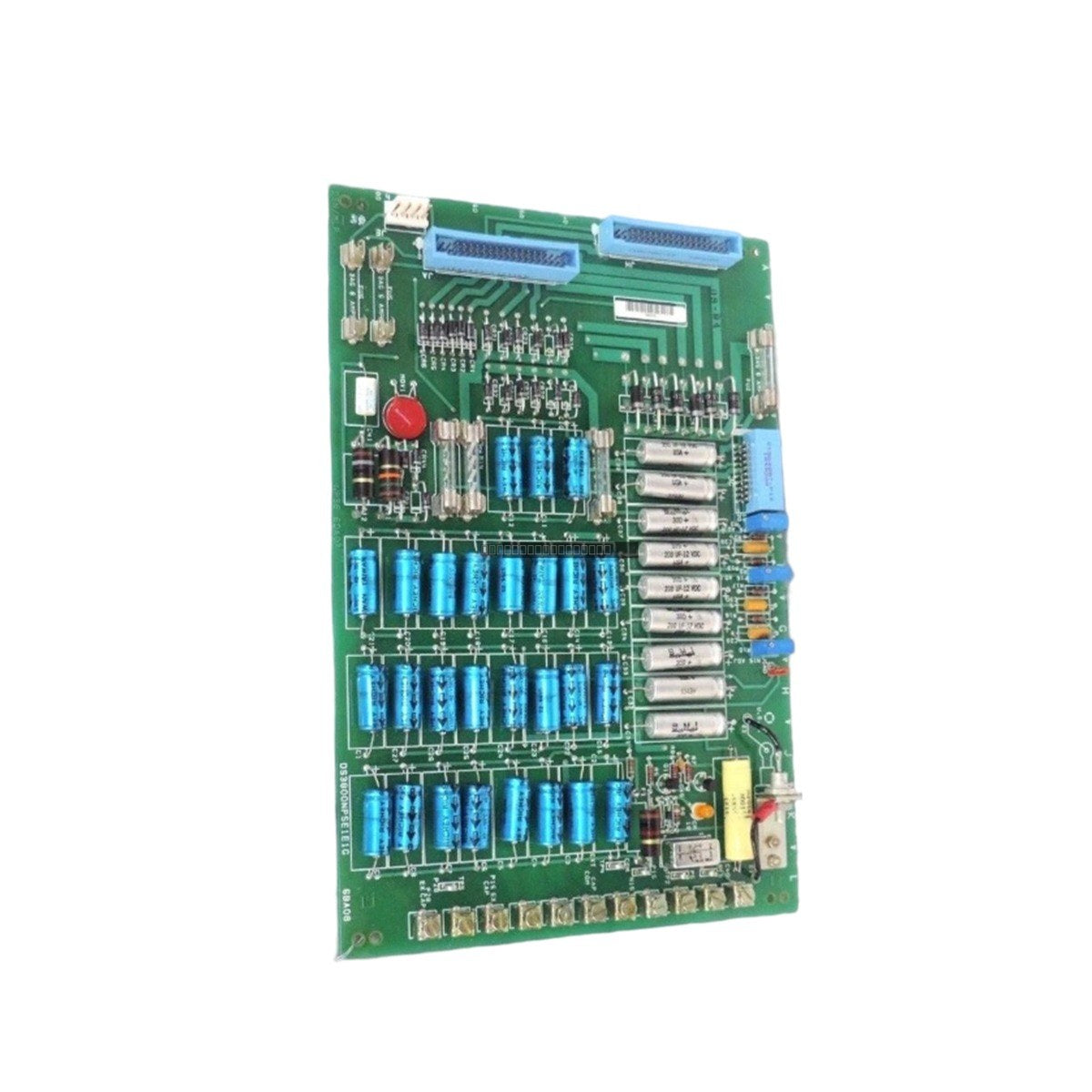

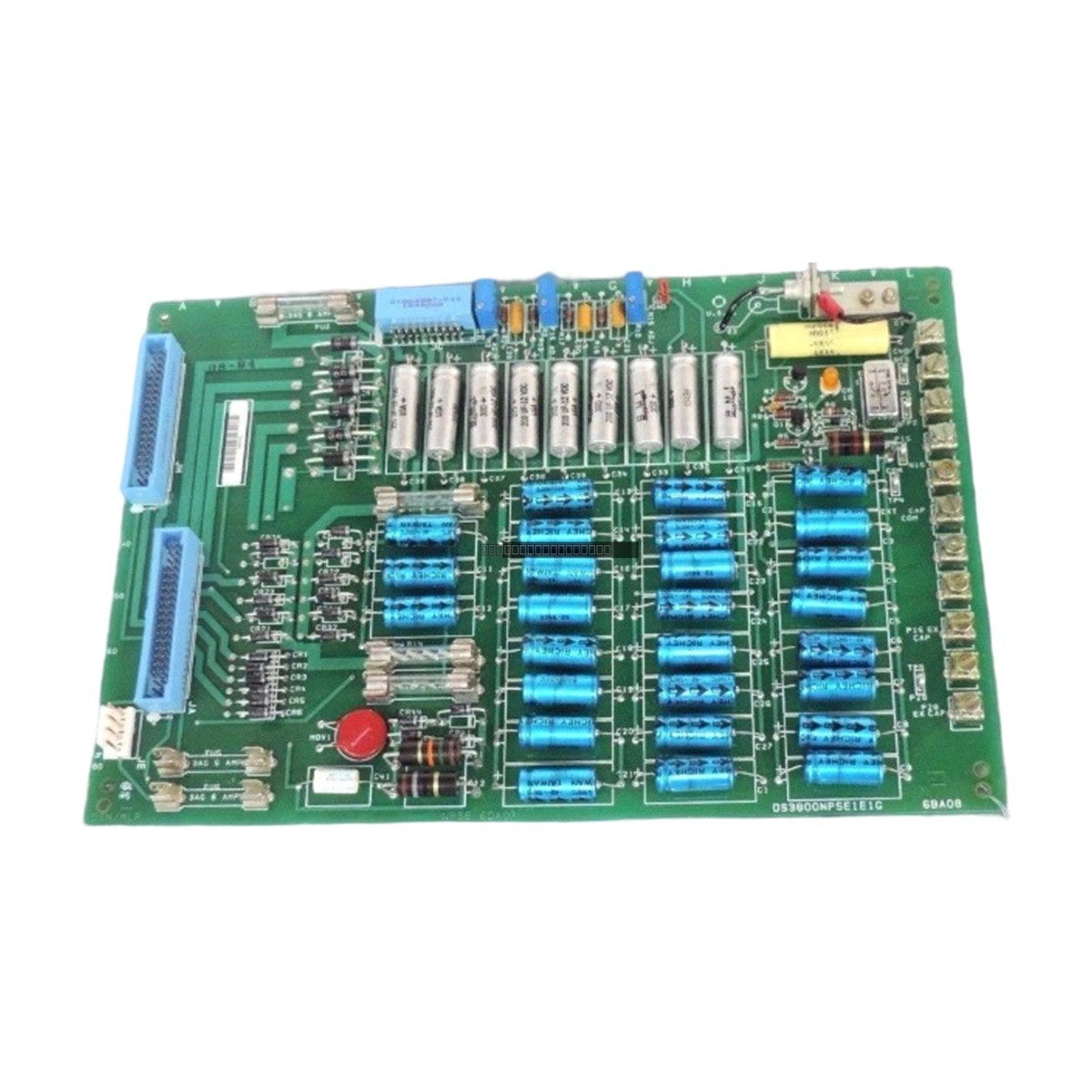

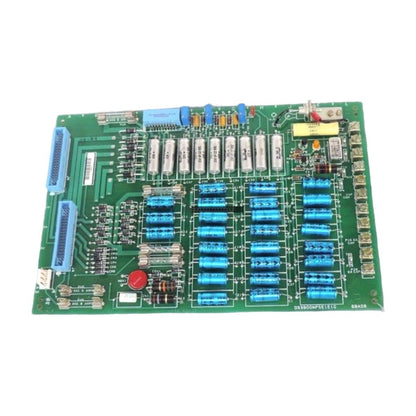

The DS3800NPSE1E1G is a dedicated Power Supply Board manufactured by General Electric for the Mark IV Speedtronic turbine control system. This module is essential for maintaining stable, regulated DC voltage distribution across critical control processors and safety protection circuits in heavy-duty industrial environments, including gas turbine generation and thermal power plants. By providing robust voltage regulation and integrated surge suppression, the board ensures consistent performance and protects sensitive automation electronics from transient grid faults and voltage fluctuations.

Features

• Engineered specifically for the GE Mark IV Speedtronic turbine control architecture.
• Integrated surge suppression utilizing a base-mounted Metal Oxide Varistor (MOV) to clamp high-voltage spikes.
• Robust filtering array featuring 27 blue electrolytic capacitors (C1-C27) and 9 high-capacity silver capacitors (C31-C39).
• Precision calibration capability via 3 onboard multi-turn adjustable potentiometers.
• Comprehensive protection layout including 4 active onboard fuses with capacity for 2 additional auxiliary fuses.
• Connectivity provided through 2 primary vertical light blue male connector ports and 1 auxiliary light blue port.
• Rectifier circuitry composed of 24 discrete diodes for stable power conversion.

Applications

This power supply board is utilized within GE Mark IV Speedtronic control systems to support turbine management, power generation monitoring, and industrial utility control loops where high reliability and stable power delivery are required to prevent system trips and downtime.

Technical Specifications

Installation Guidelines

• Ensure the control system is fully powered down before inserting or removing the board from the rack.
• Handle the PCB by the edges to avoid electrostatic discharge (ESD) damage to sensitive electronic components.
• Verify that the board is correctly seated in the designated Mark IV slot to ensure proper pin alignment with the backplane connectors.
• Check that all fuses are securely seated and that the MOV is free from signs of thermal damage or physical stress.
• Ensure adequate ventilation within the cabinet to maintain operating temperatures within the 0 to 60 deg C range.

FAQ

Is the DS3800NPSE1E1G compatible with other Mark series systems?
No, this board is specifically designed for the Mark IV Speedtronic turbine control system. It is not intended for use in Mark V or later series controllers.

What should I do if the onboard fuses blow?
If a fuse blows, it is recommended to inspect the downstream circuitry for short circuits or component failures before replacing the fuse. Only use fuses with the exact current and voltage ratings specified by the original GE technical manual.
