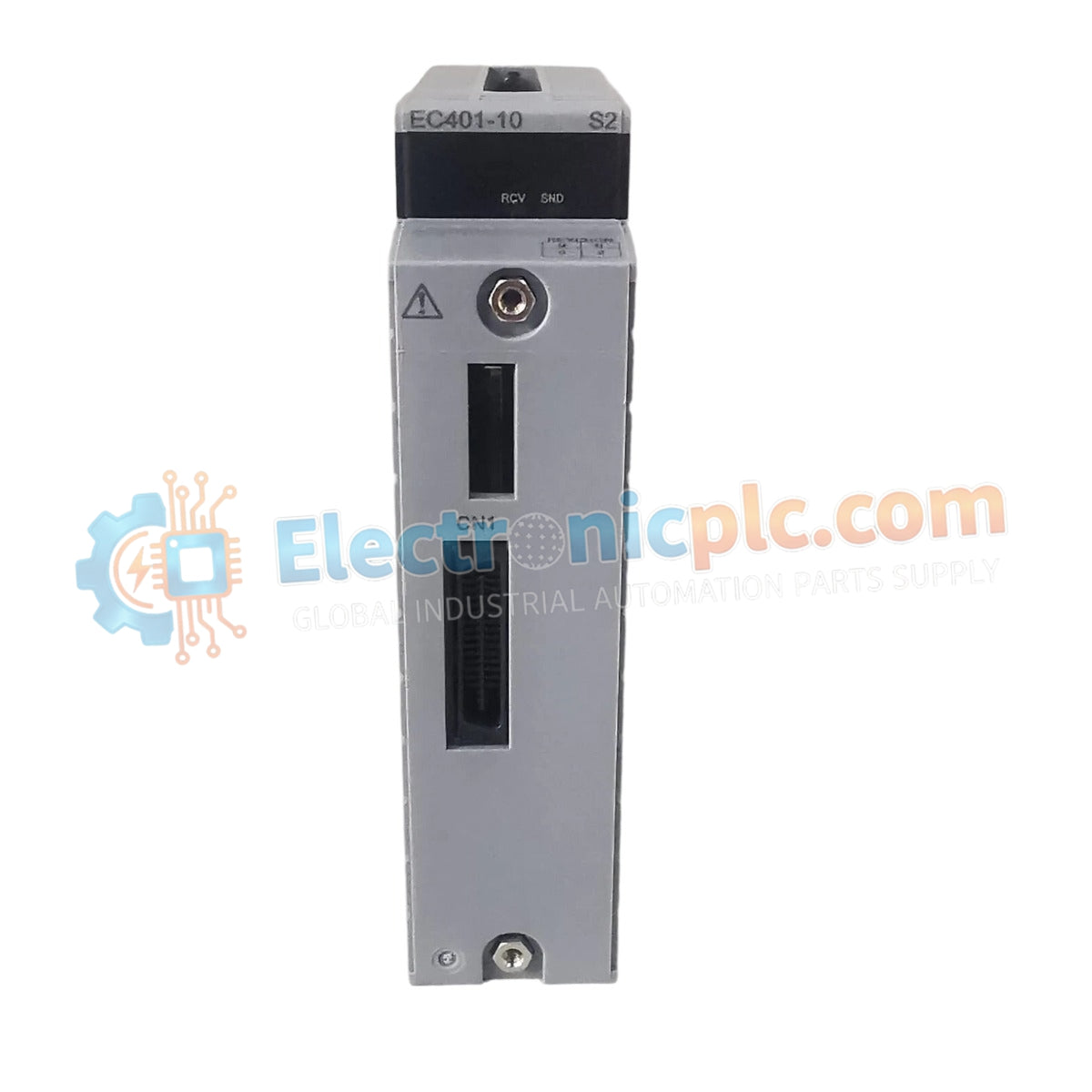

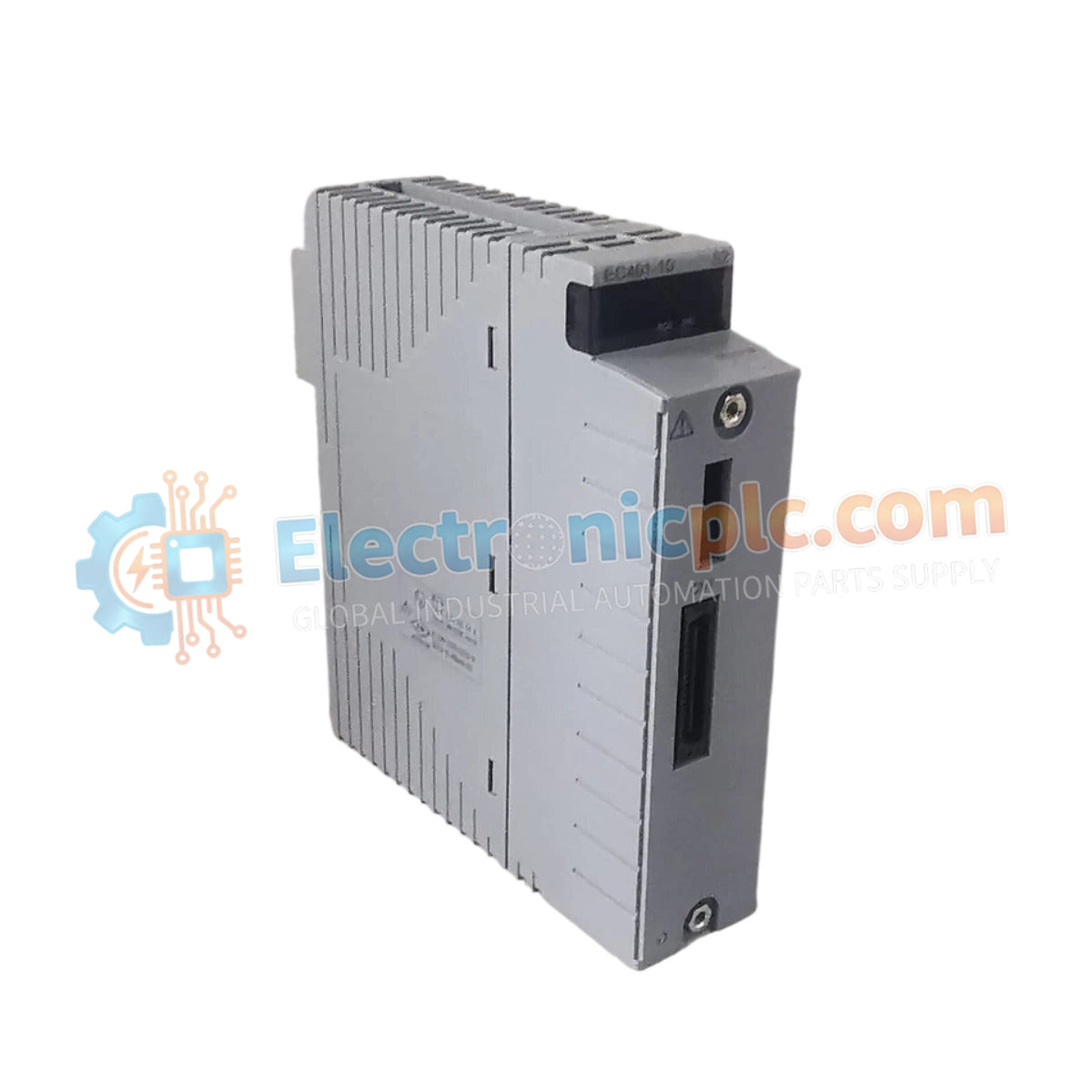

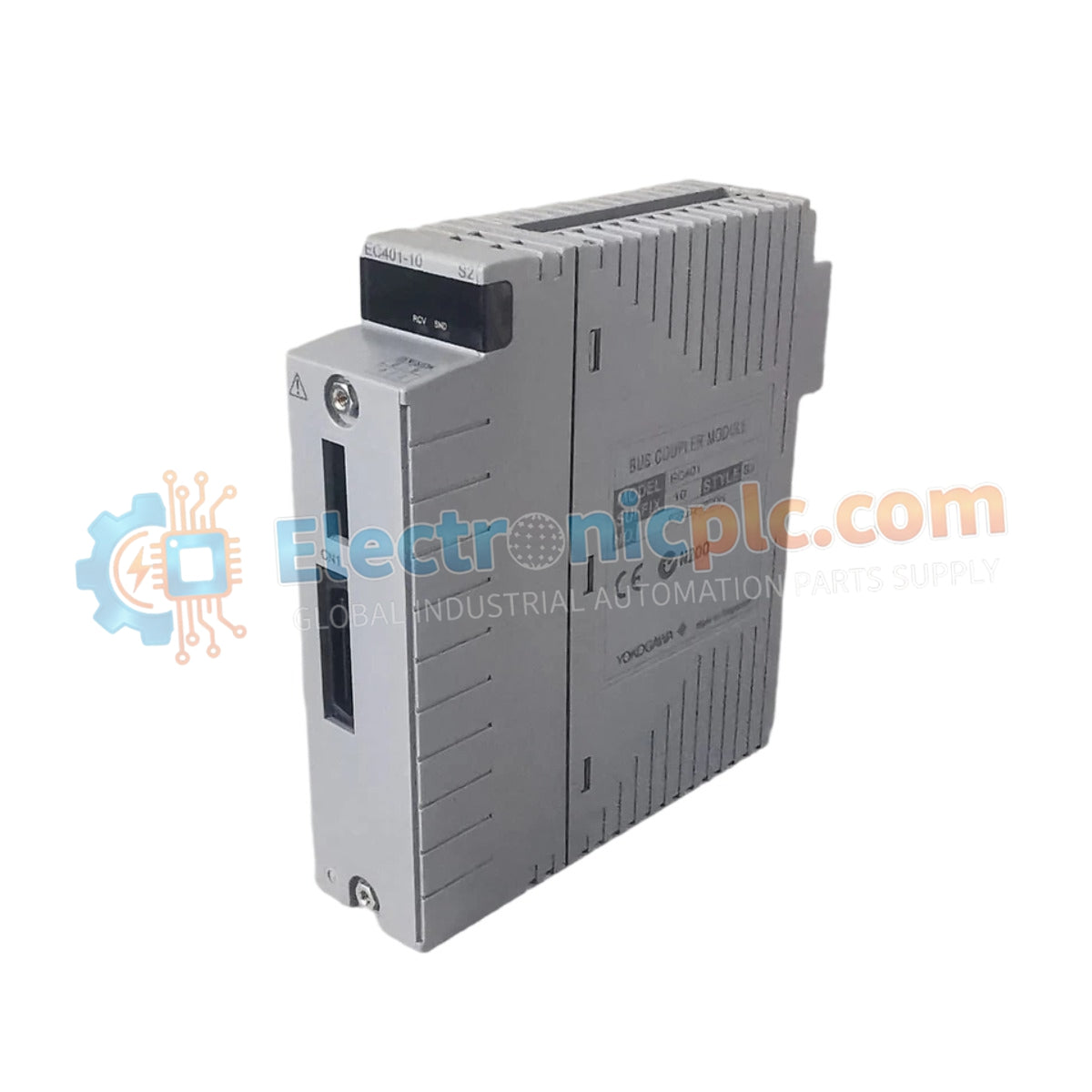

Configured for high-speed data exchange in CENTUM VP systems, the Yokogawa EC401-10 (EC401 ESB Bus Coupler Module) provides direct physical execution of signal bridging between the controller backplane and the Extended Standard Bus (ESB) communication segments.

Hardware Specifications

DCS Process Control & Data Integrity

The EC401-10 architecture ensures high-speed data throughput of 128 Mbps, maintaining deterministic communication between the Field Control Unit (FCU) and up to 16 nodes per segment. The module supports redundant bus configurations, allowing the control system to execute automatic failover logic during a bus segment fault. Internal galvanic isolation barriers prevent common-mode noise and ground loop currents from interfering with the ESB communication frames, ensuring that real-time process data remains synchronized within the required DCS scan intervals.

Frequently Asked Questions

Q: Can the EC401-10 support hot-swapping during active system operation?

A: No, this module must not be extracted or inserted while the system backplane is energized. Power must be fully isolated to prevent electrical transients from causing communication corruption on the ESB bus.

Q: How is bus termination handled on the ESB segment?

A: The ESB bus requires active termination at the final node of the communication chain. Impedance must be matched according to the system technical manual to ensure proper signal transmission and minimize packet retransmission errors.

Field Installation Guidelines

• Mount the module vertically within the system cabinet to ensure the heat sink profile facilitates natural convection, keeping the internal temperature below 60 deg C.
• Ensure all ESB communication cables are shielded and routed through grounded conduits, maintaining a minimum distance of 150 mm from high-voltage AC power cabling.
• Verify the 24 VDC input supply is within the ±10% tolerance; use a dedicated, filtered industrial power supply to avoid voltage ripple that could impact high-frequency bus timing.
• Inspect the backplane connectors for pin alignment and oxidation prior to installation; ensure the locking tab is fully engaged to maintain structural stability and grounding continuity.
