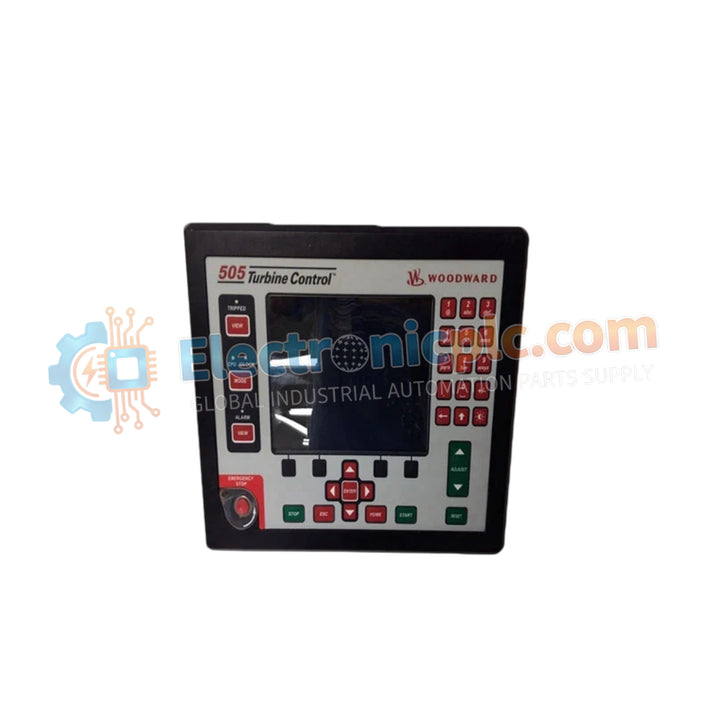

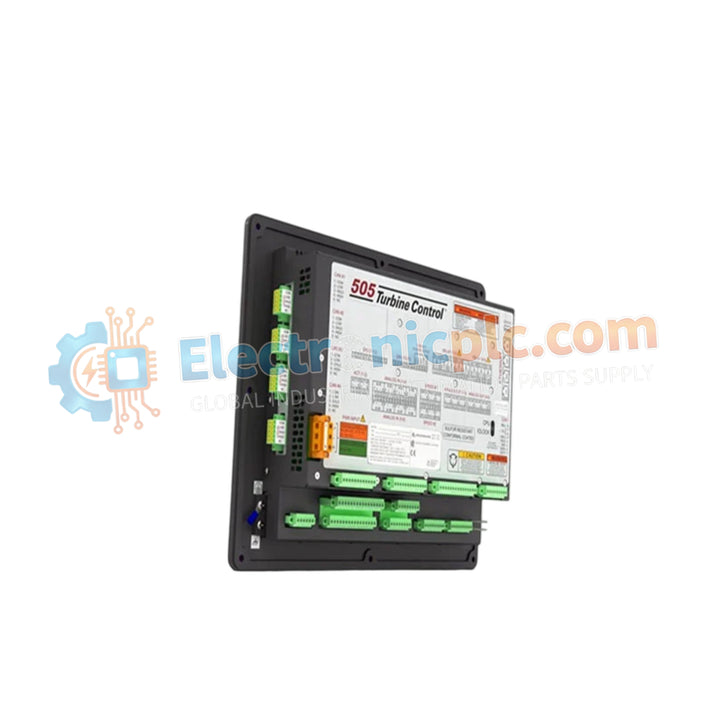

The WOODWARD 8200-1300 serves as the primary 8200-1300 Electronic Governor utilized to execute speed and load regulation across gas and steam turbine platforms.
| Parameter | Specification |
|---|---|
| Model | 8200-1300 |
| Brand | WOODWARD |
| Origin | USA |
| Weight | 2.5 kg (5.51 lbs) |
| Dimensions | 220 x 120 x 100 mm |
| Operating Temp | -20 to 70 deg C (-4 to 158 deg F) |
| Power Consumption | 50 VA max |
| Input Voltage | 115/230 VAC +/-10% (50/60 Hz) |
| Mounting Style | DIN Rail |
| Product Type | Electronic Governor |
The controller processes turbine speed sensor inputs to execute closed-loop valve position commands. Internal processing loops continuously calculate speed deviations and adjust output signals to optimize actuator loop feedback response during transient load changes. The physical housing relies on passive air conduction across thermal heat sink dissipation profiles to prevent thermal drift within the ambient operating range of -20 to 70 deg C.
Q: How is dual-voltage input selection configured on the power terminal block?
A: The input power supply accepts 115 VAC or 230 VAC nominal inputs within a +/-10% tolerance band. Terminal jumpers or internal selector wiring must be set according to the site AC supply voltage before applying line power.
Q: What mechanism prevents noise interference on the speed sensing inputs?
A: Magnetic pickup sensor lines must use twisted-pair shielded cabling grounded at the governor chassis only, isolating the high-frequency pulse counting circuits from external common-mode noise.
