Description

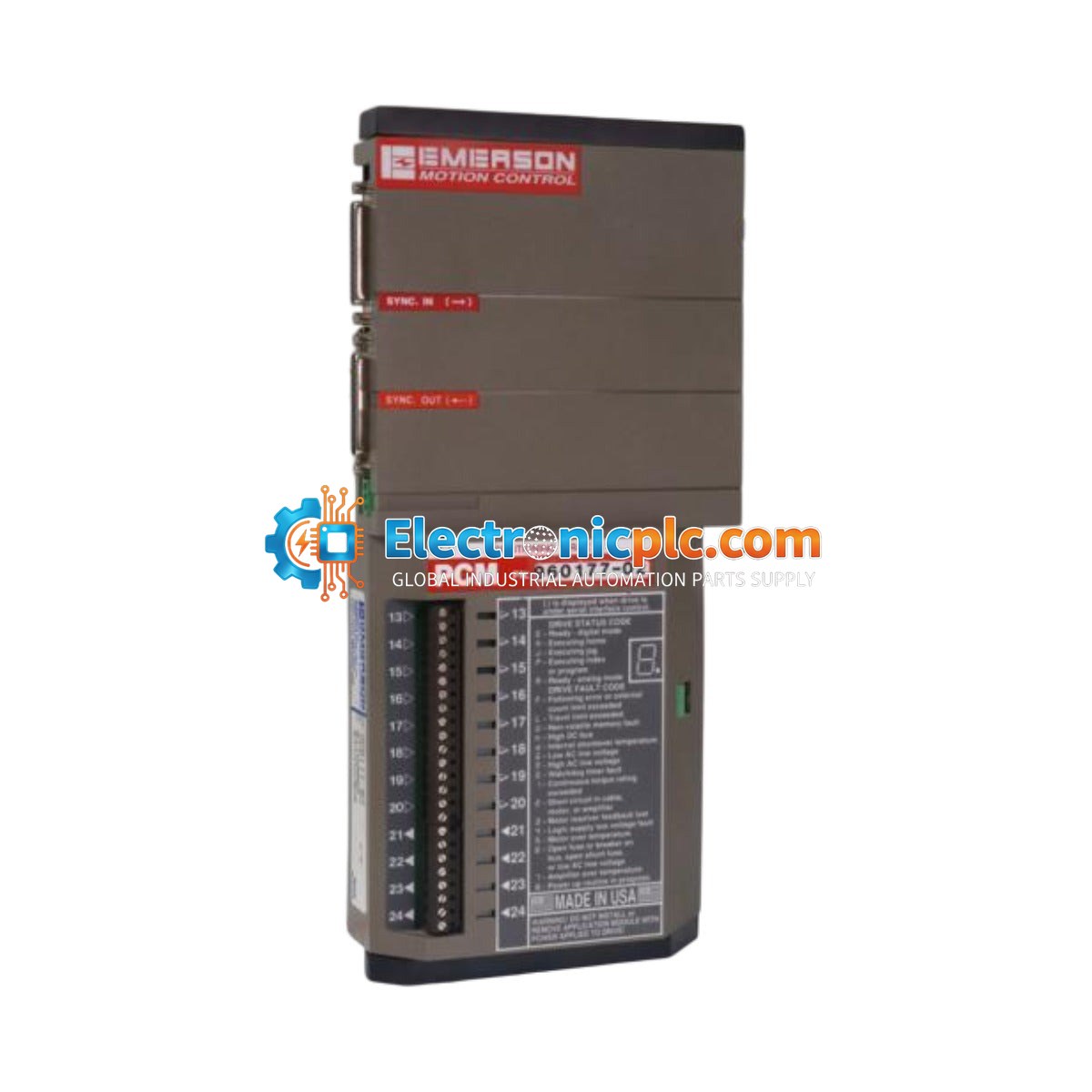

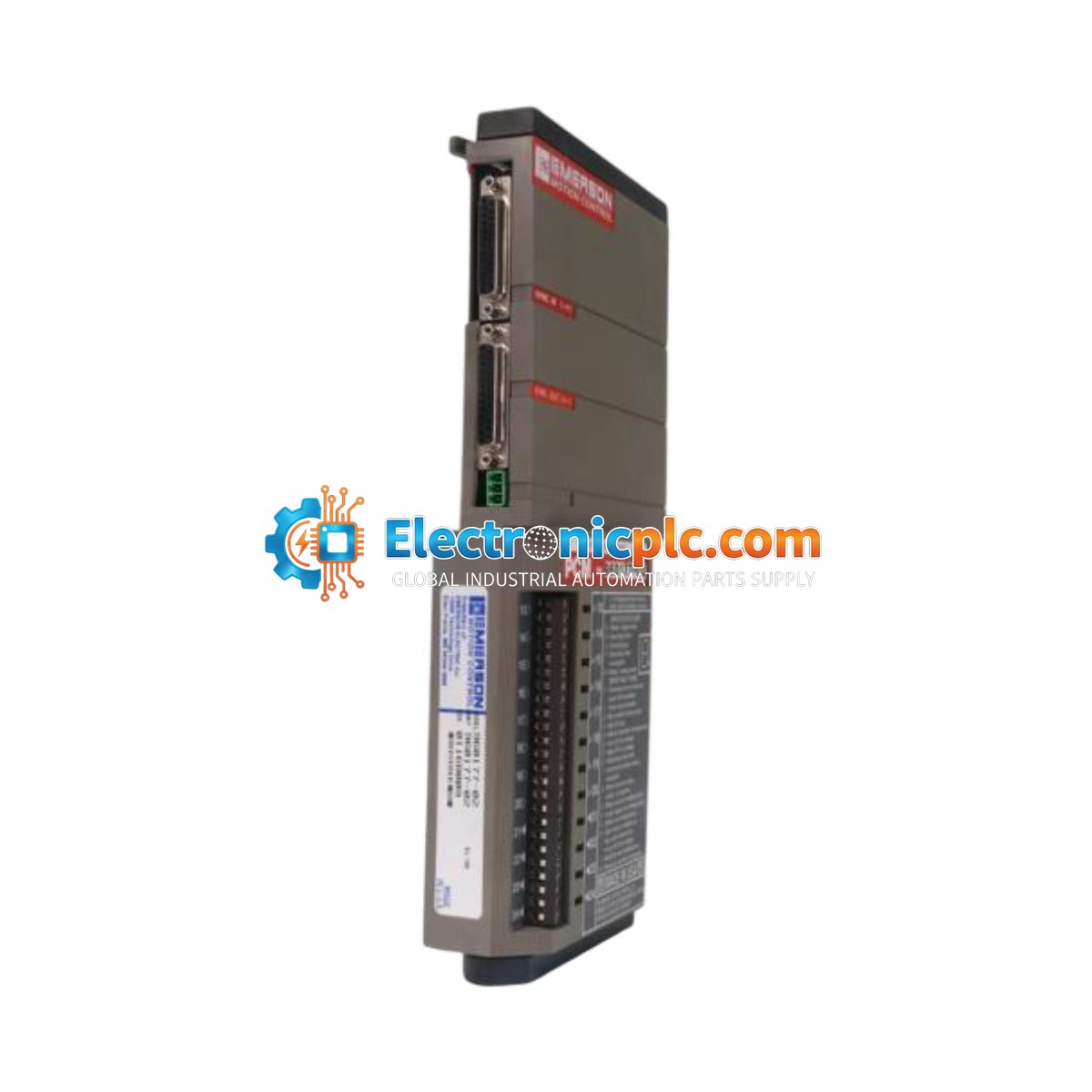

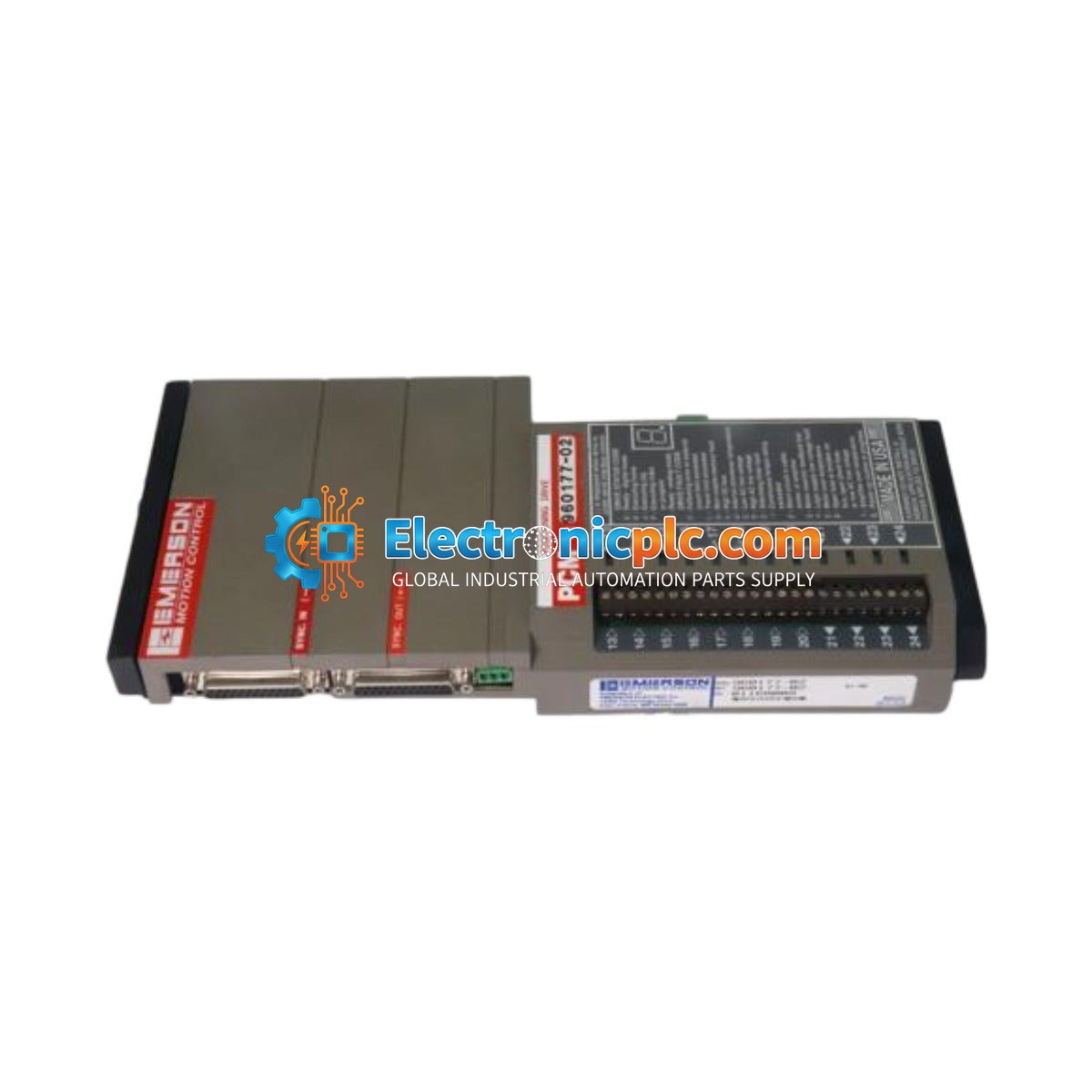

The Emerson 960177-02 is a precision-engineered Positioning Drive Module designed for advanced motion control and automated actuation within high-demand industrial sectors. This module provides the critical interface required for controlling servo drives and high-speed positioning systems in applications such as power plant turbine regulation, automated material handling, and precision CNC machining. By delivering high-accuracy feedback loops and rapid response times, the 960177-02 ensures exact mechanical placement and velocity control, optimizing throughput and reducing mechanical wear.

Features

• High-integrity signal processing for stability in electrically noisy environments.
• Dedicated inputs for encoder feedback and high-speed digital I/O.
• Advanced PID algorithms for managing acceleration and deceleration ramps.
• Real-time diagnostic reporting for monitoring drive status and position deviations.
• Ruggedized construction with passive thermal management for continuous duty cycles.

Applications

This module is suitable for use in complex manufacturing environments, power generation facilities, and automated systems requiring precise mechanical positioning, including turbine regulation, material handling, and CNC machining.

Technical Specifications

Installation Guidelines

• Ensure the control rack power is disconnected before installing or removing the module.
• Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
• Ensure the module is fully seated in the backplane slot to maintain reliable bus communication.
• Maintain adequate clearance around the module to allow for natural convection and passive heat dissipation.
• Route signal cables away from high-EMI sources such as power lines or heavy motor contactors.
• Verify that the 24 VDC logic power supply is stable and within specified operating limits.

FAQ

Is this module compatible with existing Emerson control racks?

Yes, the 960177-02 is designed for seamless integration into standard Emerson control racks supporting the backplane bus interface.

What is the primary function of the 960177-02?

It acts as a Positioning Drive Module, providing high-accuracy control for servo drives and positioning systems through encoder feedback and pulse-direction signaling.
