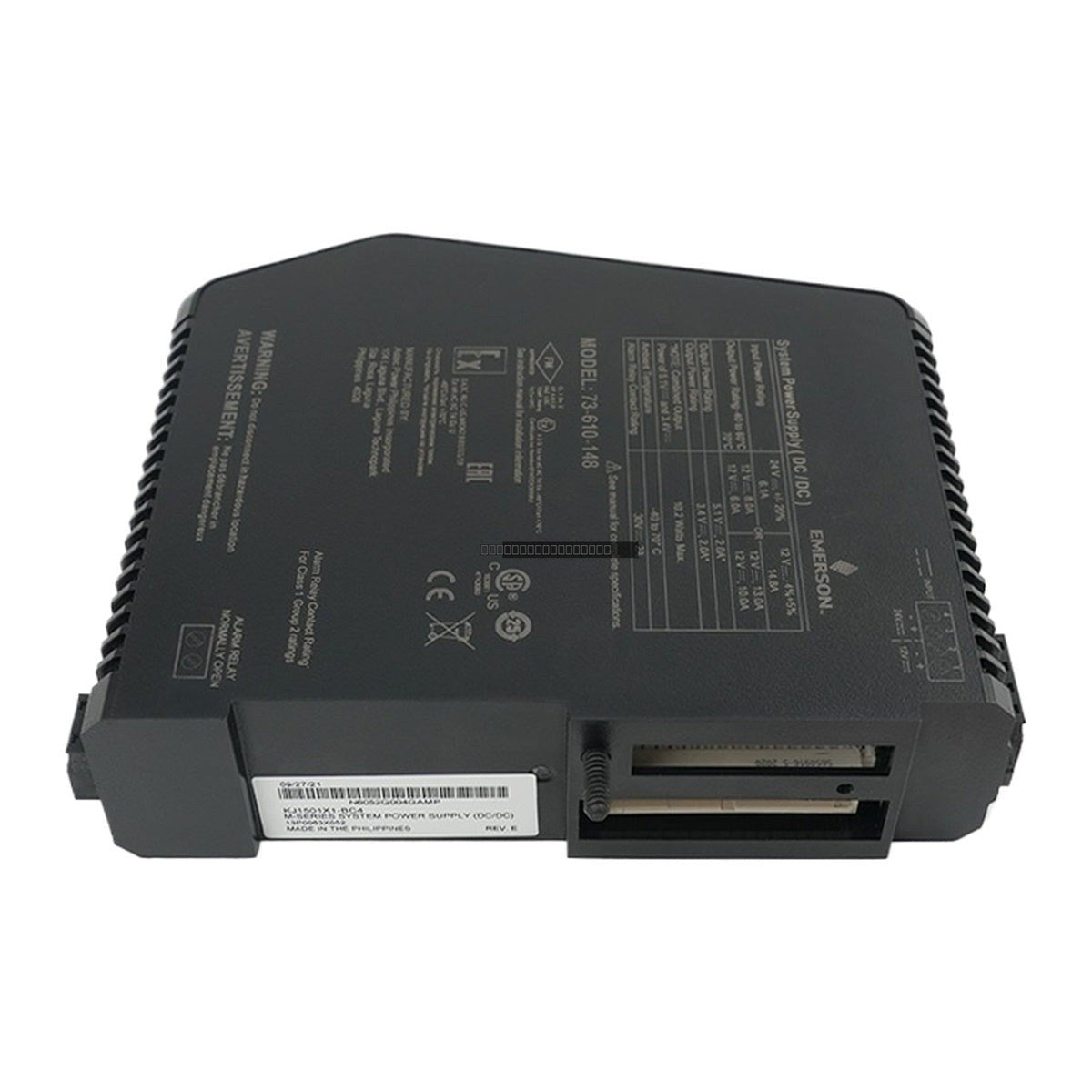

The Emerson KJ1501X1-BC4 (13P0063X052) is a dual DC/DC system power supply module engineered for the DeltaV M-Series distributed control system. This module provides stable, regulated power to controllers and I/O cards mounted within a horizontal carrier assembly. It is designed to integrate into a 2-Wide Power/Controller Carrier, supporting configurations for single power supply operation or redundant power setups.

Features

• Dual DC/DC power conversion for M-Series architecture.
• Provides combined output power of 10.2 W from +5.1 VDC and +3.4 VDC rails.
• Designed for high-reliability operation in industrial control environments.
• Integrated alarm contact for system monitoring.
• Supports operation in hazardous locations (Class I, Division 2).

Applications

• Distributed Control Systems (DCS) for process automation.
• Powering controllers for vibration and speed diagnostics in rotating machinery.
• Safety Instrumented Systems (SIS) logic solver support.
• Modular process skids for water treatment and chemical processing.
• Industrial HVAC and climate control systems.

Technical Specifications

Installation Guidelines

• Power-Down Requirement: This module must not be inserted or removed while system power is energized. Ensure the carrier is de-energized before installation.
• Hazardous Area Safety: Verify that the environment is classified as safe before handling the module.
• Voltage Limits: In 12 VDC passthrough mode, the source must not exceed 12.6 VDC and must not exceed 16 A maximum.
• Maintenance: This unit contains no user-serviceable parts. Do not attempt to disassemble or repair.
• Calibration: The module is factory-calibrated and requires no field adjustments during its service life.

FAQ

What is the primary function of the KJ1501X1-BC4?

The KJ1501X1-BC4 is a system dual DC/DC power supply module specifically designed to provide regulated voltage to DeltaV M-Series controllers and I/O cards.

Can this module be hot-swapped?

No. Unlike some other DeltaV components, this specific power supply module must not be inserted or removed while the system is powered.

What are the input power requirements for this unit?

When operating in 12 VDC passthrough mode, the input source must not exceed 12.6 VDC and must be limited to a maximum of 16 A.
