Description

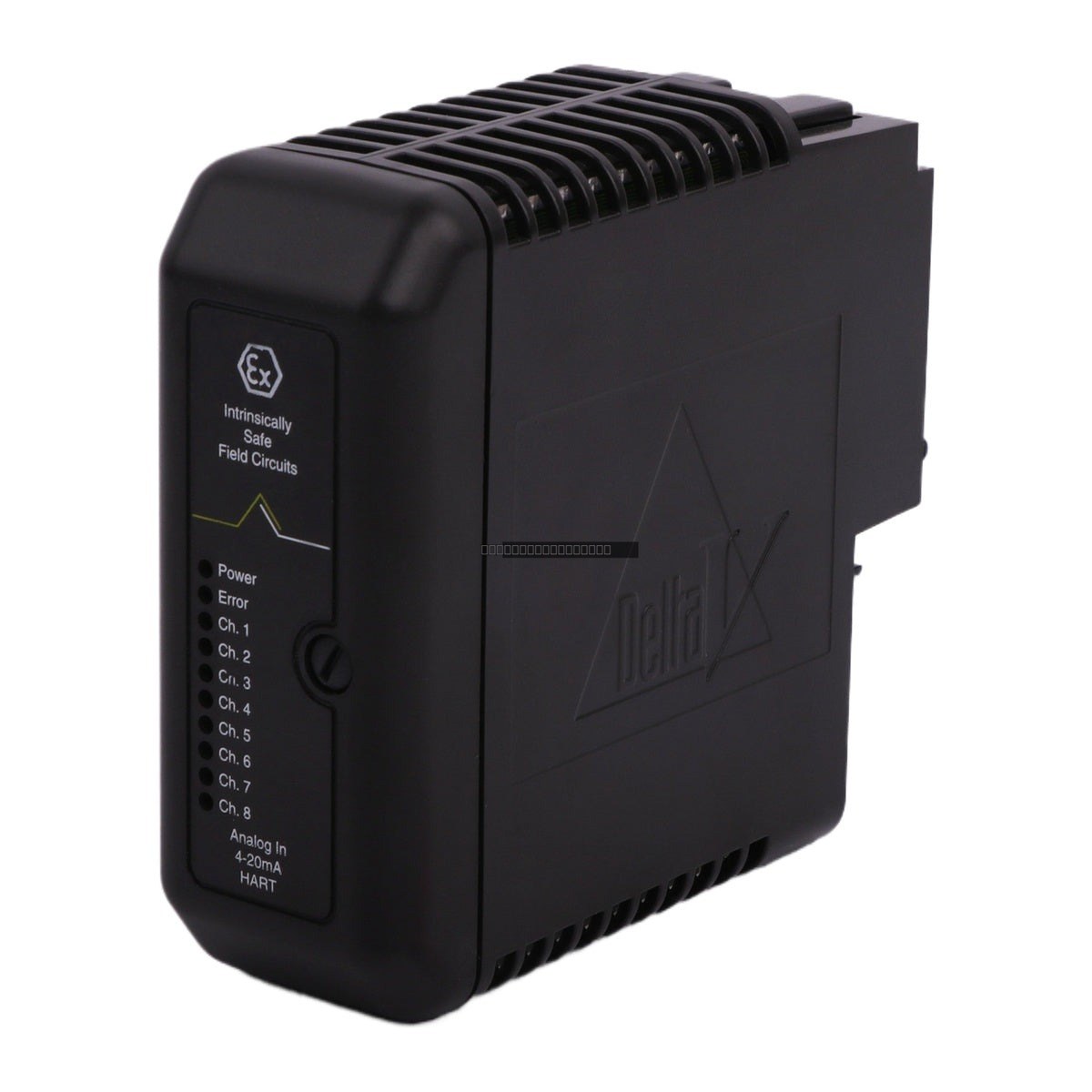

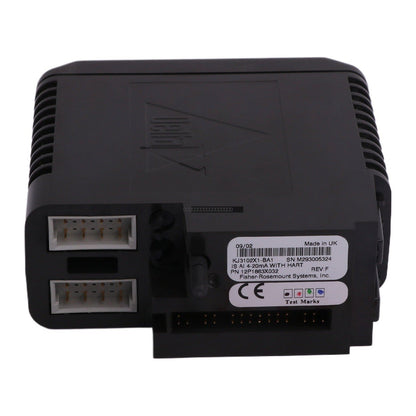

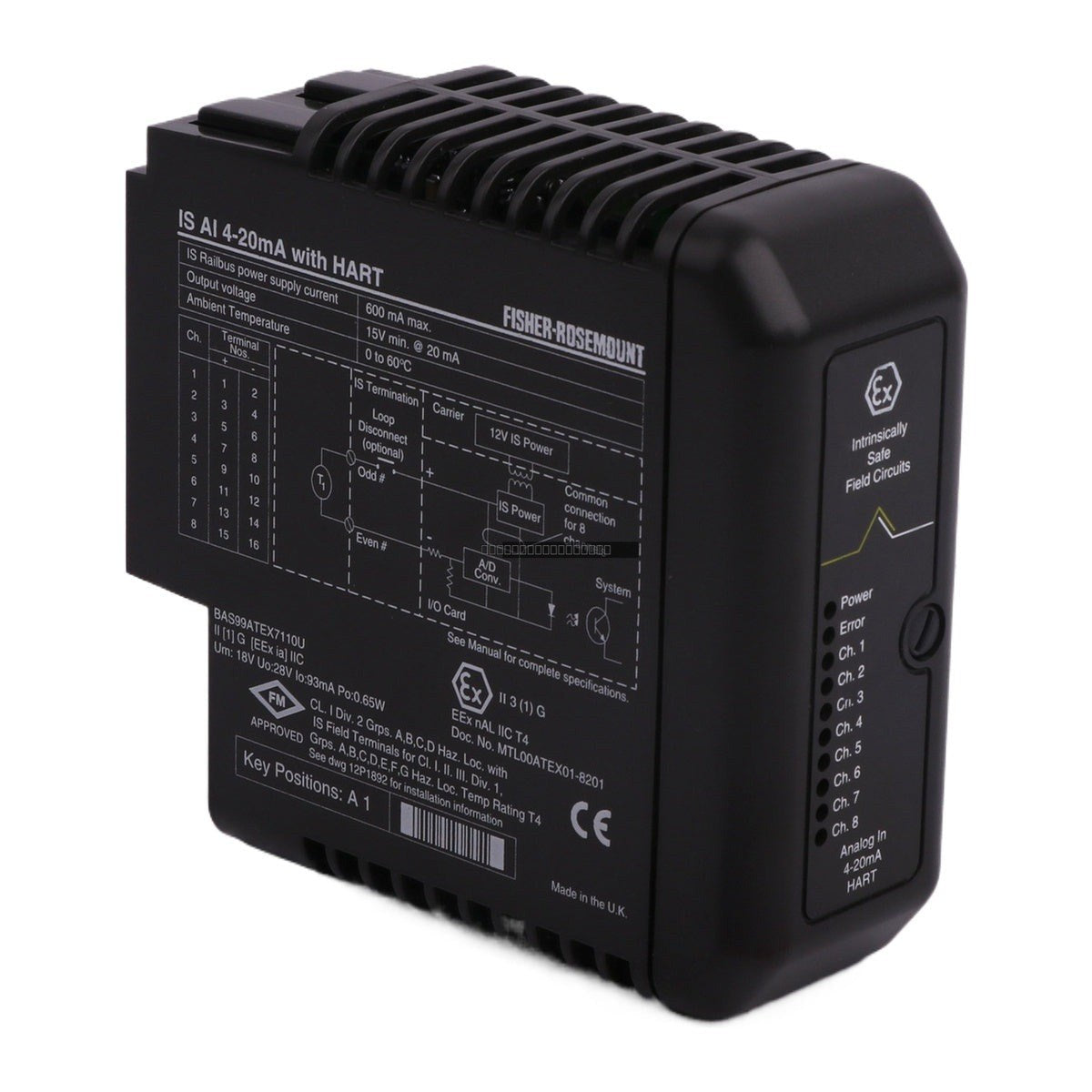

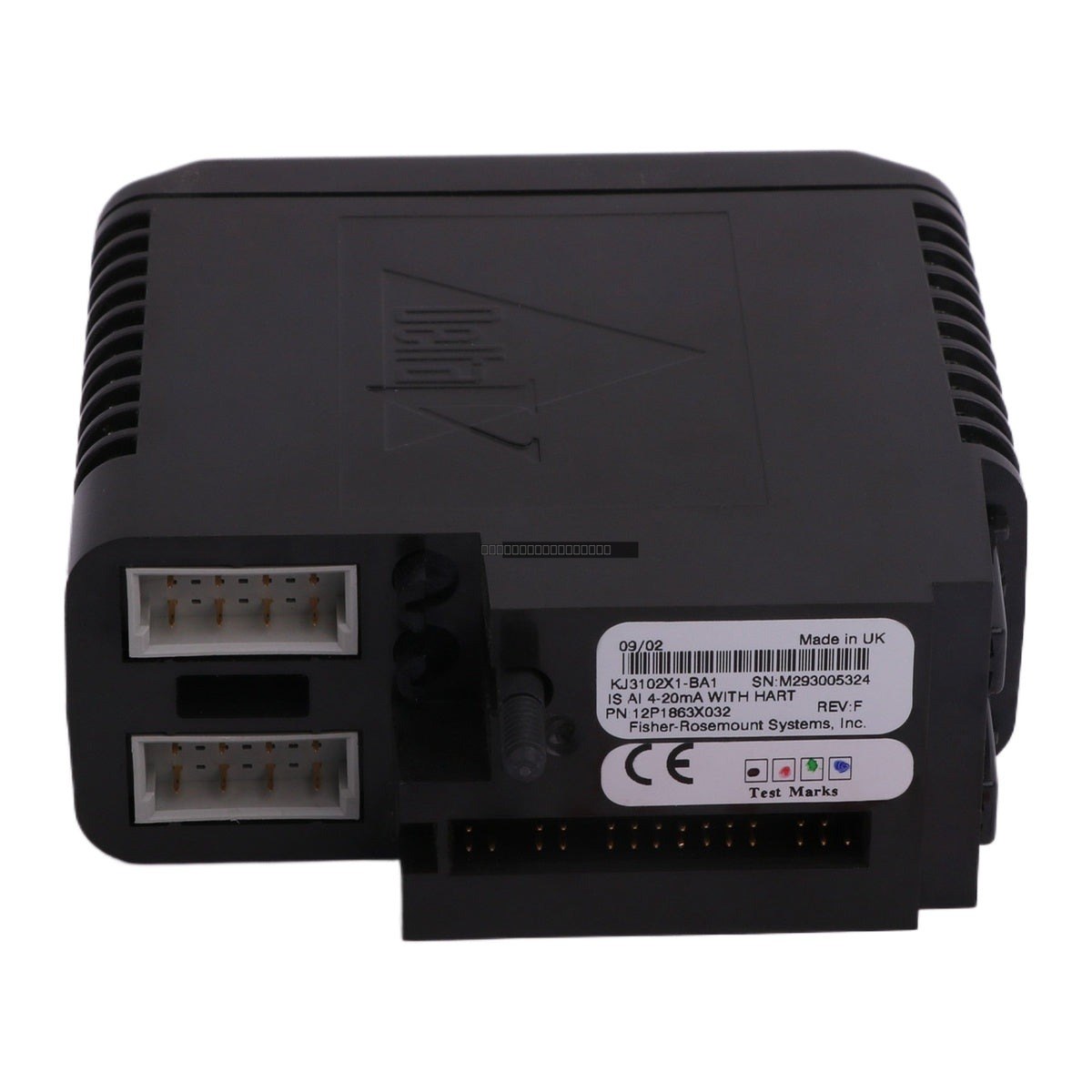

The Emerson DeltaV KJ3102X1-BA1 (VE4012S2B2) is an 8-channel Analog Input module designed for high-performance process control applications. This module is engineered to interface with 4-20 mA field devices and supports HART communication, allowing for advanced diagnostics and configuration of connected instrumentation within the DeltaV distributed control system environment.

Features

• 8 isolated analog input channels for 4-20 mA signals.
• Integrated HART communication support for intelligent field device management.
• Designed for seamless integration with Emerson DeltaV I/O subsystems.
• Compact form factor optimized for high-density rack mounting.
• Robust construction suitable for industrial process control environments.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the I/O carrier.
• Verify that the module is correctly seated in the designated slot to ensure proper backplane connection.
• Use shielded twisted-pair cabling for analog signal inputs to minimize electromagnetic interference (EMI).
• Maintain proper grounding practices for the I/O subsystem to prevent ground loops and signal noise.
• Ensure adequate ventilation in the cabinet to maintain operating temperatures within the specified range.
• Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

Does this module support HART communication?

Yes, the KJ3102X1-BA1 is specifically designed to support HART communication, enabling bidirectional data exchange with compatible field instruments.

Is this module compatible with all DeltaV systems?

This module is designed for use with the Emerson DeltaV distributed control system. Please verify your specific controller series and I/O carrier compatibility before installation.
