Description

The Emerson DeltaV KJ4001X1-BA3 (part number 12P3378X012, also identified as VE3051C0) is a 2-Wide Power/Controller Carrier designed for the DeltaV Distributed Control System (DCS). This carrier provides the necessary mounting and power distribution infrastructure for DeltaV controllers and power supply modules. It is specifically engineered to support the DeltaV SIS (Safety Instrumented System) architecture, providing a robust interface for logic solvers and process control components.

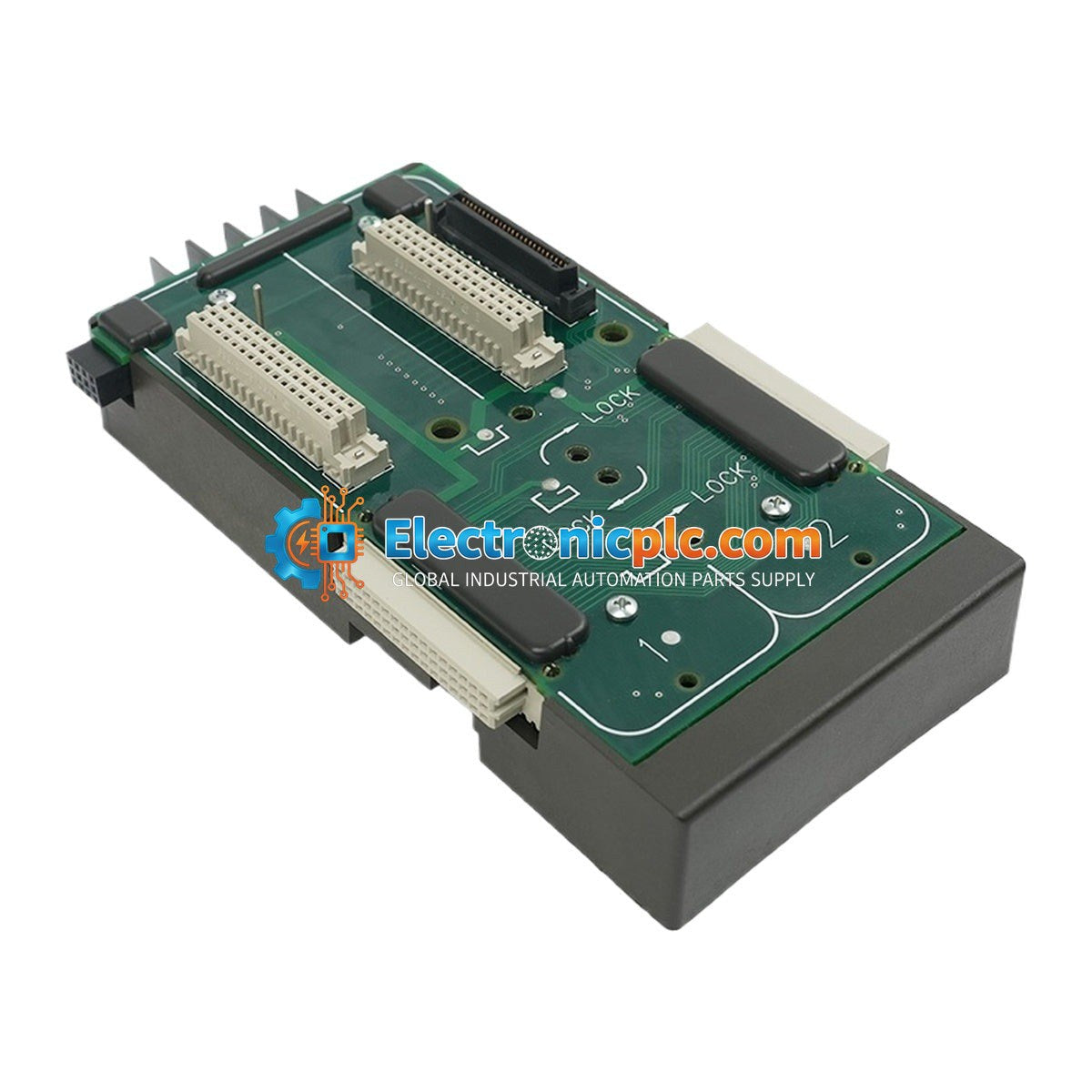

This specific version of the carrier is identified by a small white rectangle printed on the board between the power supply and controller slots, ensuring compatibility with DeltaV SIS requirements.

Features

• 2-Wide form factor for compact modular mounting.
• Supports integration of DeltaV power supply modules and controllers.
• Compatible with DeltaV SIS Logic Solvers for safety-critical applications.
• Designed for high-reliability industrial process control environments.
• Supports online expansion and flexible installation configurations.

Applications

• Oil and Gas: Refining and distribution process management.
• Chemical Processing: Batch control and reaction monitoring.
• Power Generation: Electrical distribution and plant management.
• Life Sciences: Automated batch record and recipe management.
• Marine Automation: Shipboard control and engineering systems.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing any modules from the carrier.
• Verify the carrier version (look for the white rectangle marking) to ensure compatibility with your specific SIS hardware.
• Mount in an environment that meets the specified temperature and humidity ratings.
• Ensure proper grounding of the carrier chassis to mitigate EMI/RFI interference.
• When using with S-series hardware, ensure appropriate DeltaV SIS S-series adapters are utilized as required by the system architecture.

FAQ

What is the difference between this carrier and older versions?

The KJ4001X1-BA3 features a small white rectangle printed on the board between the power supply and controller slots. Older versions, which featured a white dot, are not compatible with DeltaV SIS logic solvers.

Is this carrier compatible with S-series I/O?

Yes, when using the appropriate DeltaV SIS S-series adapter, this carrier can interface with S-series power/controller or I/O carriers. Consult your system documentation for specific node configuration requirements.
