Description

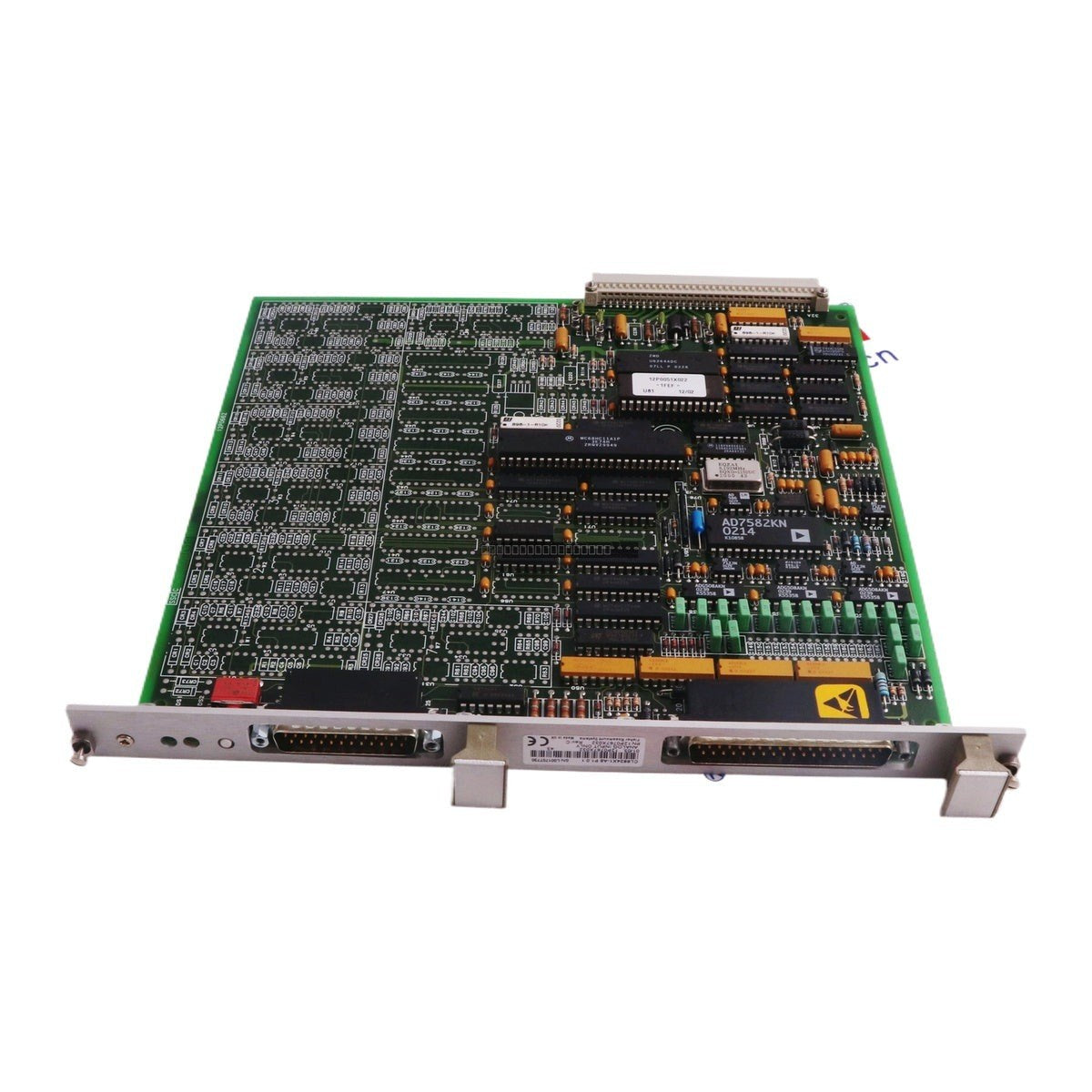

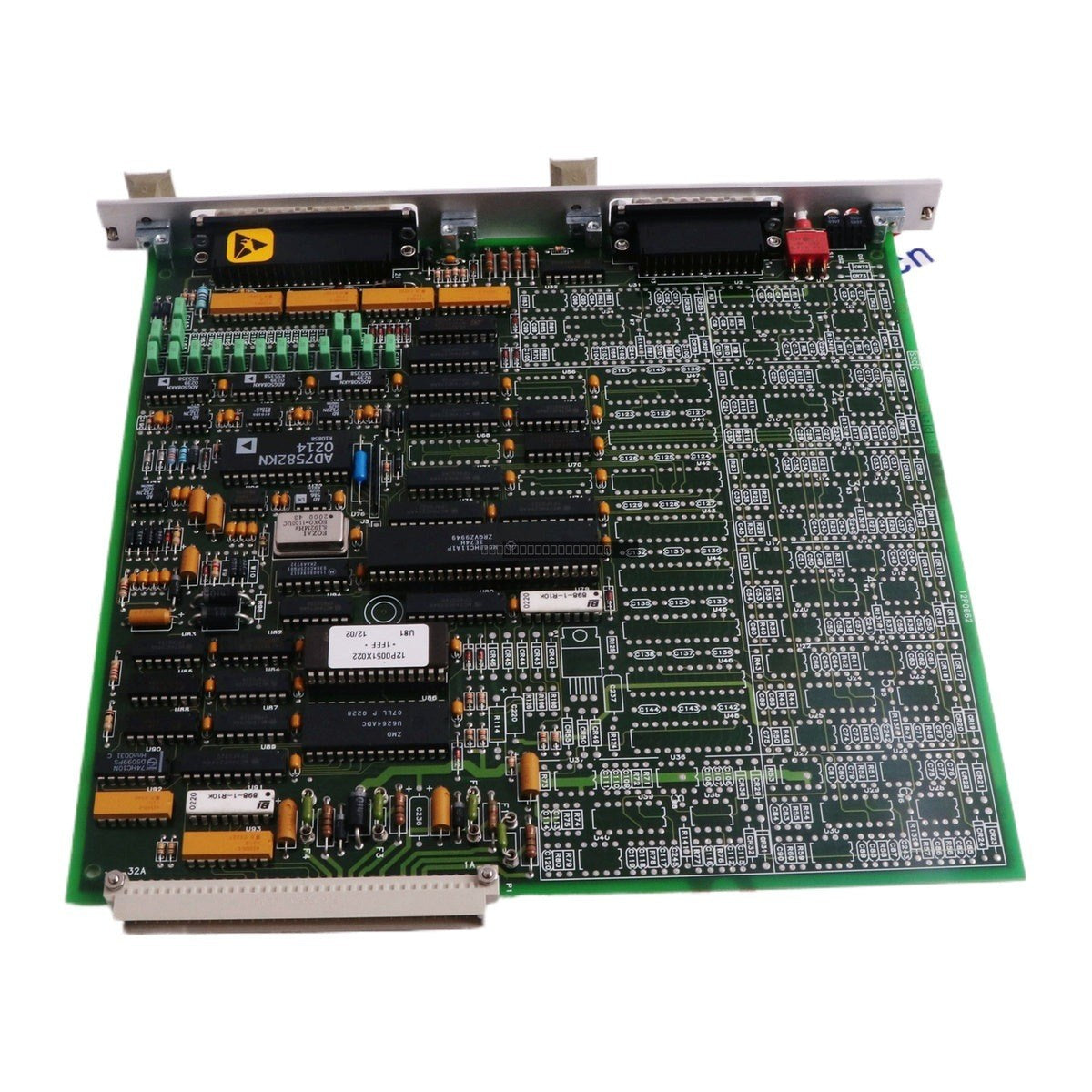

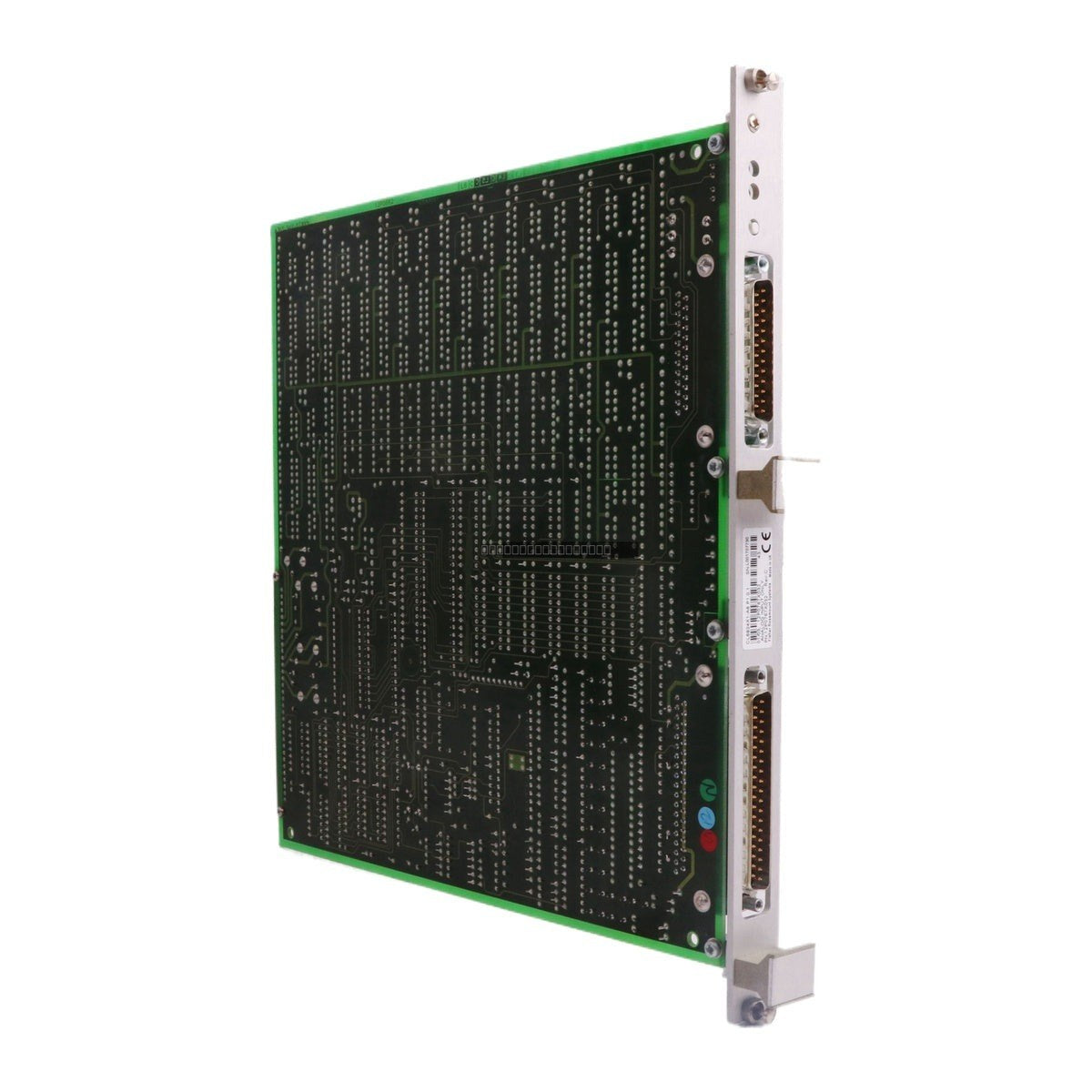

The Emerson Fisher Provox CL6824X1-A6 is a specialized analog input board designed for integration within the Provox distributed control system environment. This module facilitates the acquisition and processing of analog field signals, providing reliable data conversion for industrial monitoring and control applications. It is engineered to maintain high signal integrity and compatibility with existing Fisher Provox infrastructure.

Features

• Designed for seamless integration with Fisher Provox control systems.
• Dedicated analog input processing circuitry for precise signal handling.
• Robust construction suitable for industrial control cabinet environments.
• Direct replacement or spare for legacy Provox system configurations.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before attempting to install or remove the module from the rack.
• Handle the board using proper ESD (electrostatic discharge) protection practices to prevent damage to sensitive electronic components.
• Verify that the module is fully seated in the designated slot and that all locking mechanisms are engaged to ensure a secure electrical connection.
• Route signal wiring away from high-voltage power cables and sources of electromagnetic interference (EMI) to maintain signal accuracy.
• Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified range for the Provox system.

FAQ

What is the primary function of the CL6824X1-A6?
This module acts as an analog input interface, allowing the Provox system to receive and process analog signals from field instrumentation.

Is this module compatible with other systems?
The CL6824X1-A6 is specifically designed for the Fisher Provox series. It is not intended for use in generic PLC systems outside of its designated architecture.

What should I do if the module is not recognized by the system?
Verify that the module is firmly seated in the backplane and check for any bent pins or debris in the connector. Ensure the system configuration matches the hardware revision installed.
