Description

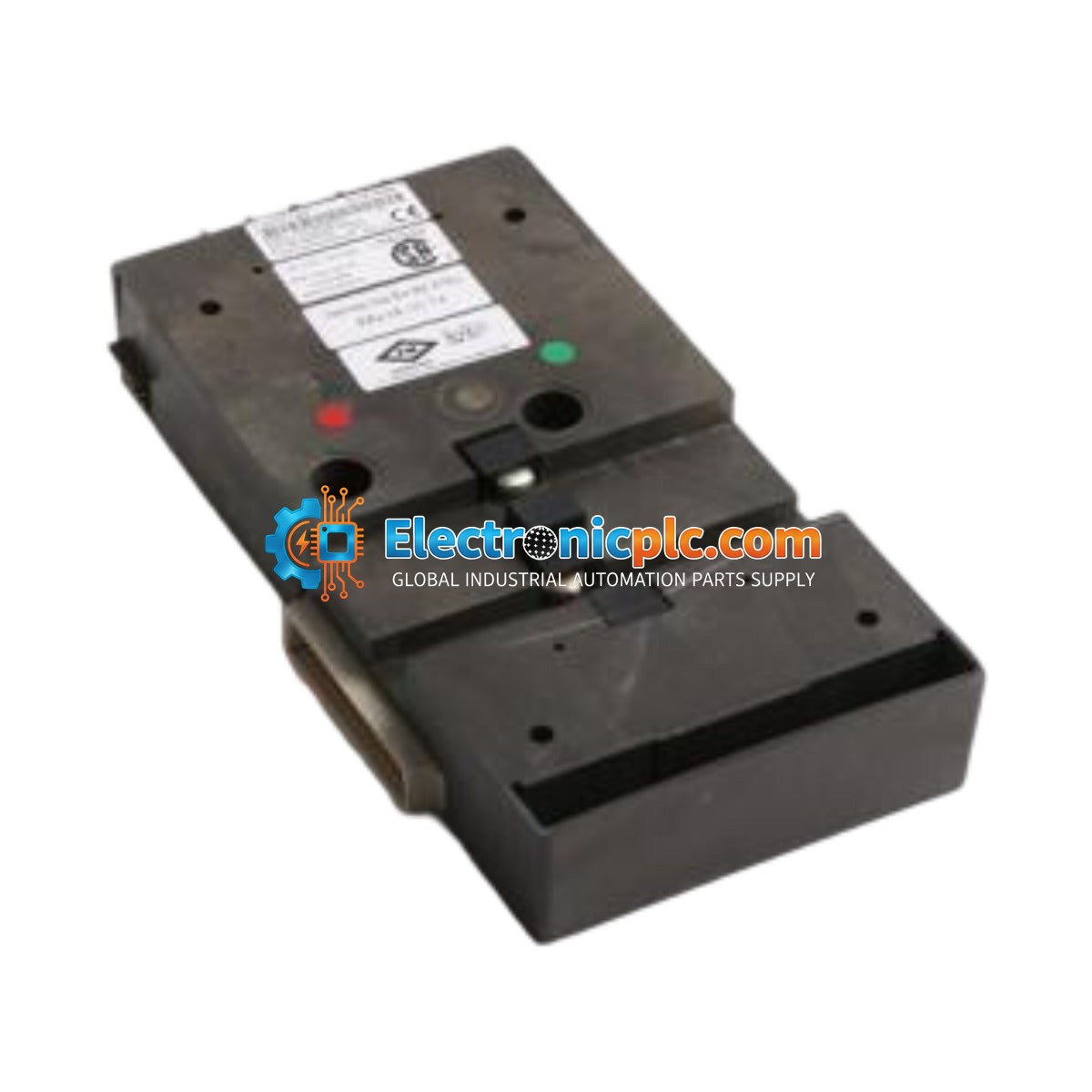

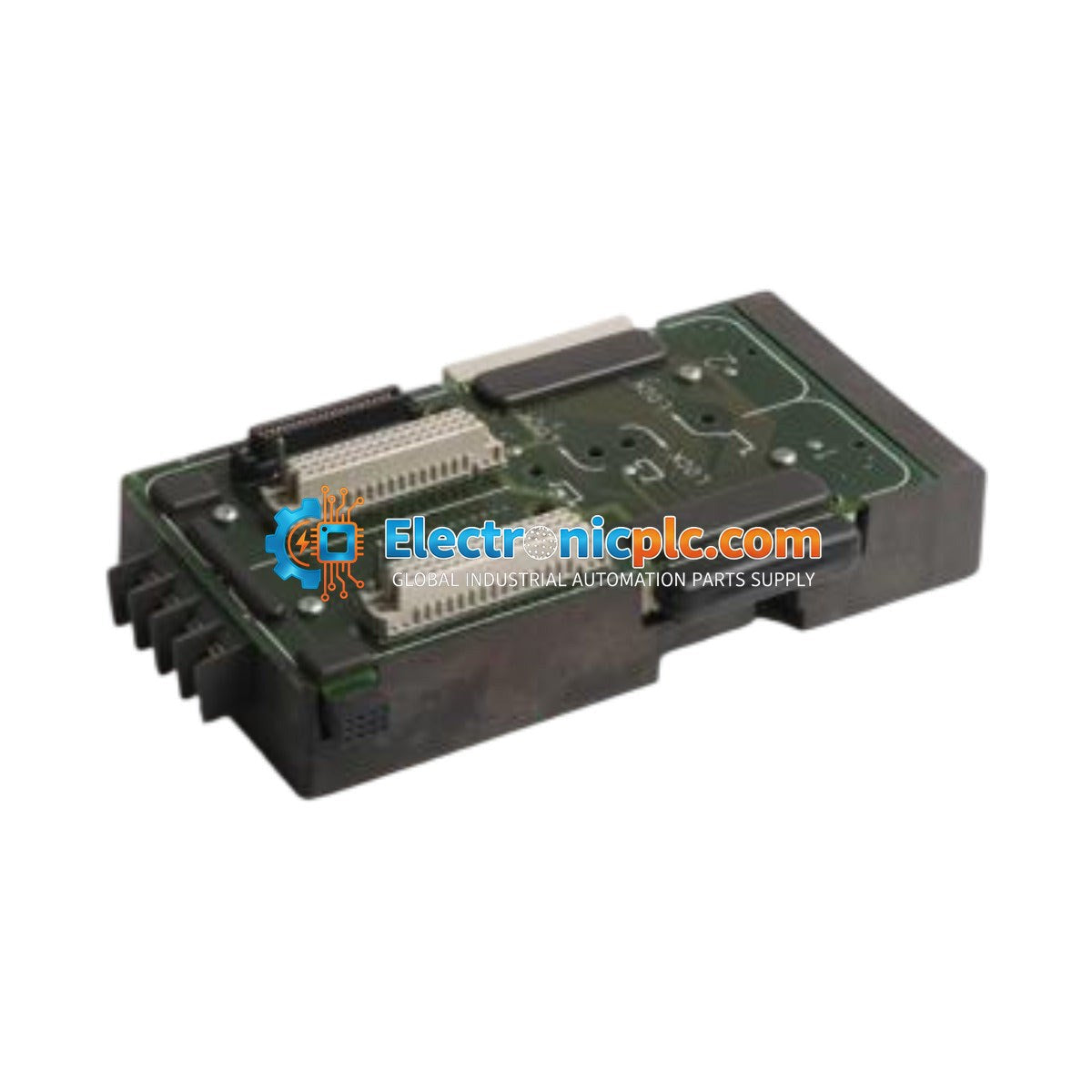

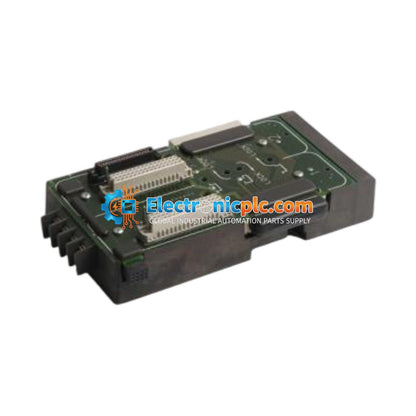

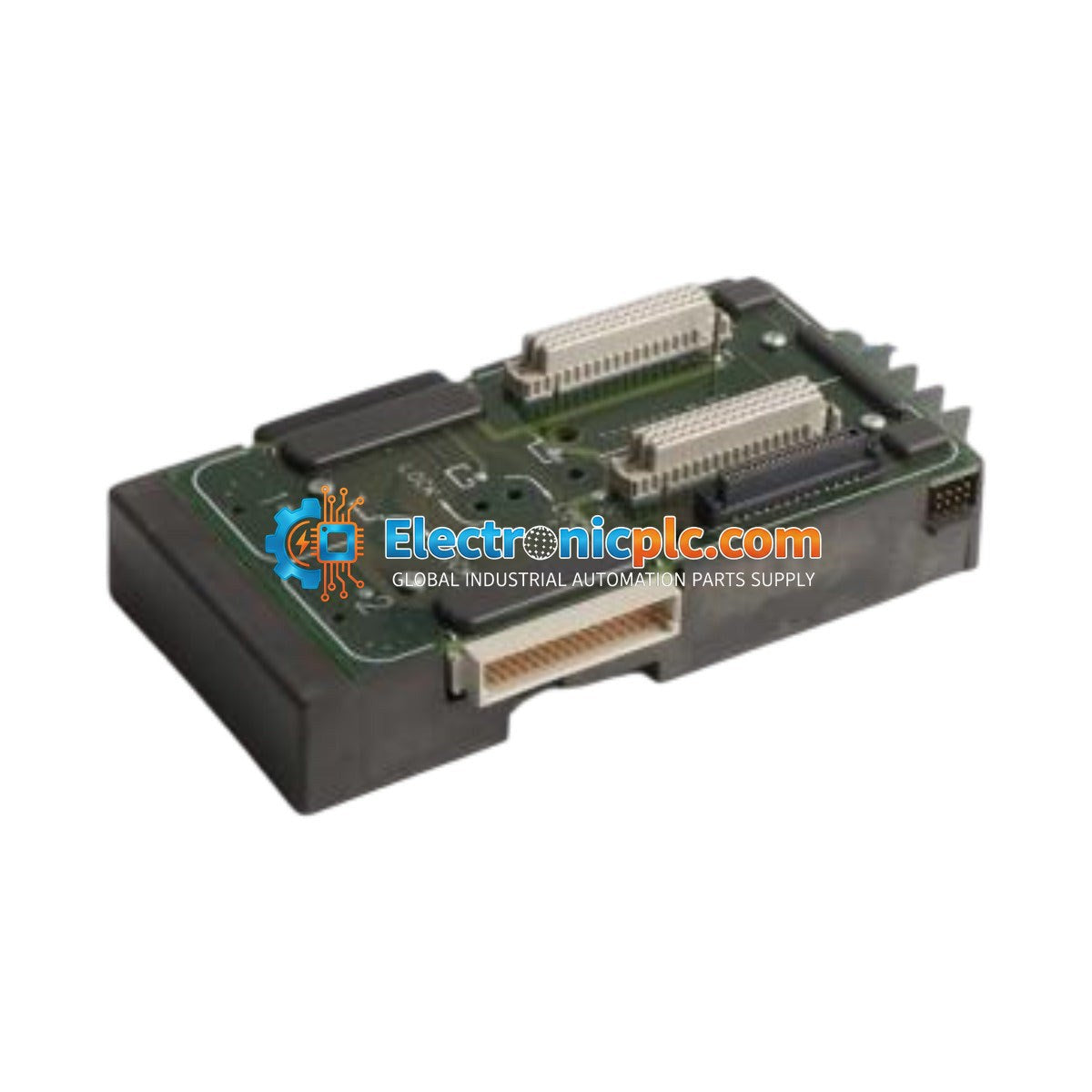

The Emerson KJ4001X1-BA2 (also identified as 12P1562X012 or VE3051CO) is a 2-wide power controller carrier designed specifically for the DeltaV M-Series automation system. This carrier serves as the essential mounting and electrical interface for power supplies and controllers, providing stable power distribution across the system LocalBus. It is engineered to support mission-critical industrial processes, ensuring reliable operation in environments such as petrochemical refining, power generation, and large-scale manufacturing.

Features

• Designed for seamless integration with DeltaV M-Series hardware.
• Provides a secure, high-capacity interface for power distribution.
• Supports a maximum input of 30 VDC at 8 A.
• Robust construction suitable for demanding industrial environments.
• Compatible with standard DeltaV LocalBus configurations.

Applications

This carrier is intended for use in DeltaV control systems where stable power and controller mounting are required. It is commonly deployed in distributed control system (DCS) architectures for process automation, safety-critical monitoring, and industrial facility management.

Technical Specifications

Installation Guidelines

• Ensure the system is completely de-energized before attempting to install or remove the carrier or any associated LocalBus cables.
• The carrier must be mounted in accordance with DeltaV M-Series hardware specifications to ensure proper cooling and electrical grounding.
• Total length of I/O carriers and LocalBus Extenders must not exceed 6.5 meters to maintain signal integrity and power stability.
• Use KJ4001X1-FA1 module covers on all unused slots to prevent environmental degradation and ingress of contaminants.
• Handle with care to avoid electrostatic discharge (ESD) damage to sensitive electronic components.

FAQ

What is the primary function of the KJ4001X1-BA2?

The KJ4001X1-BA2 acts as a mounting base and power distribution interface for DeltaV M-Series controllers and power supplies, ensuring they are correctly powered and connected to the system LocalBus.

Can this carrier be used in hazardous locations?

Yes, it is rated for hazardous atmosphere locations (II 3 G / EEx nA IIC T4) and carries the Nemko 02ATEX431U certification.

What should I do with unused slots on the carrier?

To maintain the integrity of the hardware and protect against environmental factors, all unused slots must be covered using the KJ4001X1-FA1 module cover.
