Description

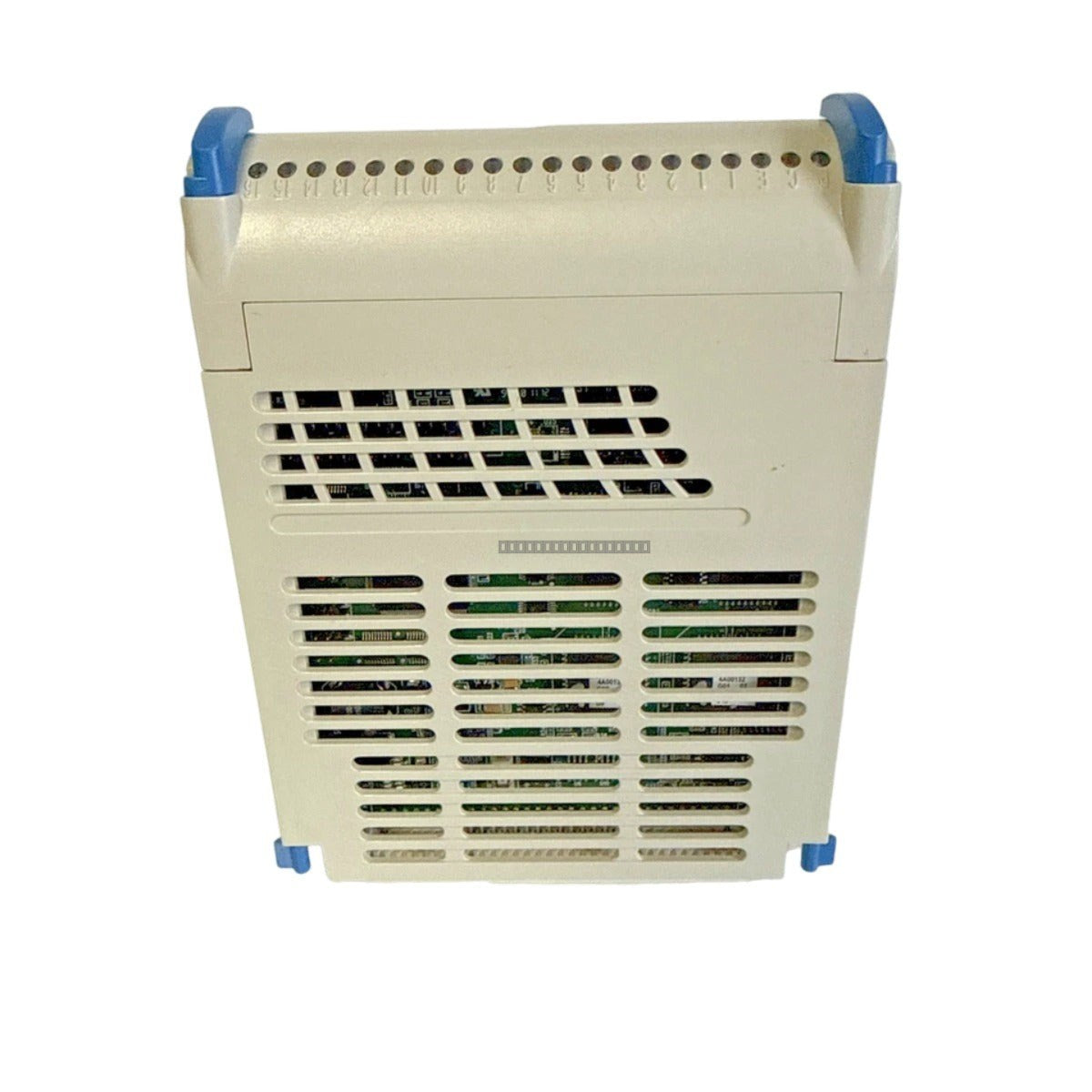

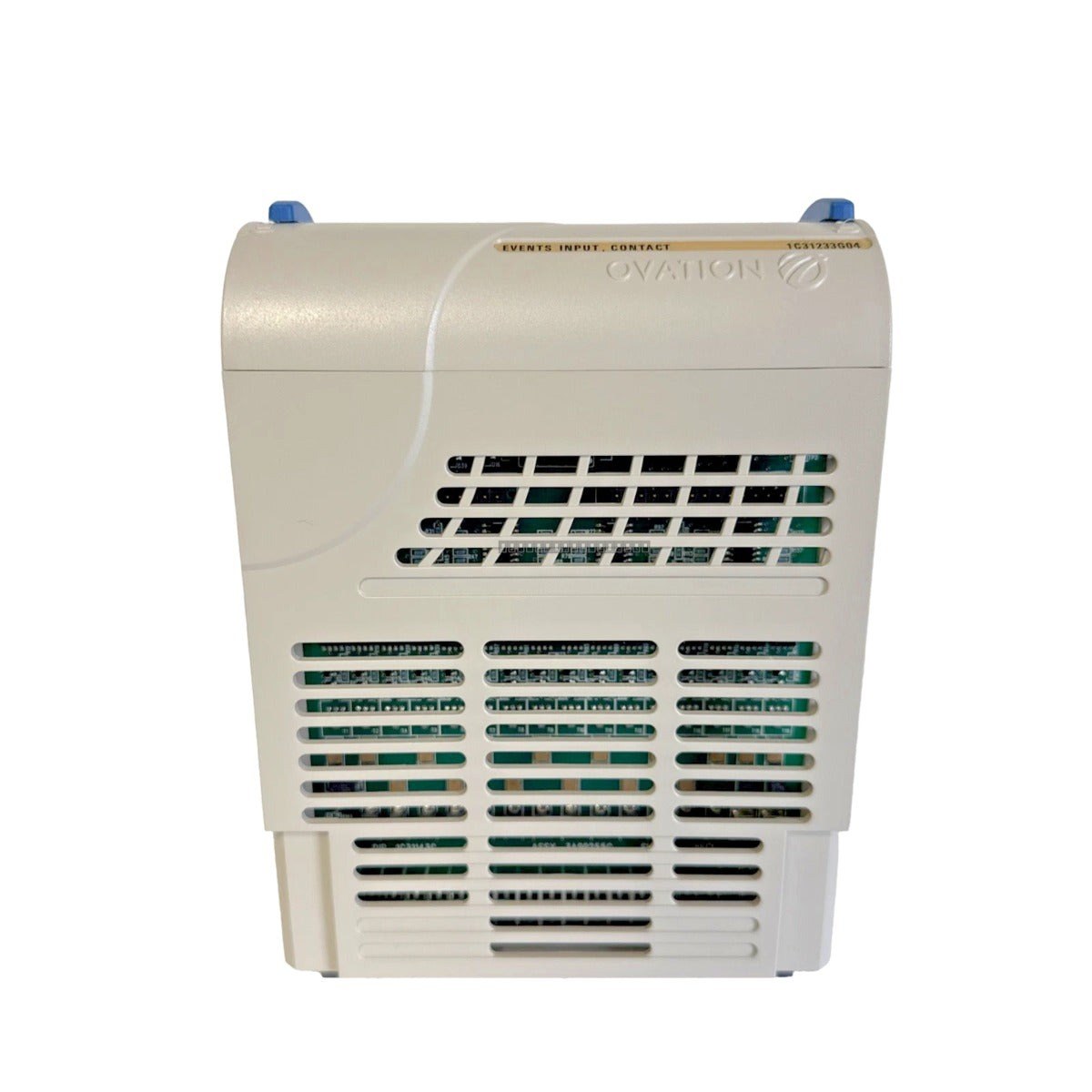

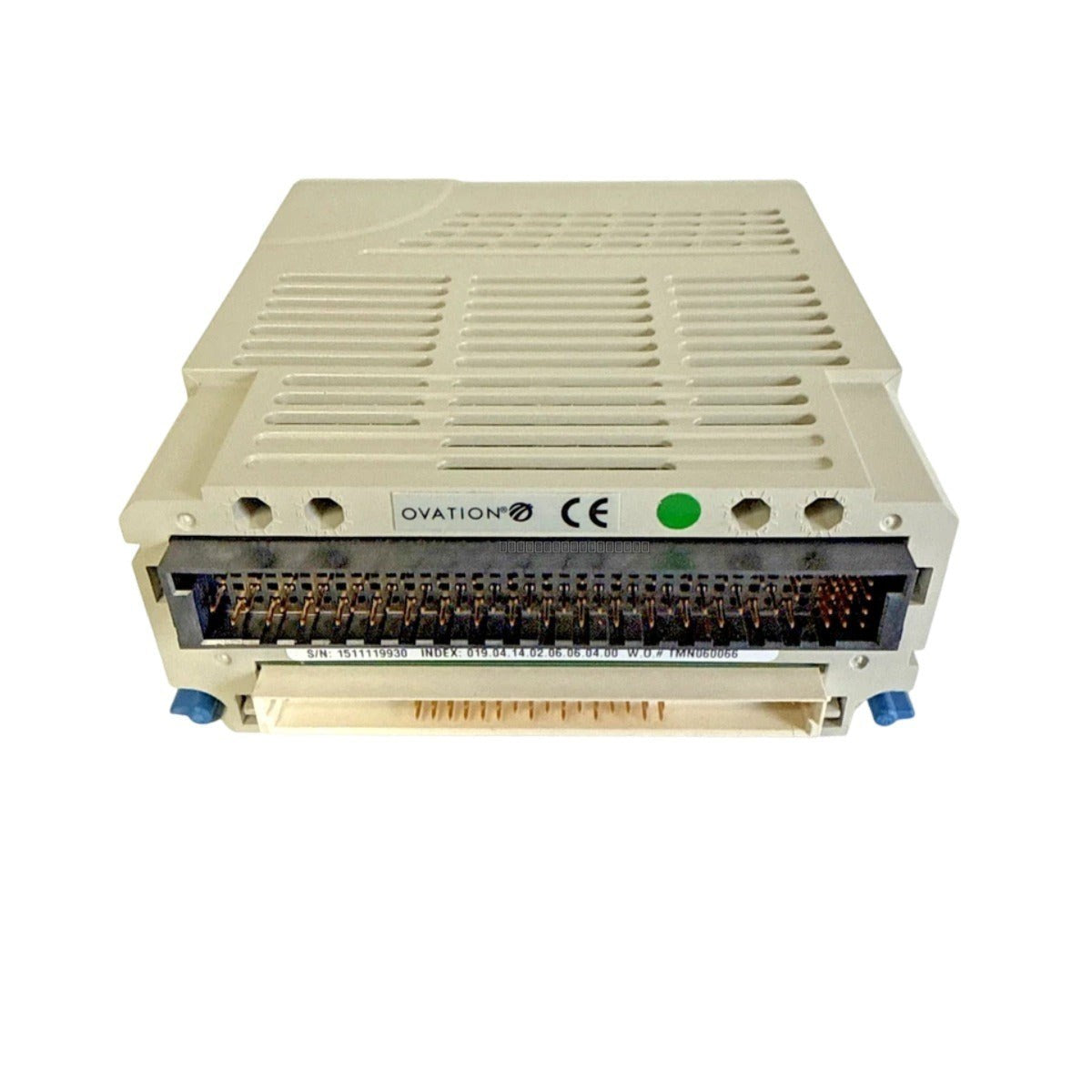

The Emerson Westinghouse 1C31233G04 is a Sequence of Events (SOE) input module designed for high-precision event monitoring in industrial control systems. This compact module is engineered to capture and timestamp digital input transitions, providing critical diagnostic data for system analysis and fault troubleshooting. As a legacy component, it serves as a reliable spare part for existing Westinghouse Ovation or WDPF control architectures.

Features

• 16-channel digital input capacity for comprehensive event monitoring.
• High-speed sequence of events recording to ensure accurate timing of system transitions.
• Compact module assembly designed for efficient rack space utilization.
• Designed for integration with legacy Emerson/Westinghouse control systems.

Technical Specifications

Installation Guidelines

• Ensure the control system power is fully disconnected before inserting or removing the module from the rack.
• Handle the module using proper ESD (Electrostatic Discharge) protection measures to prevent damage to internal circuitry.
• Verify that the module is firmly seated in the designated backplane slot to ensure reliable electrical contact.
• Ensure that input wiring is routed away from high-voltage or high-EMI sources to maintain signal integrity.
• Check that all field wiring connections are secure and properly labeled according to the system wiring diagram.

FAQ

Is the 1C31233G04 still in production?
No, this model has been discontinued by the manufacturer. It is available as a spare part for maintenance of legacy systems.

What is the primary function of this module?
This is a Sequence of Events (SOE) module used to monitor digital contact inputs and record the precise timing of state changes for system diagnostics.
