Description

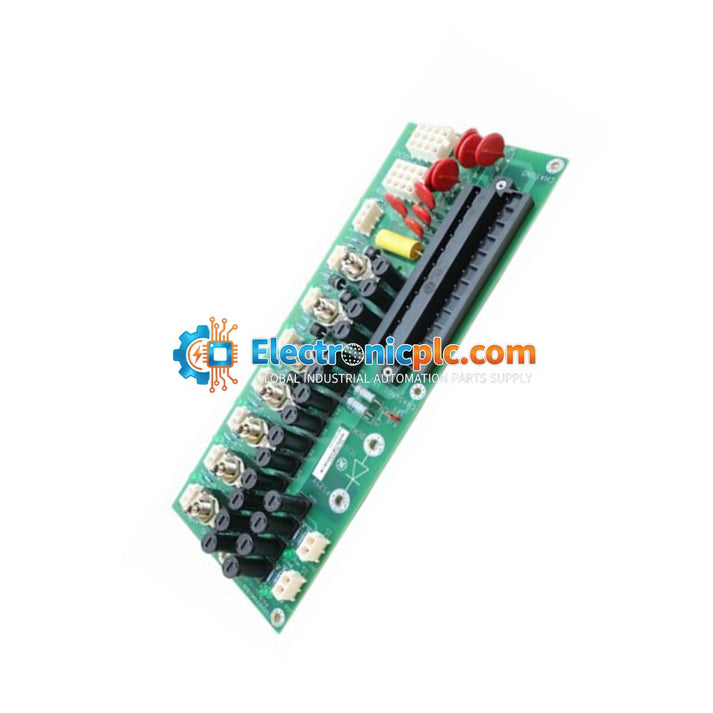

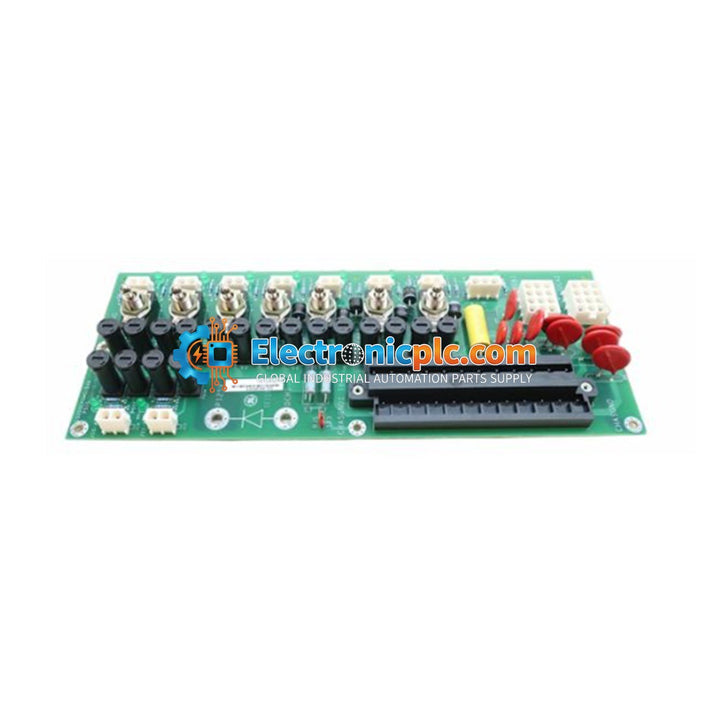

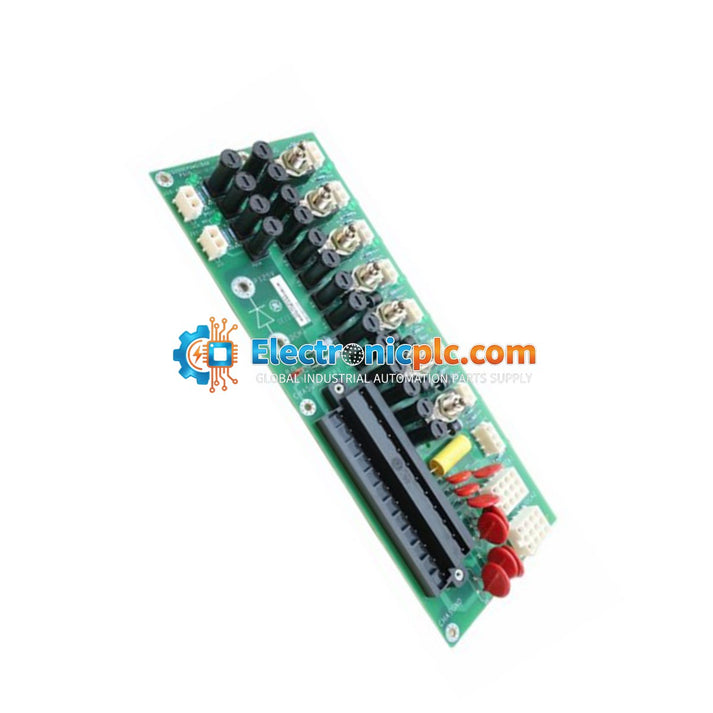

The IS200EPDMG1B is a specialized Exciter Power Distribution Module (EPDM) designed for the General Electric EX2100 Excitation Control system. This board serves as the primary power routing hub for the exciter's control, I/O, and protection boards, playing a critical role in maintaining generator stability in power plants and large-scale industrial utilities. By integrating diverse power inputs and providing filtered distribution, the module prevents control system failure due to power instability. Its strategic placement on the side of the Exciter Power Backplane (EPBP) allows for streamlined cable management and rapid hardware diagnostics, effectively reducing Mean Time To Repair (MTTR) during critical maintenance windows.

Power Architecture

The hardware utilizes a redundant input topology to ensure continuous operation. Primary power is derived from dual 120 VAC inputs alongside a secondary 125 VDC station battery feed. An onboard terminal block (TB1) facilitates these connections and incorporates high-grade filtering to mitigate electrical noise. External AC to DC converters rectify the AC supply into 125 VDC (DACA), which is then combined with the battery source via external diodes. This configuration yields the P125V and R125V DC source supplies. The internal power rail is center-grounded, maintaining a nominal differential of +62.5 VDC and -62.5 VDC relative to the ground, providing a balanced and isolated power environment for sensitive control electronics.

Technical Specifications

Installation Guidelines

• Ensure the system is fully powered down before inserting or removing the module from the EPBP backplane.
• Verify that all AC and DC input connections at terminal block TB1 are secure and correctly polarized.
• Maintain proper grounding practices to ensure the center-grounded +62.5 V / -62.5 V architecture remains stable.
• Handle the board using ESD-safe practices to prevent damage to sensitive internal components.
• Ensure adequate ventilation in the cabinet to maintain operating temperatures within the 0 to 60 deg C range.

FAQ

What is the primary function of the IS200EPDMG1B?
The IS200EPDMG1B acts as the central power distribution hub for the EX2100 excitation system, routing and filtering power to various control and I/O boards.

Is this module compatible with other GE systems?
No, this module is specifically designed for the EX2100 Excitation Control series and is intended for use with the Exciter Power Backplane (EPBP).
