Description

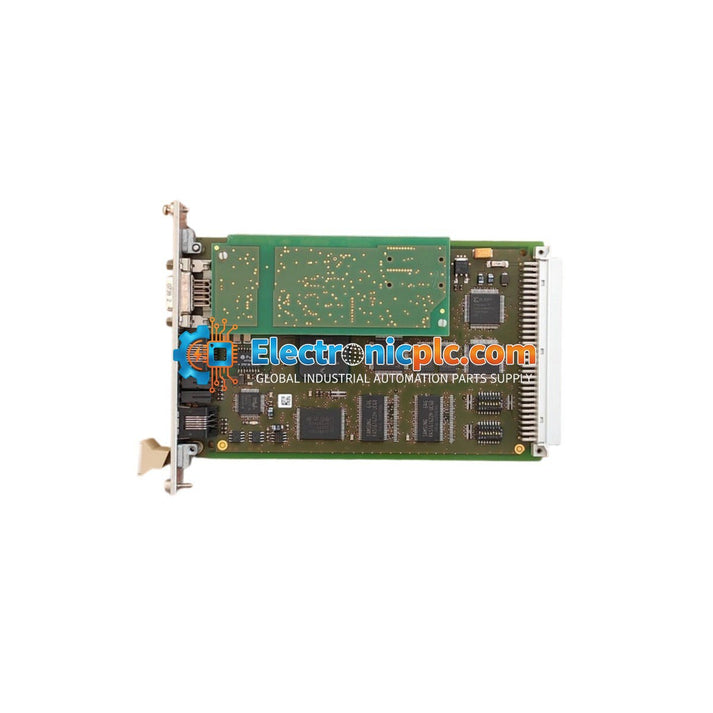

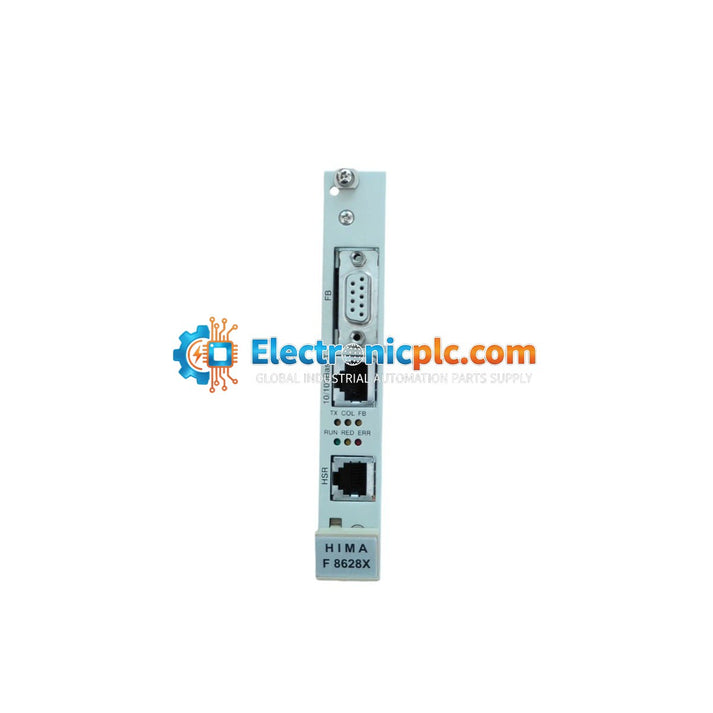

The HIMA F 8628X is a dedicated PROFIBUS-DP slave communication module designed for integration within HIMA H41q and H51q Programmable Electronic Systems (PES). This module facilitates reliable data exchange between the HIMA safety controller and a PROFIBUS-DP network, serving as a slave node in industrial automation architectures. It is compatible with systems beginning with OS41q/51q V7.0-7 (9906) and utilizes the HK-COM-3 function block for configuration and communication management.

Features

• Designed for PROFIBUS-DP slave communication.
• Equipped with a 32-bit Motorola MPC860T processor featuring an integrated RISC communication controller.
• Optimized for seamless integration into H41q/H51q safety systems.
• Compact hardware footprint requiring 3 HU (height units) and 4 SU (slot units).
• Supports data input capacity of up to 192 bytes.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the F 8628X module from the rack to prevent electrical damage.
• The module is designed for standard HIMA rack mounting; ensure the module is fully seated and the locking mechanisms are engaged.
• Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.
• Verify that the system firmware version is compatible (OS41q/51q V7.0-7 or higher) before commissioning.
• Ensure proper grounding of the PROFIBUS cable shield at the designated terminal points to minimize EMI interference.

FAQ

What is the primary function of the F 8628X?
The F 8628X acts as a PROFIBUS-DP slave communication interface, allowing HIMA H41q/H51q safety systems to communicate with external PROFIBUS-DP masters.

Which systems are compatible with this module?
This module is compatible with HIMA H41q and H51q series PES, specifically those running OS41q/51q V7.0-7 (9906) or later.
