Description

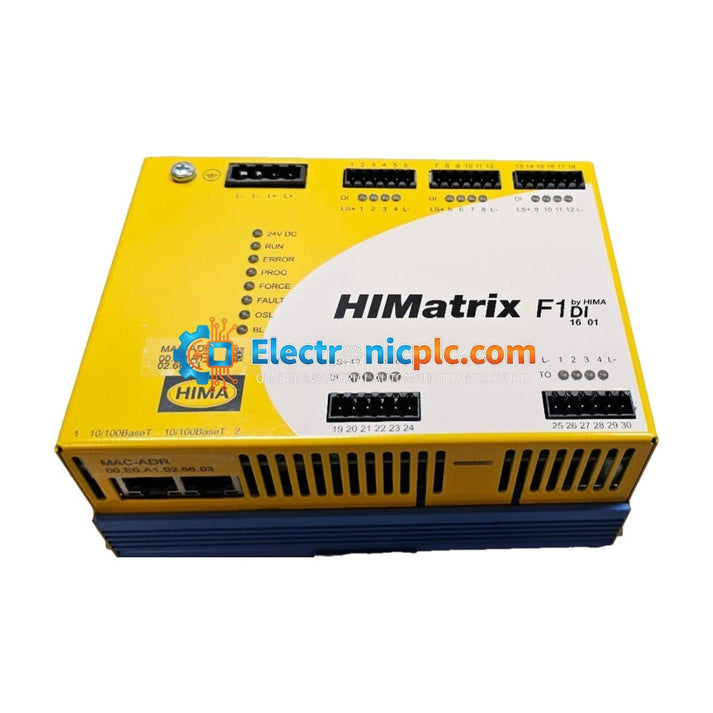

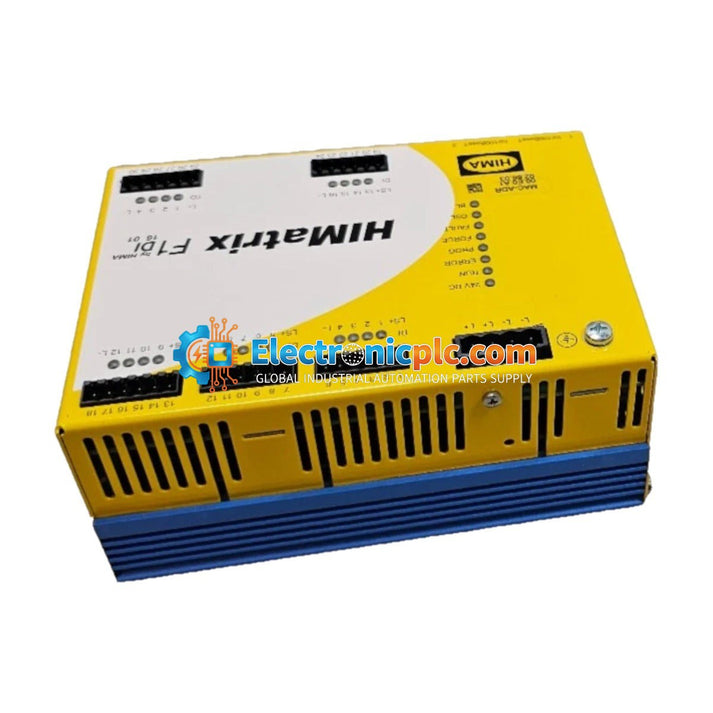

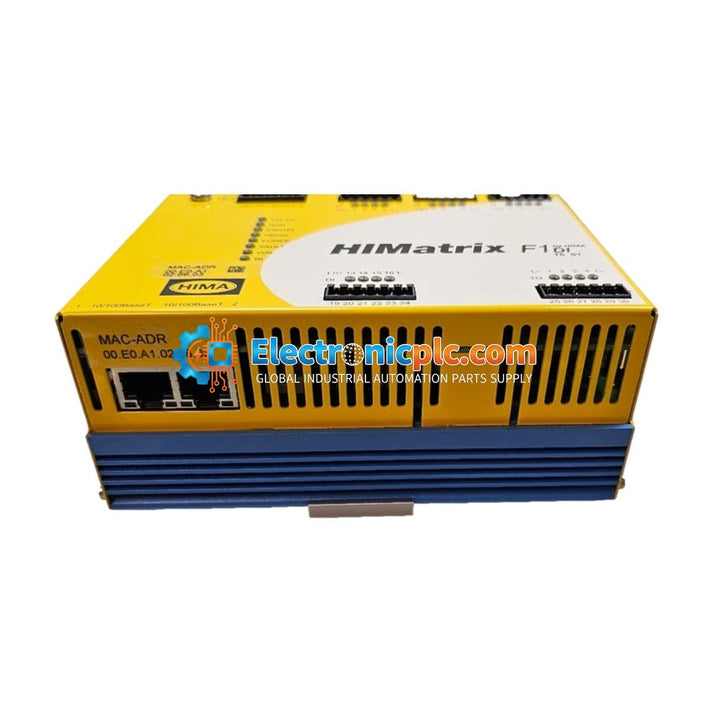

The HIMA F1 DI 16 01 is a safety-related remote I/O module designed for the HIMatrix system, specifically engineered to support high-demand, safety-critical applications. This module facilitates the integration of distributed sensors and actuators into a centralized safety architecture, making it suitable for industries such as petrochemical refining, automated manufacturing, and power generation. Certified to SIL 3 standards, the F1 DI 16 01 ensures high functional safety and system availability while minimizing wiring complexity through localized signal processing.

Features

• 16 digital input channels for monitoring safety-critical signals.
• 4 pulsed output channels for monitoring and control, enabling detection of short circuits and cross-faults.
• Designed for decentralized installation in harsh industrial environments with IP67-rated protection.
• Full compliance with IEC 61508 and IEC 61784 safety standards.
• Real-time diagnostic capabilities for constant supervision of connected field devices.

Applications

This module is typically deployed in safety-instrumented systems (SIS) where distributed I/O is required to reduce cabling costs and improve response times. Common applications include emergency shutdown systems (ESD), burner management systems, and safety-critical process automation in hazardous areas.

Technical Specifications

Installation Guidelines

• Ensure the module is mounted in a location that meets the specified operating temperature range of -20 to +60 deg C.
• Use appropriate shielded cabling for signal integrity in high-EMI environments.
• Always power down the system before inserting or removing the module from the rack or field mounting location.
• Ensure proper grounding of the module chassis to prevent electrical interference and ensure safety compliance.
• Verify that all field wiring is correctly terminated according to the HIMA HIMatrix system documentation to maintain SIL 3 integrity.

FAQ

Is the F1 DI 16 01 suitable for safety-critical applications?

Yes, the module is certified to SIL 3 standards and complies with IEC 61508 and IEC 61784, making it appropriate for high-demand safety-critical control loops.

What is the primary function of the pulsed outputs?

The 4 pulsed outputs are designed for the detection of short circuits and cross-faults in the connected wiring, which is essential for maintaining the safety integrity of the control loop.
