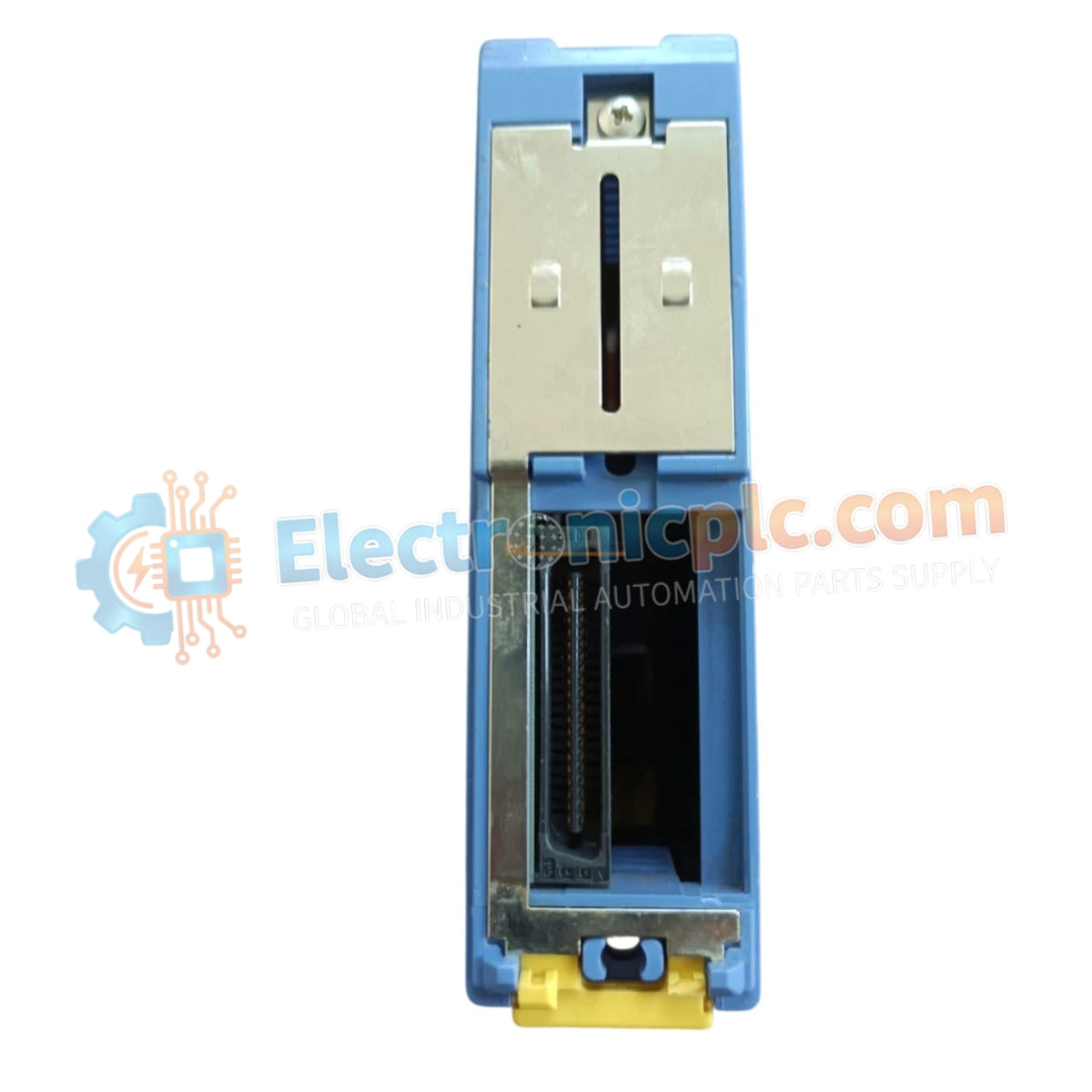

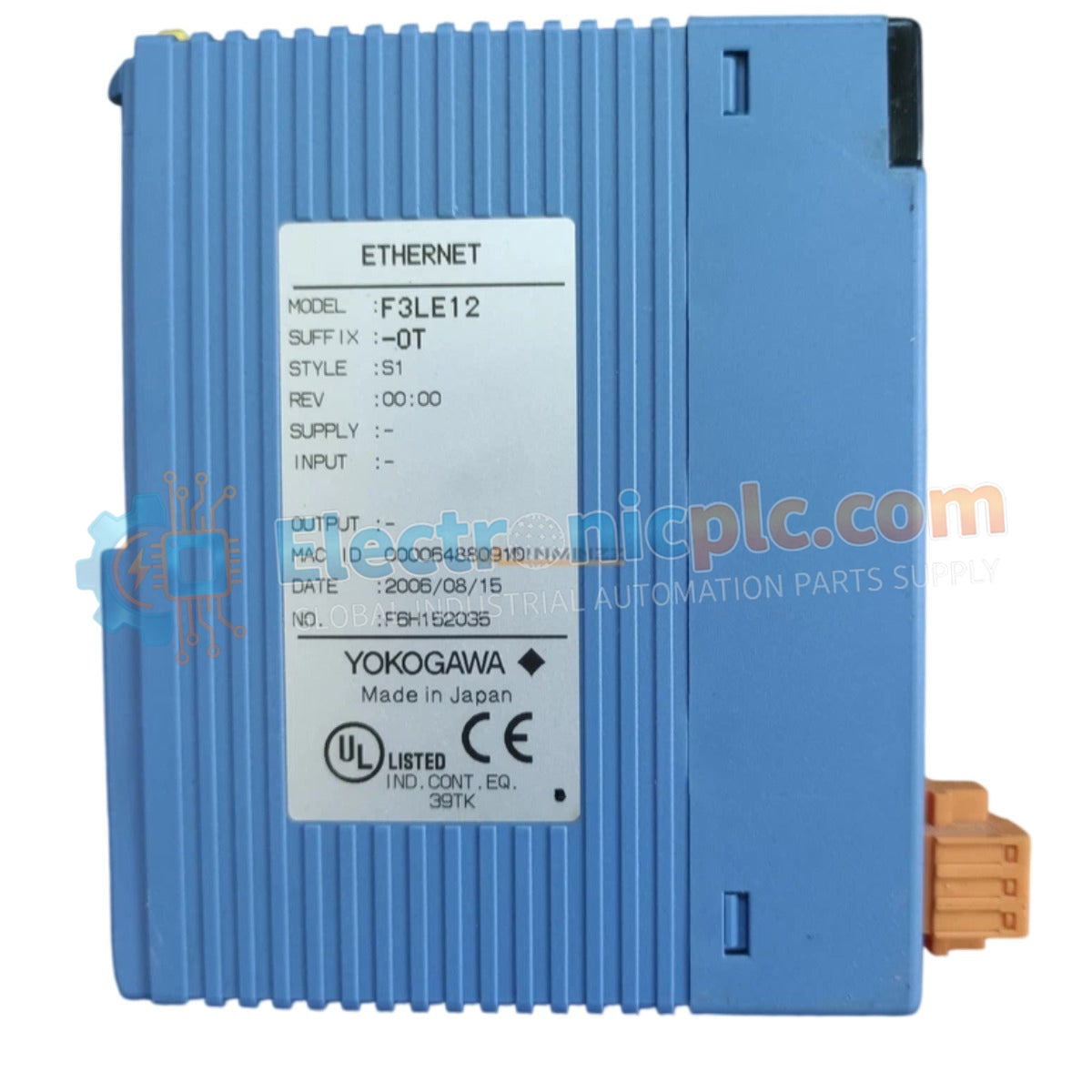

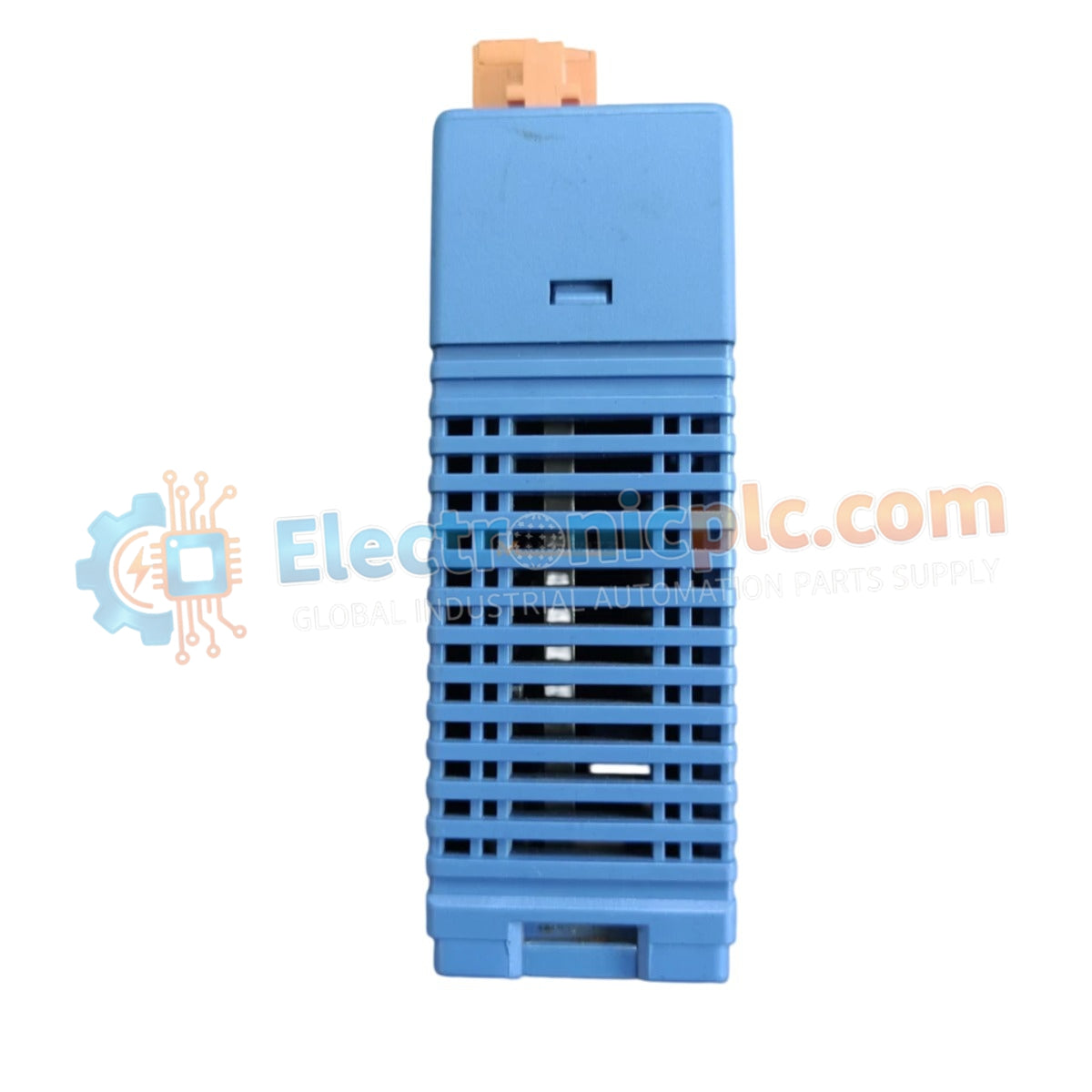

Configured for high-speed network connectivity in industrial control systems, the Yokogawa F3LE12-0T (F3LE12 Ethernet Interface Module) provides direct physical and electrical execution of TCP/IP-based data exchange between the FA-M3 platform and external network devices.

Hardware Specifications

Industrial Control and Network Connectivity

The module serves as a critical node for I/O density scaling by bridging the local backplane bus with external Ethernet infrastructures. The F3LE12-0T supports Profinet and EtherNet/IP deterministic networks, ensuring low-latency data packets for time-sensitive control operations. Internal firmware flash compatibility facilitates updates to network security protocols and communication stacks, while high-speed bus arbitration ensures that the module does not become a bottleneck for the host processor during high-volume data transfers.

Frequently Asked Questions

Q: Does the F3LE12-0T support full-duplex communication?

A: Yes. The module supports both half-duplex and full-duplex communication modes, automatically negotiating the optimal setting with the connected network switch.

Q: Is this module capable of performing on-the-fly protocol conversion between different Ethernet standards?

A: The module is optimized for standard TCP/IP and industrial Ethernet protocol handling. Protocol conversion latencies are minimized through hardware-level packet processing, provided the configuration matches the network segment requirements.

Field Installation Guidelines

• Mounting: Seat the module securely into the designated slot on the FA-M3 base unit. Ensure the rear backplane pins are fully engaged before securing the front-facing locking mechanism.
• Grounding: Ensure the module's frame ground is bonded to the common cabinet ground bus. A solid ground connection is mandatory to mitigate electromagnetic interference and ensure the stability of the high-speed Ethernet signals.
• Wiring Practices: Use category 5e or category 6 shielded twisted-pair (STP) cabling for all Ethernet connections. Ensure the cable bend radius is respected to prevent signal degradation and maintain the integrity of the internal pairs.
• Environmental Constraints: The module is rated for operation in environments ranging from 0 to 55 deg C. Ensure the module is situated in a location within the cabinet that allows for unobstructed airflow to prevent localized thermal accumulation.
