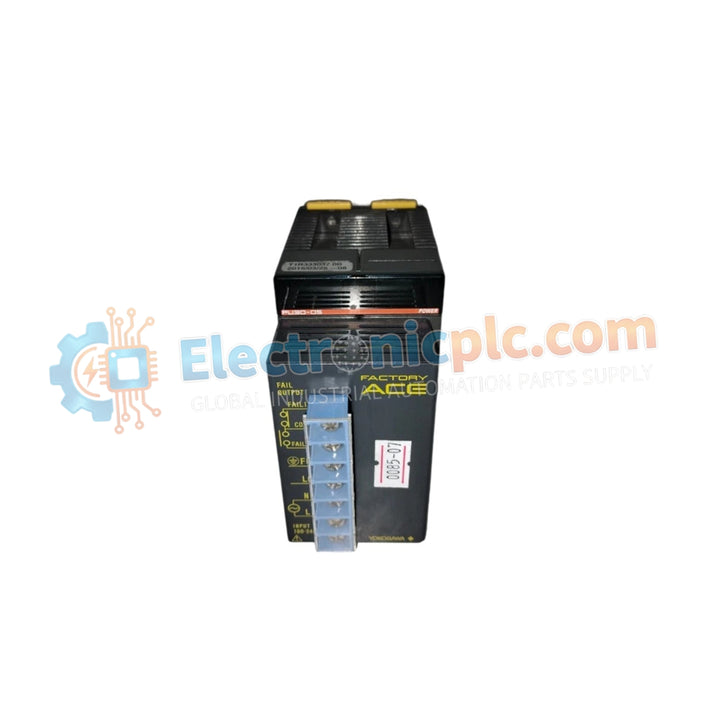

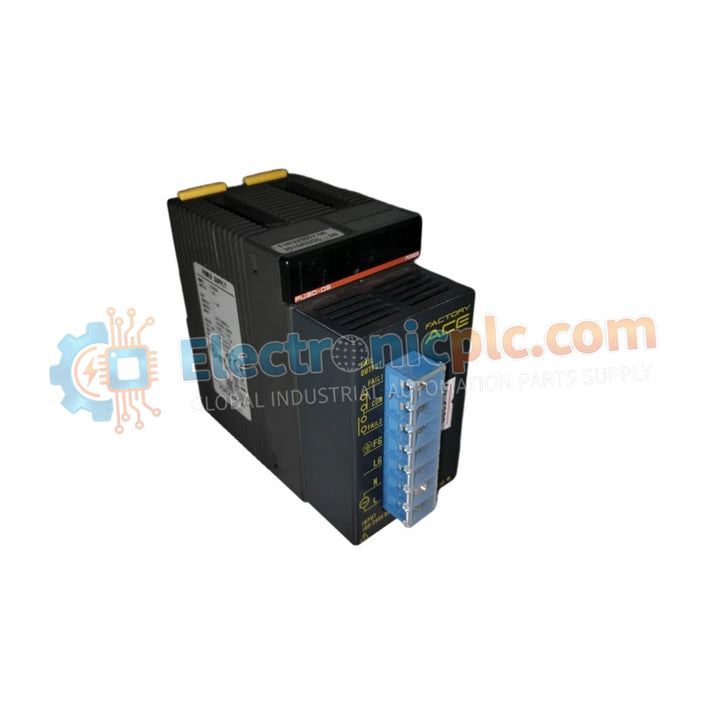

The Yokogawa F3PU30-0S, also cataloged as the F3PU30 Power Supply Module, operates as a dedicated hardware component for power conditioning and distribution within the FA-M3 Range-free Multi-controller architecture.

Hardware Specifications

Electrical Performance and Protection

The F3PU30-0S is engineered to maintain stable 5 V DC output regulation under fluctuating input conditions, supporting a range of 85-264 V AC. It provides an allowable momentary power failure time of 20 ms to ensure continuous logic execution during transient line disturbances. The module incorporates robust dielectric strength of 1500 V AC between external AC terminals and the frame ground (FG) terminal, alongside high insulation resistance of 5 MΩ. These characteristics ensure that the backplane bus communication velocity remains stable and protected from power-side noise, with a specified noise immunity level of 1500 Vp-p.

Frequently Asked Questions

Q: Does the F3PU30-0S module require external cooling fans?

A: No, the module is designed for convective cooling. Ensure that vertical clearance of at least 10 cm is maintained above and below the module to allow for adequate heat dissipation.

Q: How does the module handle a sustained input voltage drop below 85 V AC?

A: The internal protection circuits will trigger a low-voltage shutdown to protect the downstream controller modules. The output will be disabled until the input voltage returns to the rated operating range.

Field Installation Guidelines

• Terminal Wiring: Secure AC input leads and the frame ground (FG) wire to the terminal block. Ensure that the FG terminal is connected to the protective earth bus using a conductor with a minimum cross-section of 2 mm squared to maintain electrical safety.
• Mounting: Install the power supply in the leftmost slot of the FA-M3 base unit to minimize voltage drop across the backplane bus. Fasten all mounting screws securely to ensure a rigid electrical connection.
• Separation: Maintain a minimum distance of 15 cm from high-power electromagnetic sources or inductive loads to prevent noise injection into the power supply output.
• Periodic Inspection: Inspect the terminal connections annually for signs of thermal oxidation or loose fasteners. Verify the output voltage at the backplane monitoring point to ensure it remains within the nominal 5 V DC threshold.
