Description

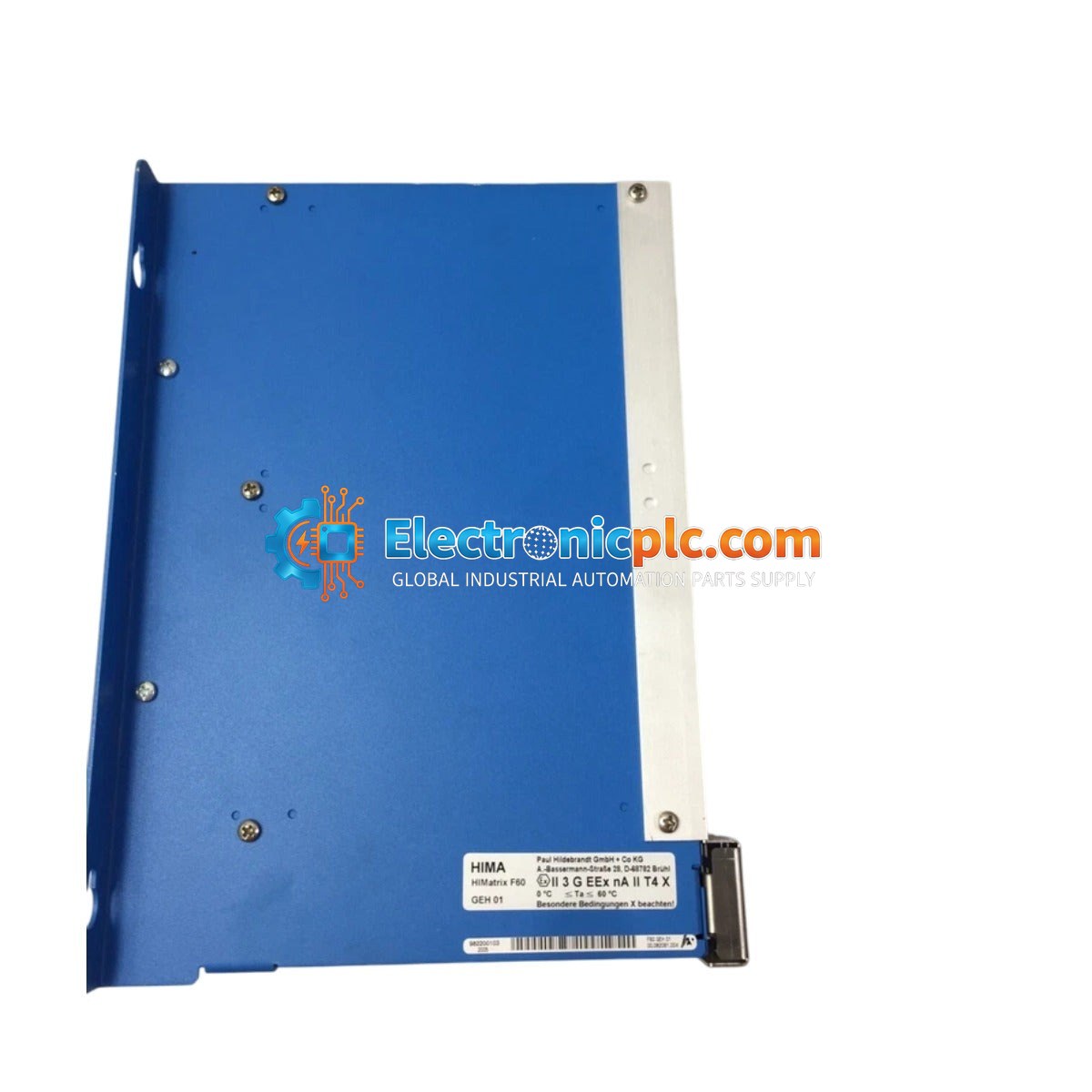

The HIMA F60 GEH 01 is a robust, high-integrity subrack designed specifically for the HIMatrix F60 safety system. This enclosure provides a secure, organized housing for critical safety components, including power supply units, central processing modules, and I/O modules. Engineered for demanding industrial environments such as oil refining, chemical processing, and power generation, the F60 GEH 01 ensures mechanical stability and effective thermal management to support continuous, reliable operation of safety-critical applications.

Features

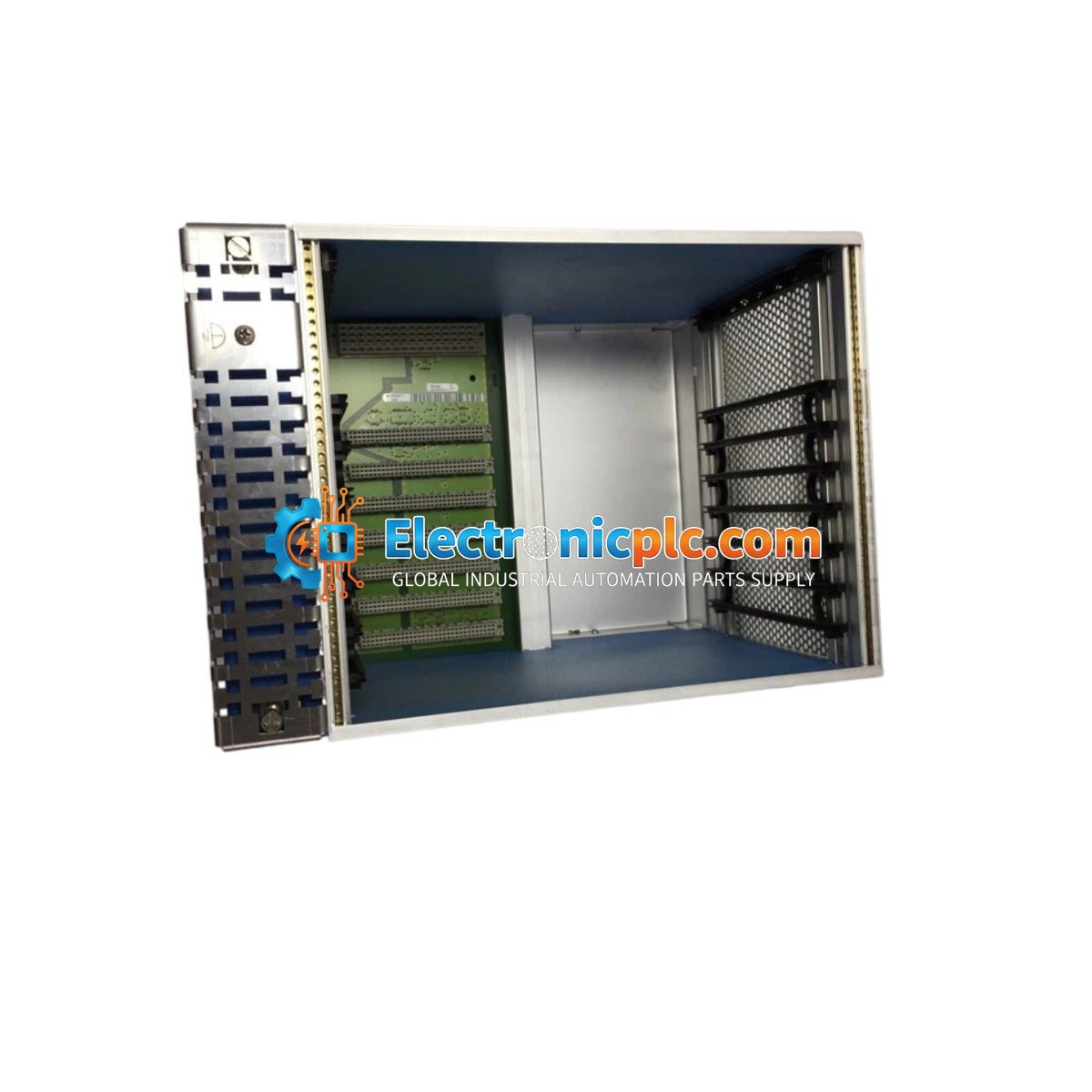

• Modular Architecture: Supports 8 dedicated slots for flexible system configuration.

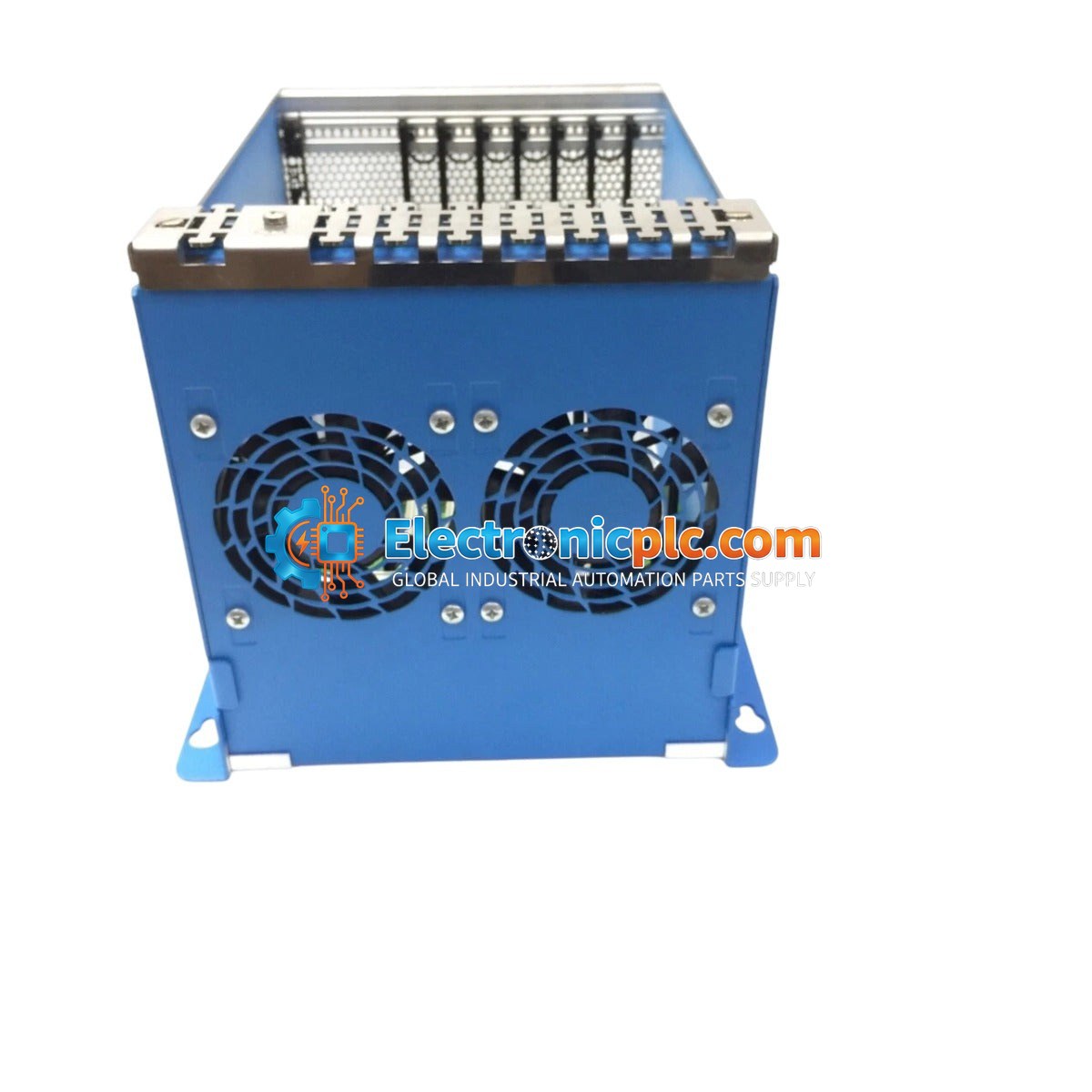

• Thermal Management: Integrated dual-fan cooling system to maintain optimal operating temperatures.
• Robust Construction: Anodized aluminum chassis providing structural integrity and electromagnetic protection.
• Secure Seating: Equipped with integrated guide rails to ensure precise module alignment and secure seating.
• Standardized Connectivity: Utilizes a 96-pole Type C connector system (DIN EN 60603-2) for reliable backplane signal routing.

Applications

The F60 GEH 01 subrack is used extensively in safety-instrumented systems (SIS) where high availability and fault tolerance are required. It is ideal for emergency shutdown systems (ESD), burner management systems (BMS), and fire and gas detection applications.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the subrack is mounted in a clean, dry, and vibration-dampened cabinet environment.
• Grounding: Connect the chassis earth grid to the cabinet's main protective earth (PE) busbar to ensure electromagnetic compatibility and safety.
• Cooling: Maintain clear airflow paths around the unit; do not obstruct the integrated fan intake or exhaust vents.
• Module Insertion: Always power down the system before inserting or removing modules to prevent electrical arcing or damage to the backplane pins.
• Handling: Use ESD-safe handling practices when installing modules into the subrack to protect sensitive electronic components.

FAQ

What is the slot allocation for the F60 GEH 01?

The subrack features 8 slots in total: Slot 1 is reserved for the power supply, Slot 2 is for the central module, and Slots 3 through 8 are available for various I/O modules.

Is this subrack suitable for high-vibration environments?

Yes, the F60 GEH 01 is designed for industrial use with a rigid aluminum chassis and guide rails that provide high mechanical stability for the installed modules.
