Description

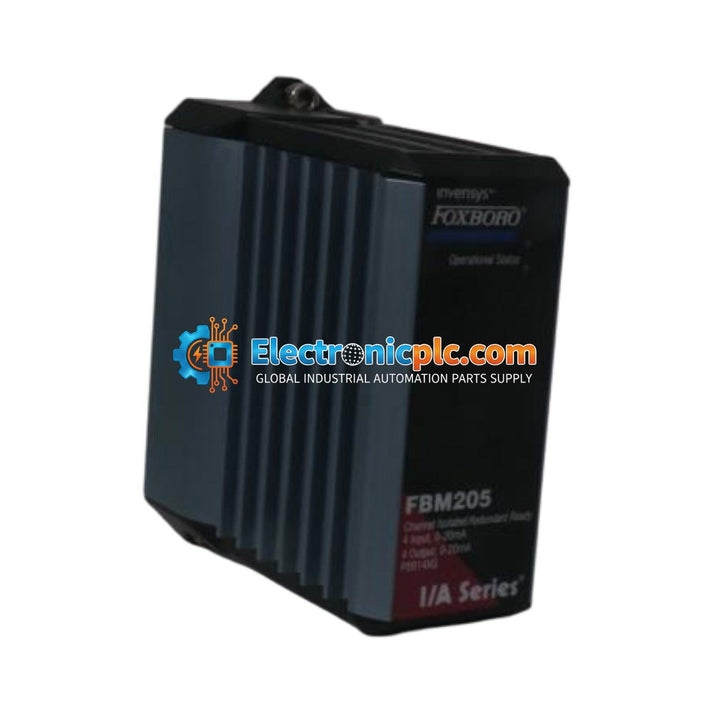

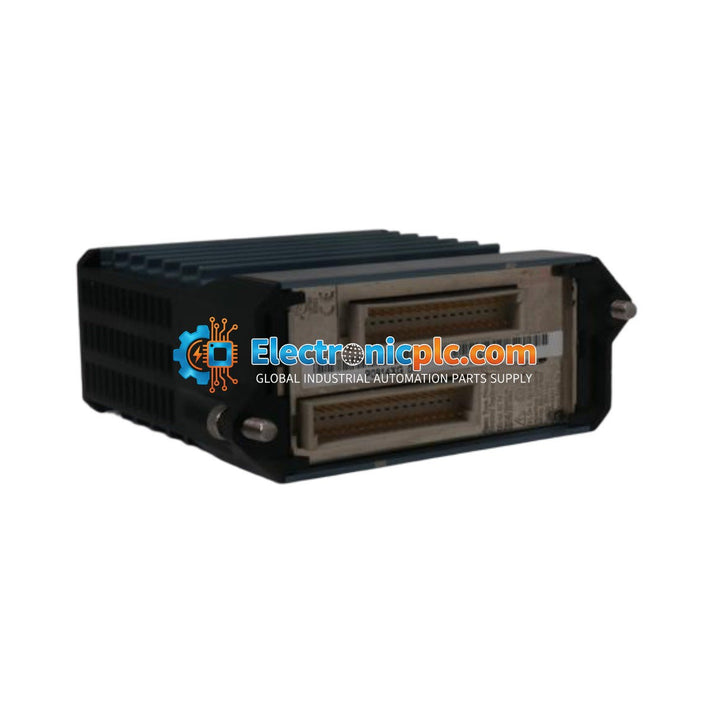

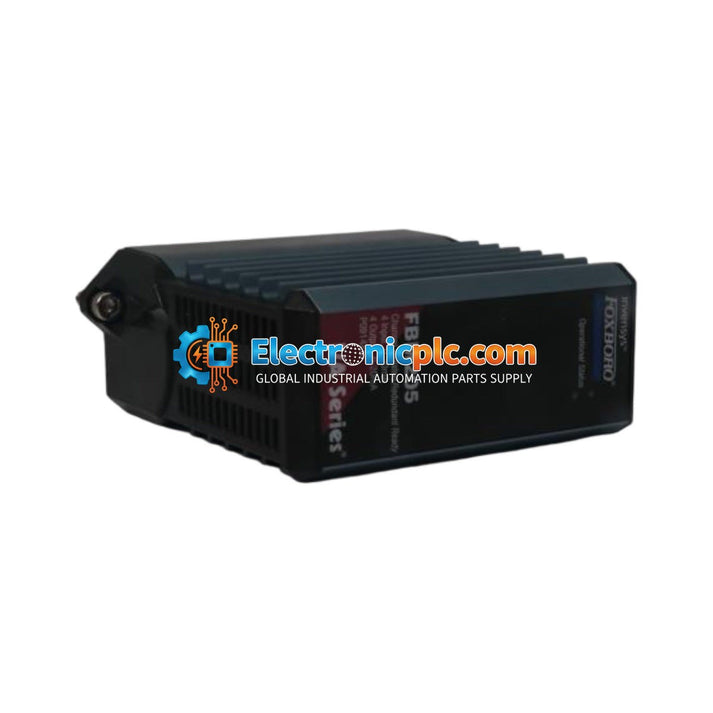

The Foxboro FBM205 (P0914XG) is a high-reliability, redundant analog input/output interface module designed for the I/A Series distributed control system. This module provides four channels of 0 to 20 mA analog input and two channels of 0 to 20 mA analog output, supporting critical control loops in demanding industrial environments such as oil refineries, thermal power plants, and mineral processing facilities. By utilizing a redundant hardware architecture, the FBM205 ensures that a single component failure does not interrupt process signals, maximizing plant availability and reducing the risk of unscheduled downtime.

Features

• Redundant Architecture: Fully redundant circuit design maintains process integrity and ensures seamless failover between logic paths.
• High-Density I/O: Provides 4 analog input channels and 2 analog output channels in a compact Eurocard form factor.
• Galvanic Isolation: Each channel features independent galvanic isolation to suppress electromagnetic interference.
• Hot-Swappable: Supports replacement under power without disturbing field wiring or interrupting adjacent module operation.
• Advanced Diagnostics: Real-time monitoring of open-circuit or short-circuit conditions on 0-20 mA loops.
• Environmental Ruggedness: Rated for G3 harsh environments per ISA S71.04.

Applications

The FBM205 is designed for high-availability process control applications, including:

• Oil and Gas upstream and downstream processing.
• Thermal power generation and boiler control.
• Chemical and mineral processing facilities.
• Critical safety and control loops requiring redundant signal paths.

Technical Specifications

Installation Guidelines

• Handling: Use standard ESD protection practices when handling the module to prevent damage to internal circuitry.
• Mounting: Ensure the module is fully seated in the I/A Series baseplate or rack. Verify that the locking mechanism is engaged.
• Wiring: Ensure all field wiring is properly terminated according to the system wiring diagram. Use shielded cables for analog signals to minimize EMI.
• Power: The module is hot-swappable; however, ensure the baseplate power is stable before insertion.
• Cooling: Maintain adequate airflow within the cabinet to ensure the module operates within the specified temperature range.

FAQ

Is the FBM205 P0914XG compatible with all I/A Series systems?

The FBM205 is designed for use within the Foxboro I/A Series distributed control system. Please verify your specific system revision and baseplate compatibility before installation.

Can I replace this module while the system is running?

Yes, the FBM205 supports hot-swapping, allowing for replacement under power without interrupting the operation of the control loop or adjacent modules.
