Description

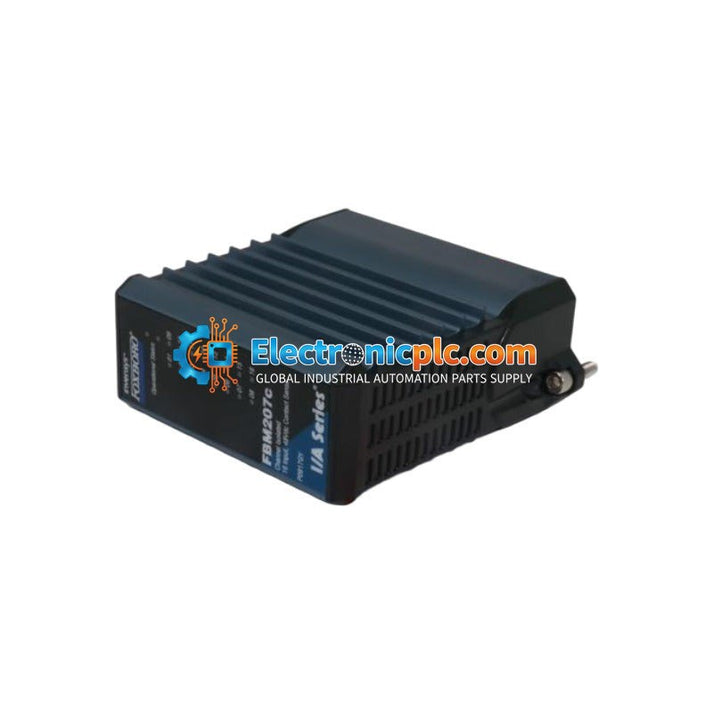

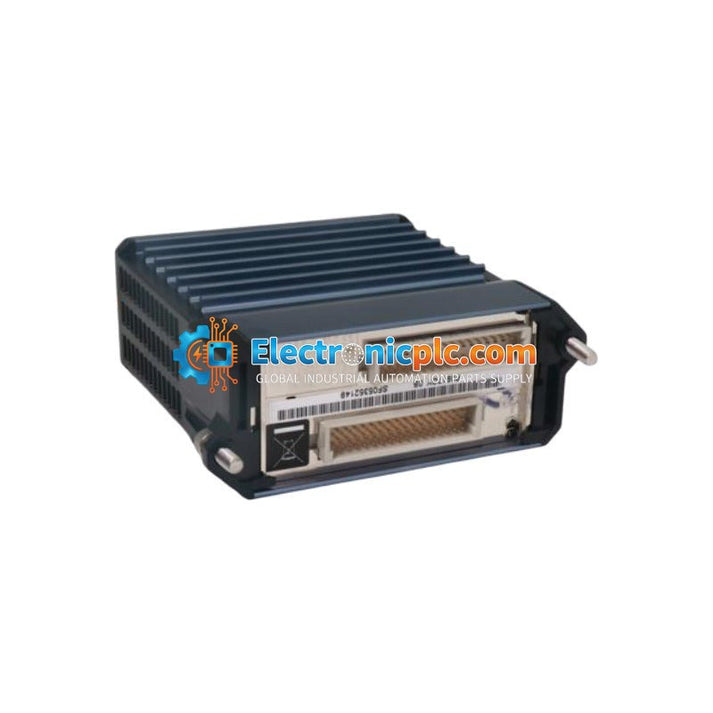

The Foxboro FBM207c (P0917GY) is a high-density 16-channel discrete input module engineered for the I/A Series Distributed Control System (DCS). This module provides versatile interface capabilities, supporting both voltage monitoring and contact sensing to accommodate a wide range of field switches and relay contacts. Designed for critical industrial environments, the FBM207c ensures high data integrity through robust signal isolation and advanced digital filtering, facilitating real-time monitoring of process interlocks and equipment status.

Features

• 16 independent input channels with configurable digital debounce filtering.
• Dual-mode operation: Supports both internally powered (contact sense) and externally powered (voltage monitor) configurations.
• High-speed scanning with software-configurable rates from 1 ms to 250 ms.
• Optical isolation (1500 VAC) between field inputs and system logic to protect against transients and surges.
• Conformal coated to ISA-S71.04 Class G3 standards for protection in harsh environments.
• Redundant 2 Mbps Fieldbus communication for high availability in mission-critical applications.

Applications

The FBM207c is widely deployed in utility substations, oil and gas refineries, and heavy manufacturing facilities. It is primarily used for monitoring critical process interlocks, emergency shutdown system status, and general equipment state changes where high-speed, reliable digital input acquisition is required.

Technical Specifications

Installation Guidelines

• Ensure the system power is de-energized before inserting or removing the FBM207c from the baseplate.
• The module is designed for mounting on standard I/A Series baseplates; ensure proper seating to engage the backplane connector.
• Use shielded cabling for field inputs to minimize EMI/RFI interference in high-noise industrial environments.
• Adhere to proper ESD handling procedures when handling the module to prevent damage to sensitive internal circuitry.
• Verify that the termination assembly matches the intended configuration (voltage monitor vs. contact sense) before applying field power.

FAQ

Does the FBM207c require external power for contact sensing?

The module supports both configurations. It can provide internal power for contact sensing or accept external power for voltage monitoring, depending on the specific termination assembly used.

Is this module suitable for corrosive environments?

Yes, the FBM207c is conformal coated to meet ISA-S71.04 Class G3 standards, making it suitable for use in environments with airborne contaminants.
