Description

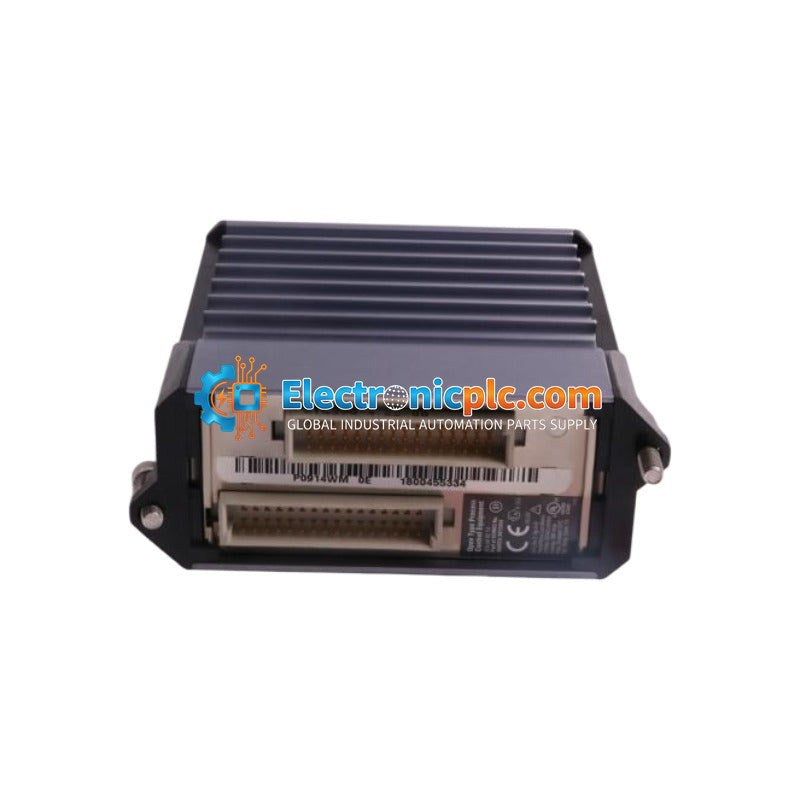

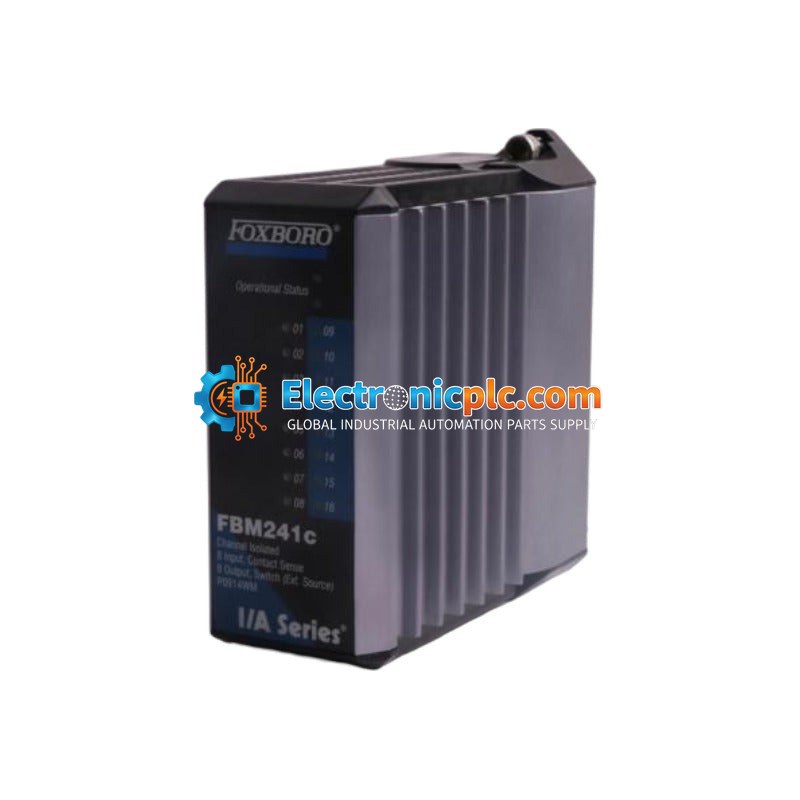

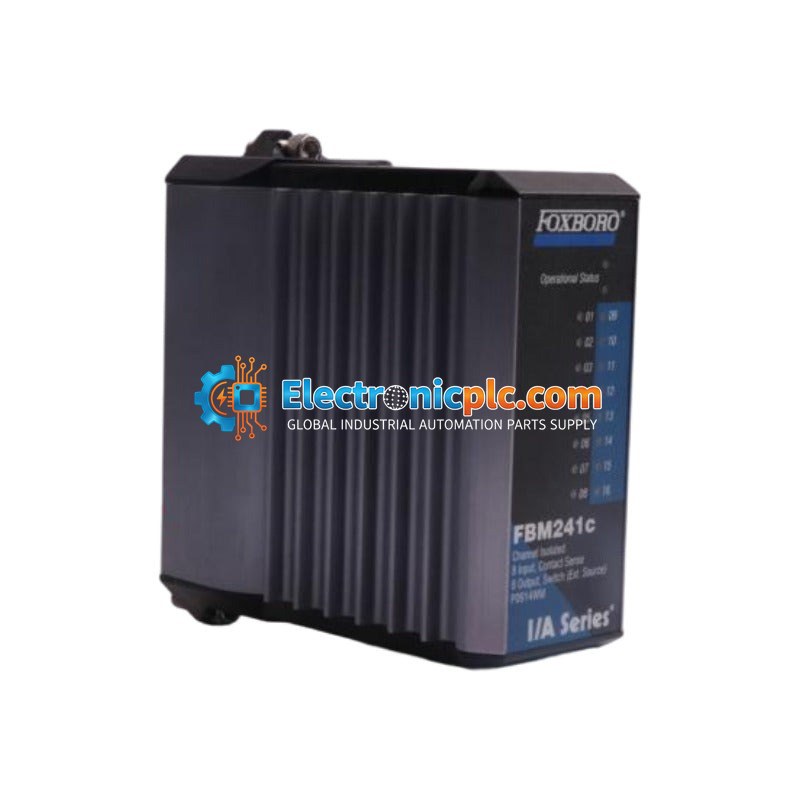

The Foxboro FBM241c (P0914WM) is a high-performance Discrete Input/Output module engineered for the I/A Series distributed control system. This module provides 8 discrete input channels and 8 discrete output channels, designed to interface with critical field devices such as solenoid valves, motor starters, and limit switches. Built for demanding industrial environments, the FBM241c features robust optical isolation to protect sensitive system electronics from field-side electrical noise, surges, and transients, ensuring high operational availability in process automation.

Features

• 8 discrete input channels and 8 discrete output channels.
• Optical isolation for enhanced protection against field-side electrical interference.
• Supports 24 VDC input and output signal levels.
• Communicates via the 2 Mbps redundant Module Fieldbus for deterministic data exchange.
• Integrated LED status indicators for each I/O point to facilitate rapid local diagnostics.
• Compact, DIN-rail mountable enclosure designed for high-density cabinet configurations.
• Fail-safe state management for digital outputs to maintain system integrity.

Applications

The FBM241c is widely utilized in process industries, including oil and gas refineries, chemical processing plants, and power generation utilities. It is ideal for applications requiring reliable digital signal processing, such as safety interlocking, sequence control, and monitoring of field-mounted discrete instrumentation.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the module from the baseplate.
• Mount the module on a standard DIN rail within a clean, dry, and vibration-dampened enclosure.
• Maintain proper grounding practices to ensure the effectiveness of the module's electrical isolation.
• Use shielded cabling for field I/O connections to minimize EMI/RFI interference.
• Verify that the termination assembly matches the required input/output configuration (dry contact vs. voltage-sensing).
• Handle with care to prevent electrostatic discharge (ESD) damage to internal components.

FAQ

What is the primary function of the FBM241c module?

The FBM241c is a discrete I/O module used in the Foxboro I/A Series system to interface with 8 digital inputs and 8 digital outputs, providing signal conditioning and communication for field devices.

Does this module support redundant communication?

Yes, the FBM241c communicates with the control processor via the 2 Mbps redundant Module Fieldbus, which provides deterministic and reliable data updates.

What is the maximum output current per channel?

Each output channel is capable of driving external loads up to 250 mA at 24 VDC.
