Description

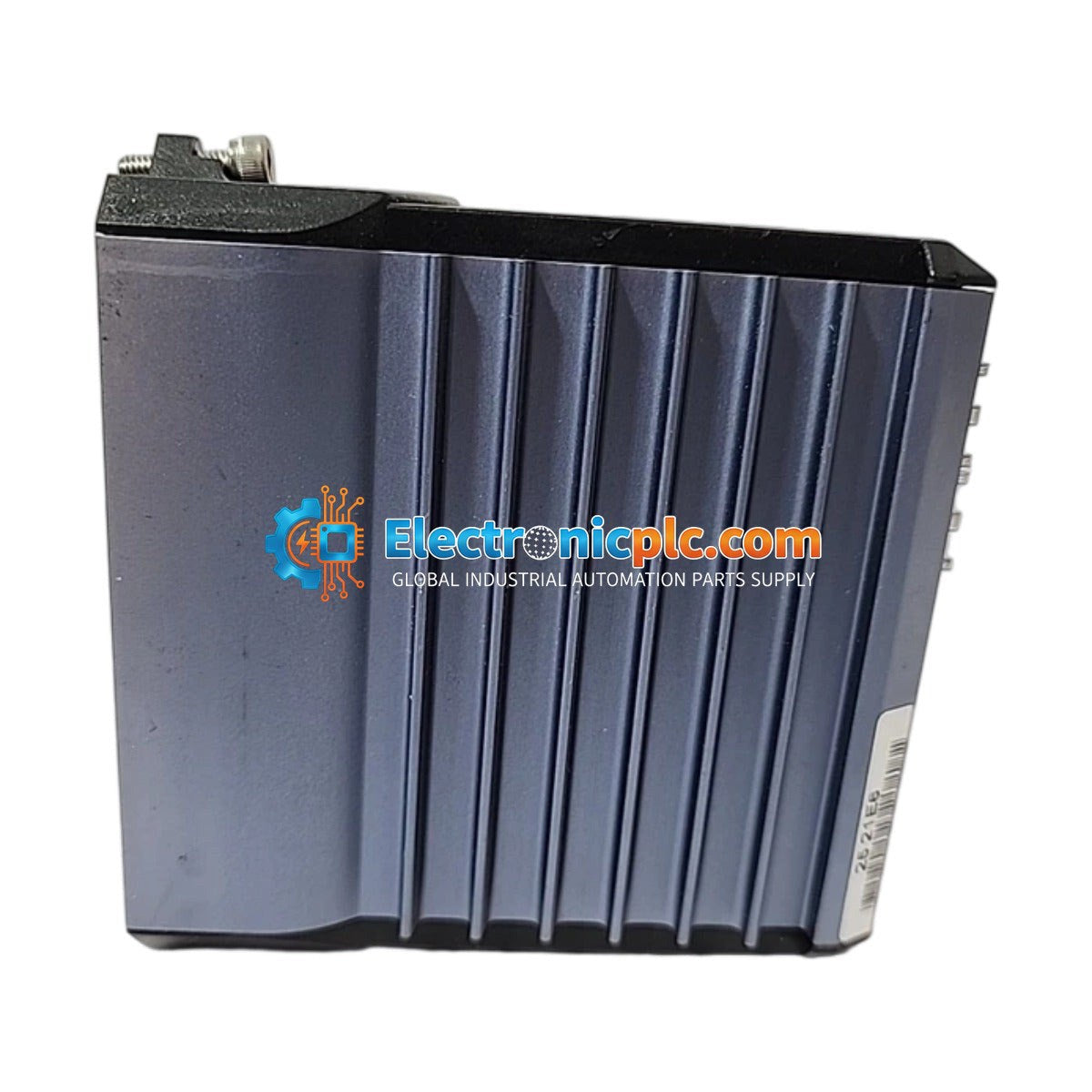

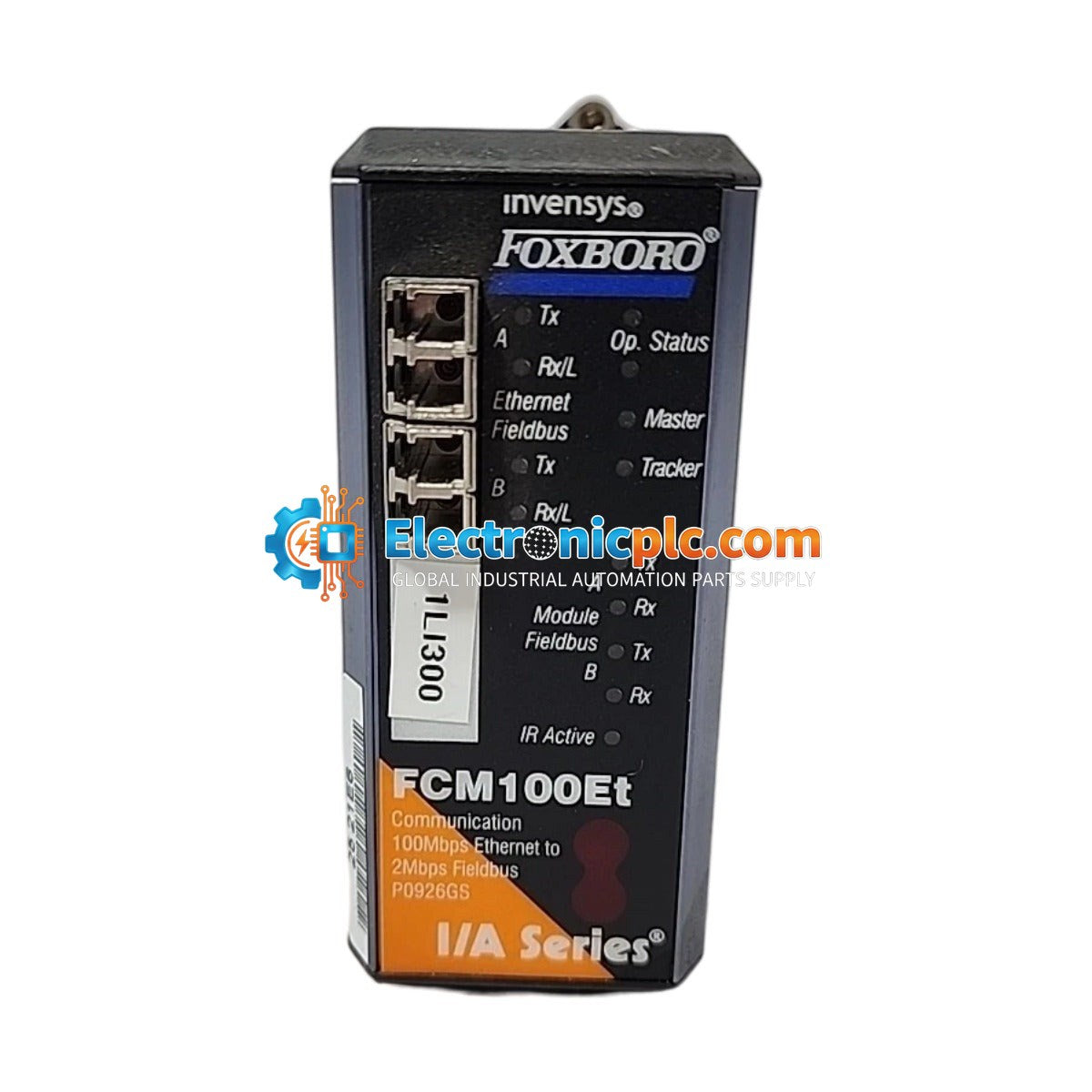

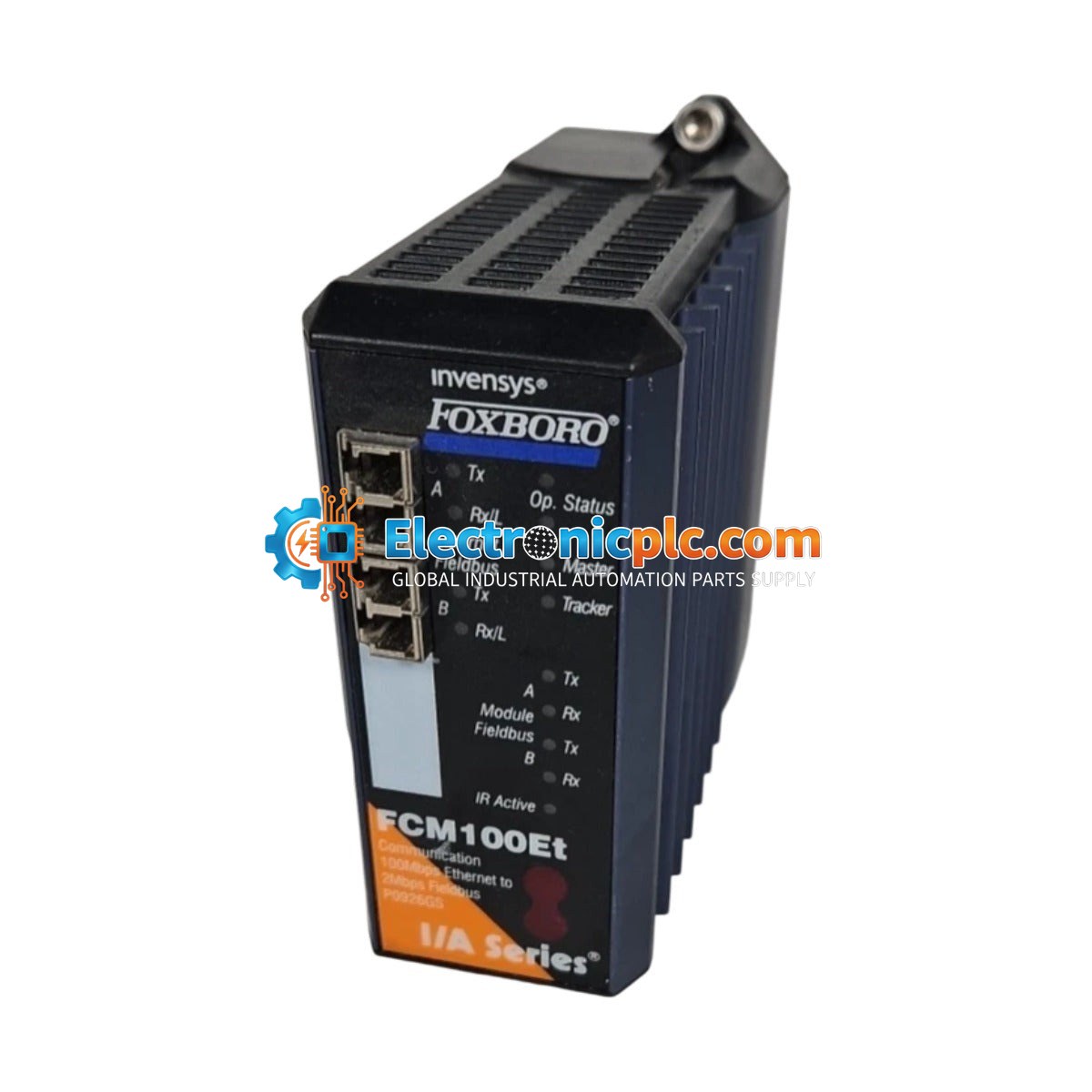

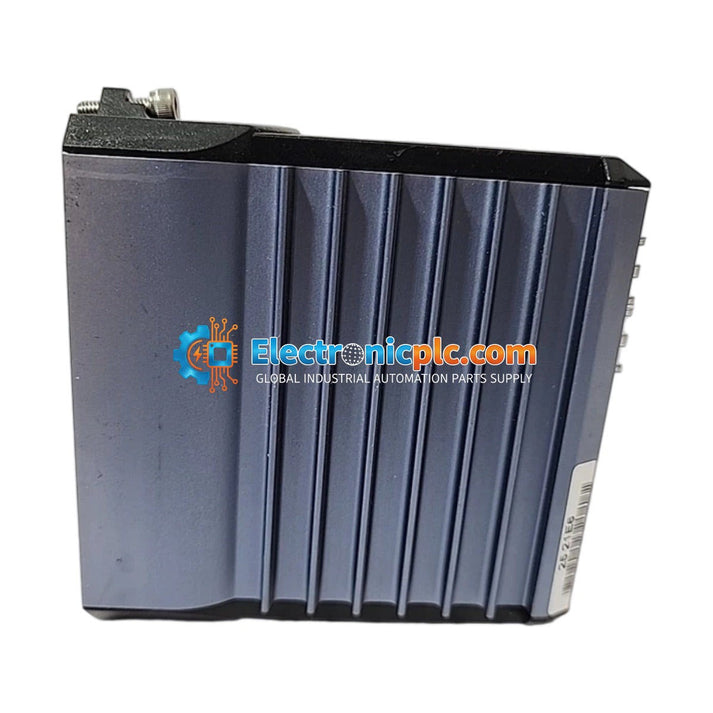

The Foxboro FCM100ET (P0926GS) is a high-performance Fieldbus Communications Module designed for the Foxboro I/A Series and Foxboro Evo distributed control systems. It serves as a critical interface bridge between the high-speed Ethernet mesh network and the 2 Mbps HDLC module fieldbus. Engineered for demanding industrial environments such as oil refining, chemical processing, and power generation, the FCM100ET enables seamless data integration for DIN rail-mounted Fieldbus Modules (FBMs). By providing high-speed, reliable diagnostic and process data throughput, this module ensures optimal control loop performance and minimizes system latency.

Features

• Supports 100 Mbps Ethernet connectivity via fiber optic or copper interfaces.
• Facilitates redundant network topologies to eliminate single points of failure.
• Handles internal protocol translation and data buffering to isolate local fieldbus traffic.
• Integrated station management system for continuous self-diagnostics and FBM health monitoring.
• Hot-swappable design for maintenance without powering down the baseplate.
• Supports up to 32 FBMs per fieldbus segment.

Applications

The FCM100ET is widely utilized in mission-critical process automation, including oil and gas refining, petrochemical plants, and power generation facilities, where reliable communication between control processors and field I/O is essential for operational continuity.

Technical Specifications

Installation Guidelines

• Ensure the module is installed in a clean, dry environment within the specified temperature range.
• Use appropriate ESD protection when handling the module to prevent damage to internal circuitry.
• Verify that the baseplate is properly grounded before inserting the module.
• Ensure shielded cables are correctly routed and terminated to minimize EMI interference.
• The module is hot-swappable; however, always follow site-specific safety protocols before performing maintenance on live systems.

Compliance and Certifications

The FCM100ET complies with CE, UL, CSA, and ATEX Zone 2 standards for industrial operation.

FAQ

Is the FCM100ET hot-swappable?

Yes, the module is designed to be hot-swappable, allowing for replacement without powering down the baseplate or interrupting ongoing process control functions.

What is the maximum number of FBMs supported by this module?

The FCM100ET supports up to 32 Fieldbus Modules (FBMs) per fieldbus segment.
