Description

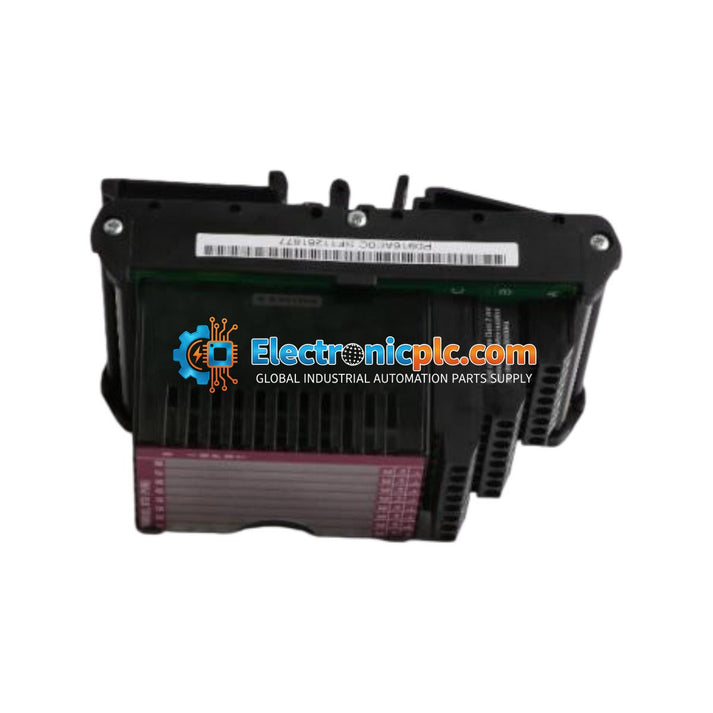

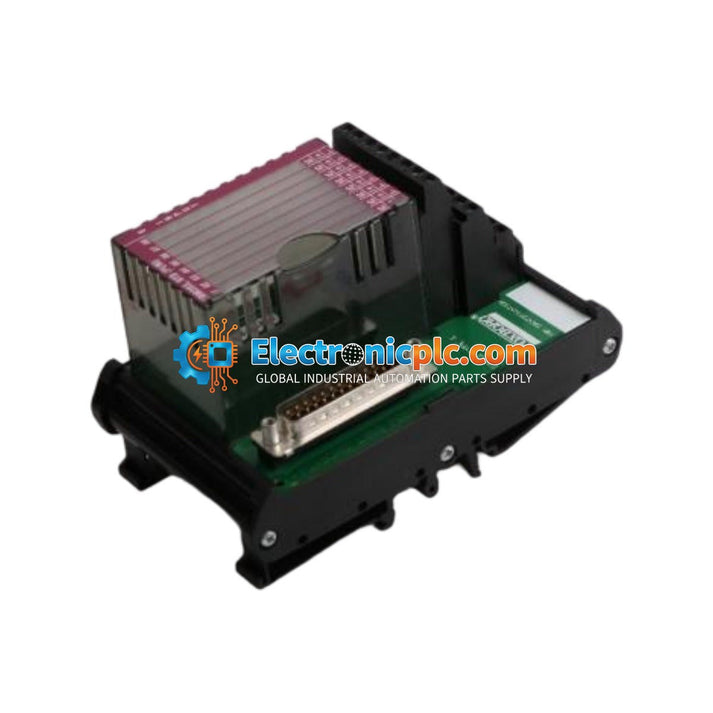

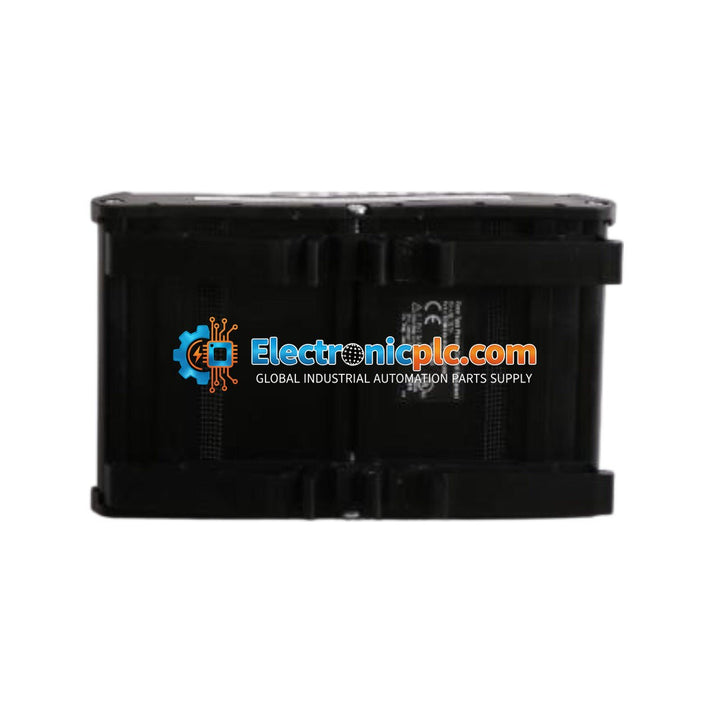

The Foxboro P0916AE is a high-reliability Termination Assembly (TA) designed for the I/A Series 200 Series distributed control system (DCS) architecture. This terminal card acts as the essential physical interface between field-side instrumentation wiring and the Fieldbus Modules (FBMs). By providing a robust, organized connection point, the P0916AE ensures secure signal routing, simplifies maintenance procedures, and protects sensitive control electronics from field-side wiring faults. It is engineered for deployment in demanding industrial environments, including power generation, petrochemical processing, and mining operations.

Features

• System Integration: Designed specifically for seamless mounting within the Foxboro I/A Series 200 hardware ecosystem.
• Signal Protection: Integrated circuit protection helps prevent field-side electrical faults from propagating to the FBMs.
• Troubleshooting Access: Includes dedicated test points allowing for real-time circuit diagnostics without the need to disconnect field wiring.
• Redundancy Support: Supports redundant cabling configurations to maintain signal continuity in critical control loops.
• EMI/RFI Shielding: Facilitates effective grounding strategies to protect digital logic from electromagnetic and radio frequency interference.

Applications

The P0916AE is widely utilized in industrial automation systems where high-density I/O connectivity is required. Typical applications include:

• Petrochemical and refinery process control.
• Power generation and distribution monitoring.
• Mining and mineral processing automation.
• Continuous process manufacturing where high availability is critical.

Technical Specifications

Installation Guidelines

• ESD Precautions: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal components.
• Power Status: Ensure all power to the I/O rack is disconnected before installing or removing the terminal card from the baseplate.
• Wiring: Ensure all field wires are properly secured in the terminals. Verify that wire gauges are compatible with the terminal block specifications to prevent loose connections.
• Grounding: Follow standard Foxboro grounding practices for the I/A Series to ensure effective shielding against EMI/RFI.
• Environment: Ensure the installation location provides adequate ventilation to maintain operating temperatures within the specified 0 to 60 deg C range.

FAQ

What is the primary function of the P0916AE?

The P0916AE is a Termination Assembly that provides the physical interface between field wiring and Foxboro I/A Series 200 Fieldbus Modules, facilitating signal routing and circuit protection.

Can this module be used in redundant systems?

Yes, the P0916AE supports redundant cabling configurations, which is essential for maintaining signal continuity in critical control loops.

Is this module compatible with all I/A Series systems?

The P0916AE is specifically designed for the I/A Series 200 hardware ecosystem. Always verify your specific FBM compatibility before installation.
