Description

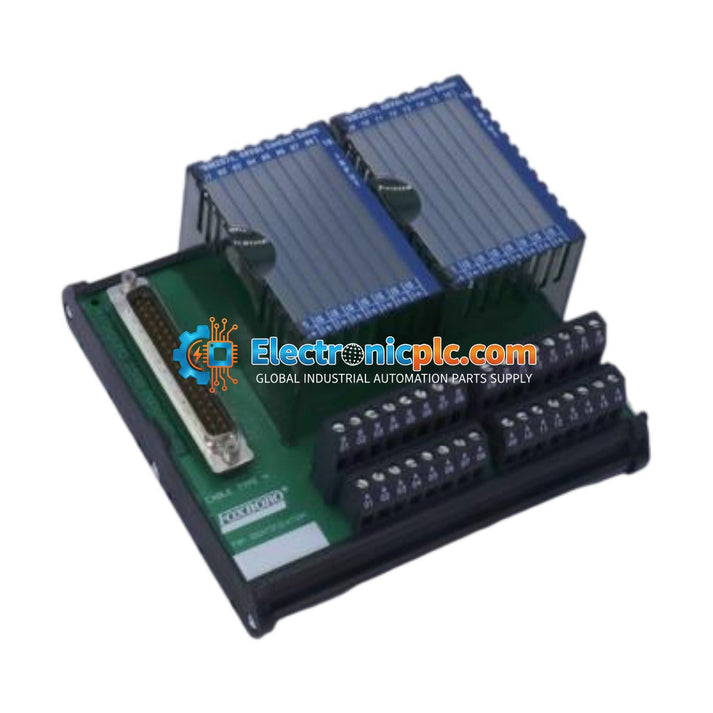

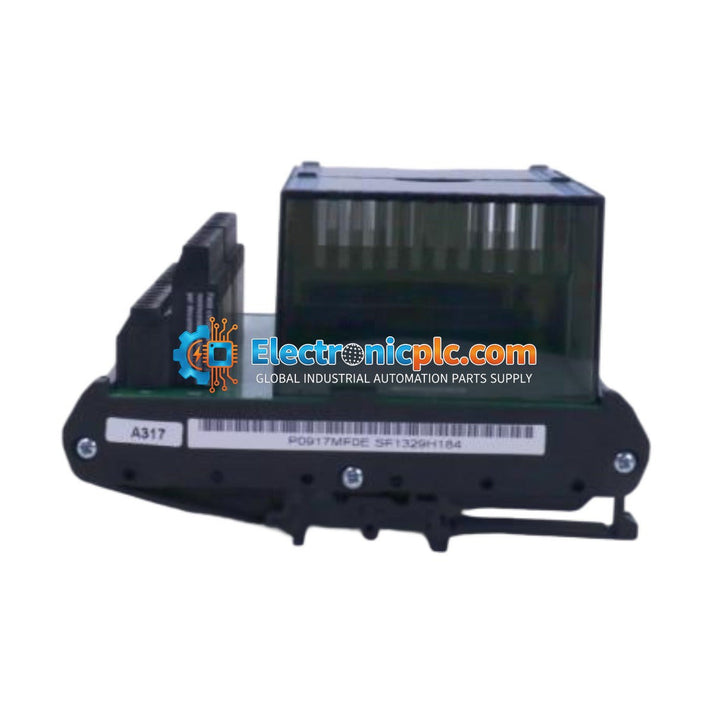

The Foxboro P0917MF is a high-performance Discrete Input Module engineered for the I/A Series 200 system. This module provides 16 contact sense discrete input channels, facilitating reliable data acquisition in mission-critical industrial environments such as oil refineries, power generation, and chemical processing. The P0917MF is specifically designed to support system migration strategies, including Flex.Connect solutions that allow for integration with DeltaV architectures while maintaining existing field wiring investments.

Features

• Channel Density: 16 discrete input channels configured for contact sense operation.
• Migration Versatility: Supports direct connection from Foxboro I/A Series 200 termination assemblies to modern I/O architectures without requiring signal conditioning.
• System Integration: Compatible with DeltaV CHARM terminal blocks, specifically supporting Low-Side Sense (SE4301T02) types.
• Reliability: Designed for redundant control environments to ensure continuous process monitoring and high operational availability.

Applications

This module is intended for use in large-scale industrial control systems where high-density, reliable discrete signal monitoring is required. It is frequently utilized in legacy system upgrades and migrations to modernize control infrastructure while minimizing process downtime and installation complexity.

Technical Specifications

Installation Guidelines

• Handling: Ensure proper ESD (Electrostatic Discharge) precautions are taken when handling the module to prevent damage to internal circuitry.
• Mounting: Ensure the module is securely seated in the designated I/A Series 200 rack slot. Verify that the backplane connection is fully engaged.
• Power: Always disconnect power from the I/O rack before inserting or removing the module to prevent electrical arcing or damage to the backplane pins.
• Wiring: Ensure all field wiring is properly terminated at the compatible termination assembly (e.g., FBM207c). Use shielded cabling where required to minimize EMI in high-noise industrial environments.
• Environment: Maintain the module within the specified operating temperature and humidity ranges to ensure long-term reliability.

FAQ

What is the primary function of the P0917MF?

The P0917MF is a 16-channel discrete input module used to convert physical contact states from field devices into digital signals for the Foxboro I/A Series control processor.

Is this module compatible with DeltaV systems?

Yes, the P0917MF supports Flex.Connect wiring solutions, allowing it to interface with DeltaV CHARM terminal blocks (specifically Low-Side Sense types) during system migration projects.

Does this module support redundancy?

Yes, the P0917MF is designed to operate within redundant control configurations to maintain system availability during component failure.
