Description

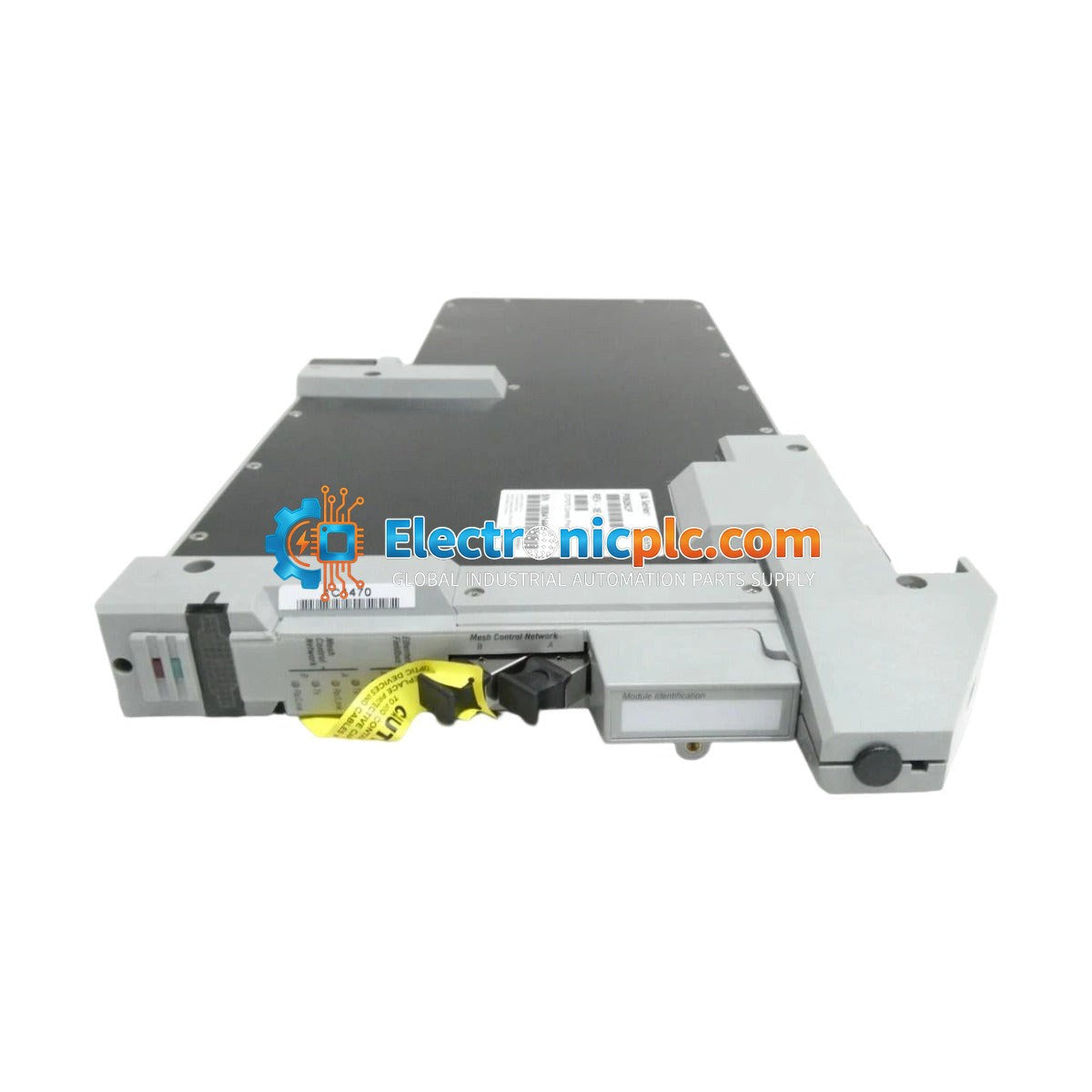

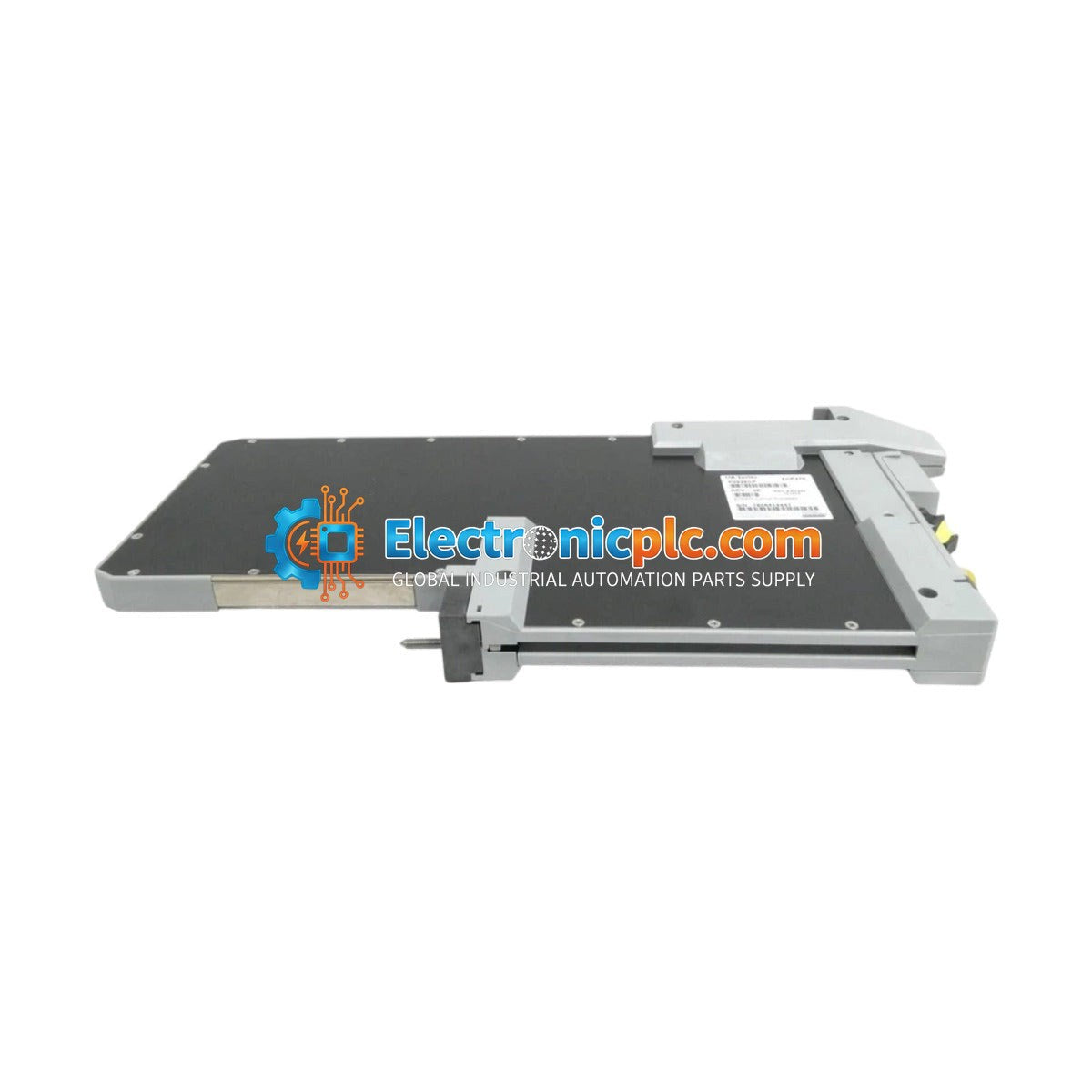

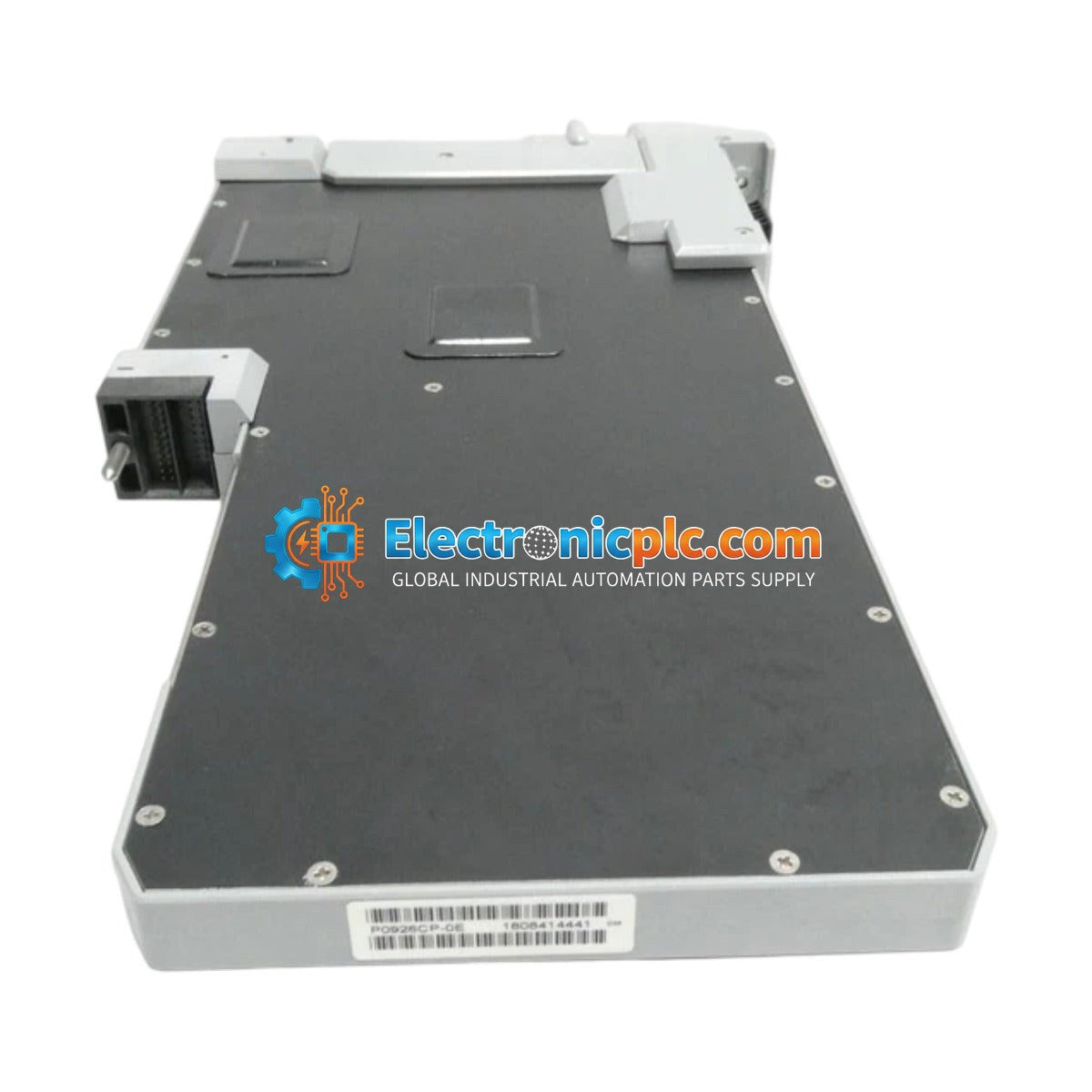

The Foxboro ZCP270 is a high-performance, fault-tolerant control processor engineered for the I/A Series Distributed Control System (DCS). Designed for demanding industrial environments such as petrochemical refining, power generation, and large-scale manufacturing, this module serves as a central intelligence unit for complex control strategies. It utilizes a high-speed RISC architecture to manage thousands of software blocks with low latency, ensuring process stability and high availability.

Features

• High-speed RISC processor for real-time deterministic control.
• Supports both non-redundant and fully redundant configurations with bumpless failover.
• Integrated 100 Mbps network interface for seamless communication via The Mesh.
• Fanless design to enhance reliability and increase Mean Time Between Failures (MTBF).
• Advanced self-diagnostics for proactive system health monitoring.
• Supports high-density I/O integration via Fieldbus Communications Modules (FCMs).

Applications

The ZCP270 is ideal for critical process control applications requiring high reliability, including:

• Petrochemical and chemical processing plants.
• Base metal mining and mineral processing.
• Utility-scale power generation and distribution.
• Large-scale continuous process automation.

Technical Specifications

Installation Guidelines

• Ensure the control cabinet is properly grounded to prevent EMI interference.
• The module should be installed in a clean, dry environment within the specified temperature range.
• Always power down the rack before inserting or removing the ZCP270 module to prevent electrical damage.
• Ensure proper airflow around the module; although fanless, adequate ventilation is required for heat dissipation.
• Use shielded cabling for network connections to maintain signal integrity on The Mesh.
• Handle with standard ESD precautions to protect internal circuitry.

FAQ

Is the ZCP270 compatible with redundant configurations?

Yes, the ZCP270 supports both non-redundant and fully redundant hardware setups. In a redundant pair, the modules perform continuous synchronization of the database, allowing for bumpless failover if the primary processor faults.

Does this module require external cooling?

The ZCP270 is designed with a fanless architecture. However, it must be installed in an environment that meets the specified operating temperature range of 0 to 60 deg C to ensure long-term reliability.
