Description

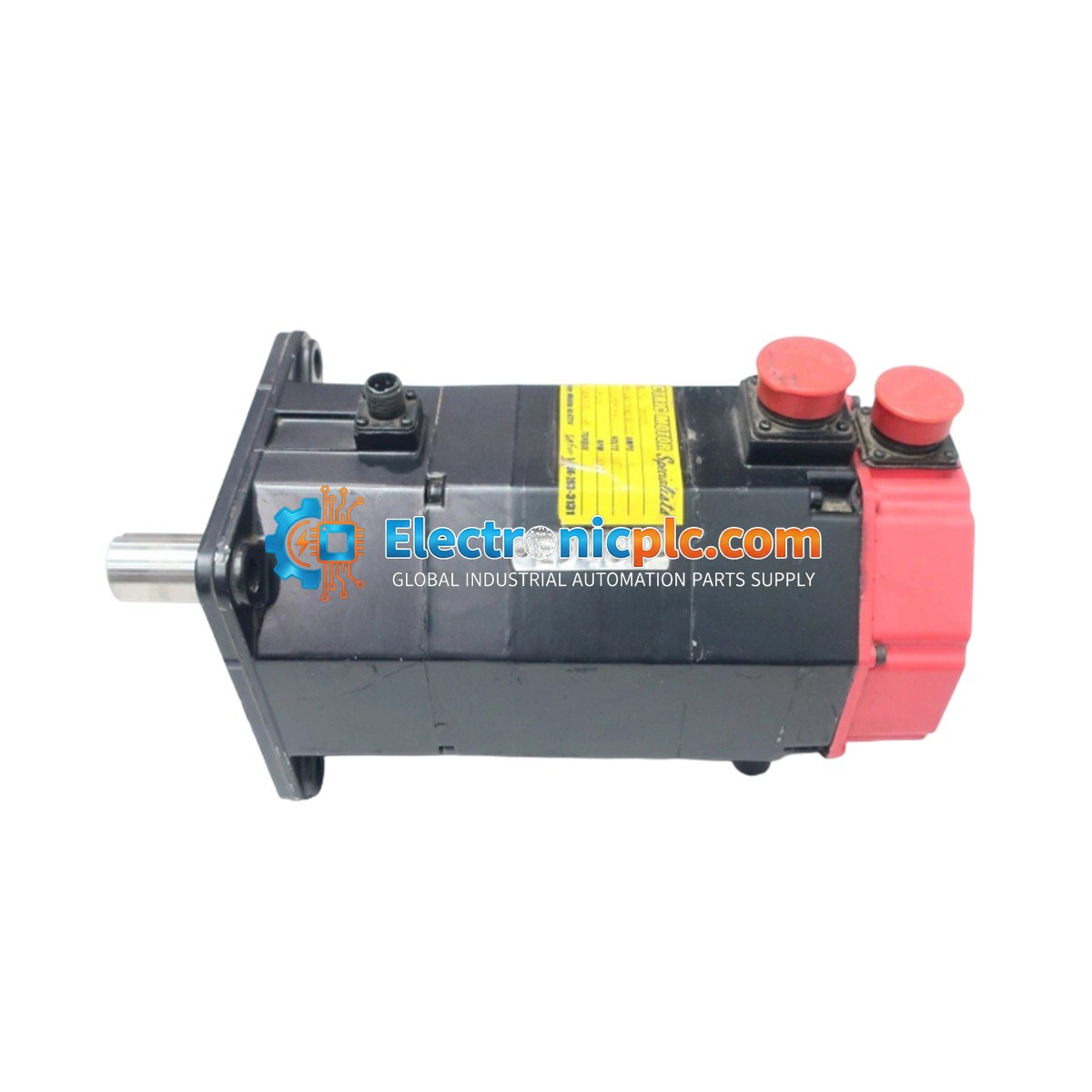

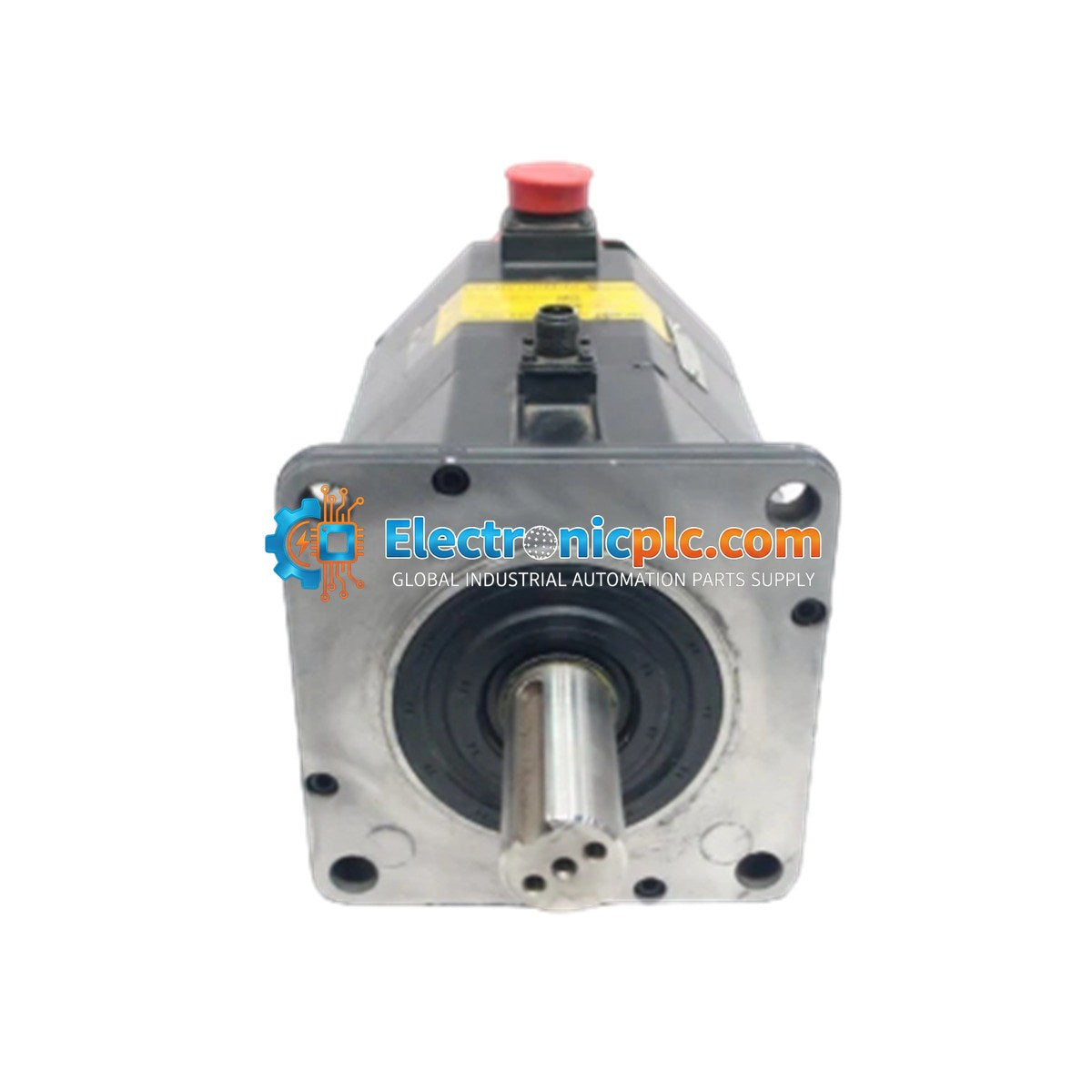

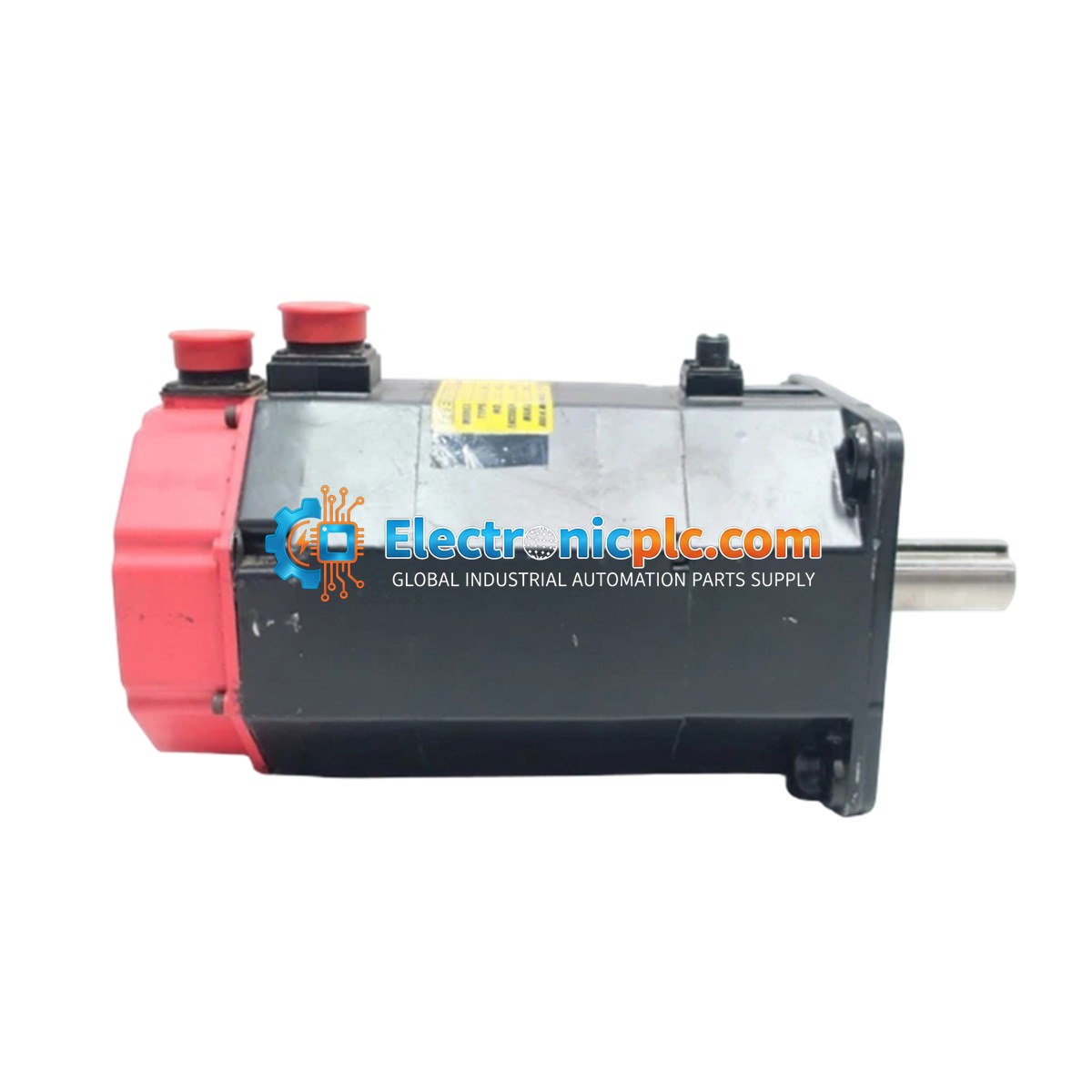

The General Electric A06B-0143-B175 is a high-performance AC servo motor designed for precision motion control in CNC machinery. This unit, part of the A12/3000 series, features an integrated brake and a straight shaft configuration, providing reliable torque and positioning accuracy for demanding industrial automation applications.

Features

• Integrated brake for secure holding and emergency stopping
• Straight shaft design for standard mechanical coupling
• Rated for 2.8 kW power output
• Optimized for 3000 RPM operation
• Robust 3-phase AC design

Applications

This servo motor is primarily utilized in CNC machine tools, robotic systems, and automated manufacturing lines requiring high-speed, high-precision rotational control.

Technical Specifications

Installation Guidelines

• Ensure the motor is mounted on a rigid, vibration-free surface to prevent mechanical resonance.
• Verify that the shaft alignment is precise to avoid excessive radial or axial load on the bearings.
• Use shielded cables for power and encoder connections to minimize electromagnetic interference (EMI).
• Ensure adequate ventilation around the motor housing to maintain operating temperatures within the specified 0 to 40 degC range.
• Always disconnect power before performing any wiring, inspection, or maintenance on the motor or its drive interface.
• Confirm that the grounding path is secure and follows local electrical safety standards to prevent ground loops.

FAQ

What is the primary function of the A06B-0143-B175?

This is an AC servo motor used for precise motion control in CNC systems, capable of delivering 2.8 kW of power at 3000 RPM.

Does this motor include a brake?

Yes, this model (A06B-0143-B175) is equipped with an integrated brake for holding applications.

What are the environmental requirements for this motor?

The motor should be operated in an ambient temperature range of 0 degC to 40 degC with a non-condensing humidity level between 20% and 90%.
