Description

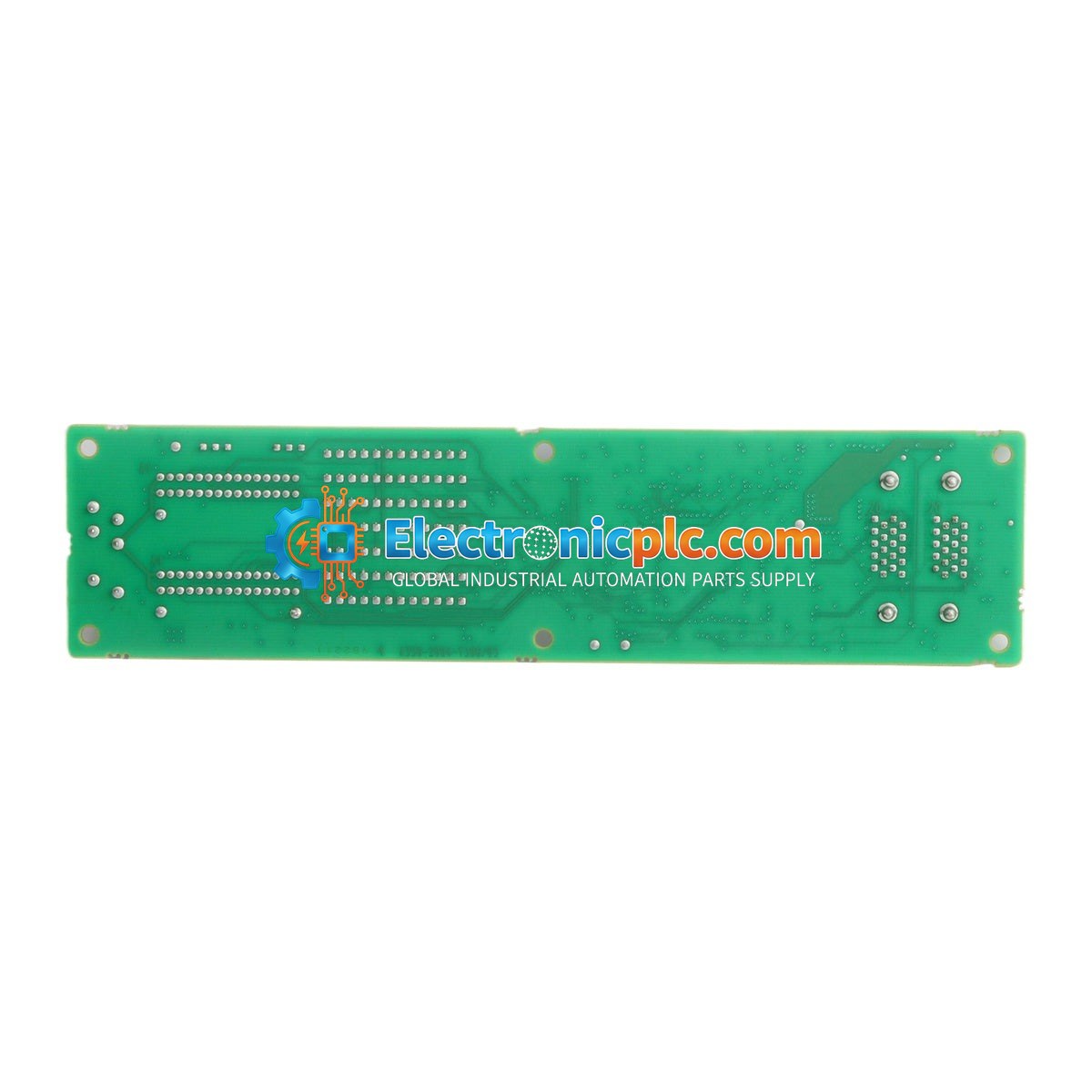

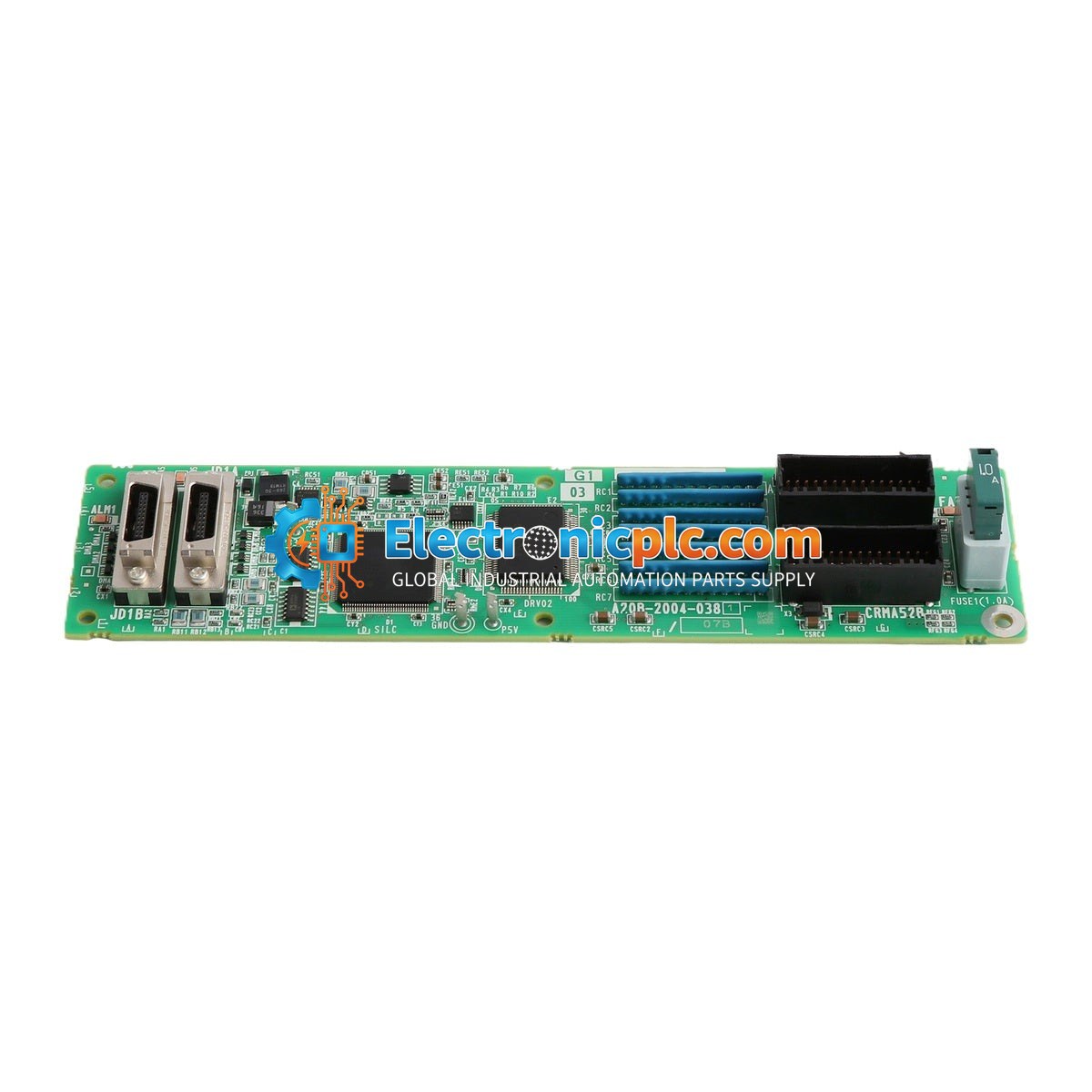

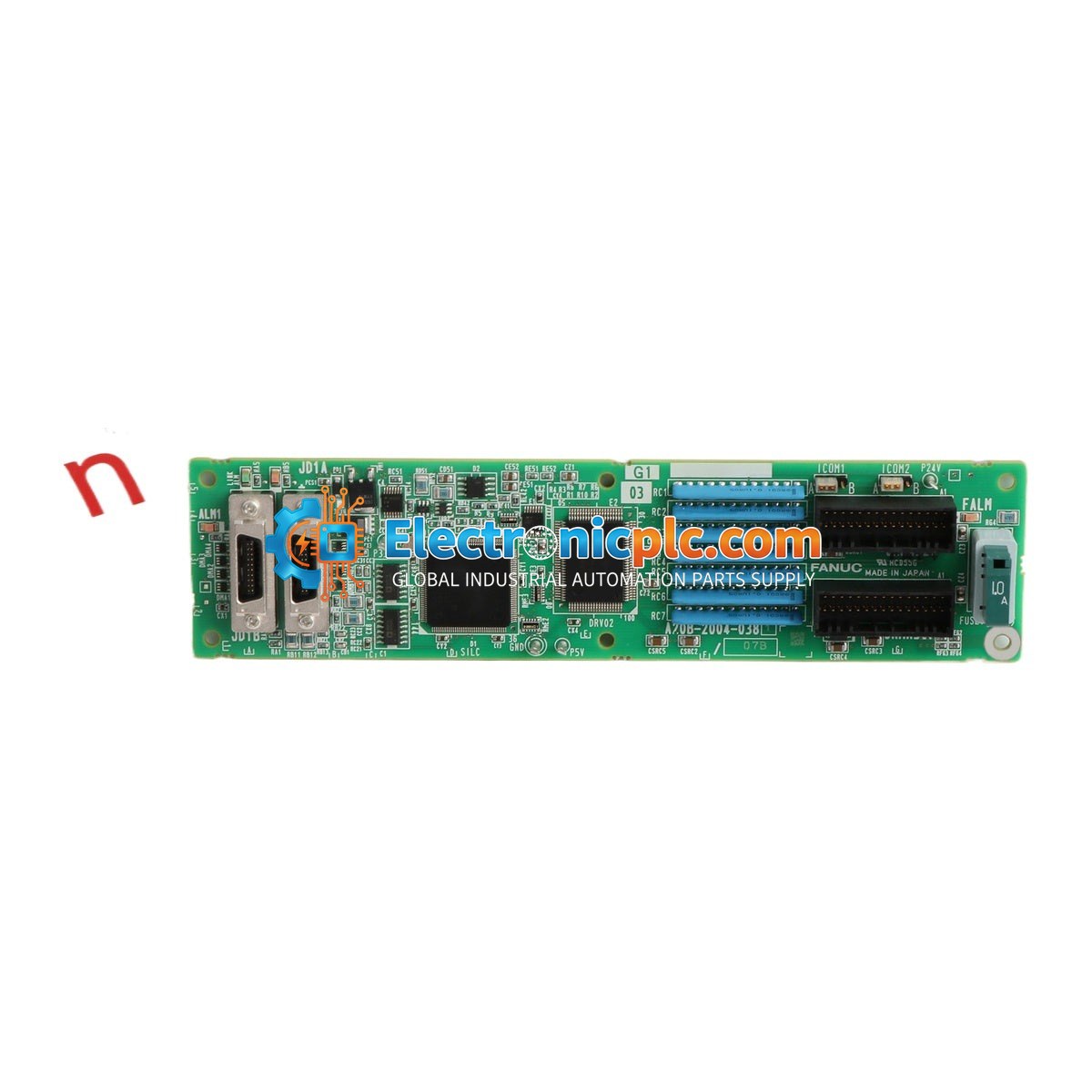

The A20B-2004-038 is a high-performance control card designed for use within Fanuc CNC systems. This printed circuit board (PCB) serves as a critical component for managing machine logic, signal processing, and command execution in industrial automation environments. Engineered for reliability, it provides the necessary computational capacity to support precise CNC operations.

Features

• Integrated 32-bit CPU for high-speed processing of control instructions.
• Designed for seamless integration into existing Fanuc CNC control architectures.
• Robust construction suitable for demanding industrial environments.
• Low power consumption profile, optimized for efficient system operation.

Technical Specifications

Installation Guidelines

• ESD Protection: Always use a grounded wrist strap when handling the PCB to prevent electrostatic discharge damage.
• Power Down: Ensure the CNC system is fully powered down and disconnected from the main supply before attempting to install or remove the control card.
• Seating: Ensure the card is firmly seated in the designated slot and that all retaining mechanisms are engaged to prevent vibration-related disconnects.
• Environment: Install in a clean, dry, and well-ventilated enclosure to maintain the specified operating temperature range.
• Cabling: Ensure all signal cables are properly routed away from high-voltage lines to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the A20B-2004-038?

This module acts as a control card for Fanuc CNC systems, handling internal logic and processing tasks essential for machine tool operation.

Is this card compatible with all Fanuc systems?

This card is specific to the A20B-2004-038 part number. Please verify your existing hardware revision and system documentation to ensure compatibility before installation.

What are the storage requirements for this PCB?

The module should be stored in a climate-controlled environment within the specified temperature range of -25 degC to +85 degC and kept free from moisture and corrosive agents.
