Description

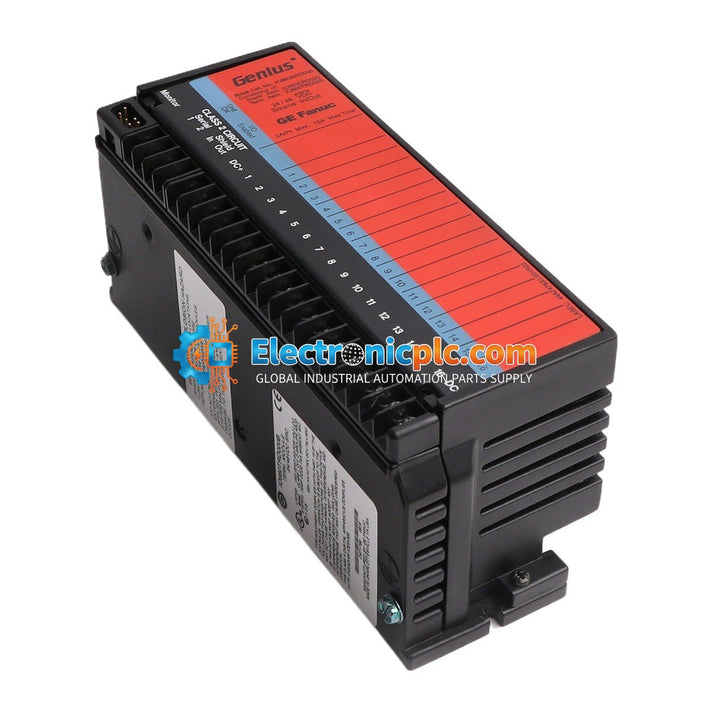

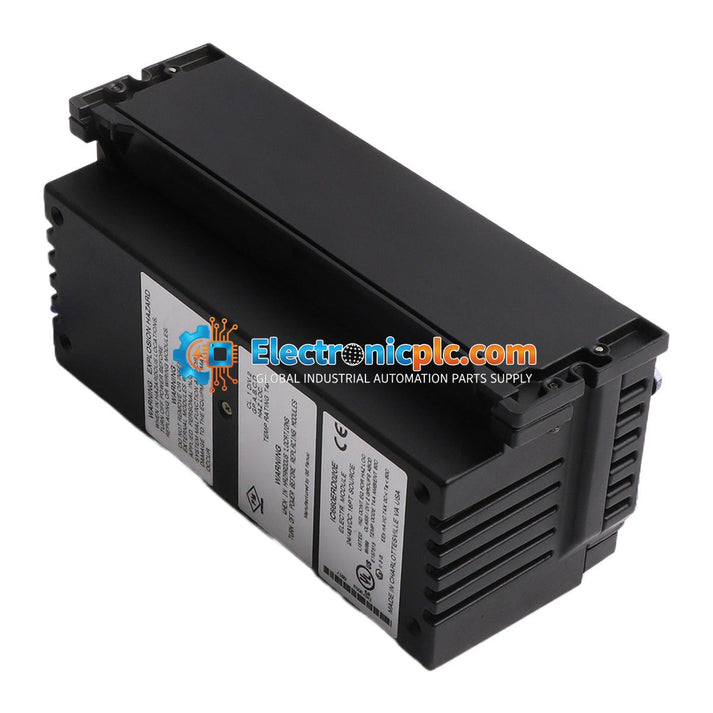

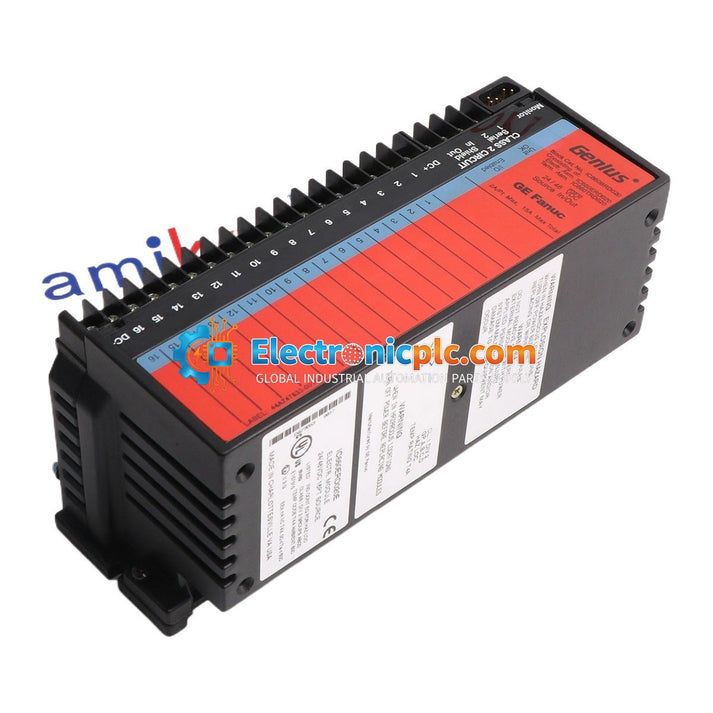

The General Electric IC660BRD020 is a 16-point discrete source I/O block from the Genius I/O product series. This module is designed to provide reliable input/output control in industrial automation environments, specifically handling 24/48 Volts DC source signals. It acts as a critical interface between field devices and the controller, ensuring consistent signal processing and system integration within the Genius I/O architecture.

Features

• 16-point discrete source output circuitry.
• Supports a wide operating voltage range of 18 to 56 Volts DC (rated for 24 and 48 Volts DC).
• Designed for robust performance in industrial control systems.
• Maximum current draw of 300 milliamps.
• Compatible with the established Genius I/O communication network.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the I/O block to prevent electrical damage.
• Mount the module in a location that allows for adequate ventilation and cooling to maintain optimal operating temperatures.
• Verify that all field wiring is properly secured to the terminal blocks and that polarity is observed for all DC connections.
• Use shielded cables where necessary to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Handle the module using standard ESD (Electrostatic Discharge) precautions to protect sensitive internal components.

FAQ

What is the primary function of the IC660BRD020?

The IC660BRD020 is a 16-point discrete source I/O block used to interface 24/48 VDC field devices with a Genius I/O network.

What is the operating voltage range for this module?

The module operates within a range of 18 to 56 Volts DC, with specific ratings for 24 and 48 Volts DC applications.

Is this module compatible with other Genius I/O series components?

Yes, the IC660BRD020 is designed to function as part of the GE Genius I/O system, allowing for integration with other compatible blocks and controllers in the same series.
