Description

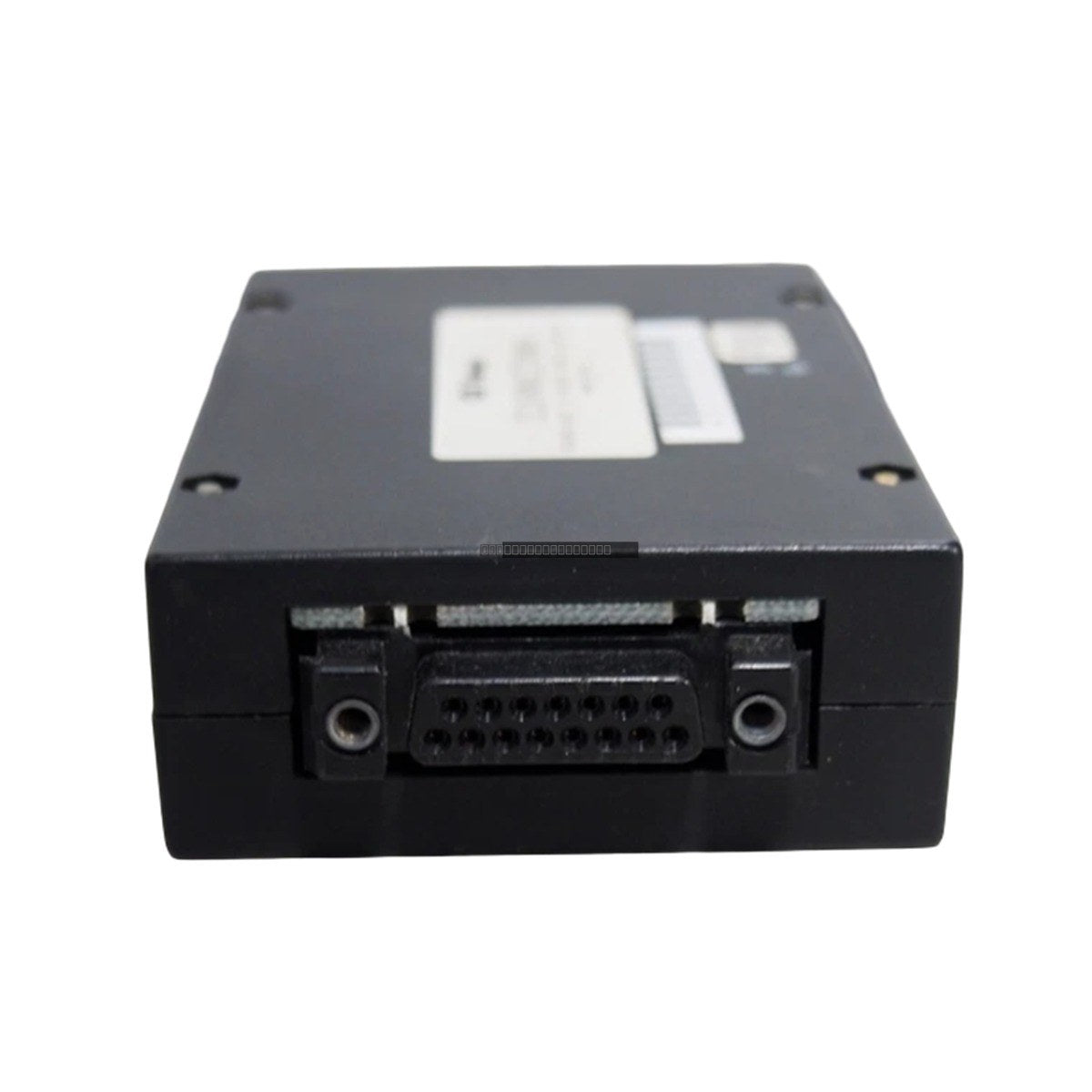

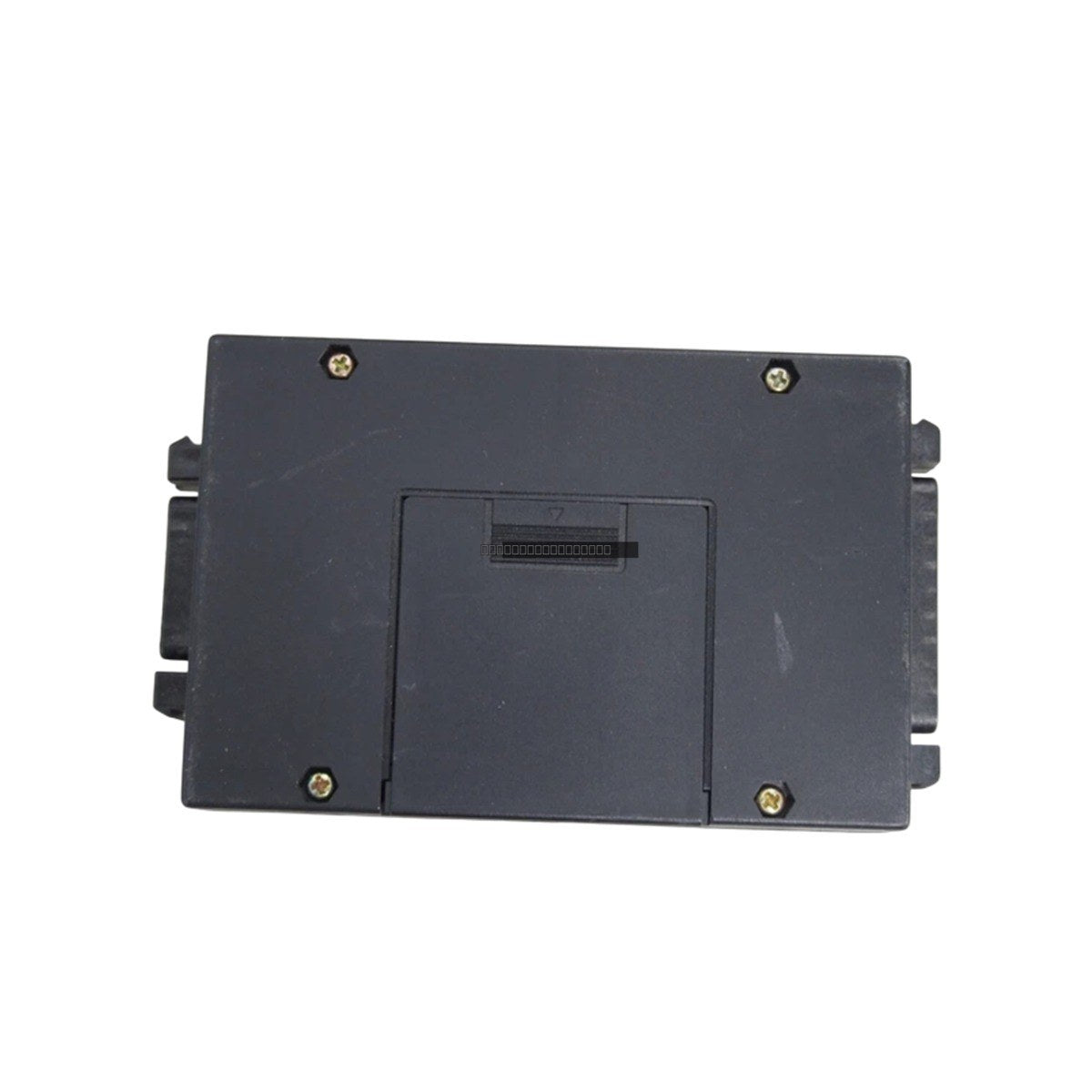

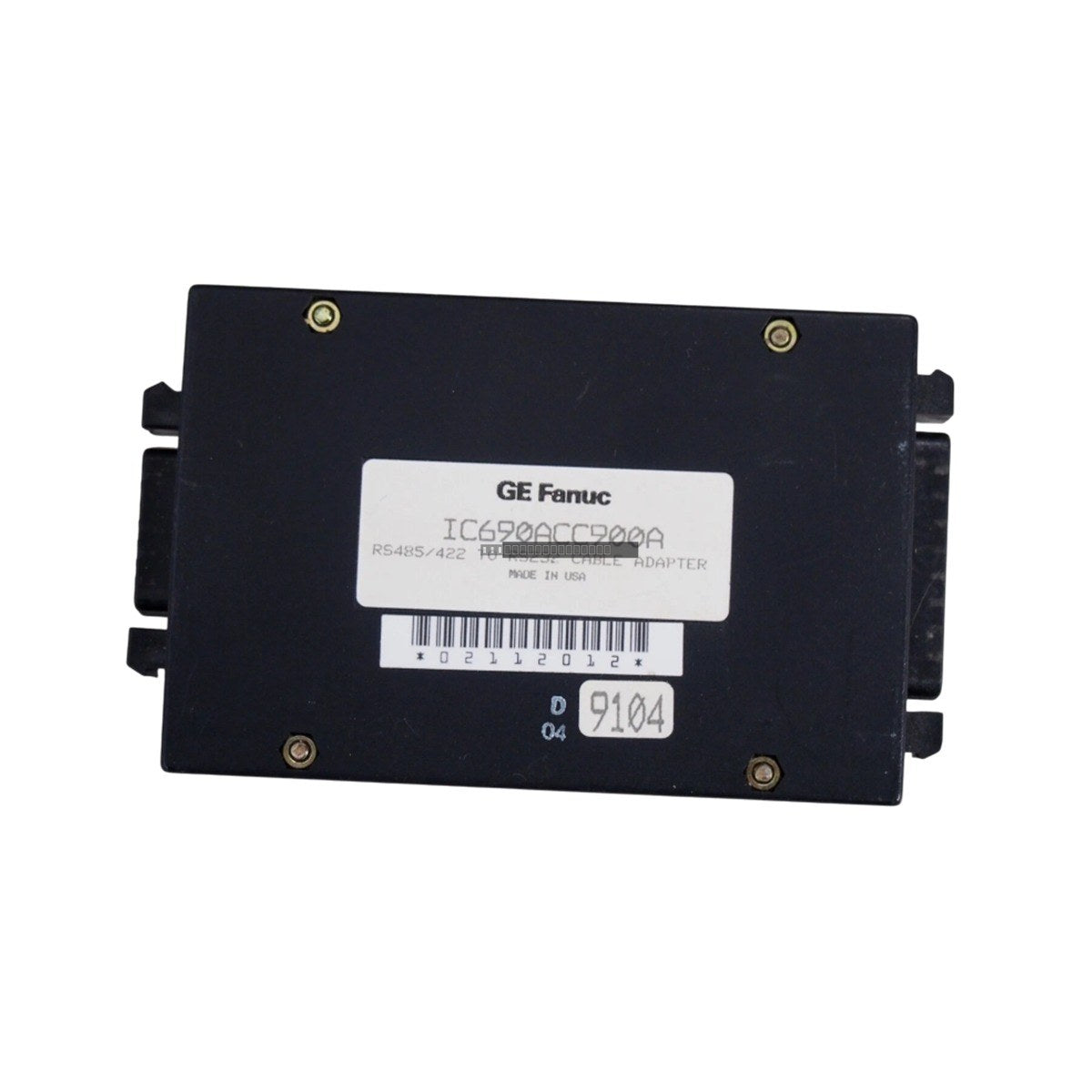

The GE Fanuc IC690ACC900A is a specialized cable adapter designed to facilitate communication between industrial equipment and handheld programmers. This unit functions as an interface converter, specifically enabling the conversion of RS485/422 signals to RS432, ensuring compatibility between legacy programming hardware and control systems.

Features

• Model: IC690ACC900A
• Function: RS485/422 to RS432 signal conversion
• Application: Designed for use with GE Fanuc handheld programming units
• Compact design for ease of integration in field service environments

Technical Specifications

Installation Guidelines

• Ensure all power is removed from the programming device and the target control system before connecting or disconnecting the adapter.
• Inspect the connector pins for any signs of damage or debris prior to insertion to prevent signal degradation or short circuits.
• Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Ensure the cable is properly seated and the locking mechanism is engaged to prevent accidental disconnection during operation.
• Handle with standard ESD precautions to protect the internal conversion circuitry.

FAQ

What is the primary function of the IC690ACC900A?

This module acts as a signal converter, allowing handheld programmers that utilize RS432 communication to interface with systems using RS485 or RS422 standards.

Is this adapter compatible with all GE Fanuc controllers?

This adapter is specifically designed for use with compatible handheld programmers. Please verify your specific controller's technical documentation to ensure signal compatibility with the RS432 standard.
