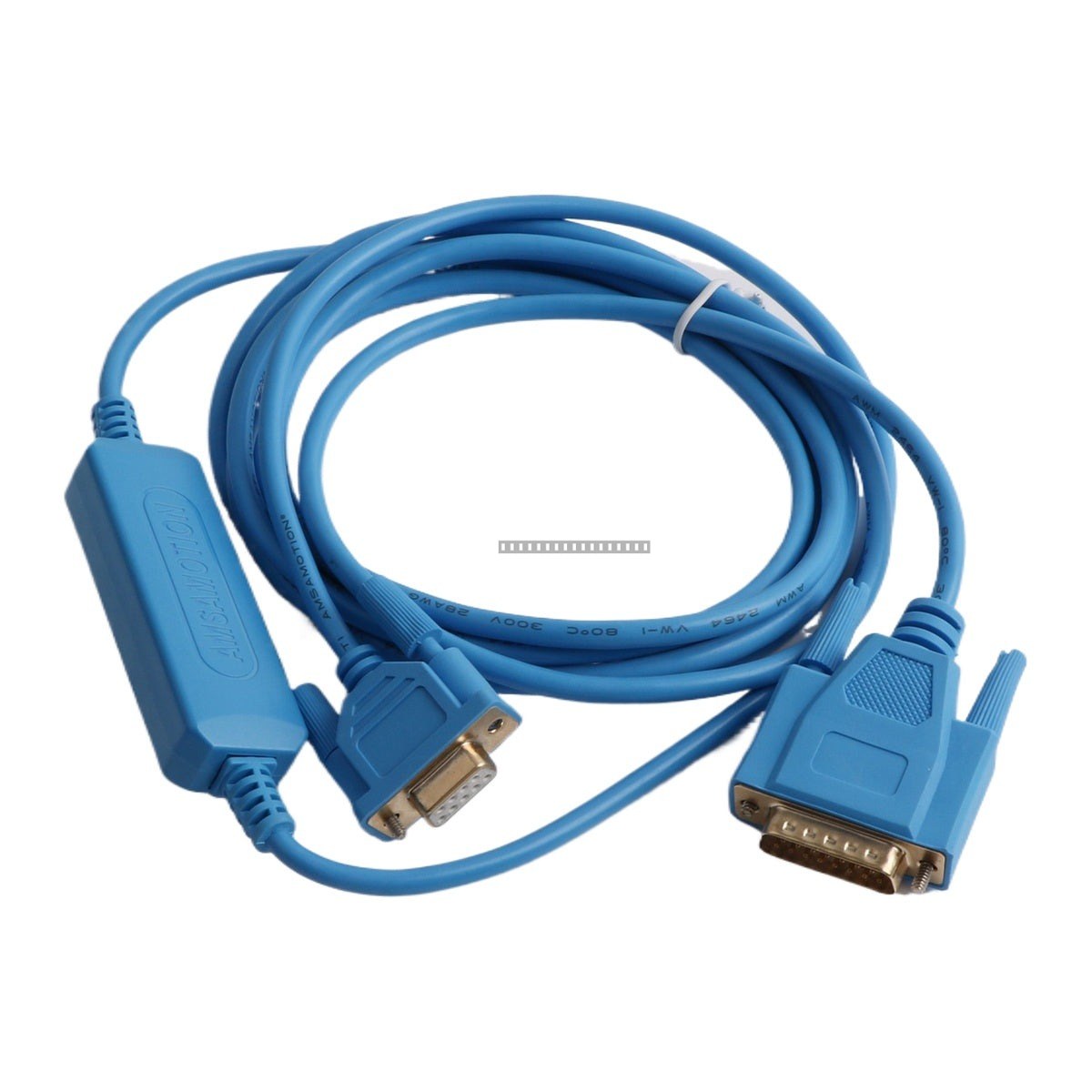

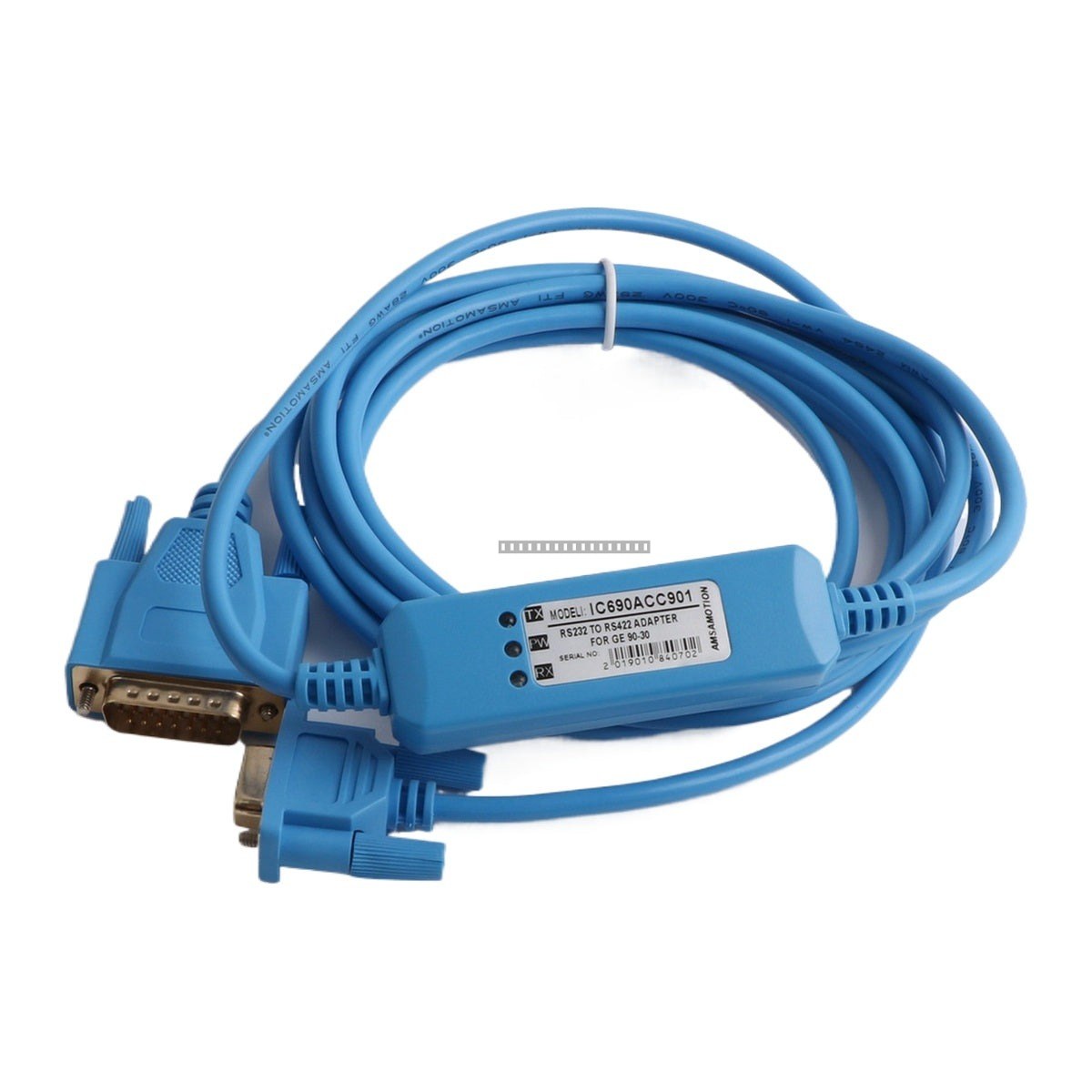

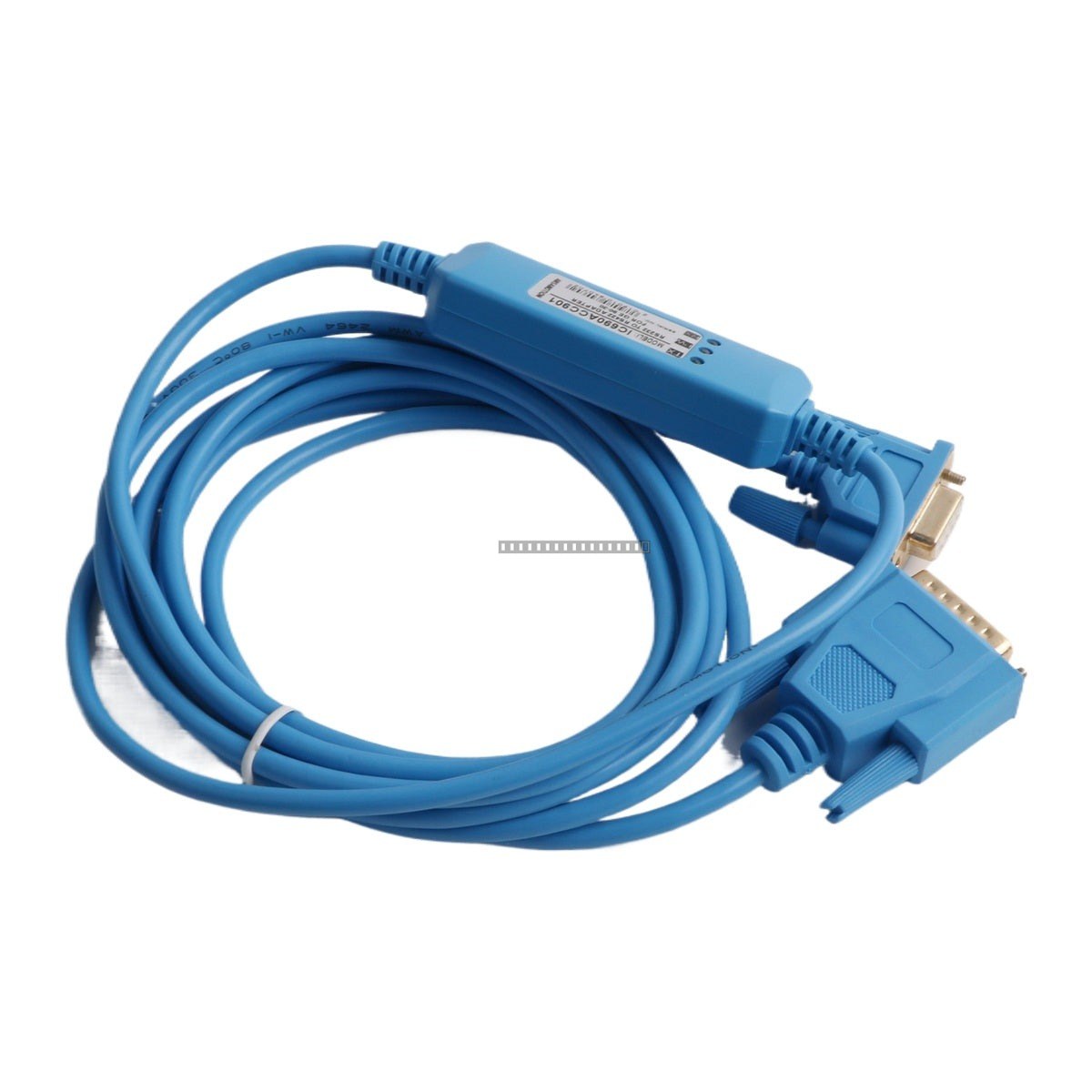

The IC690ACC901 is a specialized programming cable and converter kit manufactured by General Electric (GE Fanuc). This kit is designed to facilitate communication between programming devices and GE Fanuc control systems, utilizing RS-485 to RS-232 signal conversion.

Features

• Interface: RS-485 to RS-232 signal conversion
• Application: Programming and configuration of GE Fanuc control hardware
• Compact design for portable use in field service and maintenance
• Essential for legacy system connectivity and programming tasks

Applications

This converter kit is primarily used in industrial automation environments for the maintenance, troubleshooting, and programming of GE Fanuc CNC and PLC systems. It serves as the physical bridge for serial communication between a host computer and the controller's programming port.

Technical Specifications

Installation Guidelines

• Ensure the host computer and the target control system are powered down before connecting the cable to prevent electrical surges or port damage.
• Verify that the correct COM port settings are configured in the programming software to match the RS-232 serial parameters.
• Handle the cable with care; avoid sharp bends or crushing the cable jacket to maintain signal integrity.
• Keep the cable away from high-voltage power lines or heavy electromagnetic interference (EMI) sources to prevent data corruption during communication.
• Ensure the connector pins are clean and free of debris before insertion into the controller port.

FAQ

Is this part still in production? No, the IC690ACC901 has been discontinued by the manufacturer. We provide high-quality tested units from our inventory.

What is the primary use of this cable? This cable is used to convert RS-485 signals from GE Fanuc controllers into RS-232 signals, allowing them to communicate with standard serial ports on programming PCs.
