Description

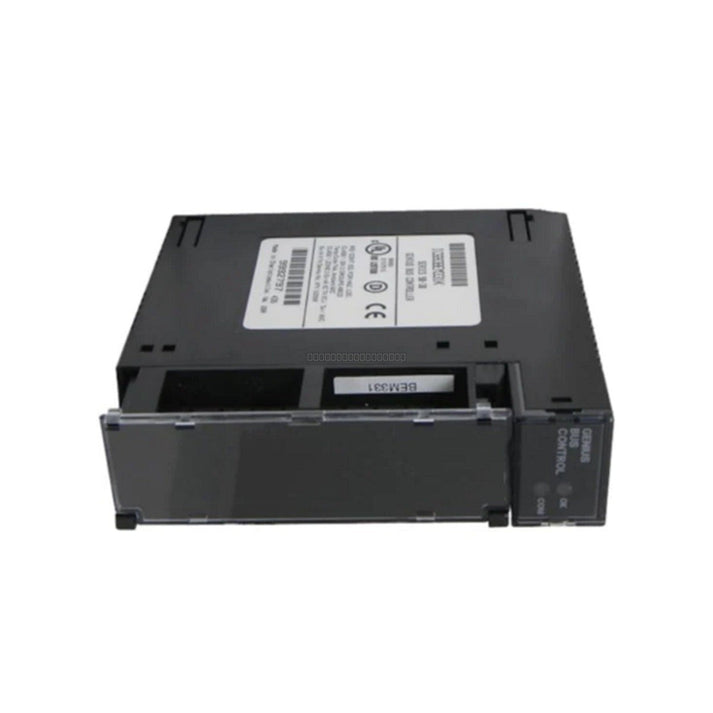

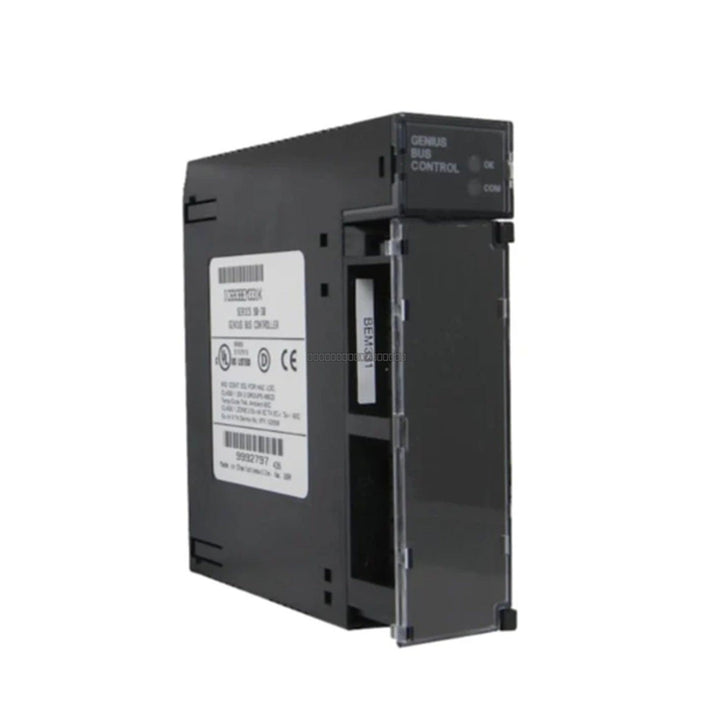

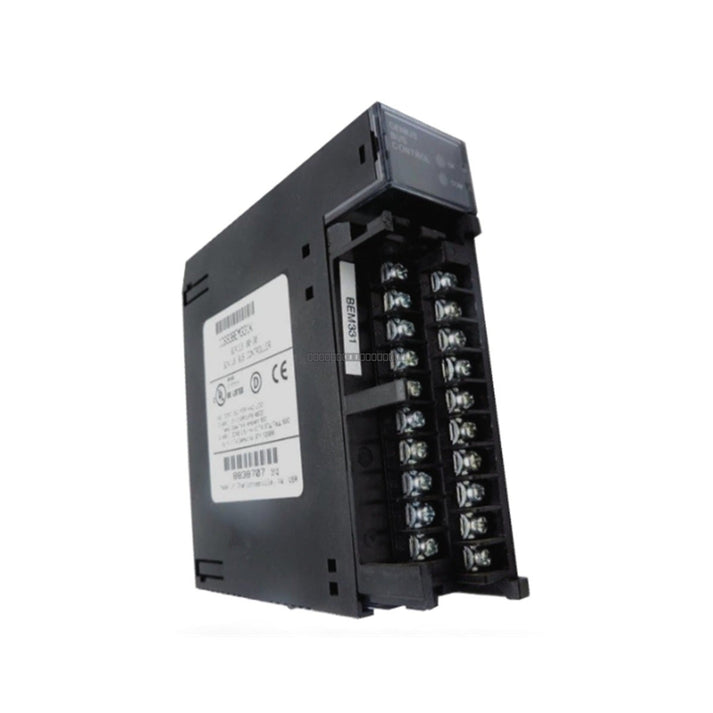

The General Electric IC693BEM331E is a Genius Bus Interface module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module serves as a communication gateway, allowing the Series 90-30 controller to interface with the Genius I/O bus network. It facilitates robust data exchange between the PLC backplane and remote Genius I/O blocks, supporting complex distributed control architectures.

Features

• Designed for seamless integration with the GE Series 90-30 PLC backplane.
• Provides Genius Bus interface capabilities for distributed I/O management.
• Equipped with two diagnostic LEDs (OK and COMM OK) for real-time status monitoring.
• Supports up to 31 I/O devices on the Genius bus.
• Maximum data throughput capacity of 128 bytes.
• Compact module design with an IP20 ingress protection rating.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Slide the module into the designated slot on the Series 90-30 backplane and secure it using the integrated mounting screws.
• Ensure proper grounding of the PLC rack to minimize electromagnetic interference (EMI).
• Verify that the Genius bus cabling is routed away from high-voltage lines or sources of electrical noise.
• Check the status LEDs after power-up to confirm the module is communicating correctly with the bus.

FAQ

What is the primary function of the IC693BEM331E?

This module acts as a Genius Bus Controller, enabling a Series 90-30 PLC to communicate with and control remote Genius I/O blocks across a distributed network.

How is the module powered?

The module draws its required 5V DC power directly from the Series 90-30 PLC backplane upon which it is mounted.

What do the status LEDs indicate?

The module features two LEDs: 'OK' indicates the module is functioning correctly, and 'COMM OK' indicates successful communication over the Genius bus network.
