Description

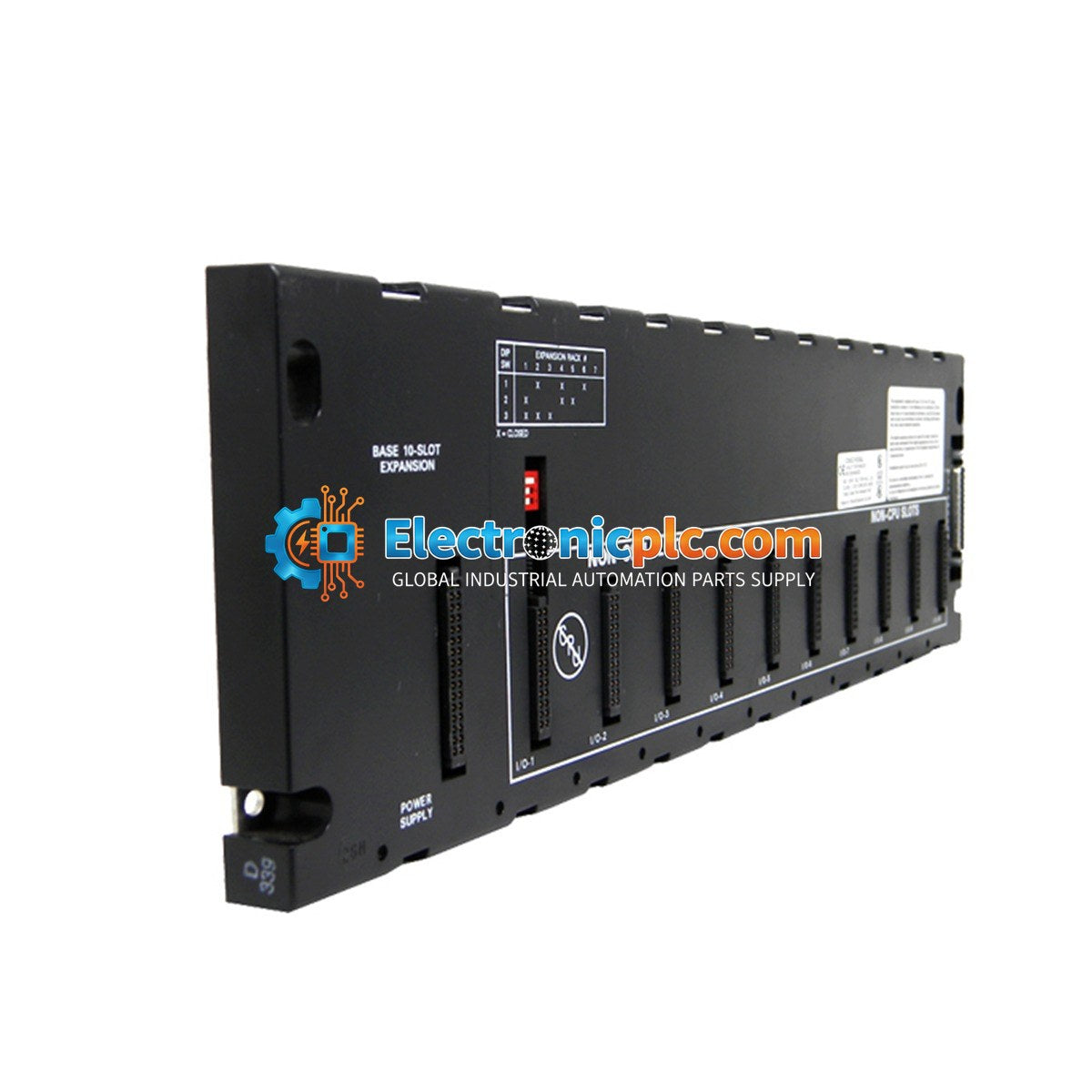

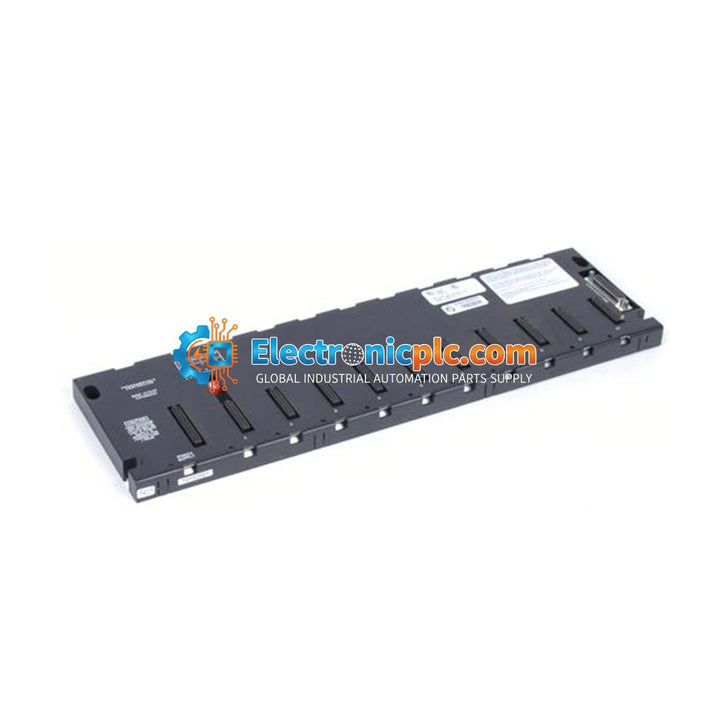

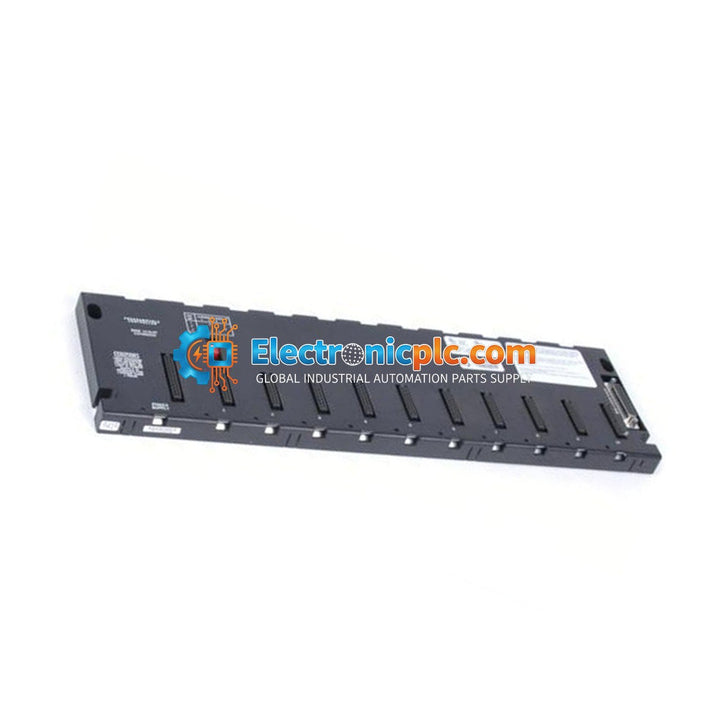

The General Electric IC693CHS392E is a 10-slot expansion baseplate designed for the Series 90-30 PLC system. This unit provides the necessary physical mounting and electrical backplane connectivity to extend the I/O capacity of a Series 90-30 control system. It is specifically engineered to house I/O and option modules, allowing for scalable system architecture in industrial automation applications.

Features

• Provides ten (10) slots for I/O and option modules.
• Includes a dedicated slot for a power supply module.
• Equipped with a 25-pin D-shell female connector for expansion cable connectivity.
• Designed for seamless integration with Series 90-30 PLC backplane communication.
• Robust construction suitable for standard industrial panel mounting.

Applications

This expansion baseplate is utilized in GE Series 90-30 PLC systems where additional I/O density is required beyond the capacity of the CPU baseplate. It is commonly found in manufacturing, process control, and machine automation environments where modular I/O expansion is necessary to accommodate increased sensor and actuator counts.

Technical Specifications

Installation Guidelines

• Ensure the power is disconnected from the system before installing or removing any modules from the baseplate.
• Mount the baseplate in an indoor environment, ensuring adequate clearance for ventilation and cable routing.
• Use appropriate grounding techniques to minimize electromagnetic interference (EMI) and ensure signal integrity.
• Secure the baseplate firmly to the panel using the provided mounting holes to prevent vibration-related issues.
• When connecting the expansion cable, ensure the 25-pin D-shell connector is fully seated and the locking screws are tightened.
• Handle modules with care to prevent electrostatic discharge (ESD) damage to the backplane pins.

FAQ

Does this baseplate support a CPU module?

No, the IC693CHS392E is an expansion baseplate and does not contain a slot for a CPU. It is intended to be used in conjunction with a CPU-capable baseplate to expand the total I/O count of the system.

What is the power requirement for this baseplate?

The baseplate consumes 150 mA at 5 VDC from the power supply module installed in the designated power supply slot.
