Description

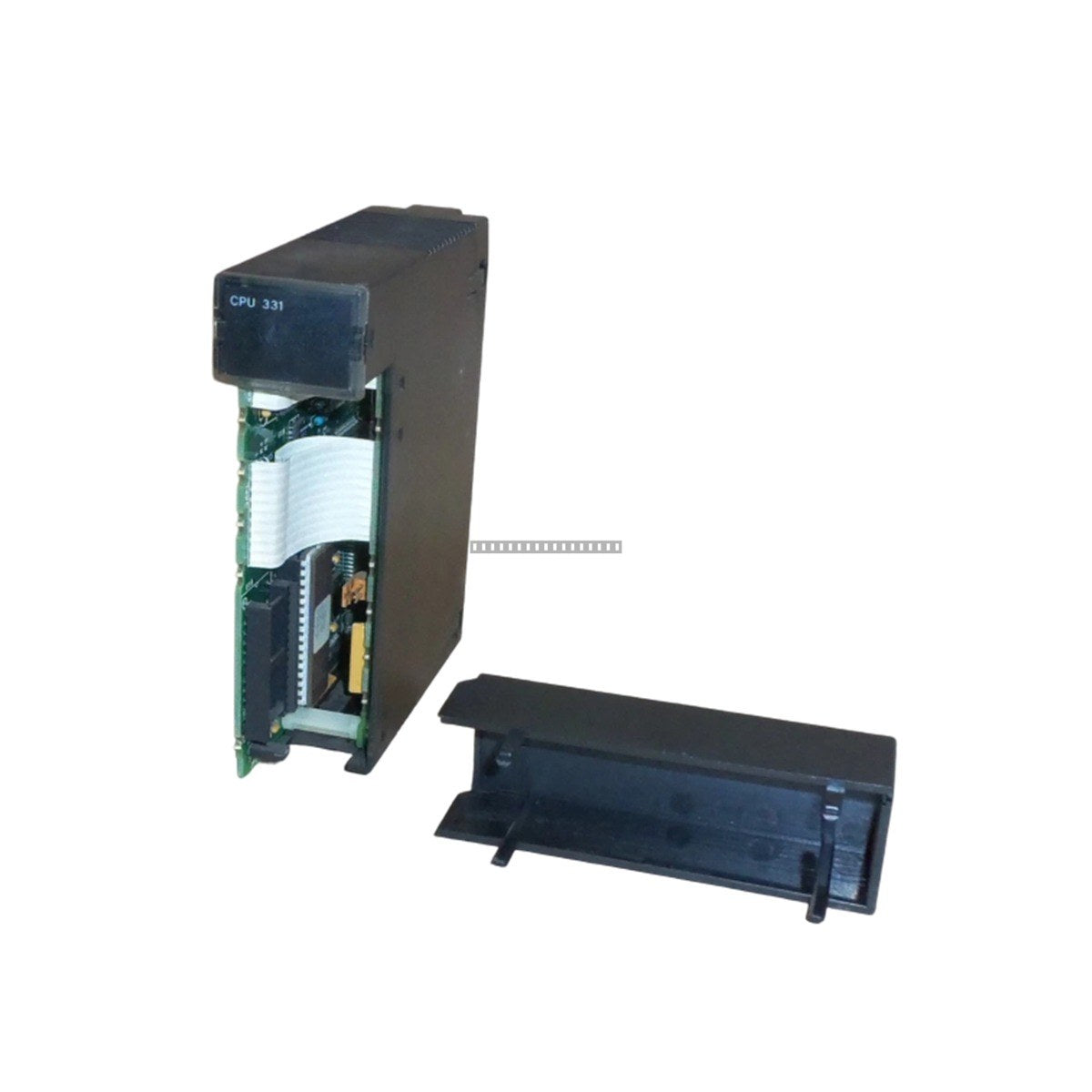

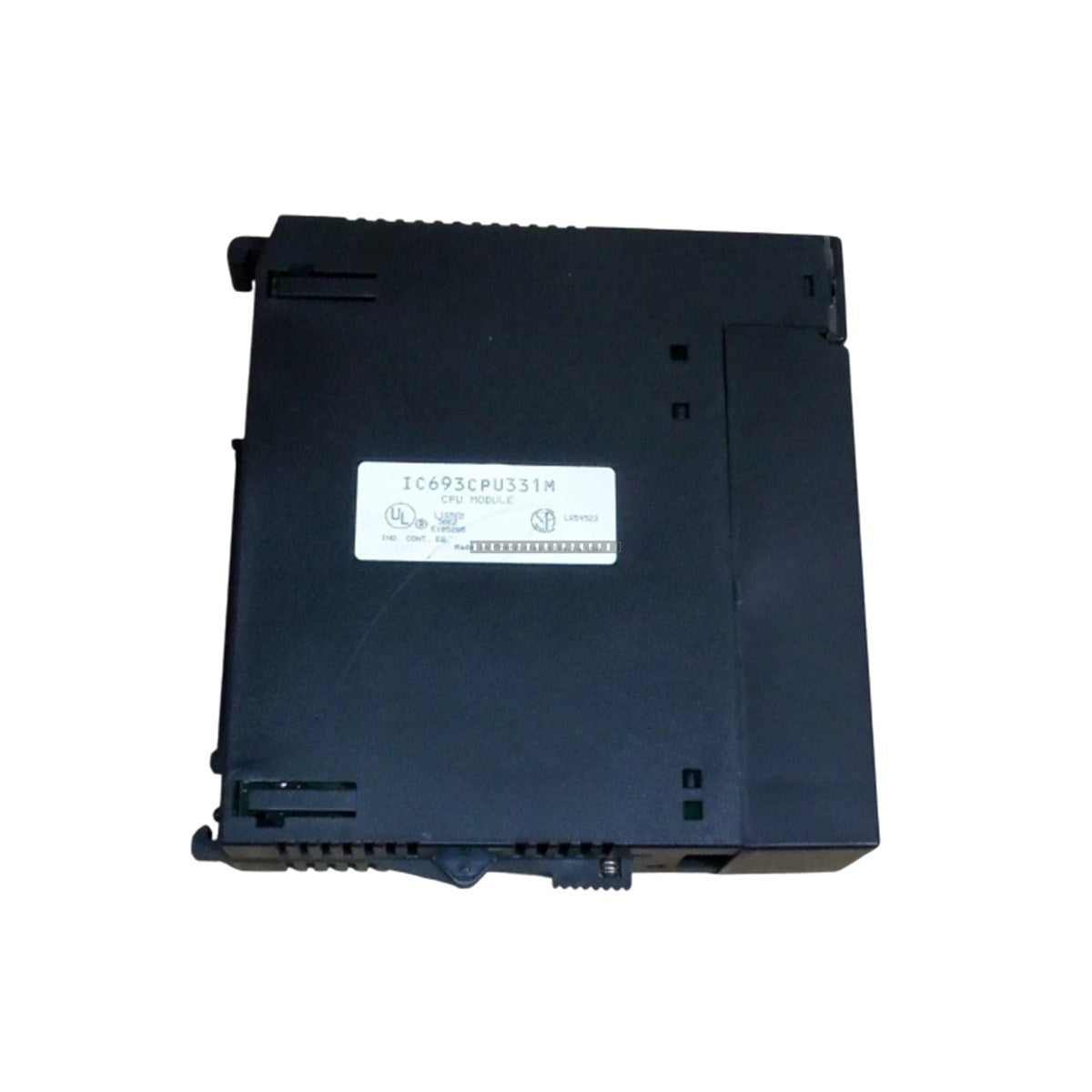

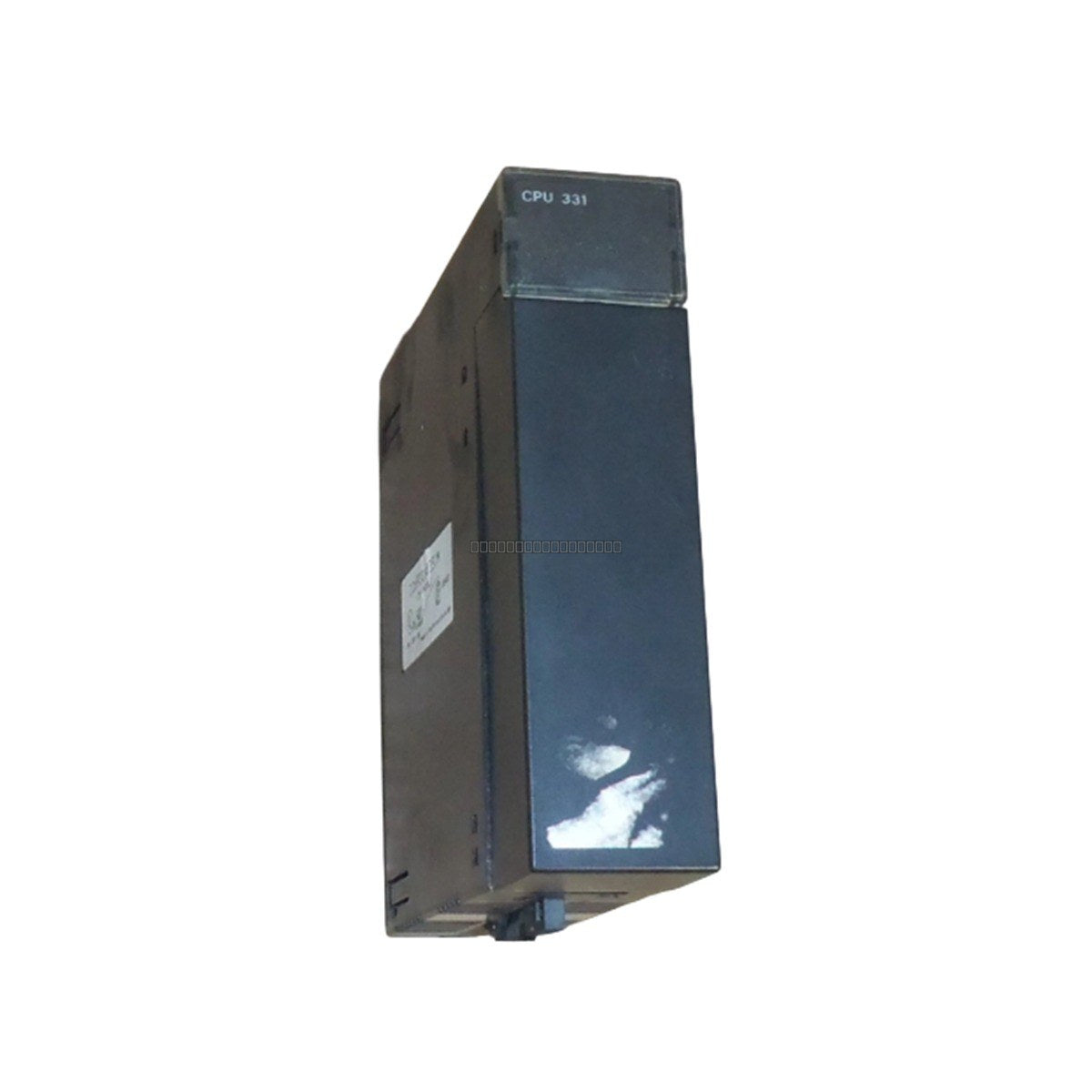

The GE Fanuc IC693CPU331M is a high-performance modular CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) family. This processor is engineered to handle complex control tasks in industrial automation environments, offering reliable execution of logic and efficient management of I/O operations.

Features

• Processor Type: 80188 microprocessor.
• Clock Speed: 10 MHz operation for consistent logic execution.
• Scan Rate: Typical scan rate of 0.4 ms per 1K of Boolean logic.
• Memory and Logic: Supports up to 680 timers and counters.
• Expansion Capabilities: Supports up to four (4) expansion baseplates and four (4) remote I/O baseplates.
• Power Requirements: Operates on a +5VDC bus voltage with a current load of 350mA.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage or data corruption.
• The module must be seated firmly into the designated CPU slot of the Series 90-30 baseplate to ensure proper backplane connection.
• Maintain adequate ventilation within the control cabinet to keep the operating temperature within the specified 0 to 60 degC range.
• Use proper ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
• Ensure that the backplane power supply is correctly sized to handle the 350mA current draw of the CPU in addition to other modules in the rack.

FAQ

What is the primary function of the IC693CPU331M?

The IC693CPU331M acts as the central processing unit for the GE Series 90-30 PLC system, responsible for executing user-programmed logic, managing I/O data, and coordinating communication between modules in the rack.

Can this module be used with remote I/O?

Yes, this CPU supports up to four expansion baseplates and four remote I/O baseplates, allowing for distributed control configurations.

What is the required operating environment?

The module is designed for industrial environments with an operating temperature range of 0 to 60 degC (32 to 140 degF).
