Description

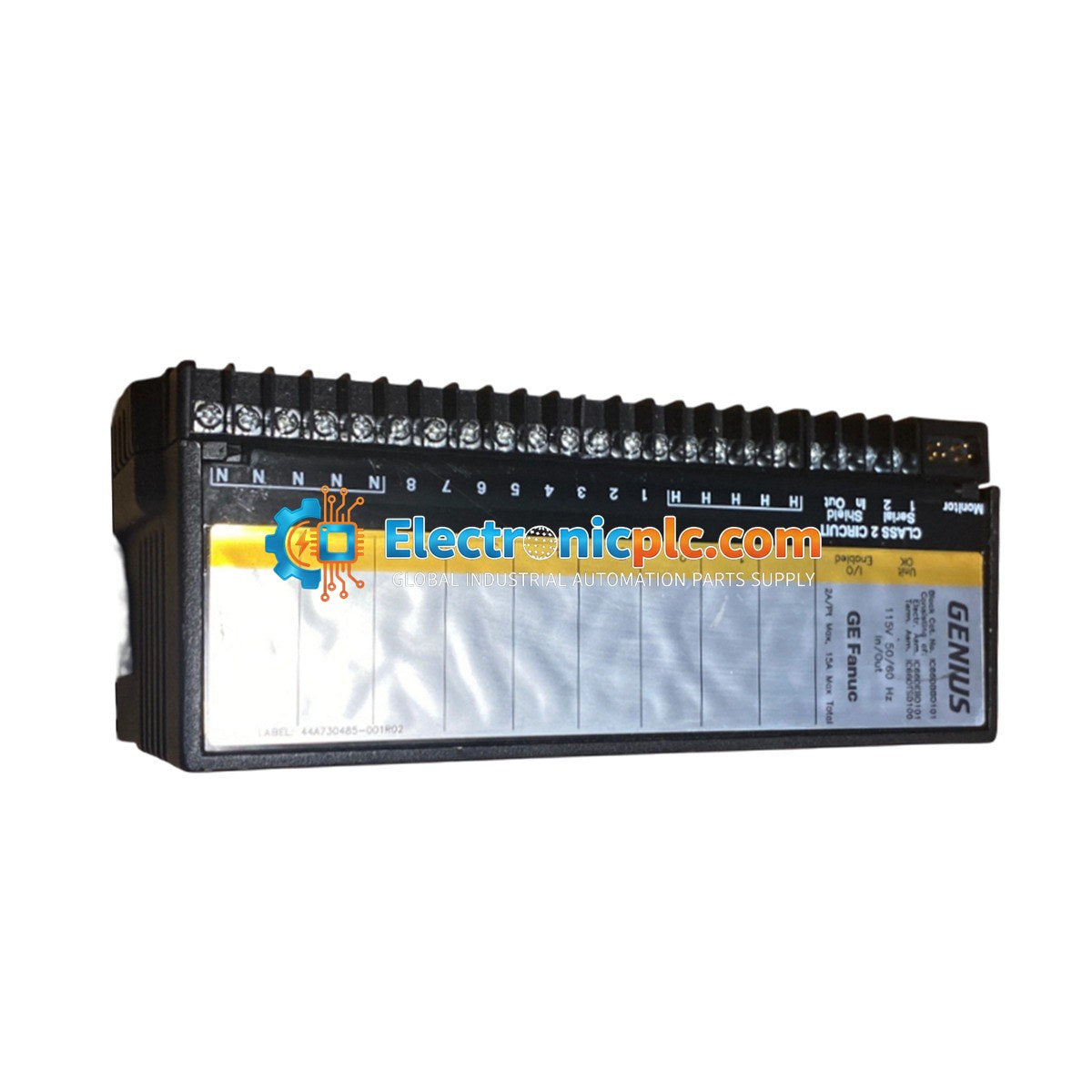

The General Electric IC660BBD101 is a Genius I/O discrete I/O block designed for reliable industrial automation control. As part of the GE Genius I/O series, this module provides 8 points of discrete input/output capability, specifically engineered for 115 VAC applications. It serves as a robust interface between field devices and the main control system, ensuring efficient signal processing in complex industrial environments.

Features

• 8 discrete I/O points grouped per common.
• Supports 115 VAC nominal operating voltage (93-132 VAC range).
• Integrated fuse protection for enhanced circuit safety.
• Configurable filter time ranging from 10 to 100 mS.
• Diagnostic LEDs for Unit OK and I/O Enabled status monitoring.
• 1500V block-to-block isolation for electrical noise immunity.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the I/O block.
• Mount the unit in a clean, dry environment with adequate ventilation to prevent overheating.
• Use shielded cabling for I/O signals to minimize electromagnetic interference (EMI) from high-power equipment.
• Verify that all field wiring is properly secured and that the common terminals are correctly configured for the application.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the IC660BBD101?

The IC660BBD101 is a discrete I/O block used to interface 115 VAC field devices with a Genius I/O network, allowing for the monitoring and control of 8 distinct circuits.

What is the required operating frequency for this module?

This module is designed to operate within a frequency range of 47 to 63 Hertz.

Does this module provide isolation?

Yes, the IC660BBD101 features 1500V block-to-block isolation, which helps protect the internal electronics from voltage spikes and ground loops in industrial environments.
