Description

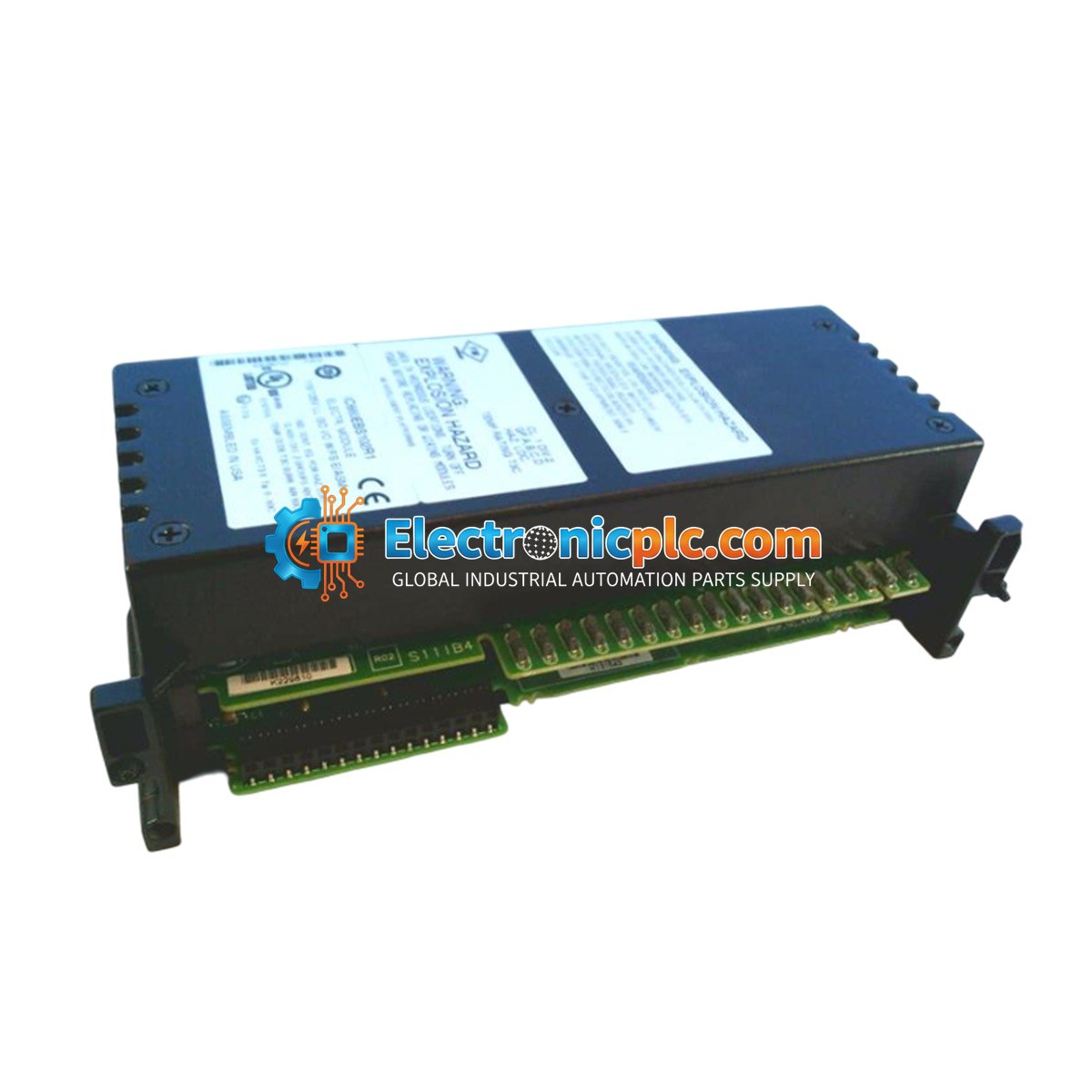

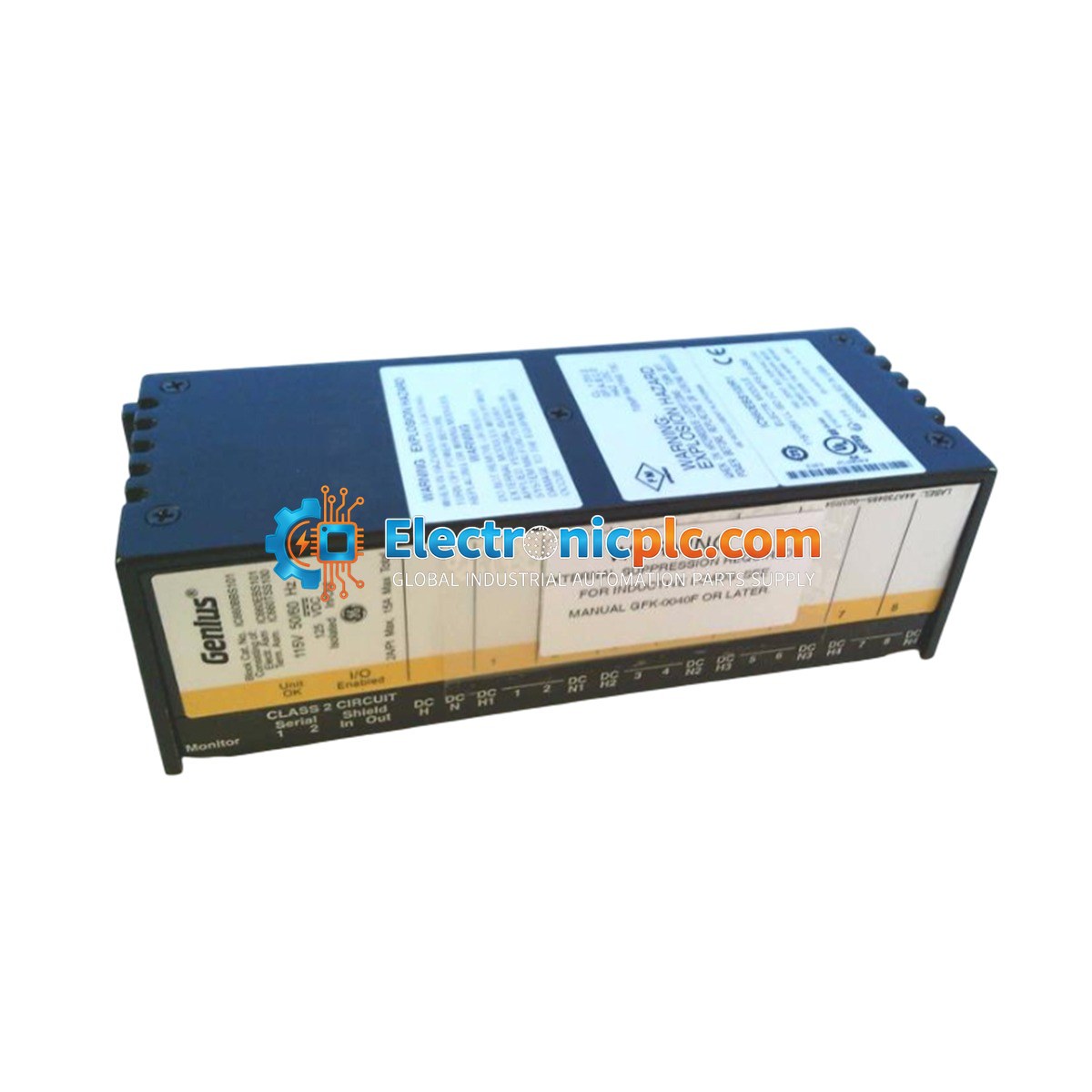

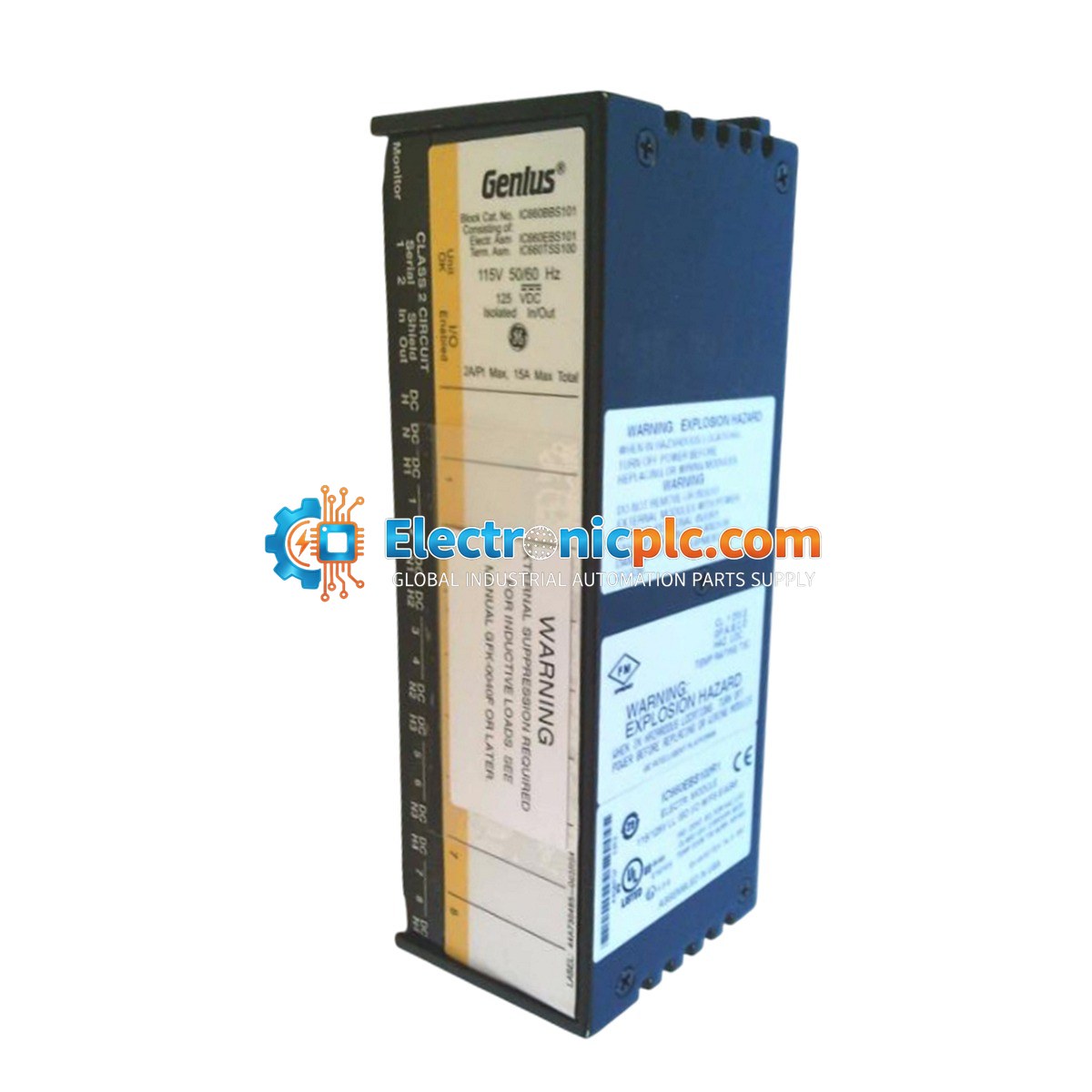

The IC660EBS101 is a Genius I/O block manufactured by General Electric (GE Intelligent Platforms/GE Fanuc). This electronic assembly is designed for use within the Genius I/O distributed control system, providing robust signal handling and communication capabilities in industrial automation environments. It facilitates reliable data exchange between field devices and the host controller, ensuring efficient process management.

Features

• Designed for integration within the Genius I/O series architecture.
• Block-to-block isolation rating of 1500 V for enhanced signal integrity and protection.
• Includes integrated circuit LEDs located on the logic side of the switch for clear status indication and diagnostics.
• Operates effectively across a frequency range of 47 to 63 Hz.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the I/O block to prevent electrical damage.
• Mount the block in a location that allows for adequate ventilation to maintain operating temperatures within the specified 0 to 60 degC range.
• Ensure proper grounding practices are followed in accordance with local electrical codes to minimize EMI interference.
• Handle the module using ESD-safe practices to protect internal logic components from electrostatic discharge.
• Verify that all field wiring is securely terminated and routed away from high-voltage power lines to maintain signal accuracy.

FAQ

What is the primary function of the IC660EBS101?

The IC660EBS101 serves as a Genius I/O block, acting as an interface for field devices within a GE Genius I/O distributed control system.

What are the environmental requirements for this block?

The module is designed for operation between 0 and 60 degC with a non-condensing humidity range of 5 to 95 percent. It should be stored in environments between -40 and 100 degC.

How do I monitor the status of the block?

The unit features status LEDs located on the logic side of the switch, which provide visual feedback regarding the operational state of the circuits.
