Description

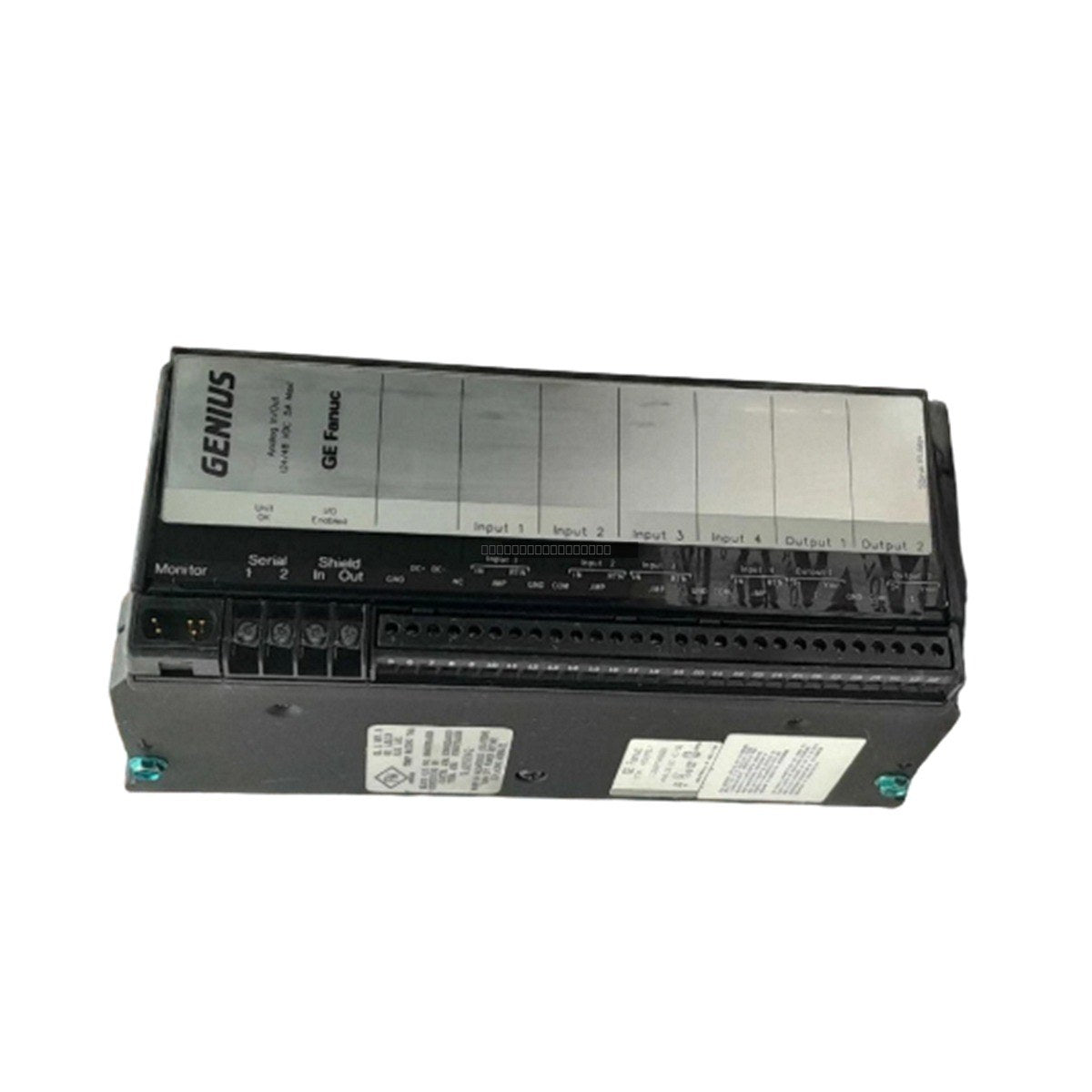

The General Electric IC660TSA020 is a terminal assembly designed for use within the Genius I/O system. This component provides the necessary physical connection points for field wiring, facilitating the integration of sensors and actuators into the Genius distributed control architecture. It is engineered to maintain reliable signal integrity in industrial environments.

Features

• Designed specifically for the Genius I/O product series.
• Supports robust termination for field-level wiring.
• Compatible with standard 12 AWG wire gauges for power and signal distribution.
• Engineered for consistent operation in temperatures ranging from 0 to 60 degC.

Technical Specifications

Installation Guidelines

• Ensure a minimum spacing of 2 inches between Genius blocks to facilitate proper heat dissipation and maintenance access.
• Verify that all field wiring is properly stripped and secured to the terminal assembly to prevent intermittent connections.
• Ensure the system power is de-energized before performing any wiring modifications or installation of the terminal block.
• Maintain proper cable management to avoid mechanical strain on the terminals.
• Follow standard industrial grounding practices to minimize electromagnetic interference (EMI) effects on signal quality.

FAQ

What is the primary function of the IC660TSA020?
The IC660TSA020 serves as a terminal assembly for the Genius I/O block system, providing a secure interface for field wiring.

What wire size is compatible with this unit?
This terminal assembly is designed to accommodate 12 AWG wiring.

What are the environmental requirements for this module?
The unit is rated for operation in ambient temperatures between 0 and 60 degC. It is recommended to maintain at least 2 inches of clearance around the block for thermal management.
