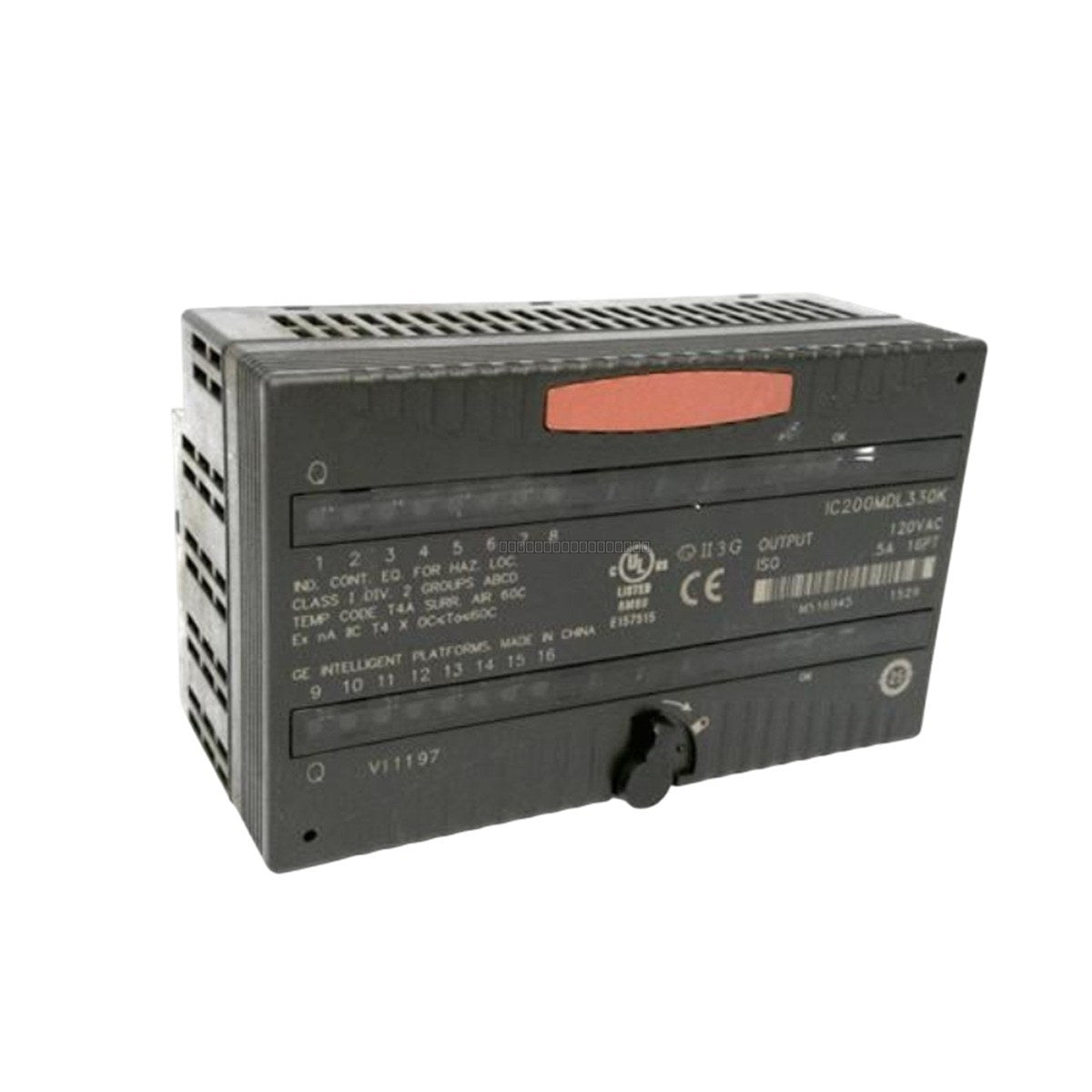

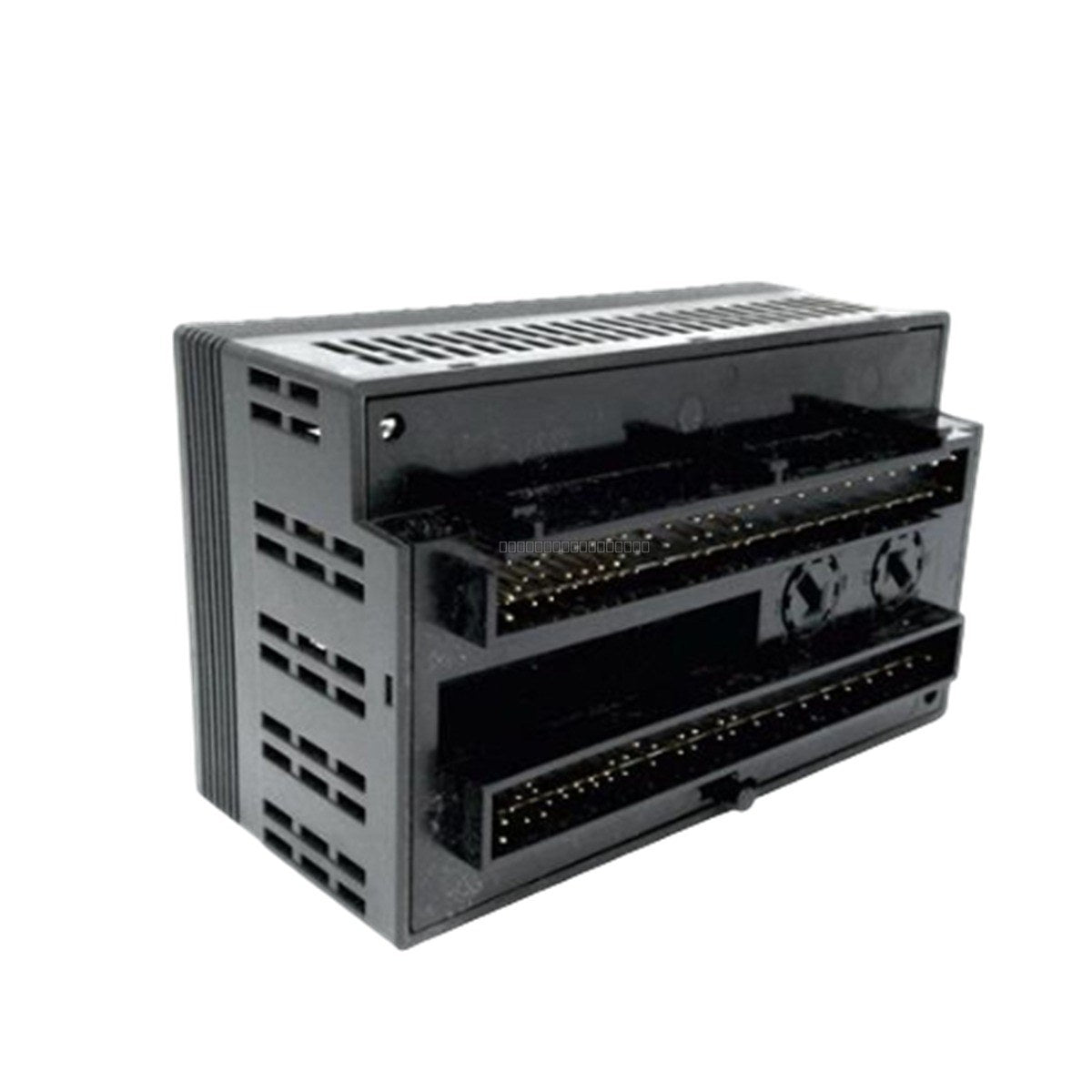

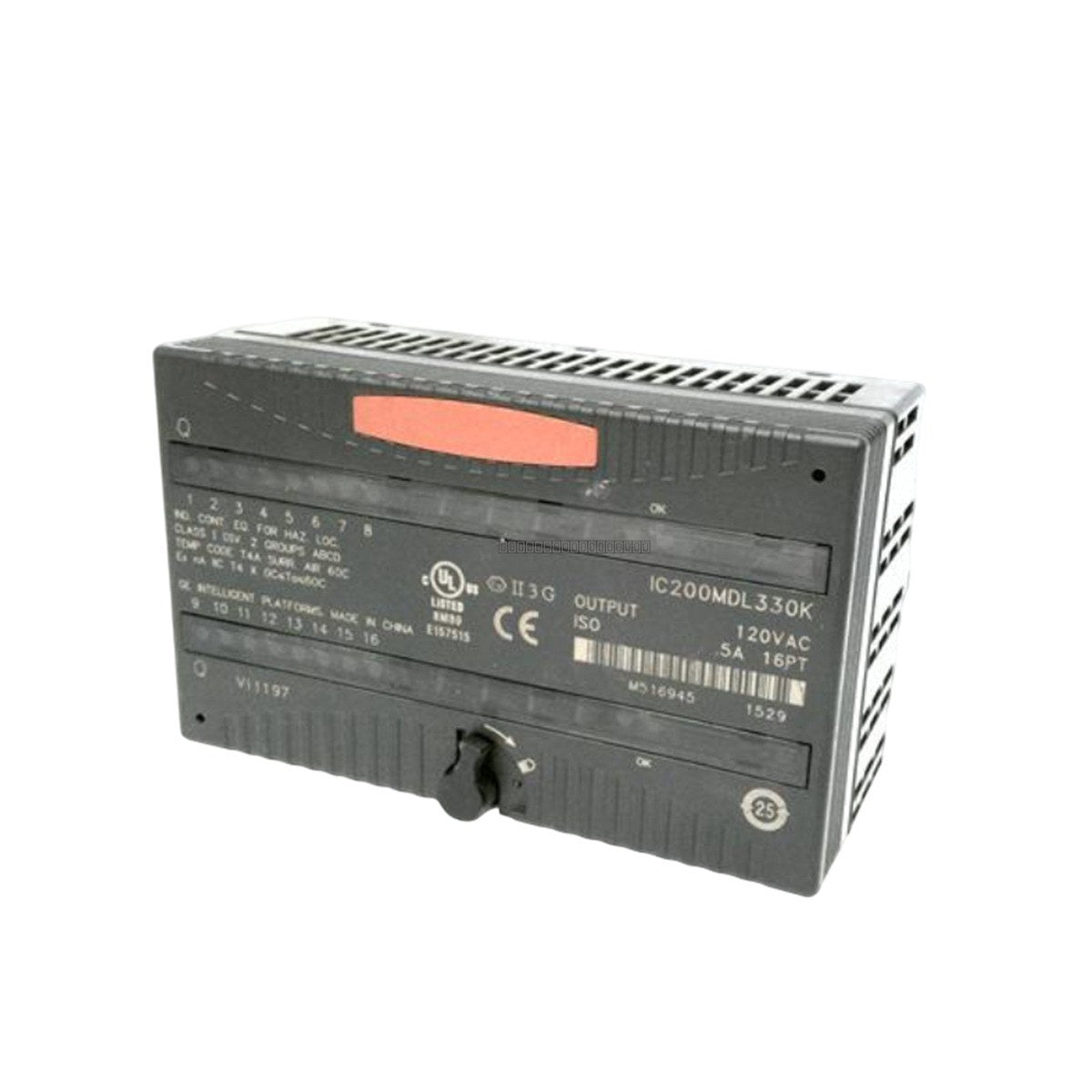

The General Electric IC200MDL330 is a 16-point discrete output module designed for the VersaMax I/O system. This module provides 16 isolated output channels, each rated for 120 VAC operation. It is engineered to interface directly with AC-powered field devices, offering robust performance in industrial automation and control environments.

Features

• 16 isolated discrete output channels
• Operating voltage range: 85 to 132 VAC (47 to 63 Hz)
• Output current: 0.5 Amperes per point
• Integrated status indicators: 16 individual point LEDs and 1 backplane OK LED
• Built-in protection: Includes snubber circuits (resistor/capacitor network) and Metal Oxide Varistors (MOV) on each output
• Maximum inrush current: 5.0 Amperes per channel (20 ms duration)

Applications

• Packaging Machinery: Controls AC solenoids for case sealers and labeling heads
• Material Handling & Conveyors: Activates motor starters, relays, and status towers
• HVAC & Industrial Pumping: Manages contactors for large fans, pumps, and heating elements
• Assembly Stations: Drives indicator lamps, push-button panels, and small AC clamps
• Standard Industrial Tools: Supports drill presses, arc welders, and hydraulic valve control systems

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the backplane.
• Mount the module in a clean, dry environment with adequate ventilation to prevent thermal derating.
• Connect output loads to the designated terminals; for highly inductive loads, consider additional external suppression.
• Ensure proper grounding of the VersaMax rack to minimize EMI/RFI interference.
• Verify that the backplane power supply can accommodate the 140 mA current draw requirement.

FAQ

What is the IC200MDL330?

It is a 16-point, 120VAC rated, isolated output module, providing 0.5 Amps per point, belonging to the GE VersaMax Modular I/O series.

Does it have isolated channels?

Yes, the IC200MDL330 features 16 output channels that are individually isolated, enhancing safety and troubleshooting.

What is the backplane current draw?

The maximum backplane current draw is 140 mA.

Does the module include output protection?

Yes, it is equipped with built-in snubber and Metal Oxide Varistor (MOV) protection for each output to guard against transients.
