Description

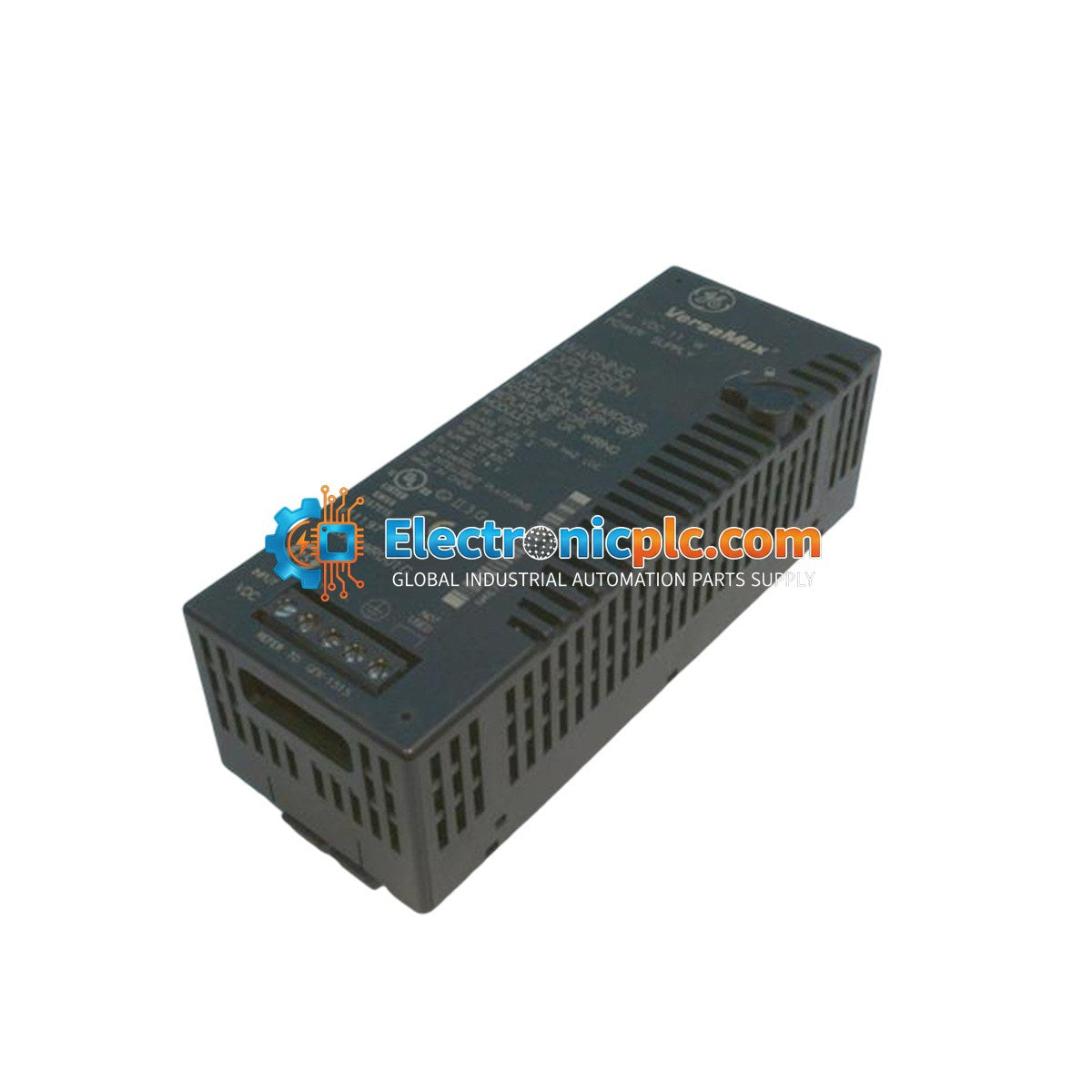

The General Electric IC200PWR001 is a 24VDC power supply input module belonging to the VersaMax PLC series. This module is engineered to provide essential backplane power to CPU modules, Network Interface Units (NIUs), and various I/O modules within a VersaMax station. It is designed for applications requiring a reliable 24VDC input source, converting it into the stable 5VDC and 3.3VDC levels required for internal logic and communication operations.

Features

• Input Voltage: 18 to 30VDC (24VDC nominal).
• Total Output Capacity: 1.5A combined across 5VDC and 3.3VDC rails.
• Versatile Mounting: Functions as a main power supply when mounted on a CPU or NIU carrier, or as a supplemental supply when installed on a Power Supply Booster Carrier.
• Integrated Protection: Includes built-in short circuit, overload, and reverse polarity protection.
• Compact Design: Optimized for the VersaMax modular rack system.

Applications

• Automotive and Consumer Goods: Powers PLC racks and I/O clusters for production line automation.
• Water and Wastewater Management: Provides stable DC power for remote telemetry and communication modules.
• Food and Pharmaceutical Processing: Supports automated packaging and sorting systems requiring precise power delivery.
• Energy and Utilities: Powers RTU gateways and control protection panels in power generation environments.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the carrier.
• The module must be seated firmly onto the CPU, NIU, or Power Supply Booster carrier to ensure proper backplane connection.
• Maintain adequate ventilation around the module to prevent thermal buildup; ensure the ambient temperature remains within the rated operating range.
• Use appropriate wire gauges for the 24VDC input connections to minimize voltage drop.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
• Ensure the input power source is properly grounded according to local electrical codes to mitigate EMI/RFI interference.

FAQs

What is the IC200PWR001?

The GE VersaMax IC200PWR001 is a 24VDC power supply module designed to provide backplane power to CPU, NIU, and I/O modules in a VersaMax system.

What does it mean if the PWR LED is off?

This typically indicates that the module is not receiving the required 18–30 VDC input power, or the module has experienced an internal failure.

Can this power supply operate with AC inputs?

No, the IC200PWR001 is designed exclusively for 18–30 VDC input. It is part of the VersaMax DC-input power supply range.

What happens if I exceed 1.5 Amps of output?

The module features internal overload protection. To ensure reliable operation, the combined current draw from the 3.3VDC and 5VDC outputs must not exceed 1.5A.
