Description

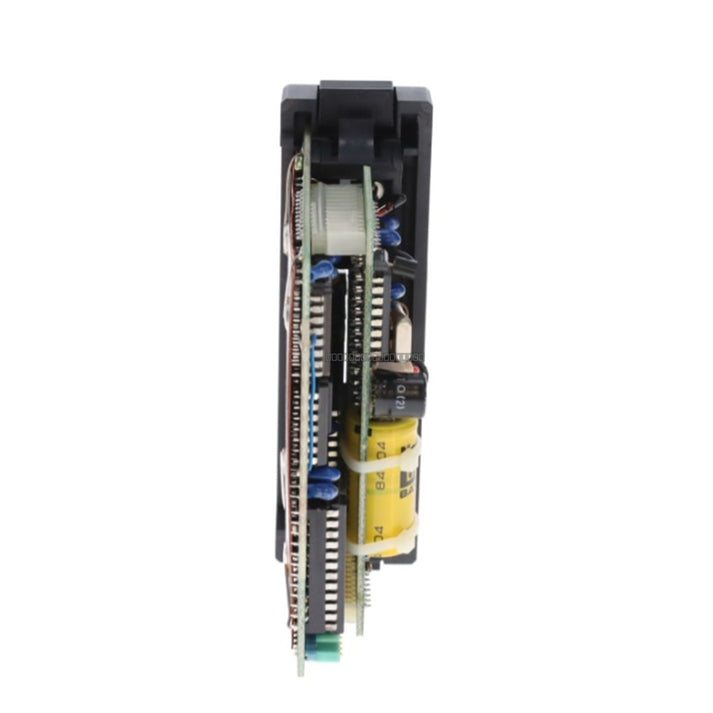

The IC610CPU101 is a central processing unit designed for the GE Fanuc Series One programmable logic controller system. This module provides reliable automation control for legacy manufacturing plants, assembly lines, and material handling systems, ensuring consistent logic execution. It is engineered to manage discrete I/O sequencing and basic control loops, featuring a 700-word memory capacity and 1 KB of RAM for stable operation in industrial environments.

Features

• Integrated 1 KB RAM and 700-word memory capacity.
• Supports memory expansion modules for scalable application requirements.

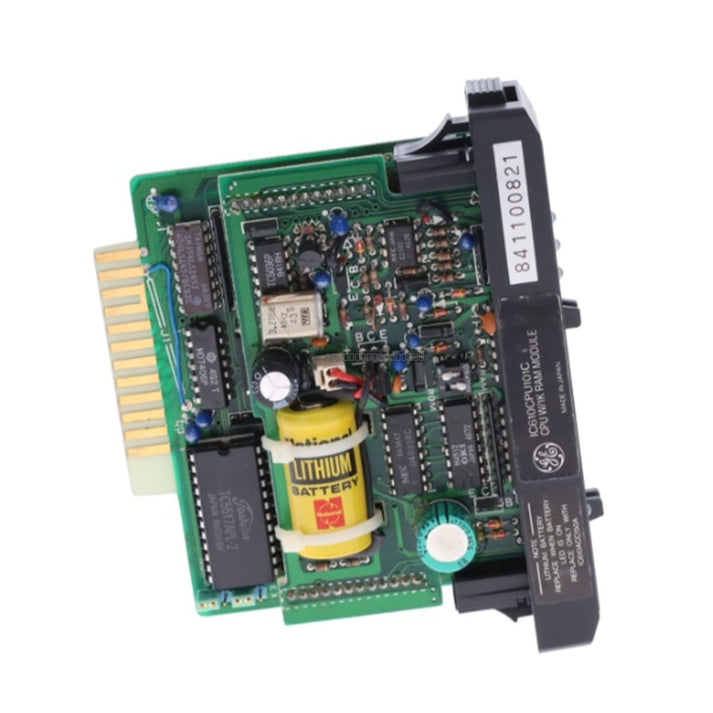

• Dedicated lithium battery backup to protect user logic and volatile registers during power loss.

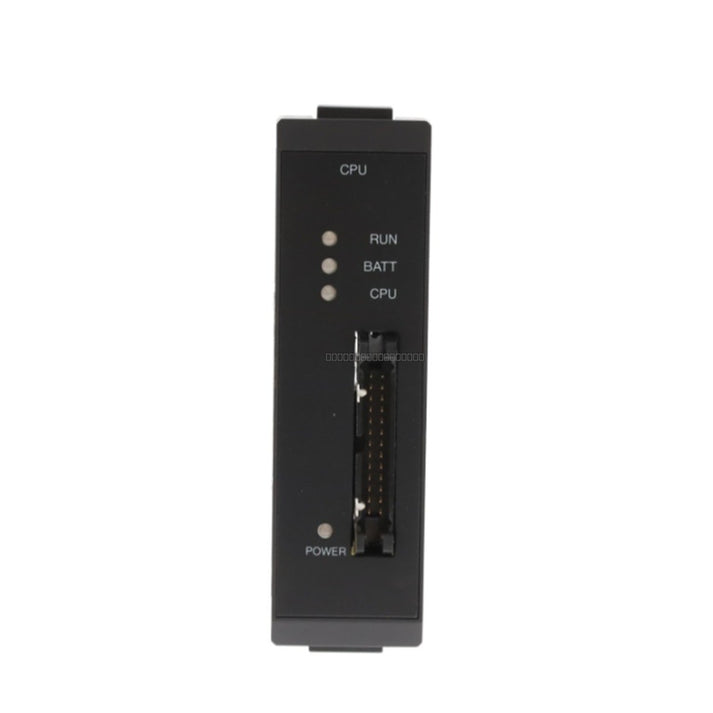

• Front-panel LED array for real-time status monitoring (Power, CPU, BATT, RUN).
• Natural convection cooling for maintenance-free operation.

Applications

This CPU module is intended for use in legacy GE Fanuc Series One PLC systems, commonly found in localized machinery control, discrete manufacturing, and material handling applications where reliable, long-term logic processing is required.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the CPU module from the rack.
• Handle the module by the edges to prevent electrostatic discharge (ESD) damage to internal components.
• Verify that the module is fully seated in the backplane to ensure proper electrical contact.
• Maintain adequate clearance around the module to allow for natural convection cooling; do not obstruct airflow.
• Check the BATT LED status periodically; replace the lithium backup battery if the indicator signals a low-voltage condition to avoid data loss.

FAQ

What does the BATT LED indicate?

The BATT LED illuminates when the internal lithium backup battery voltage has dropped below the safe threshold, indicating that the battery should be replaced to ensure the retention of user logic and register data.

Is this module compatible with other Series One components?

Yes, the IC610CPU101 is designed specifically for the GE Fanuc Series One PLC architecture and supports standard Series One memory expansion modules.
