Description

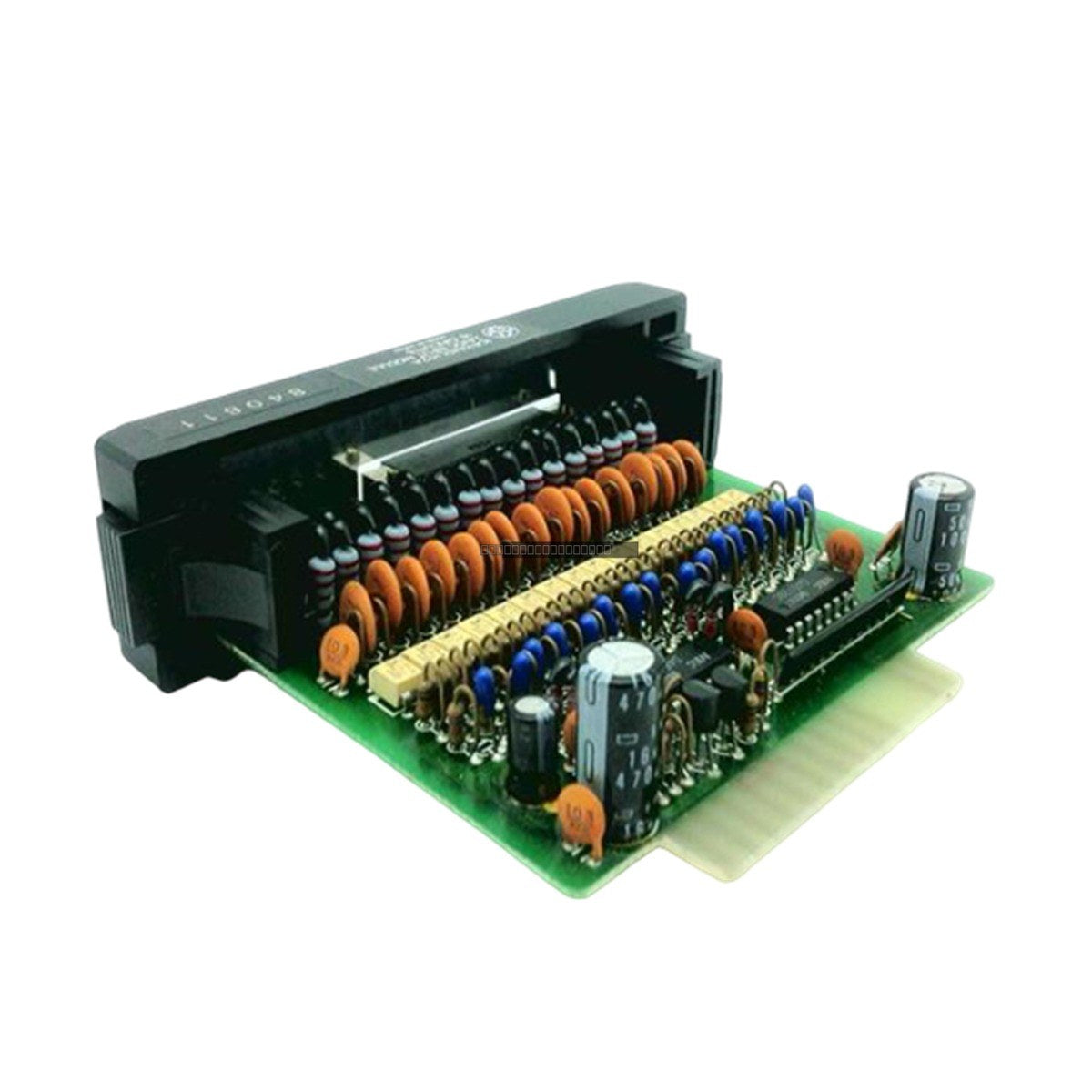

The IC610MDL102 is a combination input/output module designed for the GE Fanuc Series One programmable logic controller (PLC) platform. This module provides a compact solution for managing discrete digital signals in industrial environments, integrating four input channels and four output channels into a single unit. It is engineered to facilitate reliable communication between field-level devices and the PLC processor, helping to maintain operational efficiency in automated systems.

Features

• Integrated I/O: Combines 4 discrete inputs and 4 discrete outputs to maximize rack density.
• Status Monitoring: High-visibility front-panel LED indicators provide real-time status feedback for each channel, simplifying field troubleshooting.
• Signal Isolation: Designed to isolate internal logic circuitry from field-side electrical noise.
• Versatile Compatibility: Inputs are compatible with standard industrial devices such as limit switches, pushbuttons, and relay contacts.
• Output Flexibility: Output stages are designed to drive external DC loads, including pilot lights and relay coils.

Applications

This module is suitable for various industrial control applications, including:

• Automated assembly line control
• Material handling and conveyor systems
• Water and wastewater treatment process monitoring
• General-purpose discrete signal interfacing

Technical Specifications

Installation Guidelines

• Power Down: Always disconnect power from the rack before inserting or removing the module to prevent electrical damage.
• ESD Protection: Handle the module by its edges and use proper electrostatic discharge (ESD) grounding procedures to protect internal components.
• Wiring: Ensure all field wiring is properly secured to the terminal blocks. Use shielded cables where necessary to minimize EMI interference.
• Environment: Ensure the module is installed in an enclosure that meets the specified temperature and humidity requirements.
• Seating: Ensure the module is fully seated in the backplane connector to guarantee reliable communication with the CPU.

FAQ

What is the primary function of the IC610MDL102?

The IC610MDL102 is a combination I/O module for the Series One PLC, allowing the system to read 4 discrete inputs and control 4 discrete outputs simultaneously.

Does the module provide its own power to the output loads?

No, the output stage requires an external user-supplied DC power source to drive field loads such as relays or indicator lights.

How can I verify the status of the I/O points?

The module features front-panel LED indicators that correspond to each input and output channel, providing an immediate visual status of the logic state.
