Description

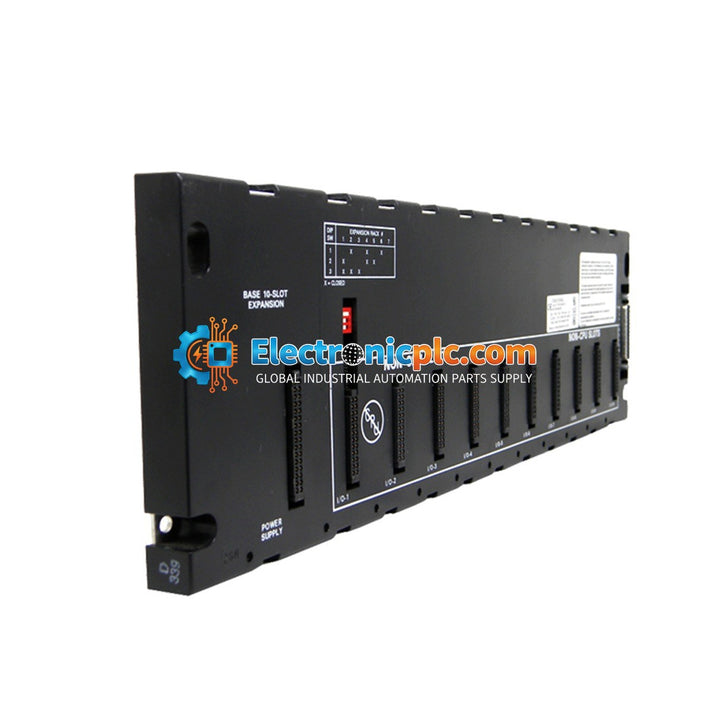

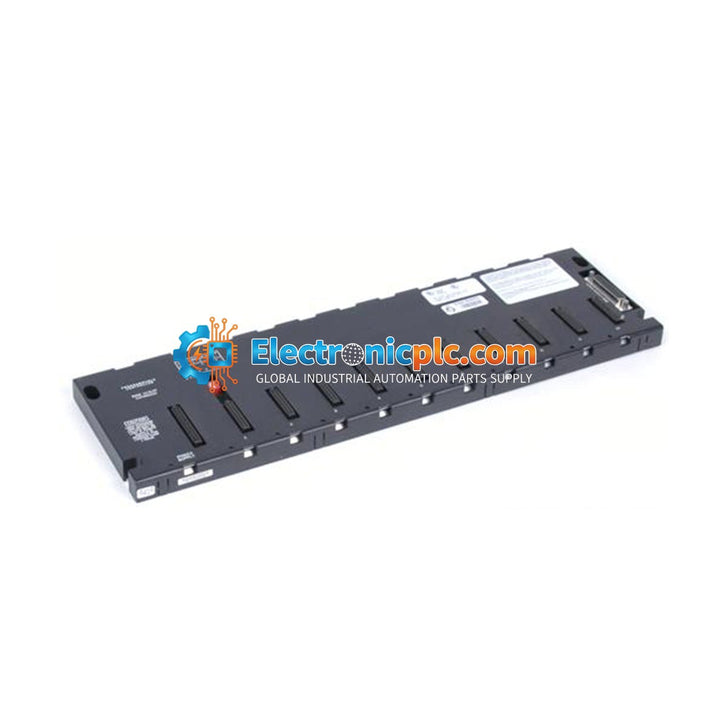

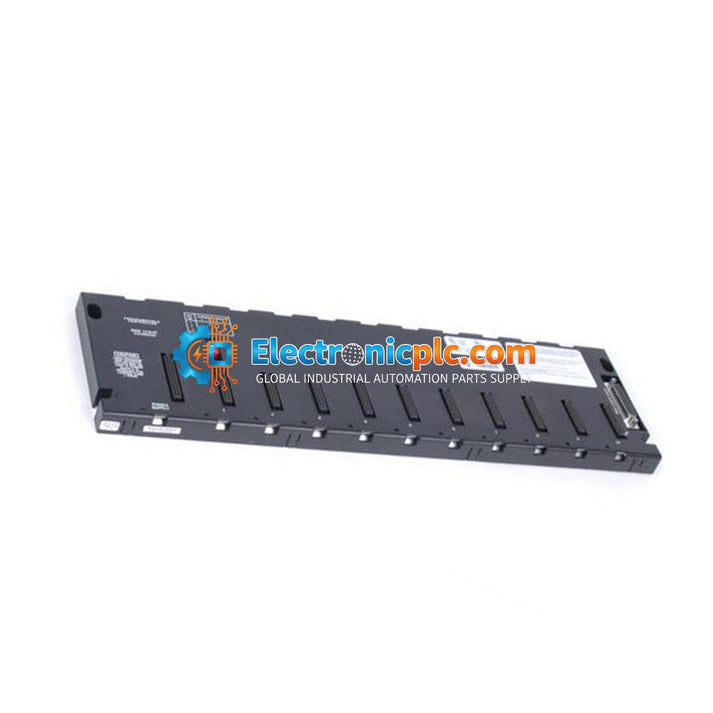

The IC693CHS392 is a 10-slot expansion baseplate designed for the GE Series 90-30 Programmable Logic Controller (PLC) platform. This baseplate facilitates system expansion by providing additional mounting space for standard Series 90-30 I/O modules. It features one dedicated power supply slot, ten I/O slots, and a 25-pin female D-type connector for I/O bus expansion. The unit is designed for panel mounting and includes an integrated DIP switch for rack address configuration.

Features

• 10-slot capacity for standard I/O modules.
• Integrated 25-pin D-type expansion connector for daisy-chaining baseplates.
• Rack number selection via onboard DIP switch.
• Dedicated slot for Series 90-30 power supply modules.
• Compatible with CPU 331, 340, 341, 350, and higher models.

Applications

• Water and Wastewater Treatment: Managing flow, filtration, and chemical dosing systems.
• Material Handling: Controlling conveyor systems, sorters, and automated logistics.
• Food and Beverage: Automating processing lines, mixing, and packaging machinery.
• Mining and Metal Processing: Providing robust control for heavy machinery and emission monitoring.
• Plastic Manufacturing: Managing precise temperature and pressure for injection molding.

Technical Specifications

Installation Guidelines

• Mounting: Designed for panel mounting using the integrated tabs on the left and right sides of the baseplate.
• Grounding: Ensure all expansion baseplates are connected to a common ground to maintain signal integrity and electrical safety.
• Cabling: The total cumulative length of interconnecting cables between the CPU baseplate and all expansion baseplates must not exceed 50 feet (15 meters).
• Slot Management: All unused slots must be covered with filler modules (e.g., IC693ACC310) to protect internal circuitry.
• Compatibility: Intelligent modules such as PCM, ADC, BEM330, and CMM must be installed in the CPU baseplate, not the expansion baseplate.
• Handling: Always power down the system before installing or removing modules to prevent electrical damage.

FAQs

What is the IC693CHS392?
It is a 10-slot, 25-pin female D-type I/O Bus Expansion baseplate for the Series 90-30 PLC system.

What is the maximum cable length for the IC693CHS392?
The total cable length connecting the expansion backplane and the CPU backplane must not exceed 50 feet (15 meters).

What modules are not supported by the IC693CHS392?
It does not support intelligent option modules such as PCM, ADC, BEM330, and CMM311. These must be mounted in a CPU baseplate.

Can the IC693CHS392 stand alone?
No. It cannot act as a standalone CPU baseplate. It must be connected to a CPU baseplate (either a PLC or a PC with a Personal Computer Interface Card).
