Description

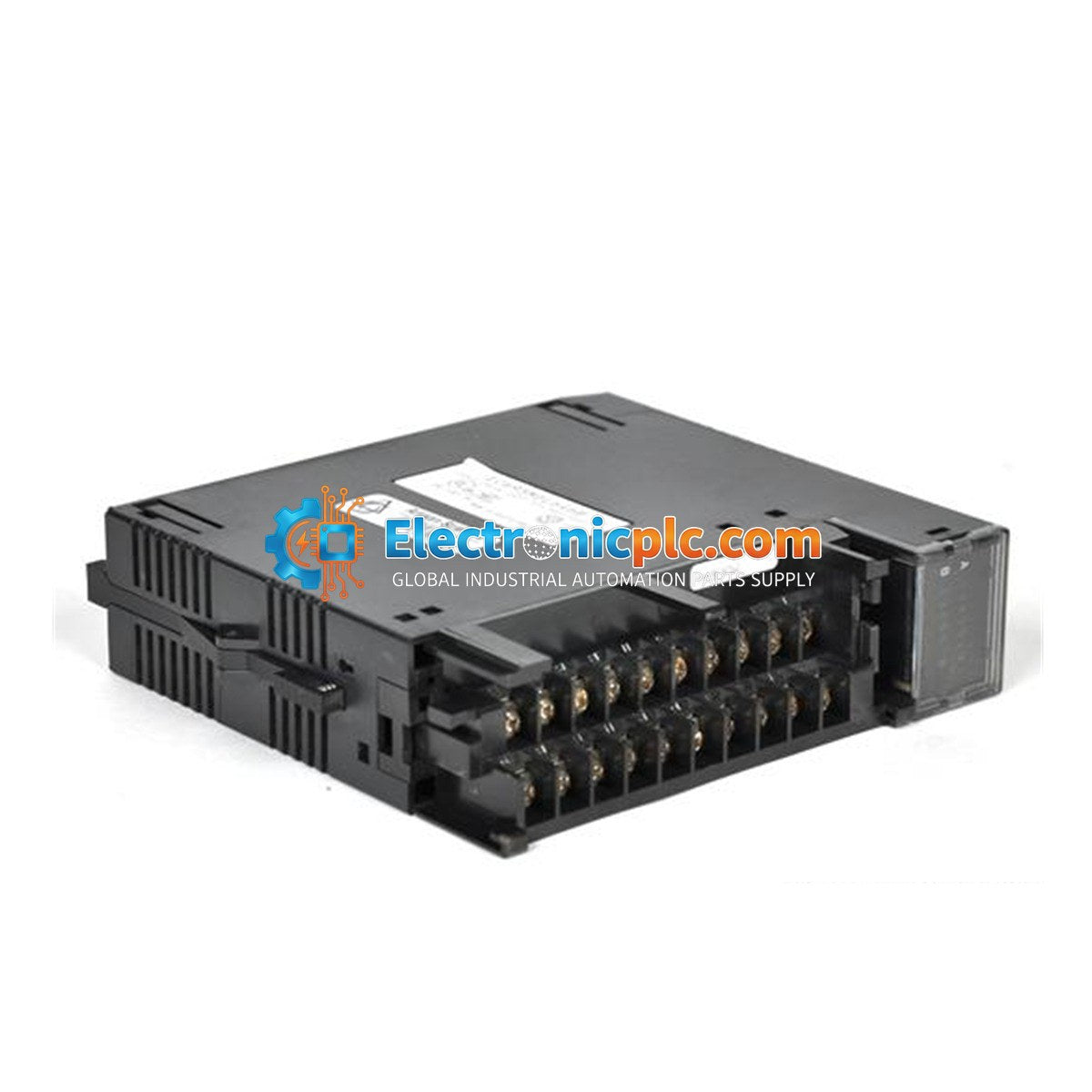

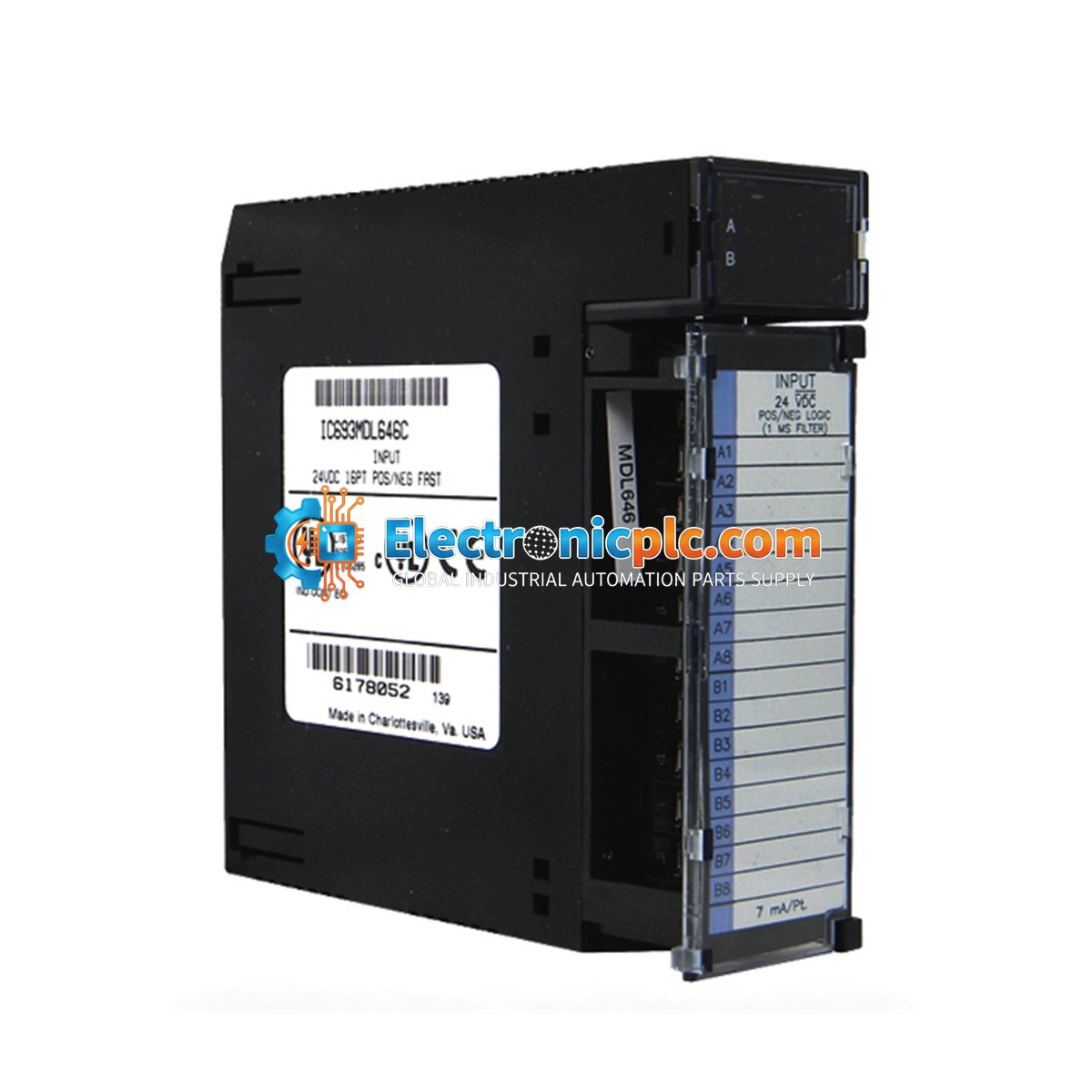

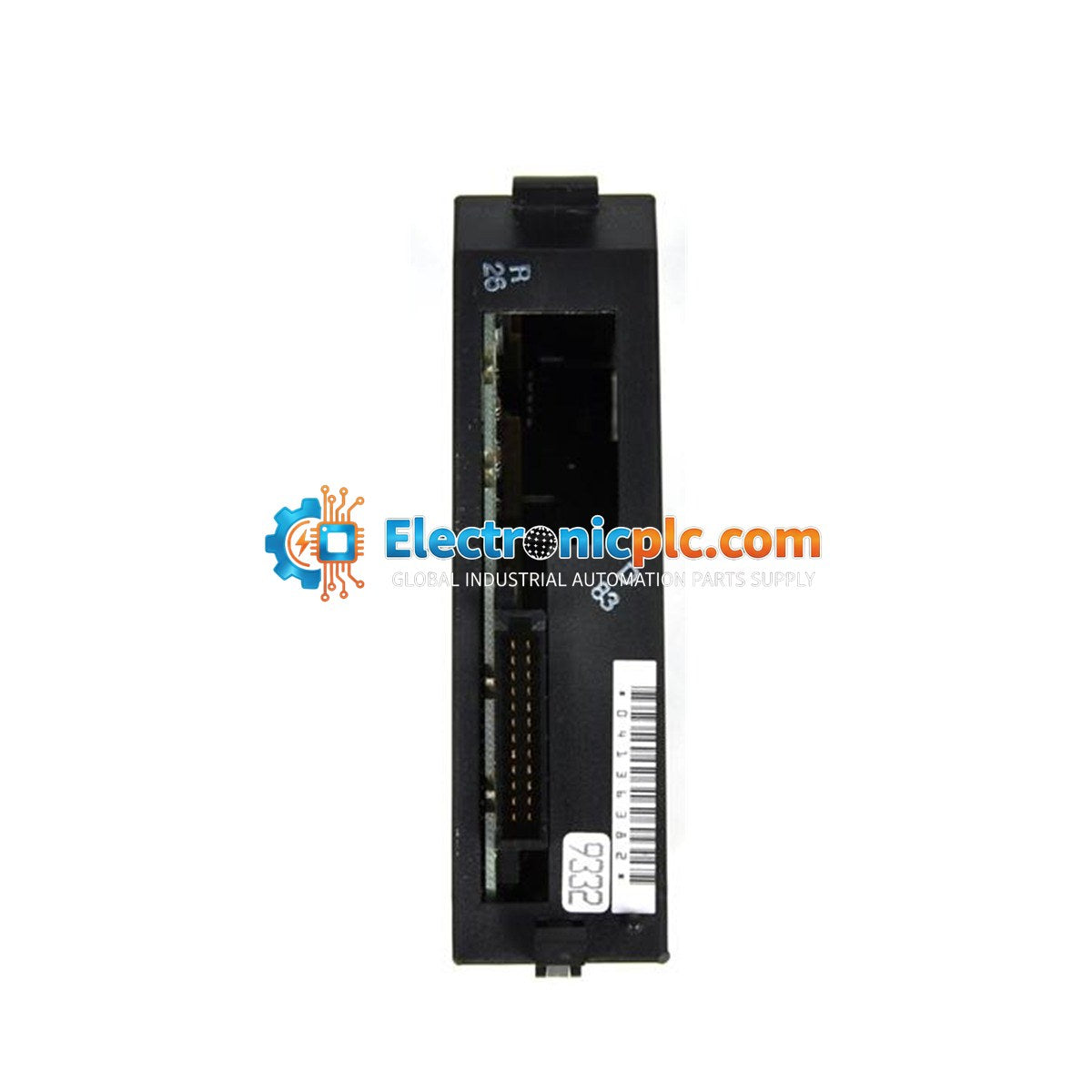

The IC693MDL646 is a 16-point discrete input module designed for the GE Fanuc Series 90-30 PLC platform. This module provides a reliable interface for monitoring binary field devices, such as push buttons, limit switches, proximity sensors, and auxiliary contacts. It supports both positive and negative logic wiring configurations, offering flexibility for various control circuit requirements. The module is engineered for use in both local and remote I/O baseplates within the 90-30 system architecture.

Features

• 16 discrete input channels grouped with a single common terminal.
• Supports both Positive and Negative logic wiring configurations.
• Compatible with 24 VDC nominal field devices (0-30 VDC range).
• Integrated status LEDs for individual channel monitoring and module health.
• 1500 VDC isolation between the field side and the logic side.
• Designed for installation in any I/O slot of a 5 or 10-slot Series 90-30 baseplate.

Technical Specifications

Applications

• Packaging and bottling line automation.
• Material handling and conveyor tracking.
• Injection molding and plastics processing control.
• Robotic work cell interfacing.
• Boiler and chemical process management.
• Elevator and lift control systems.

Installation Guidelines

• Power Down: Always ensure the rack power is disconnected before inserting or removing any module to prevent electrical damage.
• Mounting: Tilt the module upward to engage the top hook into the baseplate notch, then swing the module downward until the backplane connectors fully mate.
• Locking: Ensure the locking lever at the bottom of the module snaps securely into place.
• Wiring: The module features 20 connection terminals protected by a swing door. Refer to the wiring diagram located on the inside of the swing door for correct terminal assignments.
• Environment: Ensure the module is installed in an environment free from excessive vibration and within the specified temperature ratings for the 90-30 series.

FAQs

What is the IC693MDL646?

It is a 16-point, 24-volt DC Positive/Negative Logic Input module for the GE Fanuc Series 90-30 PLC system.

What wiring configurations are supported?

The IC693MDL646 supports both positive and negative logic wiring configurations.

Can this module be used in remote I/O?

Yes, it supports installation in both local CPU baseplates and remote I/O or I/O expansion baseplates.

Where can this module be installed?

It can be installed in any I/O slot of a 5 or 10-slot baseplate within the Series 90-30 PLC system.
