Description

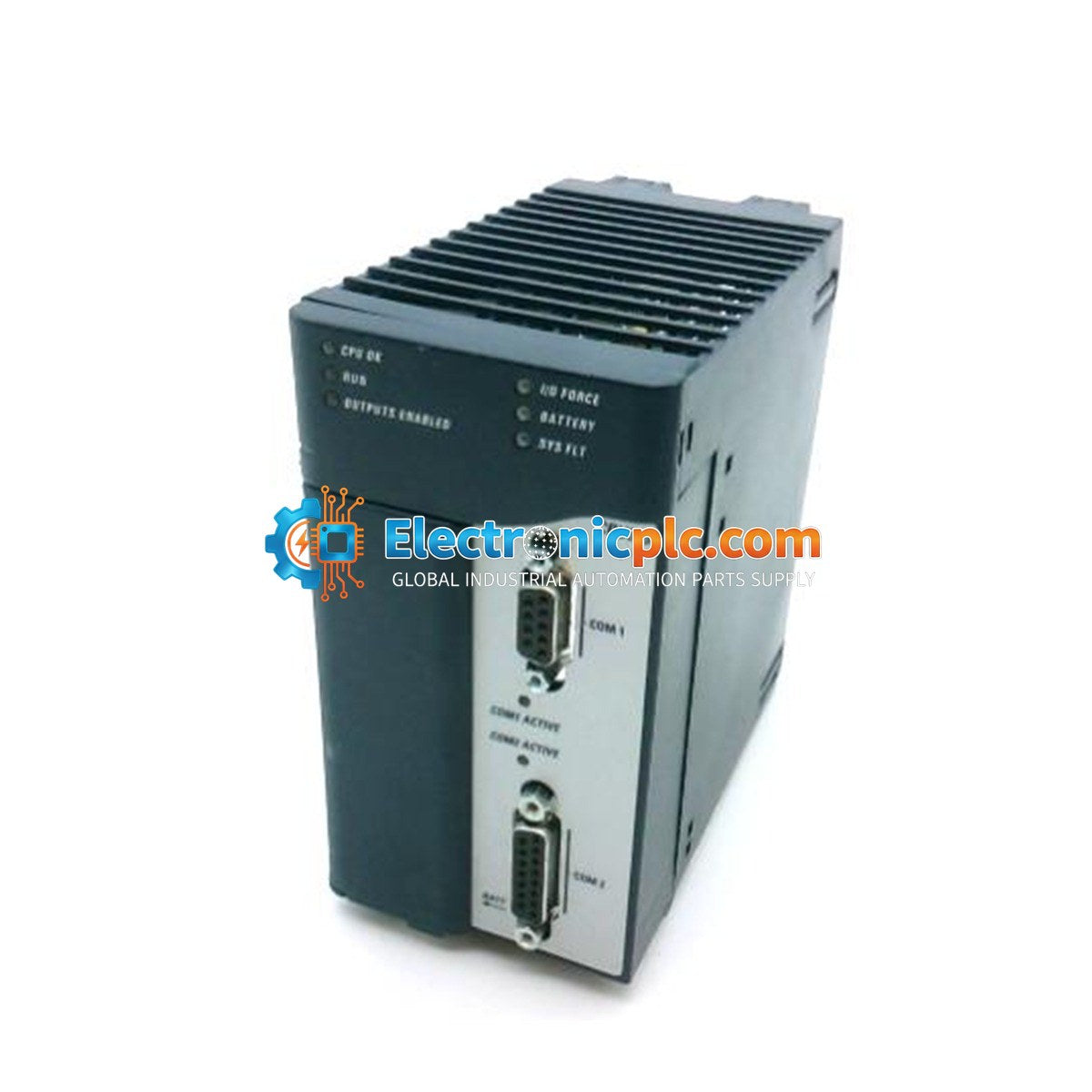

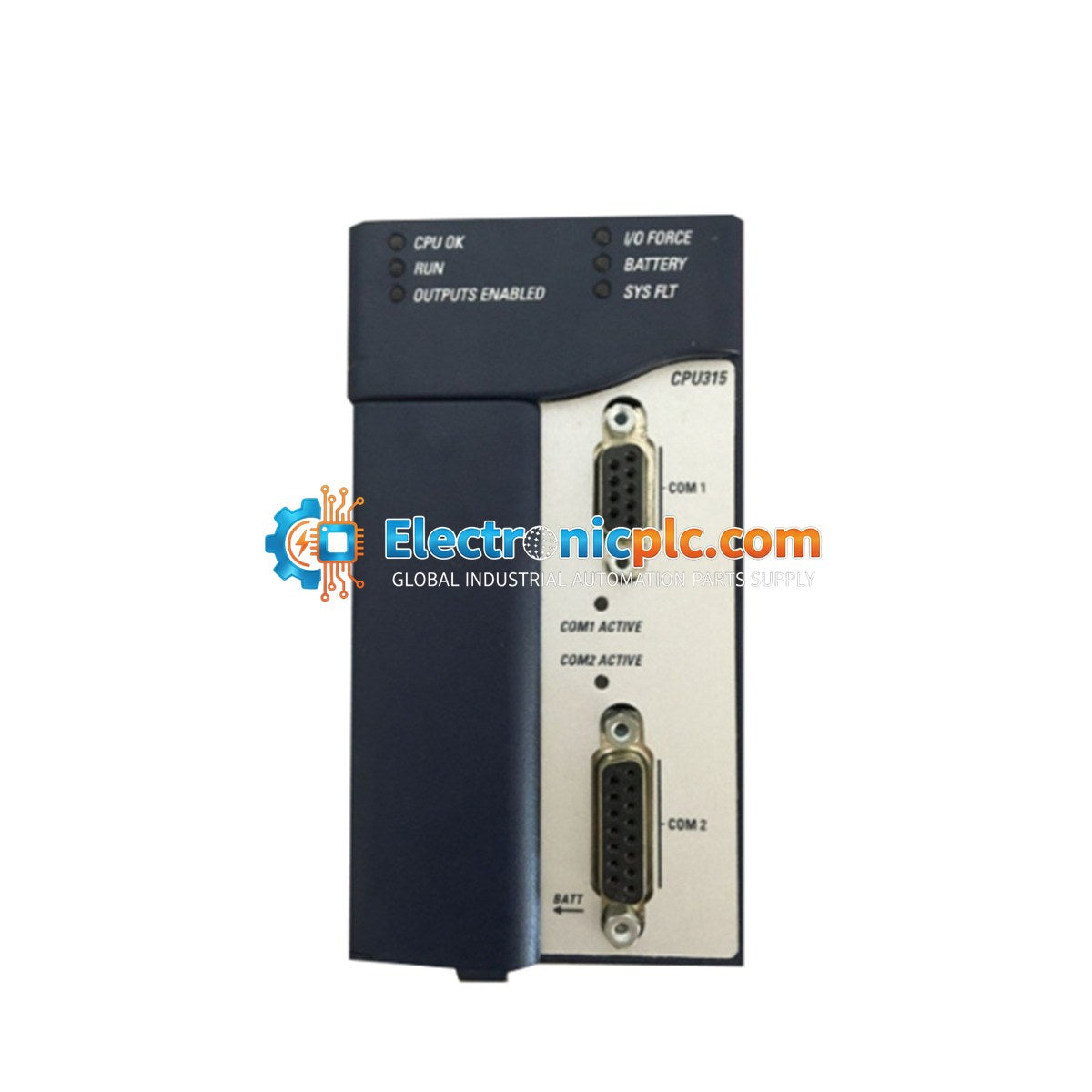

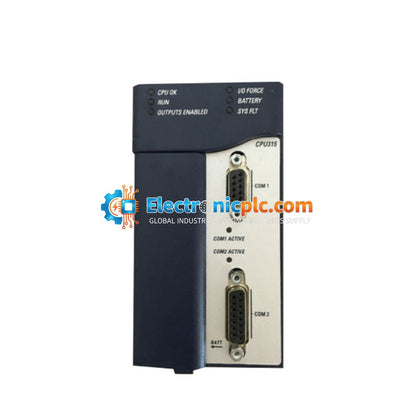

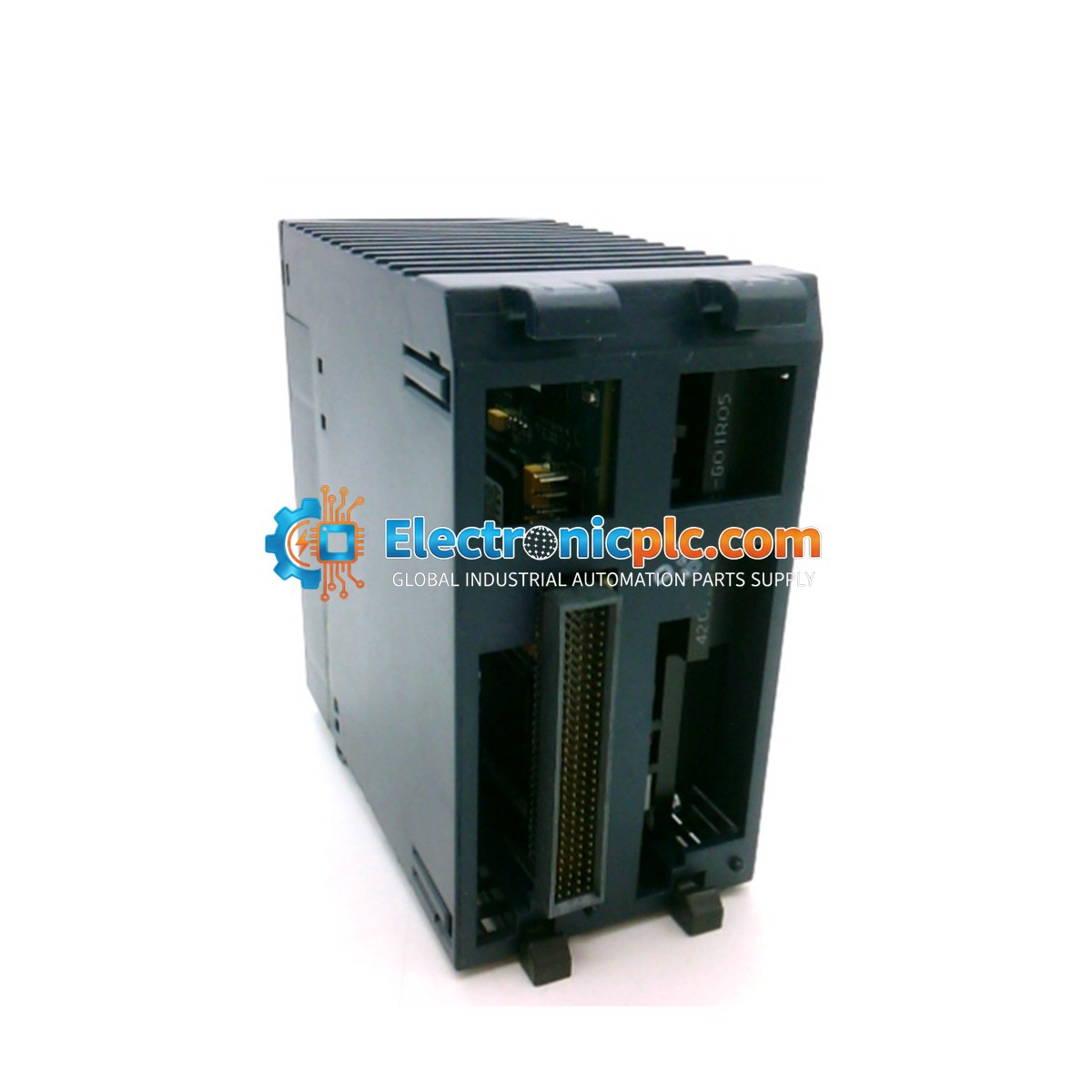

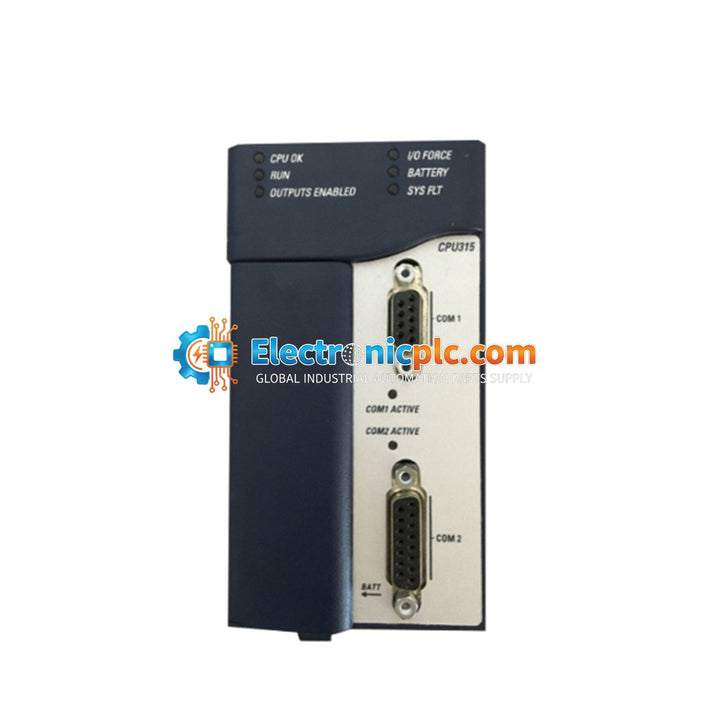

The General Electric IC695CPU315 is a high-performance central processing unit (CPU) module designed for the PACSystems RX3i control platform. This module serves as the primary controller for complex automation tasks, providing robust processing power and memory management for industrial applications. It is engineered to handle demanding logic, motion, and process control requirements within the RX3i rack-based system.

Features

• Equipped with a 1 GHz Celeron M microprocessor for high-speed execution of control logic.
• Includes 20 MB of user memory for extensive program storage and data handling.
• Features two integrated serial ports supporting RS-485 and RS-232 communication protocols.
• Seamless integration with the PACSystems RX3i backplane for high-speed I/O communication.
• Designed for scalability and reliability in harsh industrial environments.

Technical Specifications

Installation Guidelines

• Ensure the RX3i rack is powered down before inserting or removing the CPU module to prevent electrical damage.
• Align the module carefully with the backplane connector and slide it into the designated slot until fully seated.
• Secure the module using the integrated locking mechanism to ensure a stable connection and proper grounding.
• Maintain proper ventilation around the rack assembly to prevent overheating during operation.
• Use shielded cables for serial communication to minimize electromagnetic interference (EMI) in industrial environments.
• Handle the module using ESD-safe practices to protect sensitive internal components from electrostatic discharge.

FAQ

What is the primary function of the IC695CPU315?

The IC695CPU315 acts as the central controller for the PACSystems RX3i system, executing user-defined control logic, managing I/O data, and facilitating communication with external devices via its serial ports.

Is this module compatible with other RX3i series components?

Yes, the IC695CPU315 is specifically designed for the PACSystems RX3i platform and is compatible with standard RX3i I/O modules and backplanes.

Does this CPU require external cooling?

While the module is designed for standard industrial enclosures, it is important to ensure adequate ambient airflow and proper rack spacing to maintain the operating temperature within specified limits.
