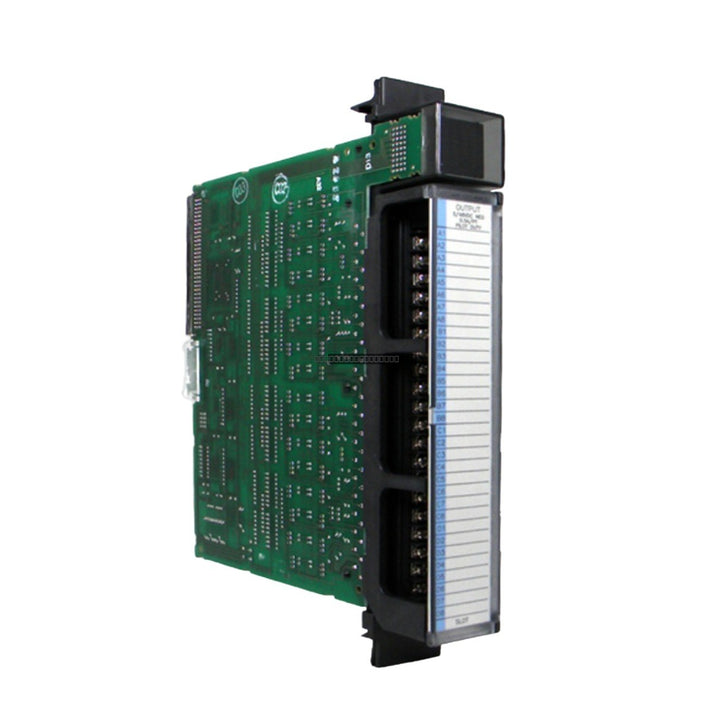

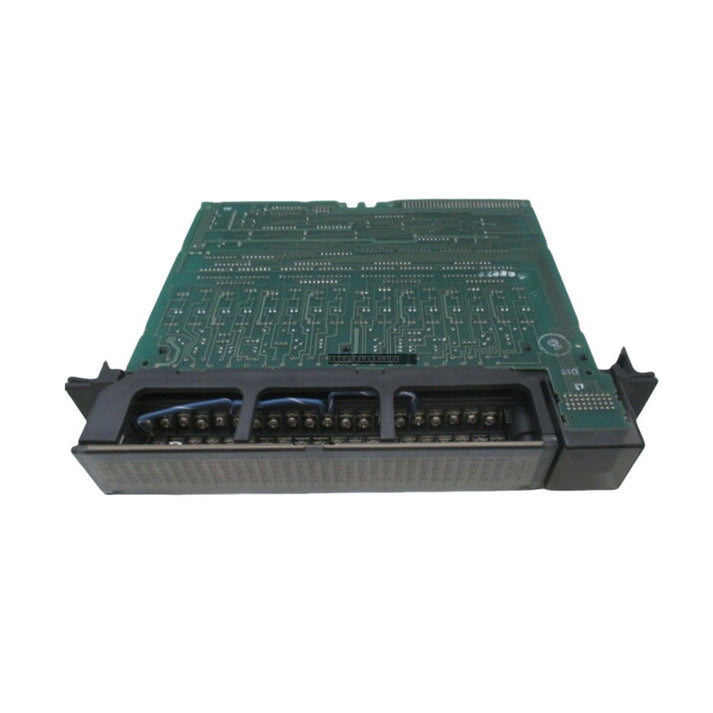

The General Electric IC697MDL753 is a high-density discrete output module designed for the Series 90-70 Programmable Logic Controller (PLC) platform. This module features 32 output points configured in two isolated groups of 16, utilizing negative logic (sinking) to interface with various industrial loads such as solenoid valves, motor starters, and indicators.

Features

• 32-point discrete output density
• Negative logic (sinking) configuration
• Versatile operating voltage range: 5 VDC or 10 to 60 VDC
• Two isolated groups of 16 outputs each
• Integrated LED status indicators for each point on the logic side
• Supports TTL level compatibility

Technical Specifications

Applications

This module is suitable for various industrial automation environments, including:

• Automotive assembly and robotics
• Energy and power plant grid management
• Oil and gas refinery safety systems and pipeline monitoring
• Chemical and pharmaceutical batch processing
• Transportation signaling and logistics handling

Installation Guidelines

• Ensure all power is disconnected from the PLC rack before inserting or removing the module to prevent electrical damage.
• The module is designed for standard Series 90-70 rack mounting; ensure it is fully seated and the locking levers are secured.
• Use shielded cabling for output signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Maintain proper ventilation within the cabinet to ensure the module operates within its specified temperature range.
• Verify that the load connected to the output does not exceed the 0.5A per point or 4A per group current limits.

FAQ

What is the primary function of the IC697MDL753?

It is a 32-point discrete output module for the GE Series 90-70 PLC, used to control external field devices via negative logic sinking outputs.

How are the outputs organized?

The 32 outputs are divided into two electrically isolated groups, each containing 16 points, allowing for flexibility in power distribution to field devices.

Does this module require manual configuration?

No, the module is configured via the PLC programming software. It does not utilize physical jumpers or DIP switches for I/O reference setting.
