Product Overview

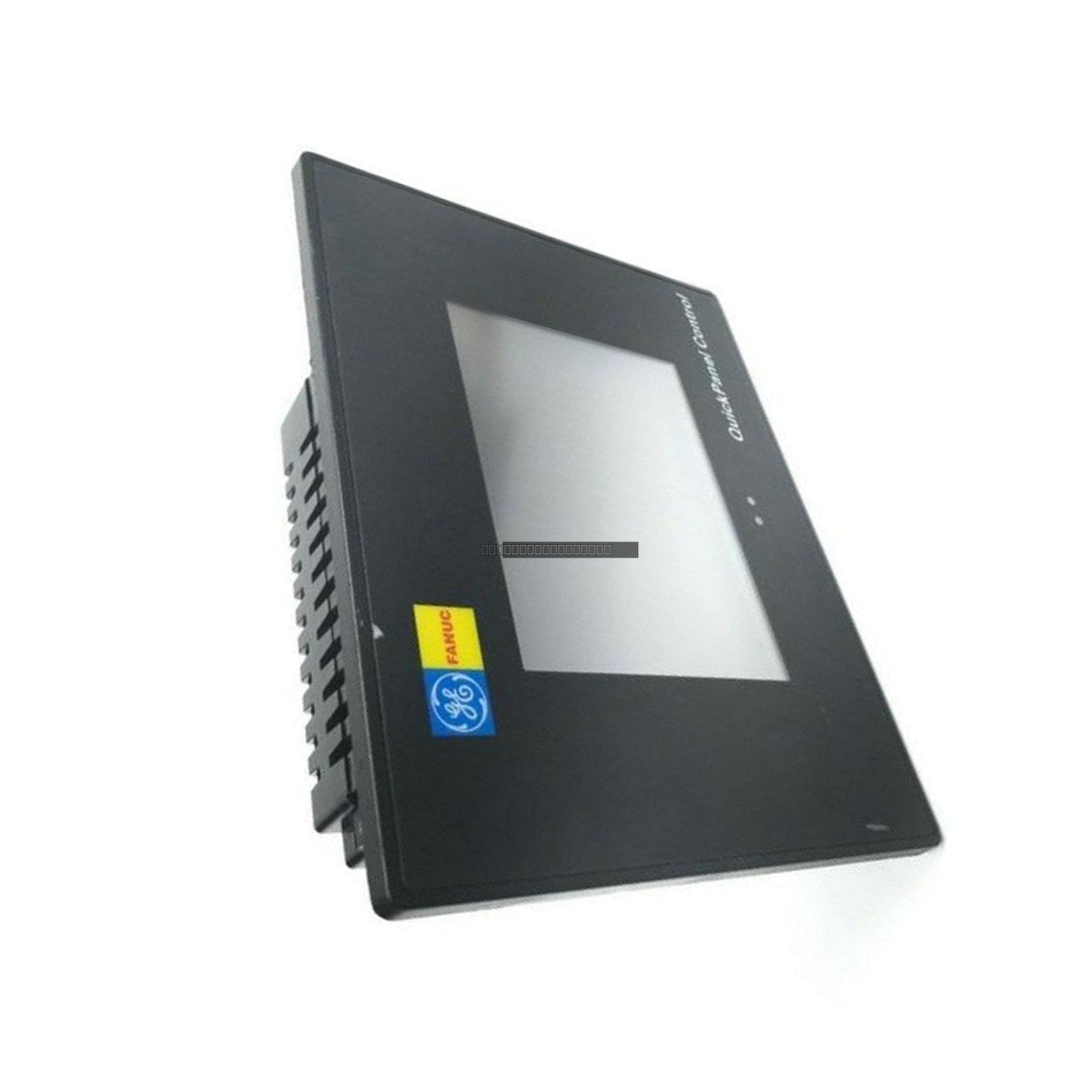

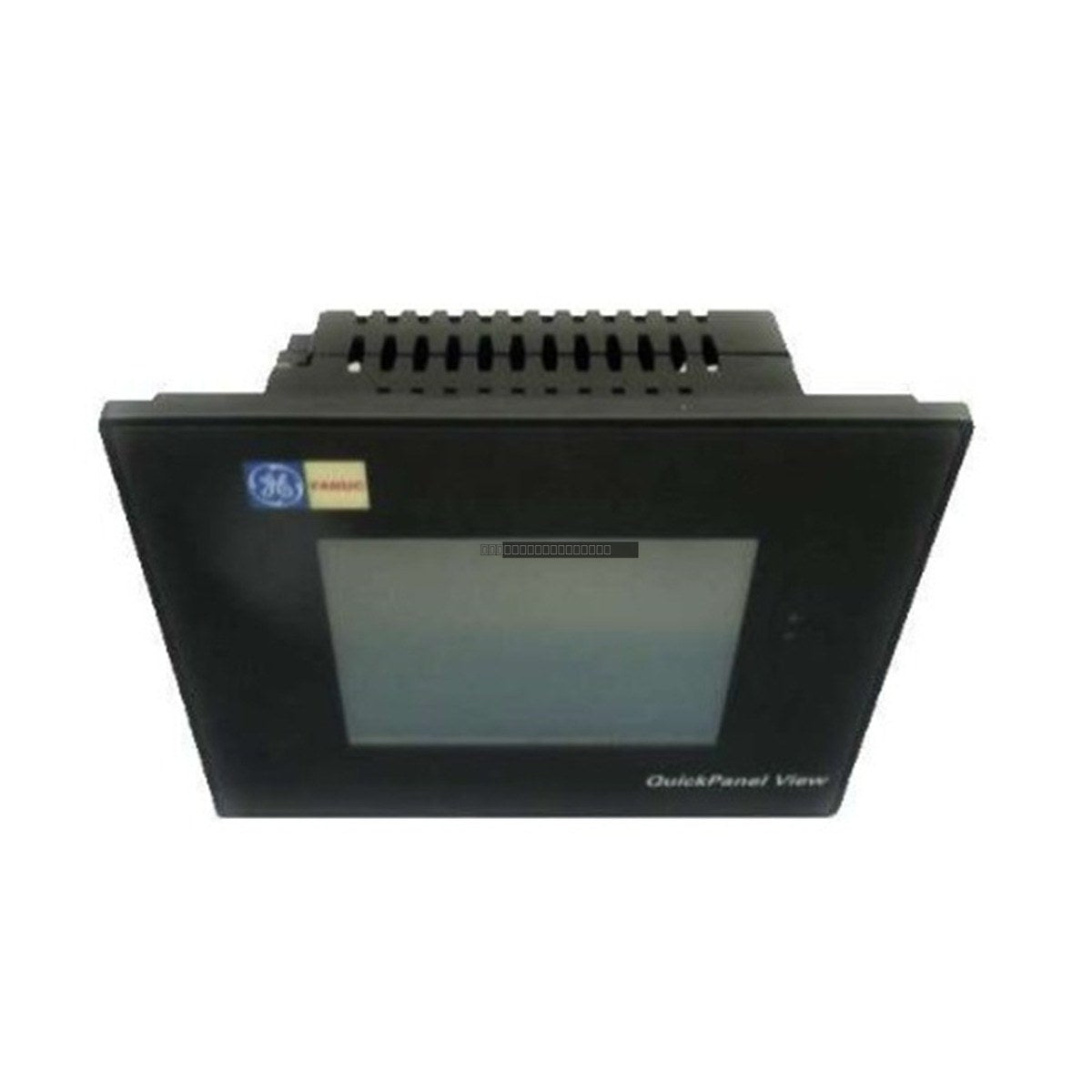

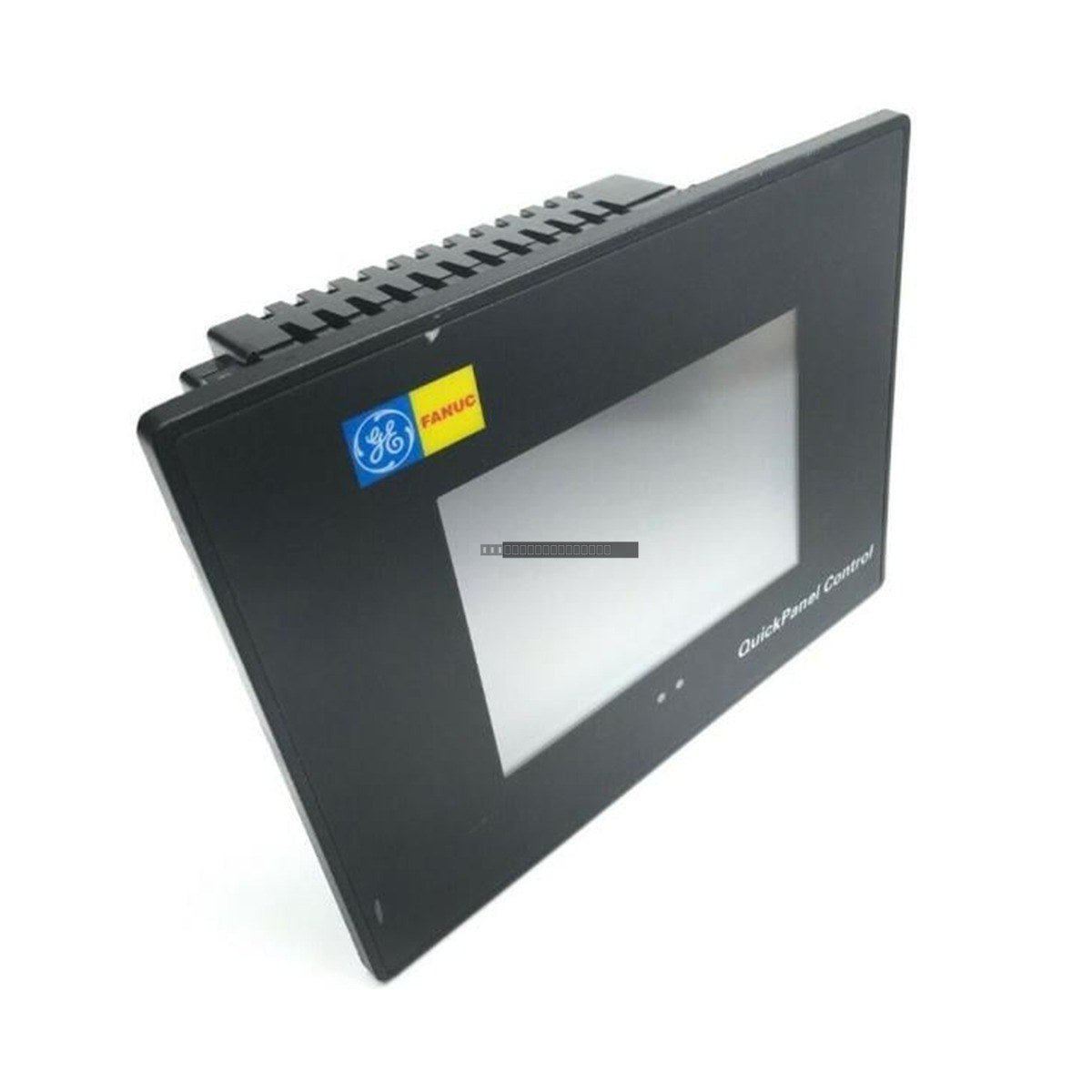

The IC754VGI06STD is a 6-inch color touchscreen Human-Machine Interface (HMI) terminal from the GE Fanuc QuickPanel series. It serves as a primary visualization and control node for industrial automation systems, enabling operators to monitor real-time process data and manage system alarms effectively. This unit is designed to bridge the gap between complex PLC logic and operator interaction, facilitating improved diagnostic visibility and reduced system downtime in environments such as food processing, water treatment, and discrete manufacturing.

Features

• 6-inch high-visibility color display for clear process monitoring.
• Integrated support for RS232 and RS485 communication protocols.
• 32 MB internal memory for screen layout and runtime data storage.
• Ruggedized touchscreen overlay designed for high-frequency industrial use.
• Wide input voltage range (12-30 VDC) for flexible power supply integration.
• Compatible with the HMI-CAB-C67 communication cable for reliable serial connectivity.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout dimensions are verified prior to mounting to maintain NEMA/IP seal integrity.
• Use shielded communication cables for RS232/RS485 connections to minimize EMI interference.
• Verify that the power supply is within the 12-30 VDC range before applying power.
• Maintain proper ventilation around the unit to ensure the operating temperature remains below 50 degC.
• Always disconnect power before performing any wiring or maintenance on the HMI terminal.
• Ensure the unit is properly grounded to the control panel chassis to prevent electrical noise issues.

FAQ

Is this HMI still supported by the manufacturer?

The IC754VGI06STD is classified as a discontinued or obsolete product. Spare parts and technical support may be limited; it is recommended to verify compatibility with existing legacy systems before procurement.

What is the required communication cable for this model?

This unit is designed to interface using the HMI-CAB-C67 communication cable for serial data transfer.
