Description

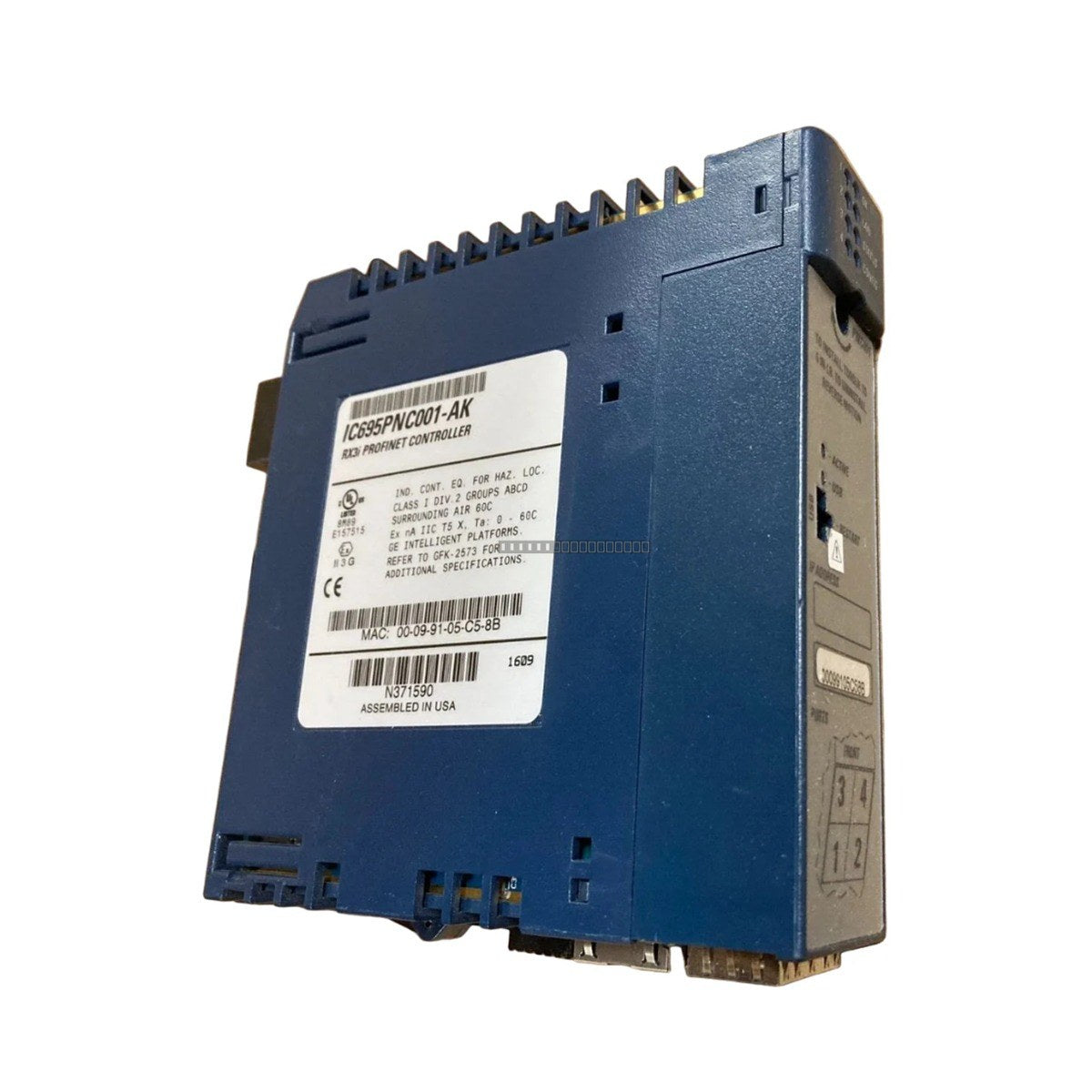

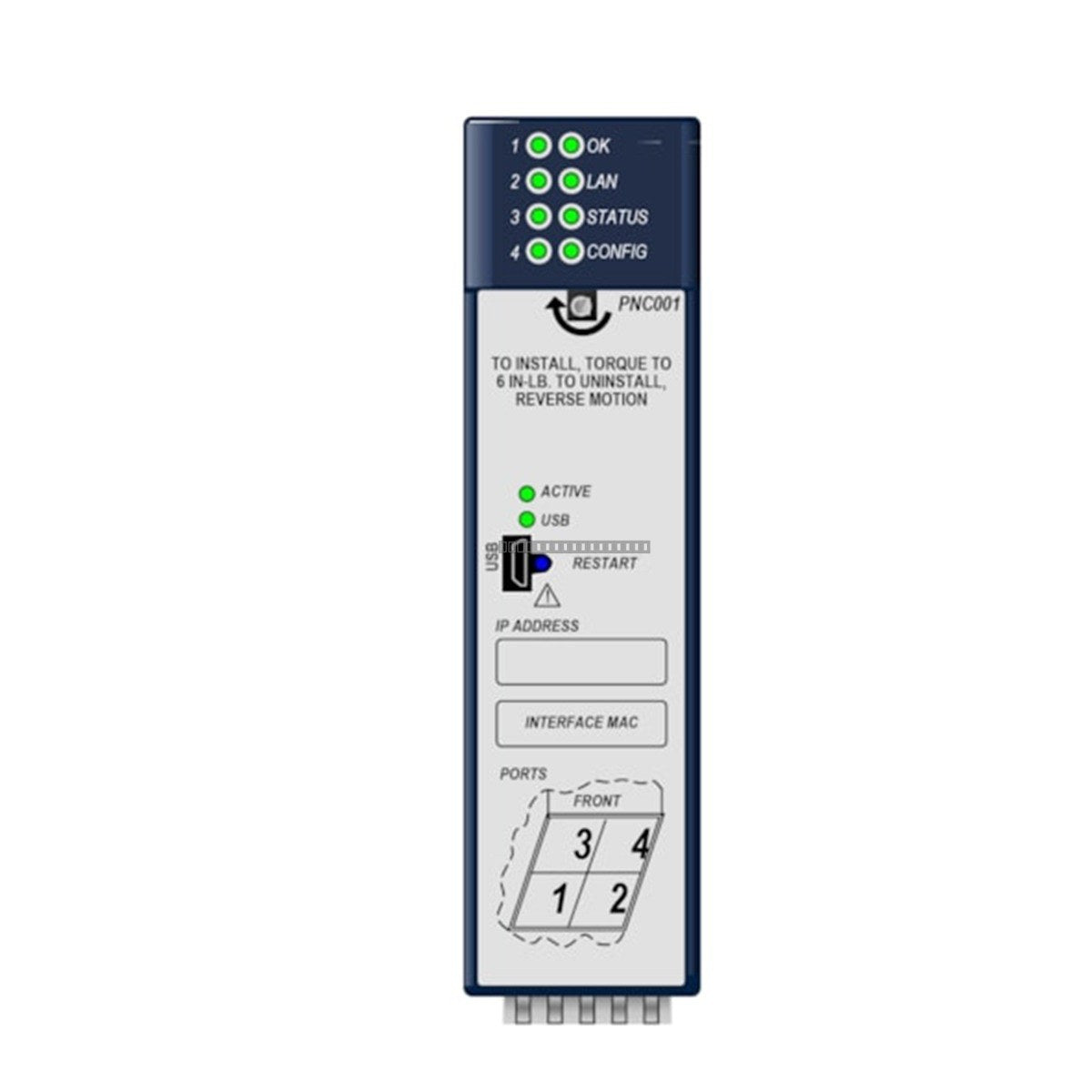

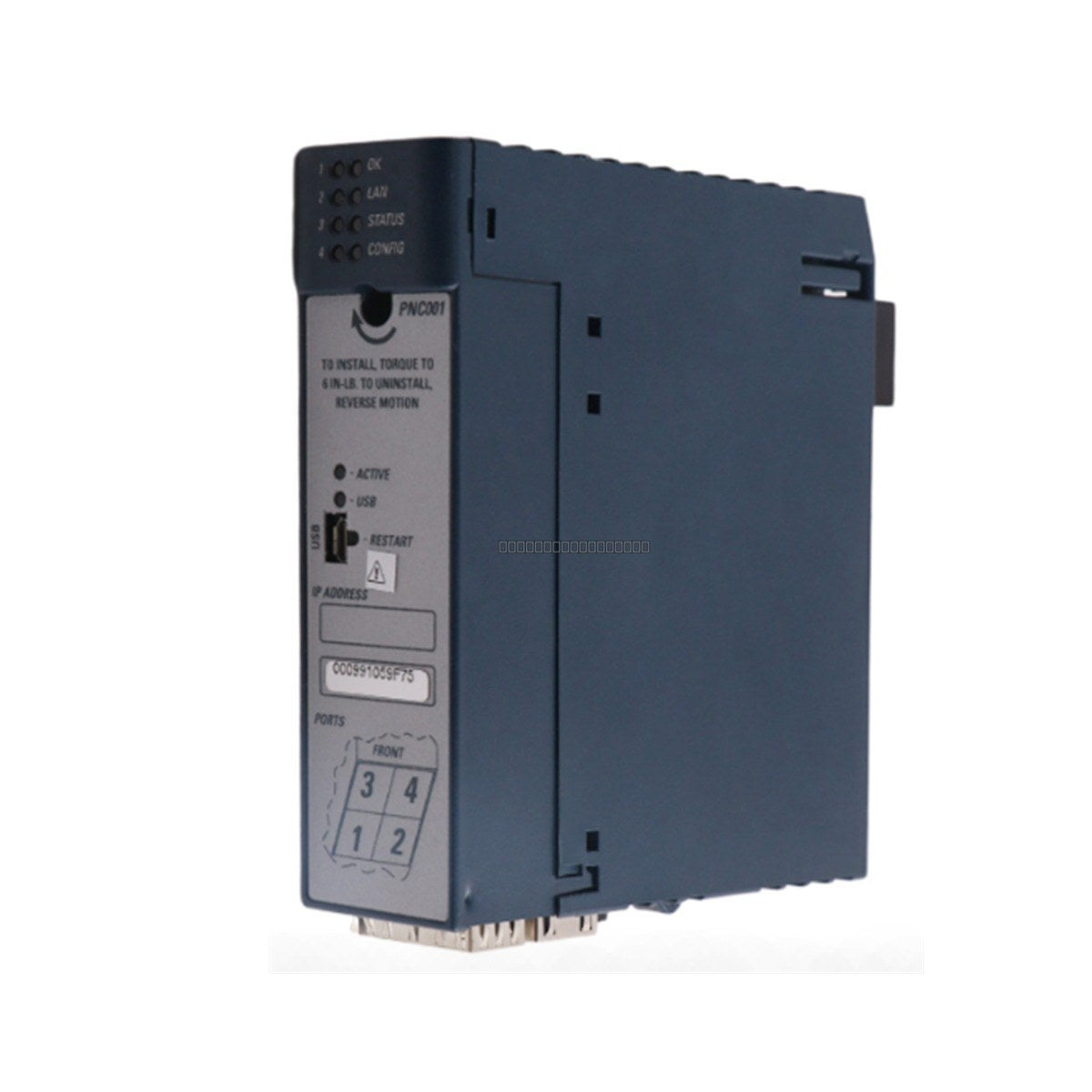

The GE Fanuc IC695PNC001 is a high-performance PROFINET Controller module designed for the PACSystems RX3i control platform. This module enables seamless communication between the RX3i controller and various PROFINET I/O devices, supporting advanced industrial automation networking. It is engineered for integration into the RX3i universal backplane, providing robust connectivity and diagnostic capabilities for complex control systems.

Features

• Supports PROFINET Version 2.2 General Class A protocol.
• Equipped with two RJ-45 ports and two SFP cages for flexible network media connectivity.
• Includes a dedicated Micro USB port for system diagnostics and initial configuration.
• Provides 128 Kbytes of combined input/output memory per PROFINET controller.
• Supports up to 64 IO-Devices per network.
• Occupies a single slot in the main rack of the PACSystems RX3i system.

Technical Specifications

Installation Guidelines

• Ensure the PACSystems RX3i system is powered down before inserting or removing the module.
• The IC695PNC001 must be installed in the main rack of the RX3i system.
• Use shielded Ethernet cabling for PROFINET connections to minimize EMI interference in industrial environments.
• Ensure proper grounding of the RX3i rack assembly to maintain signal integrity and safety.
• Handle the module using ESD-safe practices to prevent damage to internal electronic components.
• Verify that the CPU firmware is compatible with the PROFINET controller module requirements before commissioning.

FAQ

What is the primary function of the IC695PNC001?

The IC695PNC001 serves as a PROFINET Controller for the GE PACSystems RX3i platform, allowing the PLC to communicate with and manage PROFINET I/O devices across an industrial network.

Can this module be used in an expansion rack?

No, the IC695PNC001 is designed for use in the main rack of the PACSystems RX3i system only.

What is the purpose of the Micro USB port on this module?

The Micro USB port is intended strictly for system diagnostics and initial system setup tasks.
