Description

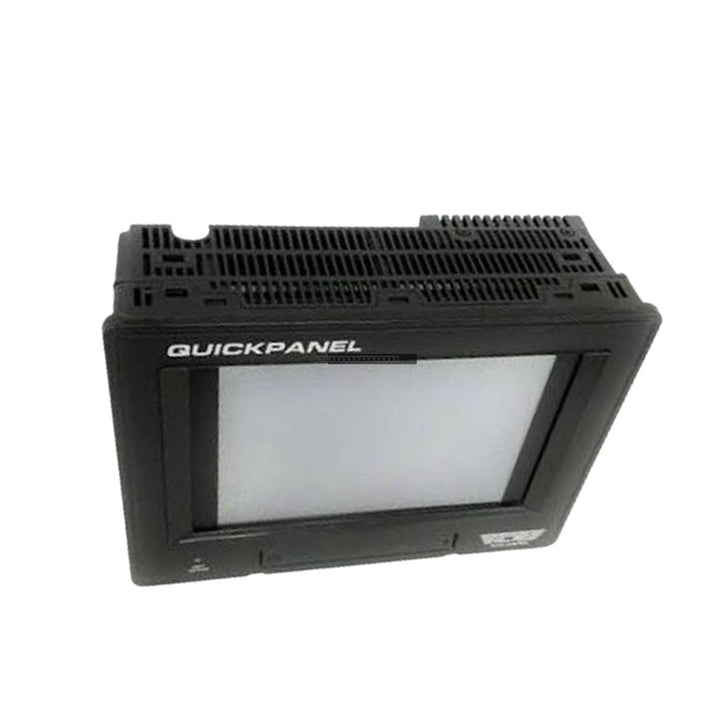

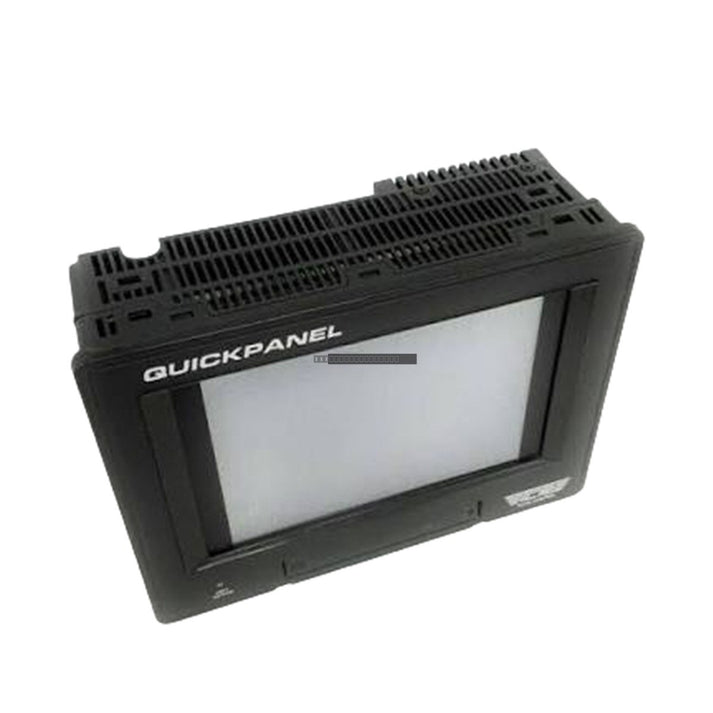

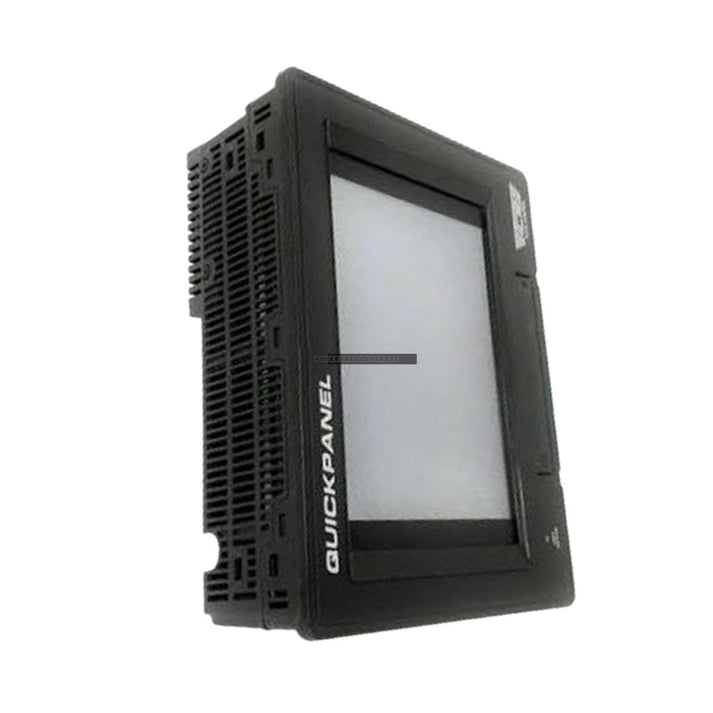

The General Electric QPI11100S2P is a 10.4-inch operator interface terminal from the QuickPanel series. Designed for industrial visualization and control, this unit features a standard color LCD display, providing clear monitoring and interaction capabilities for automated processes. Please note that this specific model has been discontinued by the manufacturer.

Features

• 10.4-inch standard color LCD display for process visualization.
• Designed for integration into industrial control systems.
• Operates on a standard 100-120 VAC power supply at 50/60 Hz.
• Compact operator interface architecture for panel mounting.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout is prepared according to the manufacturer's mounting template to maintain the integrity of the enclosure seal.
• Verify that the power supply voltage matches the 100-120 VAC requirement before connection.
• Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating of the internal electronics.
• Use shielded communication cables where applicable to minimize electromagnetic interference (EMI) in industrial environments.
• Always disconnect power before performing any wiring, maintenance, or installation tasks to prevent electrical shock or damage to the device.

FAQ

Is the QPI11100S2P still in production?
No, this model has been discontinued by General Electric. We provide these units as spare parts for legacy system maintenance.

What is the power requirement for this operator panel?
This unit is designed to operate on a 100-120 VAC power source at 50/60 Hz.
