Description

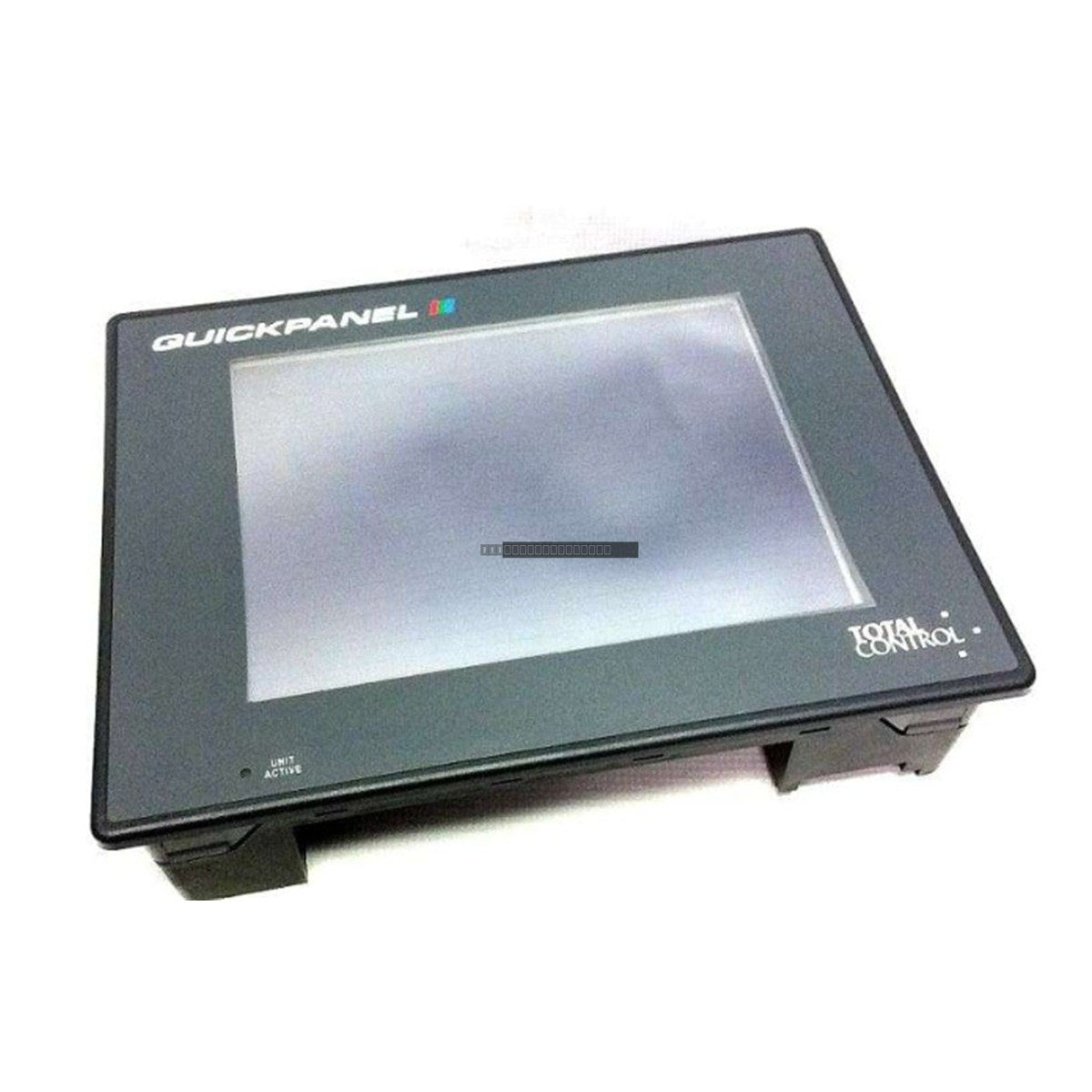

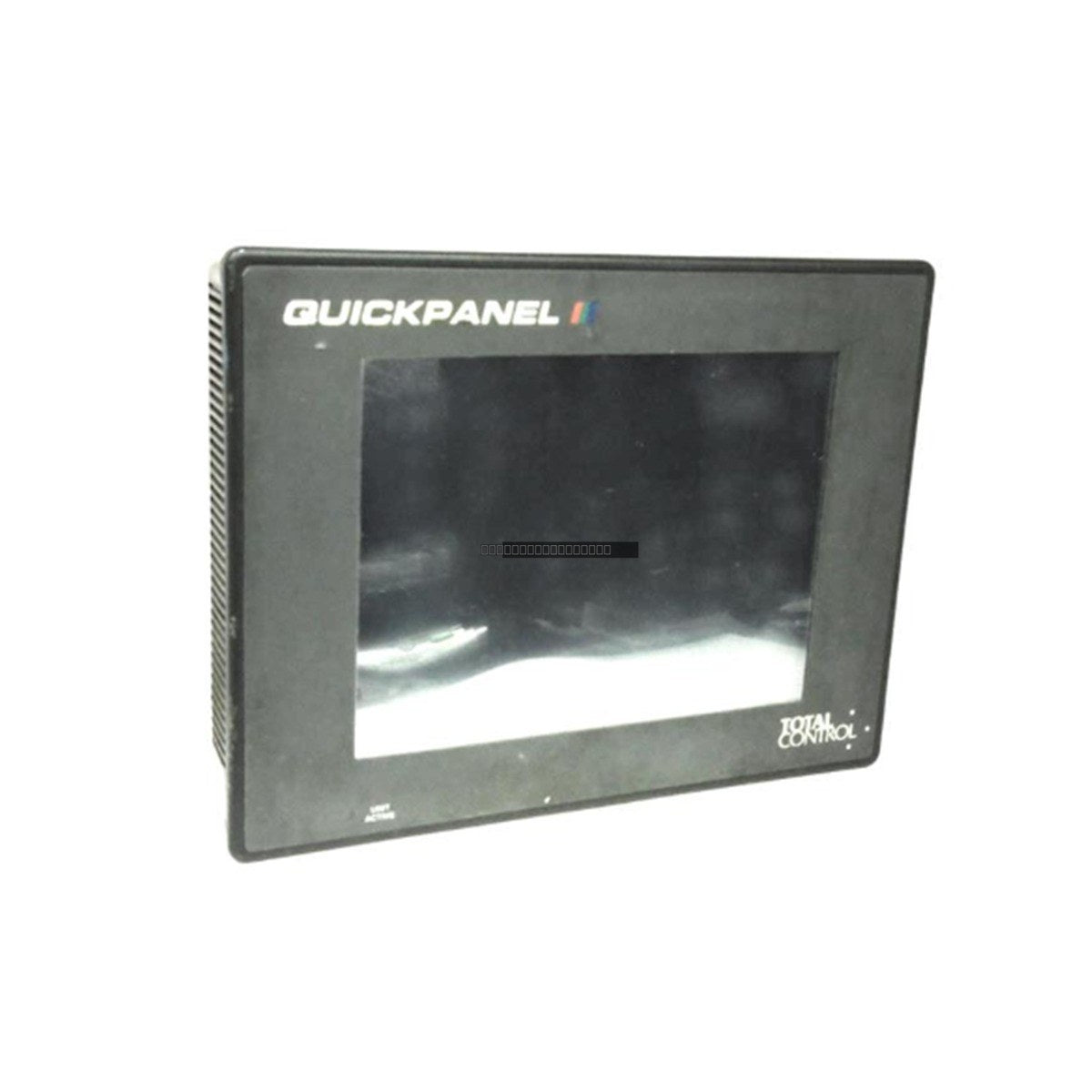

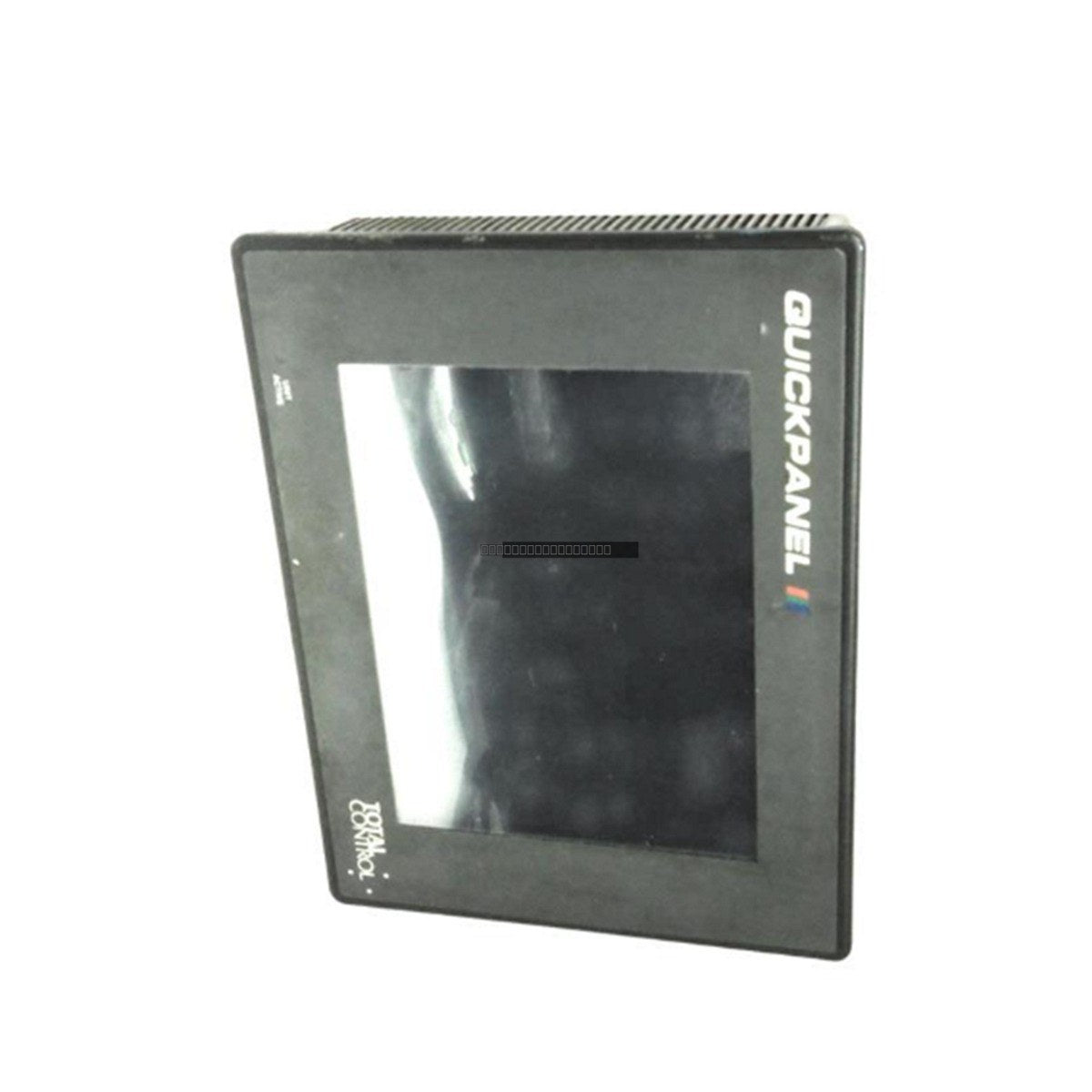

The GE Fanuc QPI2D100S2P is a 10.4-inch Human-Machine Interface (HMI) module belonging to the QuickPanel series. Designed for robust industrial process monitoring, this unit provides operators with a clear, reliable interface for visualizing machine status, managing alarms, and adjusting control parameters. The QPI2D100S2P is built to withstand demanding factory floor conditions, facilitating efficient diagnostics and reducing system downtime through its intuitive touch-based interaction.

Features

• 10.4-inch color STN LCD display with 640 x 480 pixel resolution.
• Analog resistive touch screen interface with a 32 x 24 touch matrix for precise input.
• Fanless design utilizing natural air convection for cooling, reducing maintenance requirements.
• Integrated serial ports and a dedicated download port for flexible PLC network connectivity.
• Rugged enclosure rated for NEMA 4X/12 and IP65, providing protection against dust and water ingress.
• Compatible with QuickDesigner Version 3.7 software for advanced graphical interface configuration.

Applications

This HMI module is suitable for a wide range of industrial automation tasks, including chemical processing, food and beverage packaging, and manufacturing assembly line control. It serves as a centralized point for localized diagnostics and real-time process oversight.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout is prepared according to manufacturer specifications to maintain the IP65/NEMA 4X seal.
• Use appropriate mounting gaskets and hardware to secure the unit against the enclosure surface.
• Verify that the 24 VDC power supply is stable and properly grounded before connection.
• Route communication cables away from high-voltage lines or sources of electromagnetic interference (EMI) to prevent signal degradation.
• Maintain adequate clearance around the unit to allow for natural air convection cooling.
• Power down the unit before performing any wiring or maintenance tasks.

FAQ

What software is required to configure the QPI2D100S2P?
This module is designed for use with QuickDesigner Version 3.7 software.

Is this unit fan-cooled?
No, the QPI2D100S2P utilizes natural air convection cooling, which eliminates the need for internal fans and reduces mechanical maintenance.

What is the ingress protection rating of this HMI?
The unit meets IP65 and NEMA 4X/12 standards, making it suitable for environments where protection against dust and low-pressure water jets is required.
