Description

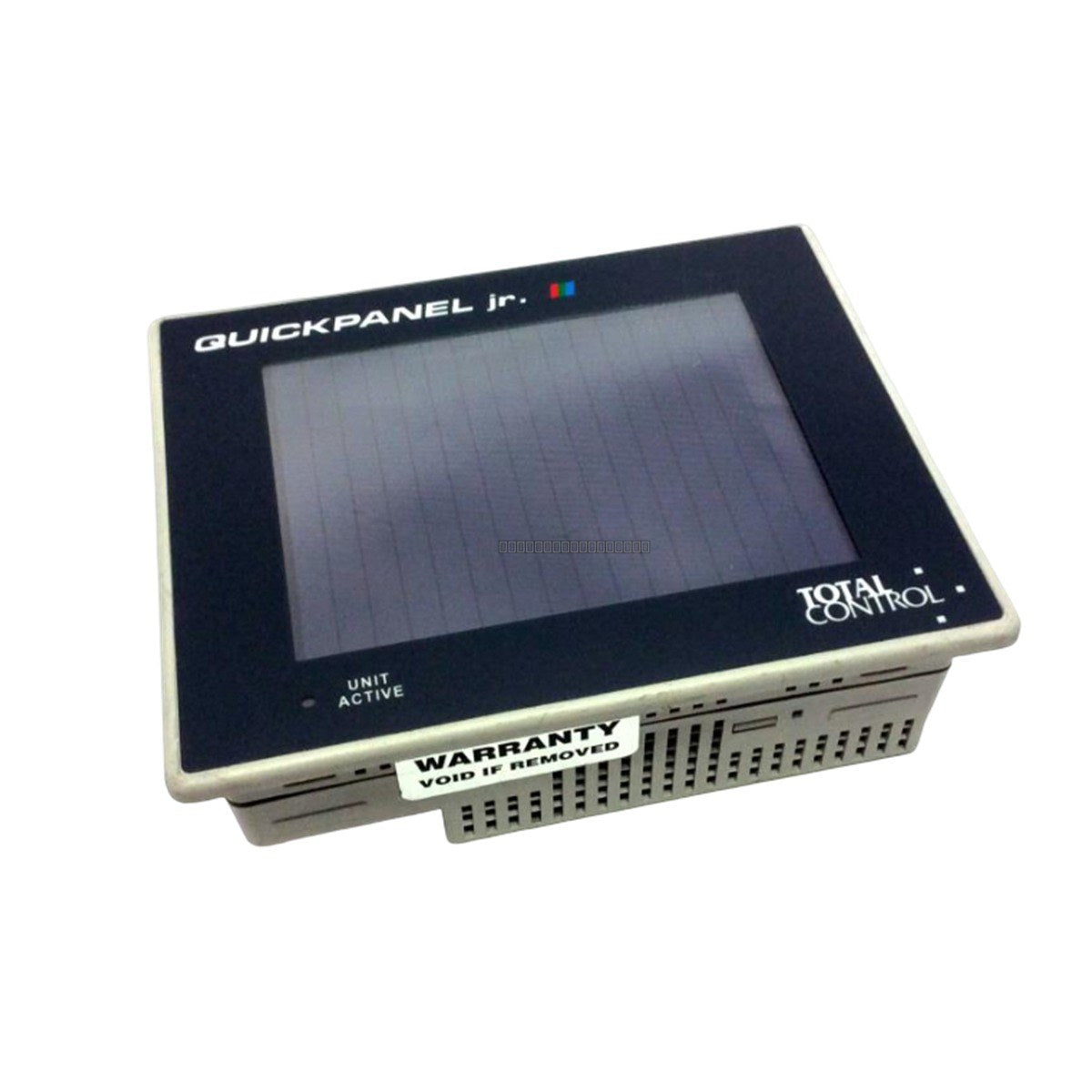

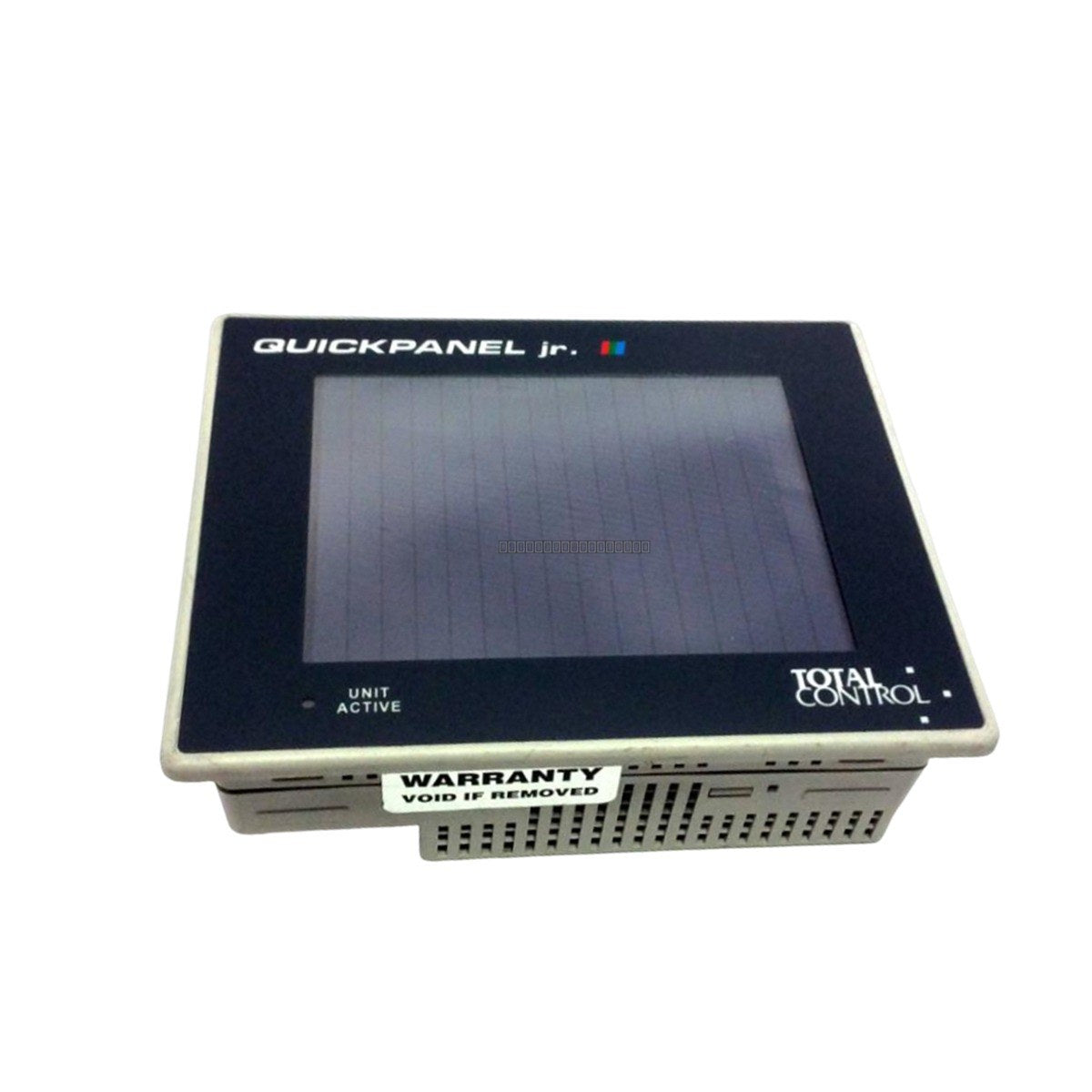

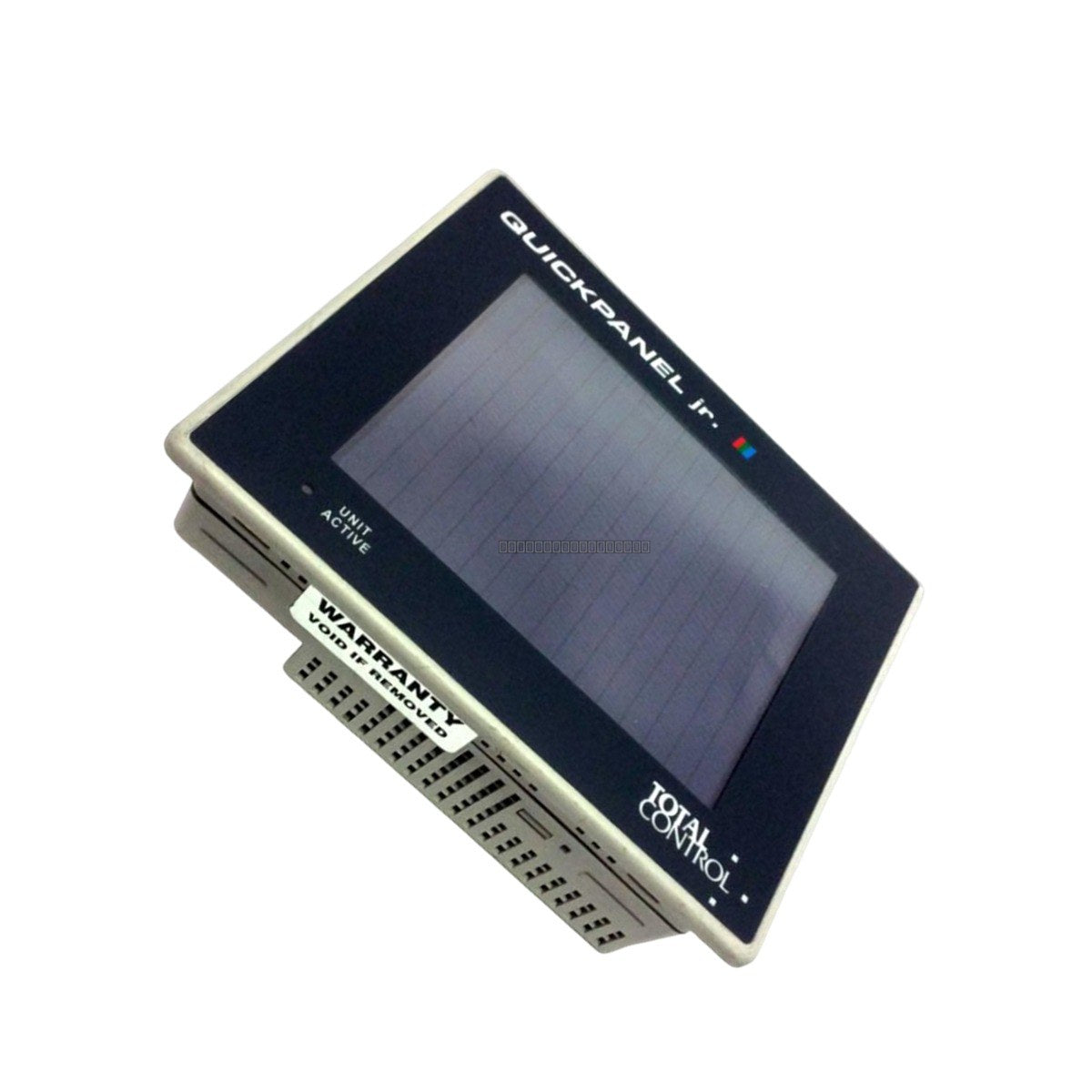

The GE Fanuc QPK3D200S2P is a 5.7-inch STN color touch screen operator interface belonging to the QuickPanel Jr. series. This HMI module is engineered to replace traditional mechanical controls and indicator lights, providing a centralized digital interface for machine command and status monitoring in industrial automation environments. It is suitable for applications such as automotive manufacturing, water treatment, and material handling, where accurate process diagnostics and rapid operator response are required to minimize downtime and maintain throughput.

Features

• 5.7-inch STN color LCD display with 320 x 240 pixel resolution.
• 2 MB Flash EPROM memory for application storage and execution.
• NEMA 4X/12 and IP65 rated enclosure for protection against dust and water ingress.
• Multi-protocol support for integration with major PLCs and industrial networks, including Modbus Plus, Profibus, and DeviceNet.
• Compact design optimized for panel mounting in space-constrained control architectures.

Applications

This unit is designed for use in various industrial sectors, including:

• Automotive assembly lines
• Water and wastewater treatment facilities
• Material handling and logistics systems
• General factory automation and process control

Technical Specifications

Installation Guidelines

• Ensure the panel cutout is prepared according to the manufacturer's specifications to maintain the NEMA 4X/12 seal.
• Verify that the power supply is 24 VDC and properly fused before connection.
• Use shielded communication cables to minimize EMI interference in high-noise industrial environments.
• Ensure adequate ventilation around the unit to maintain operating temperatures within the 0 to 50 degC range.
• Always power down the system before installing or removing the module to prevent electrical damage.

FAQ

Is this unit compatible with all PLC brands?

The QPK3D200S2P supports a wide range of industrial protocols and PLCs. However, specific connectivity may require optional expansion modules or specific driver configurations. Please verify your network requirements against the unit's protocol compatibility list.

What is the ingress protection rating?

The unit is rated NEMA 4X/12 and IP65, meaning it is protected against dust ingress and low-pressure water jets, making it suitable for wash-down environments when properly mounted.
